China factory 440W 48V bldc motor 3000rpm brushless dc motor
- Category: >>>
- Supplier: Changzhou Dewo Motor Co. Ltd.
Share on (60694759984):
Product Overview
Description
Product Description

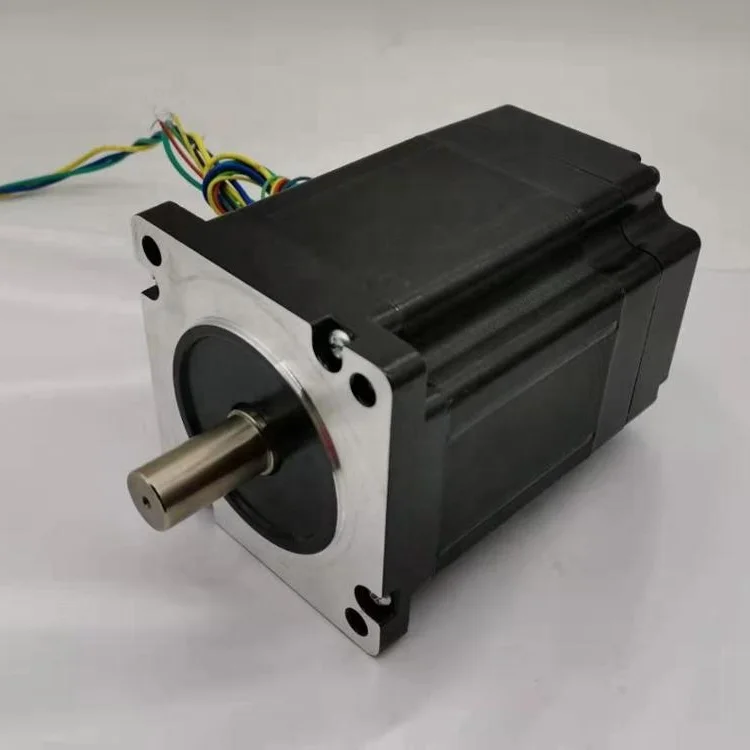

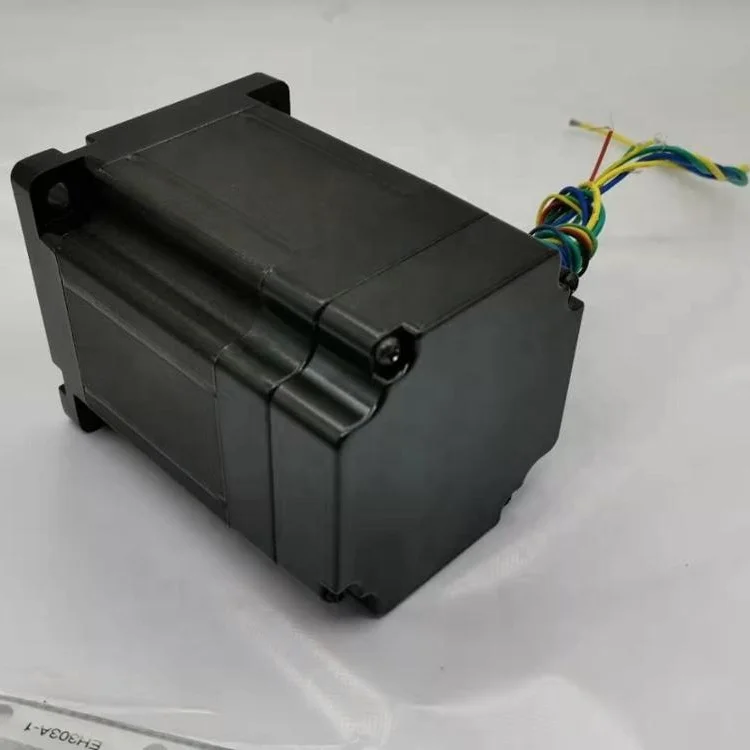

86mm Brushless dc Motor
General specification:
| Item | Specification |
| Widing type | Star/Delta |
| Hall effect angle | 120 degree electrice angle |
| Shaft runout | 0.03mm |
| Radial play | 0.03mm/50g |
| End play | 0.03mm/50g |
| Max radial force | 35N/20mm from the flange |
| Max axial force | 30N |
| Insulation class | Class B |
| IP class | IP 40 |
| Dielectric strength | 500VDC for one minute |
| Insulation Resistance | 100MΩmin 500VDC |
Electrical Specification:
| Model | Phase No. | Rated Voltage (VDC) | Rated Current (A) | Rated Speed (RPM) | Rated Torque (N.m) | Peak Torque (N.m) | Rated Power (W) | Mass (Kg) | Body Length (mm) | Mass (Kg) |
| DW86BL90-430 | 3 | 48 | 6 | 3000 | 0.7 | 2.1 | 220 | 1.8 | 90 | 1.8 |
| DW86BL120-430 | 3 | 48 | 12 | 3000 | 1.4 | 4.2 | 440 | 2.4 | 117 | 2.4 |
| DW86BL140-430 | 3 | 48 | 18 | 3000 | 2.1 | 6.3 | 660 | 3.8 | 144 | 3.8 |
| DW86BL90-640 | 3 | 310 | 1.3 | 4000 | 0.7 | 2.1 | 293 | 1.8 | 90 | 1.8 |
| DW86BL120-640 | 3 | 310 | 2.5 | 4000 | 1.4 | 4.2 | 586 | 2.4 | 117 | 2.4 |
| DW86BL140-640 | 3 | 310 | 3.8 | 4000 | 2.1 | 6.3 | 879 | 3.8 | 144 | 3.8 |

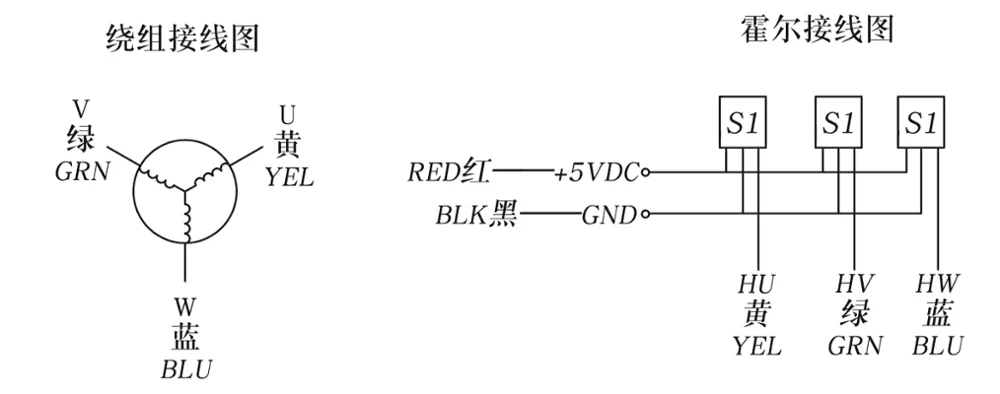

Wiring Diagram:
Electrical Connection:
| Lead No. | Lead Color | Lead Gauge | Function | Description |
| 1 | Red | UL3266/28AWG | VCC+5VDC | SUPPLY VOLTAGE FOR HALL SENSORS |
| 2 | Black | GND | GROUND FOR HALL SENSORS | |
| 3 | Yellow | HALL A | SIGNAL OF HALL A | |
| 4 | Green | HALL B | SIGNAL OF HALL B | |
| 5 | Blue | UL3266/20AWG | HALL C | SIGNAL OF HALL C |
| 1 | Yellow | PHASE U | MOTOR PHASE U | |
| 2 | Green | PHASE V | MOTOR PHASE V | |
| 3 | Blue | PHASE W | MOTOR PHASE W |
Product Description
Produce process
Our Services
Different specification of stepper motor with competitive price for your choice:
A wide range of application:
Our stepper motor are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical devices, stage lighting equipment, robot, CNC machine, music fountain and other industrial automatic equipment.
First-class service:
customization and OEM is available.
Warranty: 12 months
Contact Us: We 24 hours service for you! If you have any questions about our products, pleasee contact us without any hestation. It's a pleasure to serve you.
Contact me :
WhatsApp: +86 18306110590
Phone: +86 18306110590
Packaging & Shipping
We have standard package for our products. We can also make it as per your special requirements.
Shipping can be arranged as per your requirements. Air and sea transportation are both acceptabel.
Company Information
Changzhou Dewo Motor Co., Ltd, located in Changzhou city, Jiangsu Province, has been specilized in the field of exporting stepper motor, motor driver, BLDC motor and PM motor for several years. We have two our own production base and a strong R&D team.
Till now, Dewo has a variouty of specifications of hybrid stepper motors, and different linear stepper motor, geared stepper motor, stepper motor with brake. Because of its long working life, stable performance and low failure rate, our products are well received by customers. We have got the certification of CE, RoHS and ISO9001:2008.
If you are interested in any of our products, please feel free to visit our website and contact us directly for more informations. We are looking forward to cooperate with you!
Certifications:
Contact Informations:
Changzhou Dewo Motor Co.,Ltd
Website: //dewochina.com
Address: Dai Luo Road 135,Luoyang Town, Wujin District, Changzhou City, Jiangsu Province, China
FAQ
1.Q:Can I get some samples first?
A:Sure, we are honored to offer you samples for your check.
2.Q:Do you have the products in stock?
A:Our products are manufactured according to your order except the normal products.
3.Q:What's the delivery time?
A:It usually takes about 7 working days,but the exact delivery time might be different for different order or at different time.
4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.
5.Q:What's your warranty terms?
A: We offer different warranty terms for different products. Please contact with us for details.
