Rotary / Circle / Octagon Shape Zirconia ZrO2 Ceramic Blades / Cutters for Fabric Cutting
- Category: >>>
- Supplier: Xiamen Mascera Technology Co. Ltd.
Share on (60694831387):
Product Overview
Description
PRODUCT DESCRIPTION
Product Name | Rotary / Circle / Octagon Shape Zirconia ZrO2 Ceramic Blades / Cutters for Fabric Cutting |
Material | Yttria Stabilized Zirconia Ceramic/ZrO2 Ceramic/Zirconium Oxide |
Color | White |
Moh's Hardness | 9 |
Usage | For cutting of Carpet, Textile, Cloth, Leather etc. |
Ceramic blades made of zirconia ceramic have very high hardness and good wear resistance and corrosion & oxidation resistance, it will never rust like metal blades and the sharp cutting edges will remain much longer time, it will reduce the replacement frequency and improve efficiency of cutting works.
Nowadays, ceramic blades have been widely used for utility knives or cutting machines for many industries. It shows excellent performance in cutting paper, carboard, fiber, aluminum foil, plastic film, adhesive tap, rubber, cloth, rubber, gelatin capsule etc.

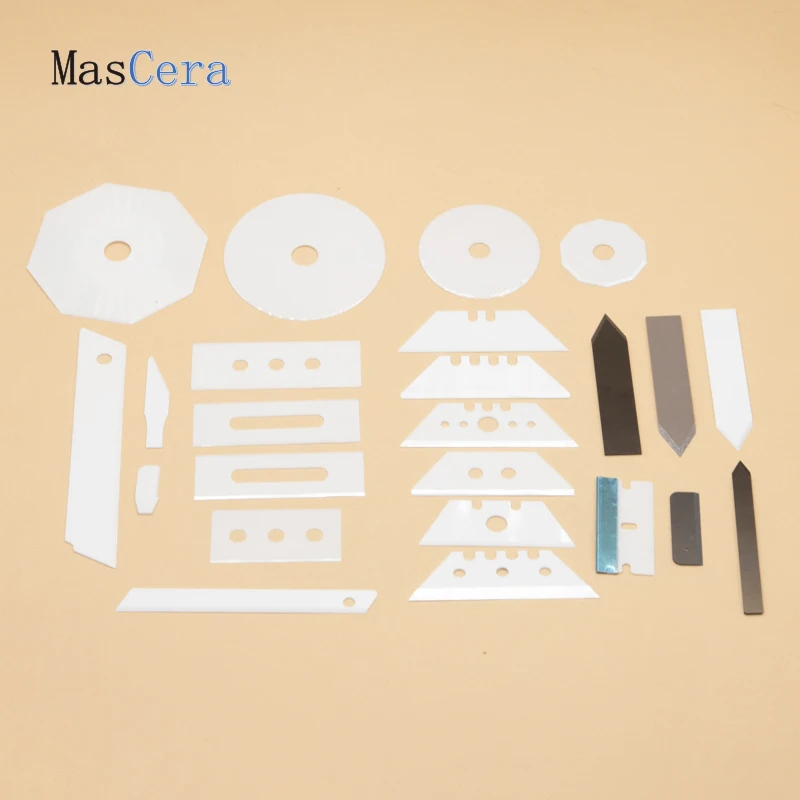

| Product image |  |  |  |  |

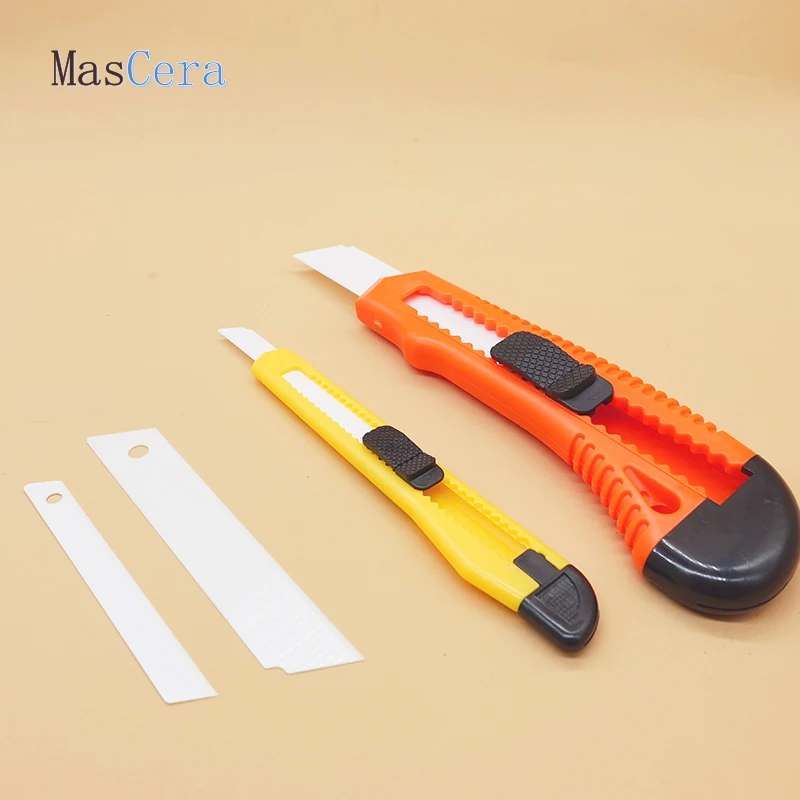

| Product name | Ceramic utility blade | Capsule cutting ceramic blade | Ceramic slitting blade | Metal clip ceramic blade |
| Material | zirconia ceramic | zirconia ceramic | zirconia ceramic | metal clip + ceramic blade |
| Size | big:103*18*t0.6 mm small:80*9*t0.4/0.5 mm | 64.5*12.7*t1.0mm 64.5*6.35*t1.0mm | 60*12* t0.5mm | 39*19.5*t0.4 mm |
| Product image |  |  |  |  |
| Product name | 3-hole ceramic blade | 3-hole ceramic blade | Slotted ceramic blade | Trapezoid ceramic blade |
| Material | zirconia ceramic | zirconia ceramic | zirconia ceramic | zirconia ceramic |
| Size | 43*22*t0.2/0.3 mm | 60*22*t0.3/0.4 mm | 57*19*t0.38 mm | 61*19*t0.7 mm |
| Product image |  |  |  |  |

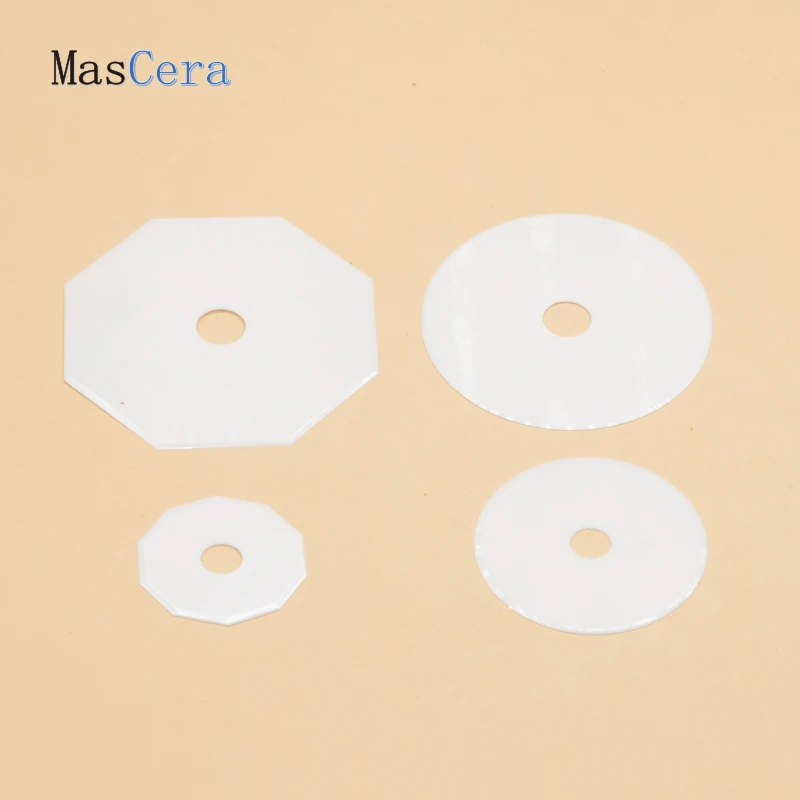

| Product name | Trapezoid ceramic blade | Trapezoid ceramic blade | Ceramic circular blade | Octagonal ceramic blade |
| Material | zirconia ceramic | zirconia ceramic | zirconia ceramic | zirconia ceramic |
| Size | 62*20*t0.7 mm | 61.5*19.05*t0.7 mm | Ø60 * Ø8 * t0.4~0.5mm Ø45 * Ø8 * t0.4~0.5mm | Ø67.6*Ø10*t0.6 mm |
| Item | Unit | Value |
| Material | -- | Zirconium Oxide |
| Color | -- | White |
| Density | g/cm3 | 5.95-6.05 |
| Hardness(HV 0.5) | -- | 1300 |
| Fracture Toughness | Mpa.M1/2 | 7 |
| Flexural Strength (@R.T.) | Mpa | 900 |
| Compressive Strength (@R.T.) | Mpa | 2200 |
| Thermal Conductivity (@R.T.) | W/Mk | 2.2 |
| Coefficient Of Thermal Expansion (20-1000℃) | 10-6/℃ | 10.3 |
| Thermal Shock Resistance | T(℃) | 280-350 |
| Max. Working Temperature(@R.T.) | ℃ | 850 |
