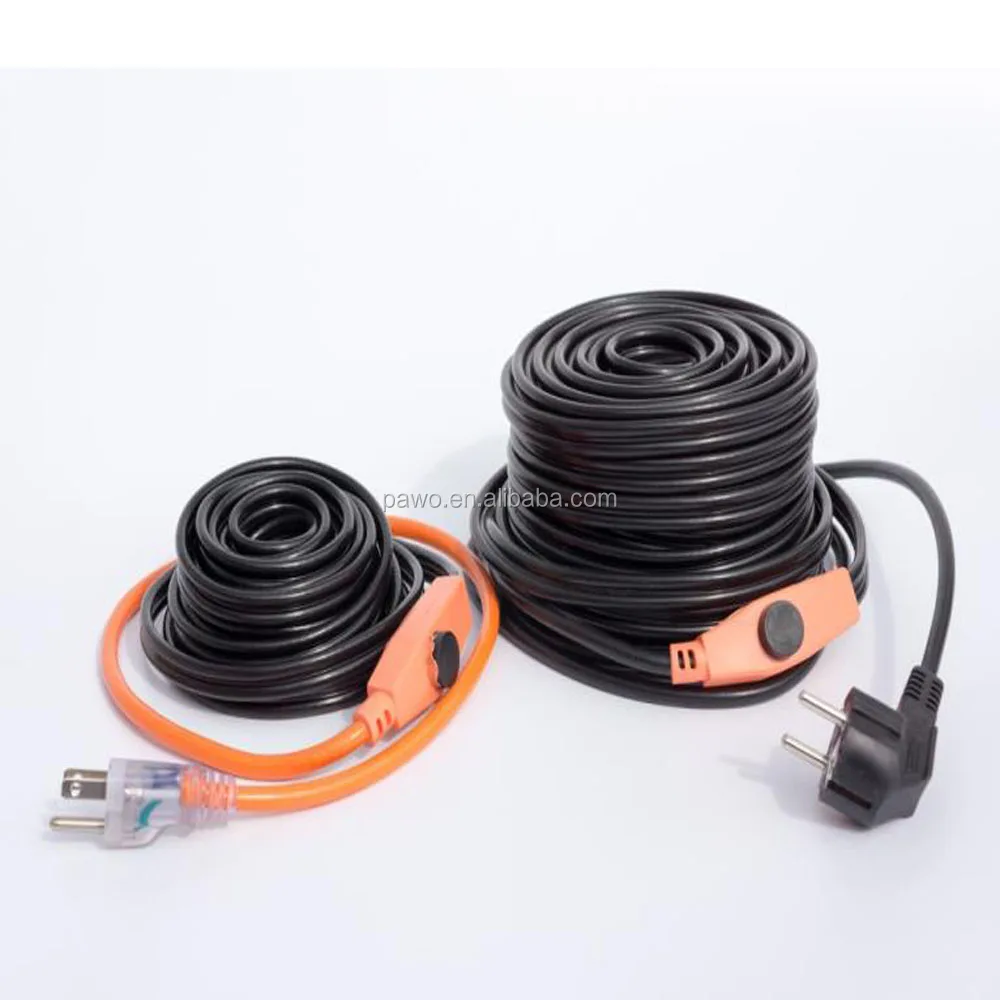

frost protect water pipe & pipe heating cable

Product Overview

Description

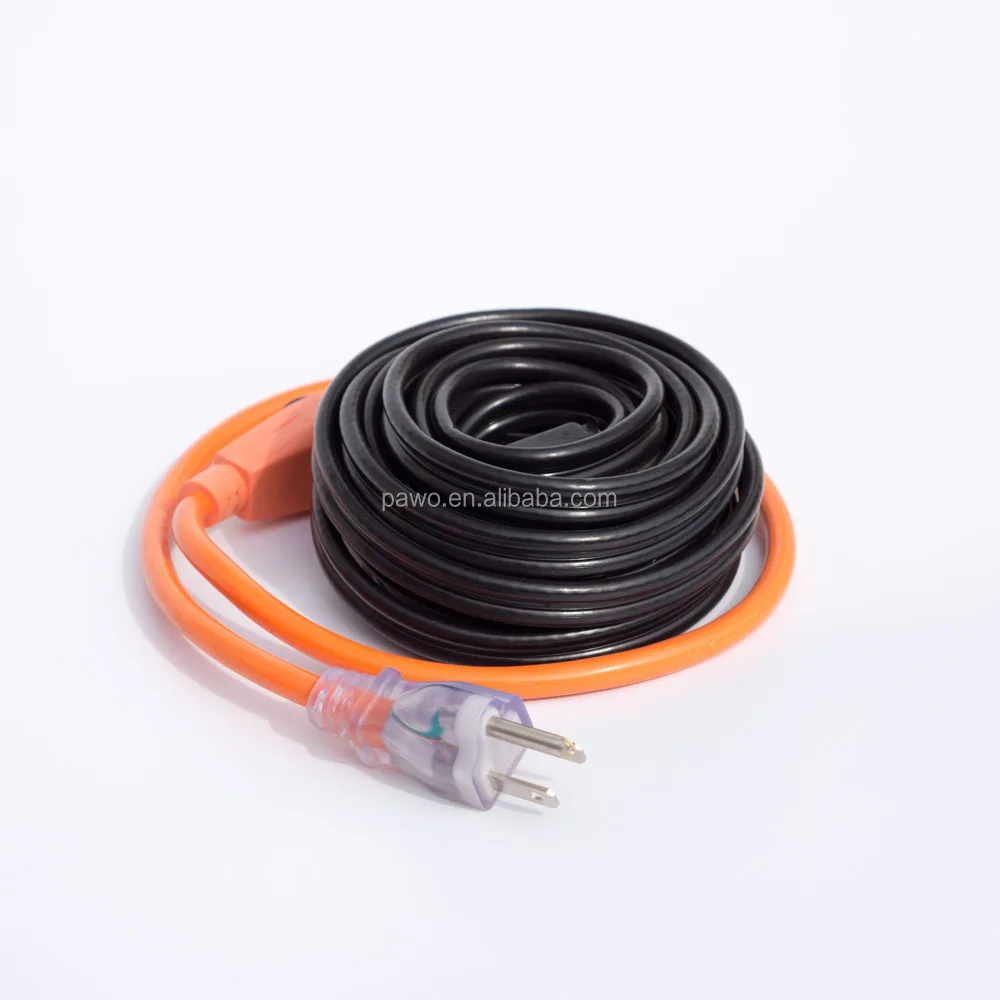

This RTVB type pipe heating cable are designed for North America market, borth for America and Canada.

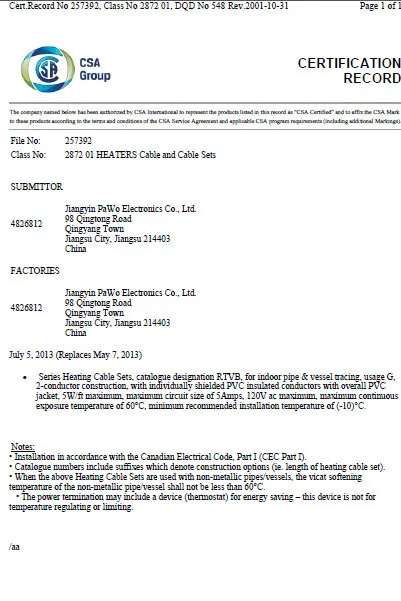

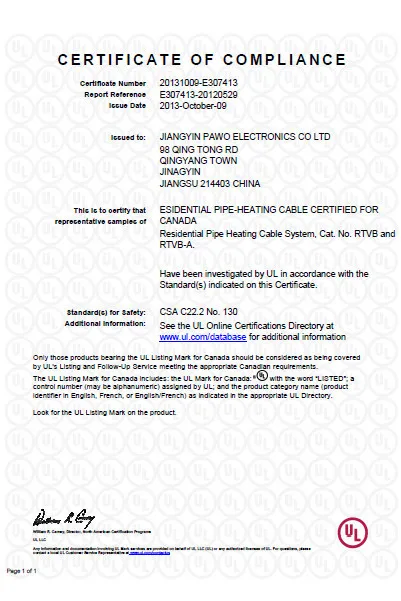

120v /110v with the USA plug and temperature thermostat,also with the power indicator light.UL and CSA certificate for North America market.   Easy heat heating cable



Length Specification_Choose your own market

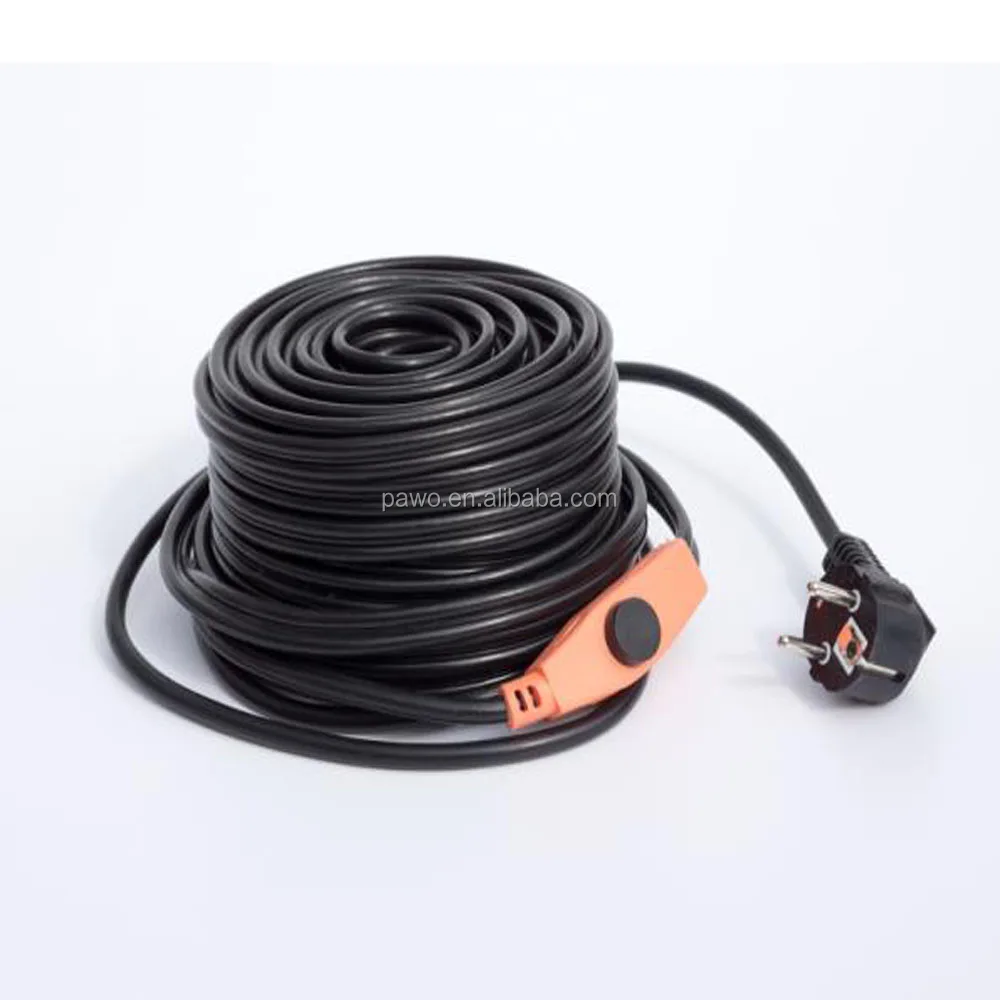

If you are from North America				If you are from European
No.	Catalog Number	Length	Watt	No.	Catalog Number	Length (m)	Watt
1	RTVB-003	3ft	120 v  21W	1	HDBV-001	1m	220~240V  16W
2	RTVB-006	6ft	120 v  42W	2	HDBV -002	2m	220~240V  32W
3	RTVB-009	9ft	120 v  63W	3	HDBV -004	4m	220~240V  64W
4	RTVB-012	12ft	120 v  84W	4	HDBV -008	8m	220~240V  128W
7	RTVB-024	24ft	120 v  168W	5	HDBV -012	12m	220~240V  192W
8	RTVB-030	30ft	120 v  210W	6	HDBV -014	14m	220~240V  224W
9	RTVB-036	36ft	120 v  252W	7	HDBV -018	18m	220~240V  288W
10	RTVB-040	40ft	120 v 280W	8	HDBV -024	24m	220~240V  384W
11	RTVB-060	60ft	120 v  420W	9	HDBV -036	36m	220~240V  576W
12	RTVB-080	80ft	120 v 560W	10	HDBV -048	48m	220~240V  768W



 Technical Data   Energy-saving easy heat  Antifreeze heating cable


• Rated Voltage: 110v, 120v


• Thermostat switching temp:  6C~13C


• Power Output: 7w/ft, or 16w/m


• Maximum operation temp : – 40C


• Cold lead length:  – 1.8m



How to install

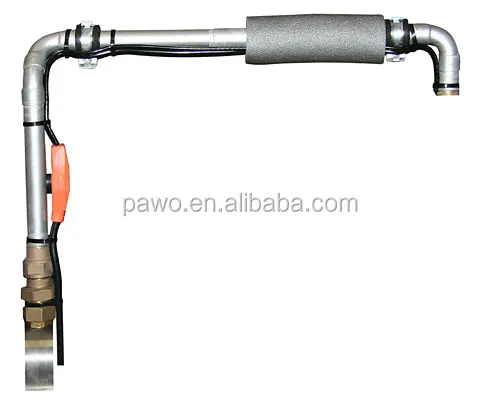

1. Simply fix the heating tape to the pipe,  easy  heat pipe heating cable



2. Apply the adhesive tape provided along the length


3. Apply thermal insulation and seal the down the joints with the tape provided


4. Place the caution labels on the outer surface to ensure a safe installation


5. Plug into your supply and switch on. It’s a simple as that!
