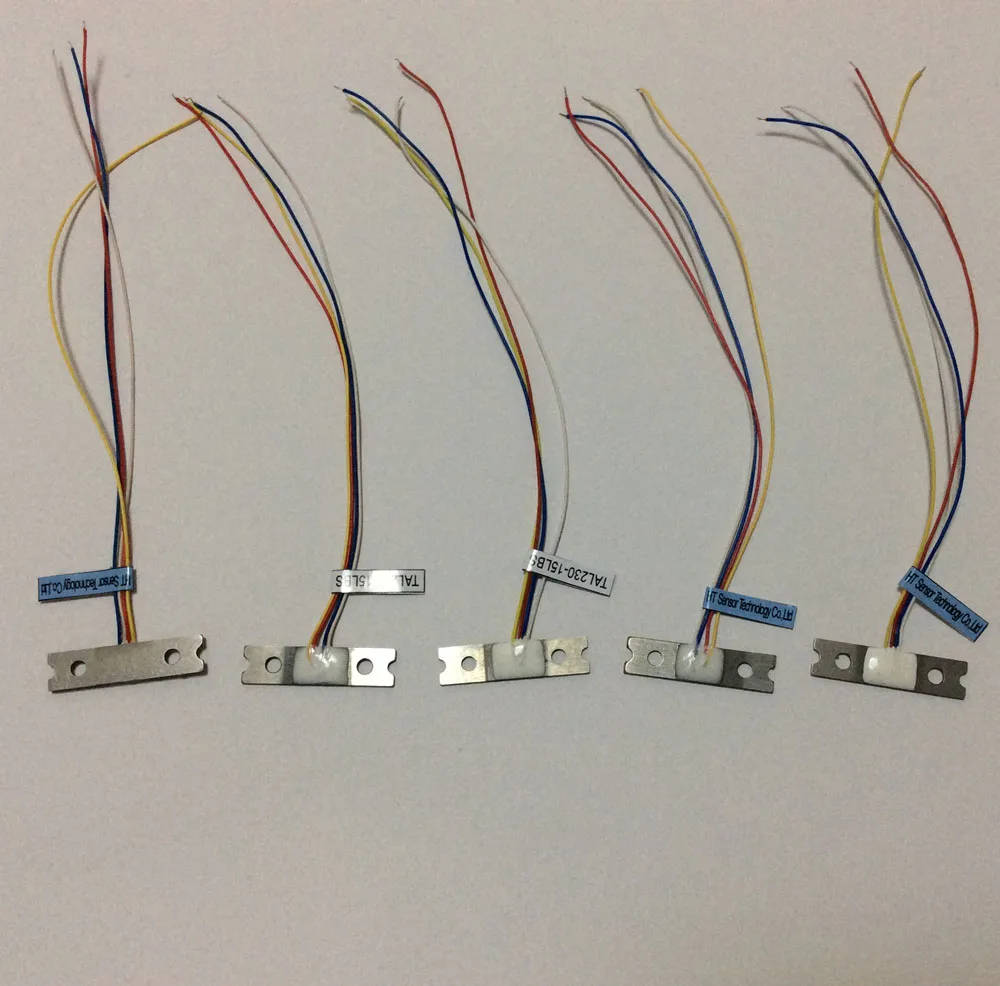

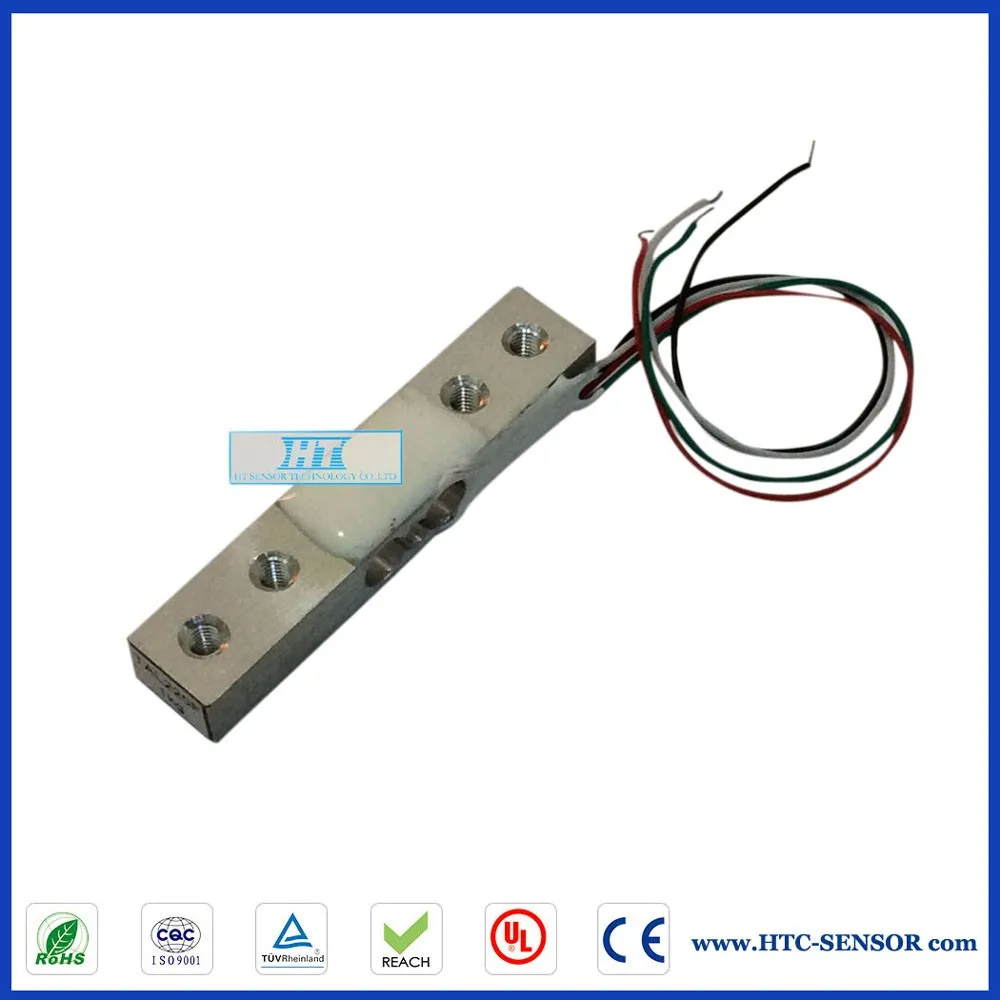

100g 200g 300g 500g 750g miniature load cell small sensor

Name: 100g 200g 300g 500g 750g miniature load cell small sensor
SKU: 60694950318
Availability: InStock

Price:

Quantity:

Product Description

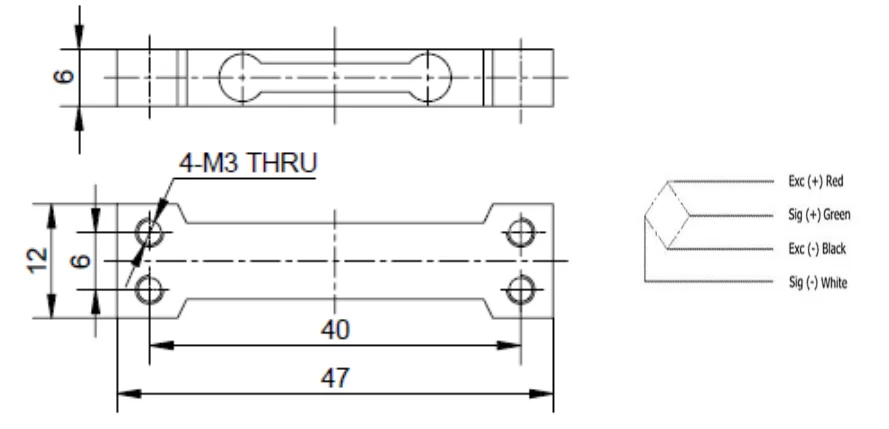

Dimensions

Specifications

\t capacity	\t kg	\t 100,200,300,500,750
\t safe overload	\t %FS	\t 120
\t ultimate overload	\t %FS	\t 150
\t rated output	\t mV/V	\t 1.0 ± 0.15
\t excitation voltage	\t Vdc	\t ≤6
\t combined error	\t %FS	\t ± 0.05
\t zero balance	\t %FS	\t ± 0.1
\t non-linearity	\t %FS	\t ± 0.05
\t hysteresis	\t %FS	\t ± 0.05
\t repeatability	\t %FS	\t ± 0.05
\t creep	\t %FS/30min	\t ± 0.05
\t input resistance	\t Ω	\t 1100 ± 30
\t output resistance	\t Ω	\t 1000 ± 10
\t insulation resistance	\t M Ω	\t ≥ 2000 @ 50 Vdc
\t operating temperature range	\t ℃	\t -10 ~ +40
\t compensated temperature range	\t ℃	\t -20~60
\t temperature coefficient of SPAN	\t %FS/10℃	\t ± 0.05
\t temperature coefficient of ZERO	\t %FS/10℃	\t ± 0.05
\t Electrical connection	\t cable	\t 4 color wire, Ø 0.6 × 110 mm

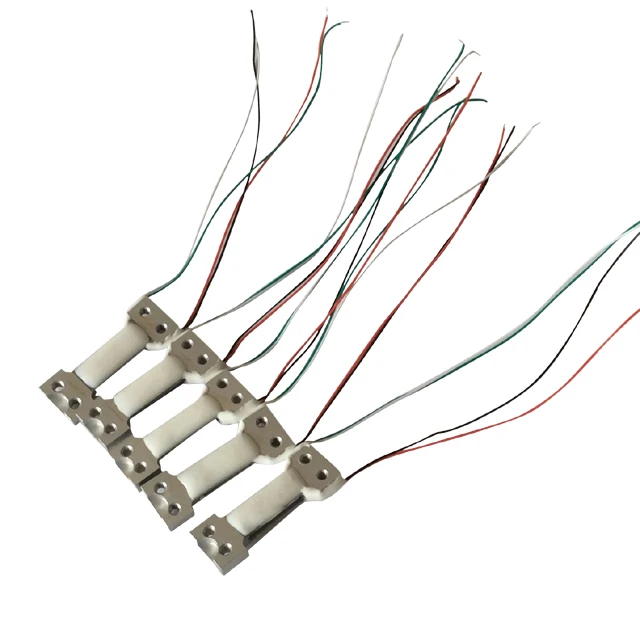

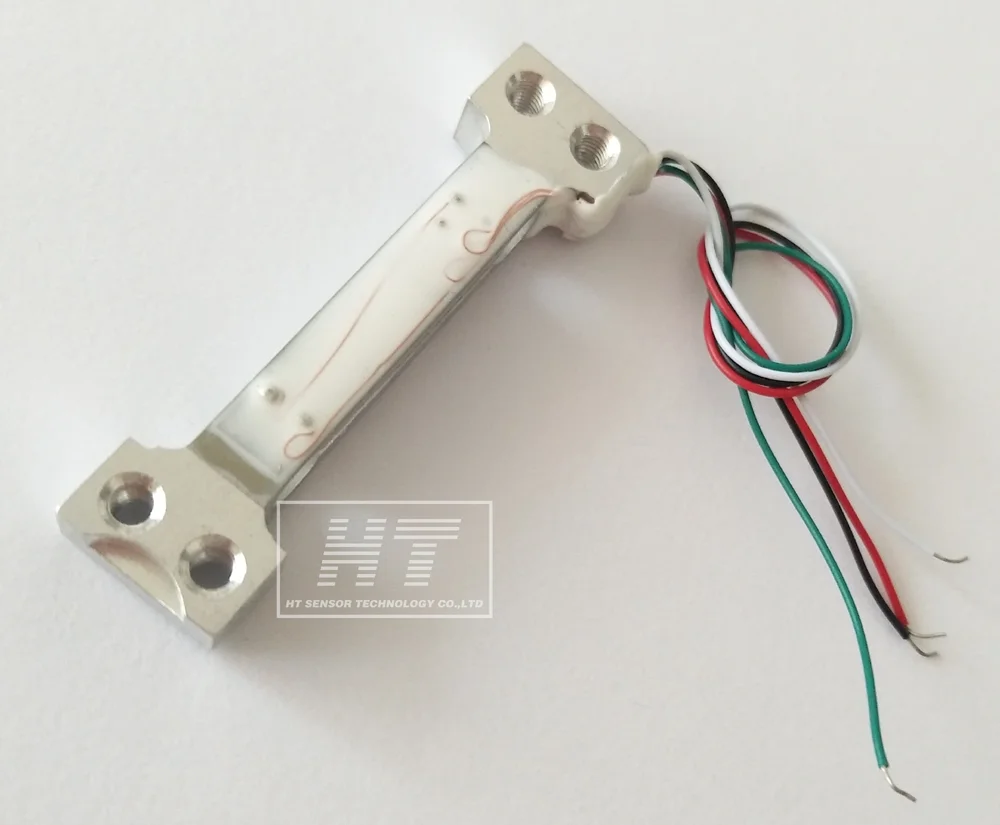

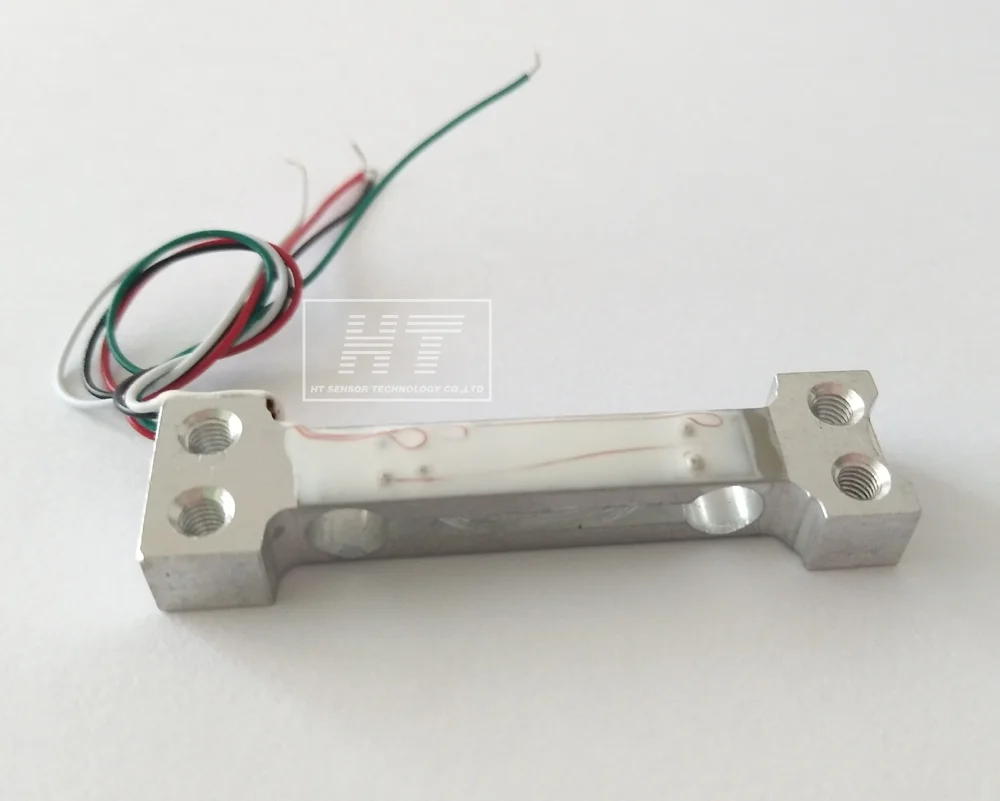

Detailed Image

Application

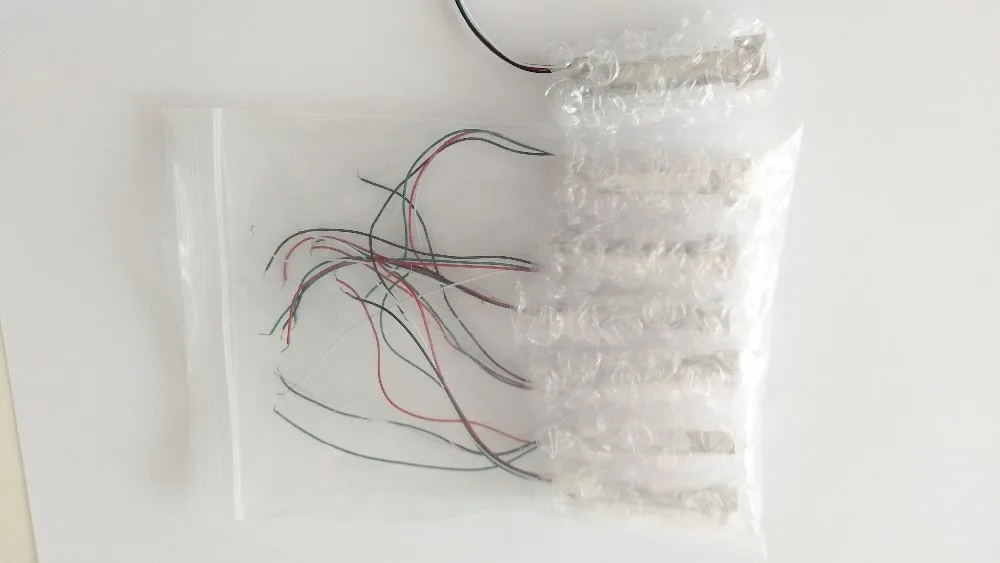

Inner packing: 1pcs /plastic bag/ box
Outer packing : standard exporting carton
As the customer's requirments

Normal products: 7-10 days
OEM products: 30days
DHL/UPS/TNT/FedEx/SF/EMS by Air/Sea etc
