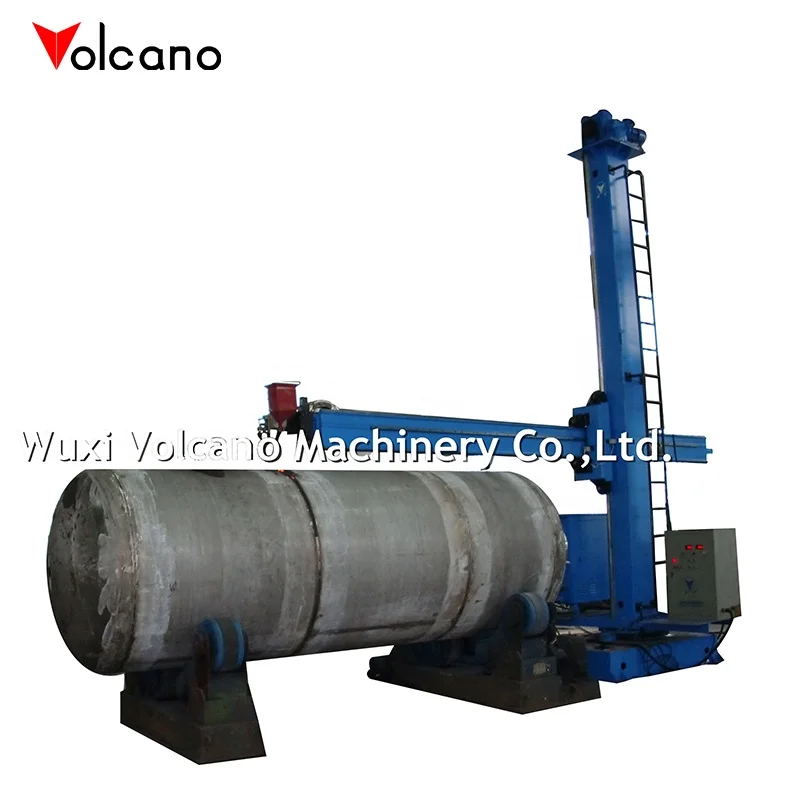

Welding Column and Boom Manipulator
- Category: >>>
- Supplier: Wuxi Volcano Welding & Cutting Equipment Co. Ltd.
Share on (60695052834):
Product Overview
Description
Welding Column and Boom Manipulatorr
Product Description
Super heavy type welding manipulator
Model | HJ6060 | HJ7070 | HJ8080 | ||
Lifting stroke(mm) | 6000 | 7000 | 8000 | ||
Retracting stroke(mm) | 6000 | 7000 | 8000 | ||
Lifting speed(mm/min) | 1400 | ||||
Retracting speed(mm/min) | 150-1500 | ||||
Min.distance from boom to rail surface(mm) | 1350 Movable and rotation | 1325 Stationary and rotation | |||
Max loading at the end of boom(kg) | < =500 | ||||
Columm revolving angle(°) | ±180 | ||||
Columm revolving speed(rpm) | 0.7 | ||||
Trolley traveling speed(mm/min) | 2500 | ||||
Inner span of trolley(mm) | 2500 | ||||
Dimension(mm) | Height×Length | 9450×8300 |
10450×9300 |
11450×10300 | |
Trolley size | 3200×2900×375(Movable and rotation) 2500×2500×350(Stationary and rotation) | ||||
Product Show

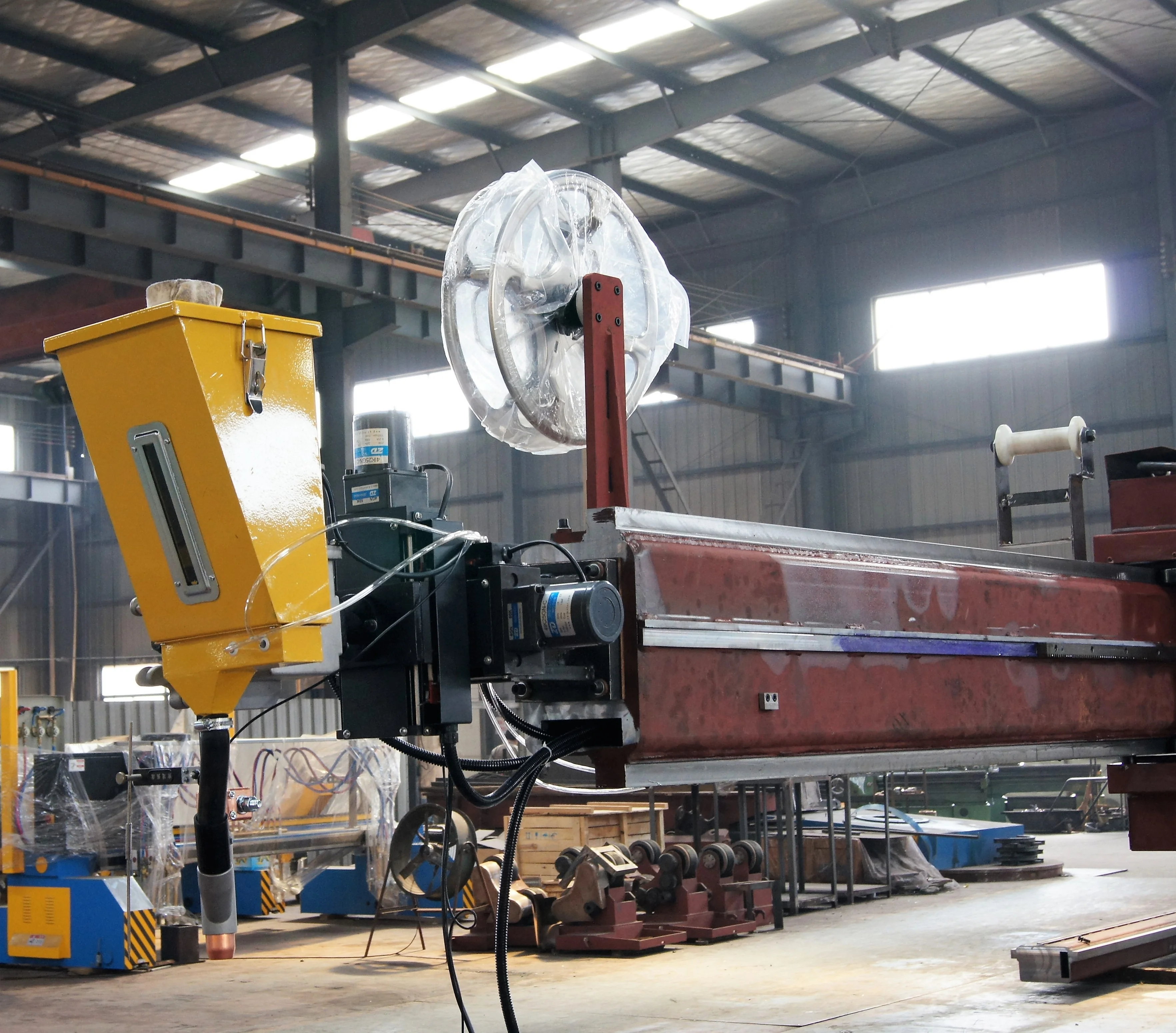

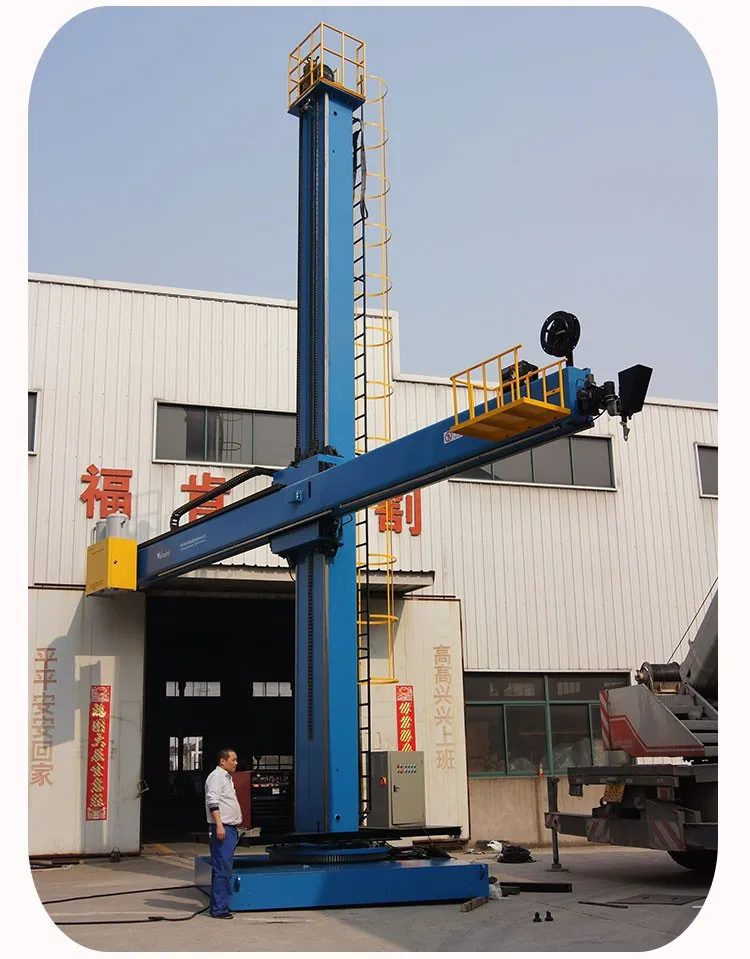

HJ8575 Super heavy welding manipulator
Product Details
Product Details
Prouduct Accessories
with the product
Certifications

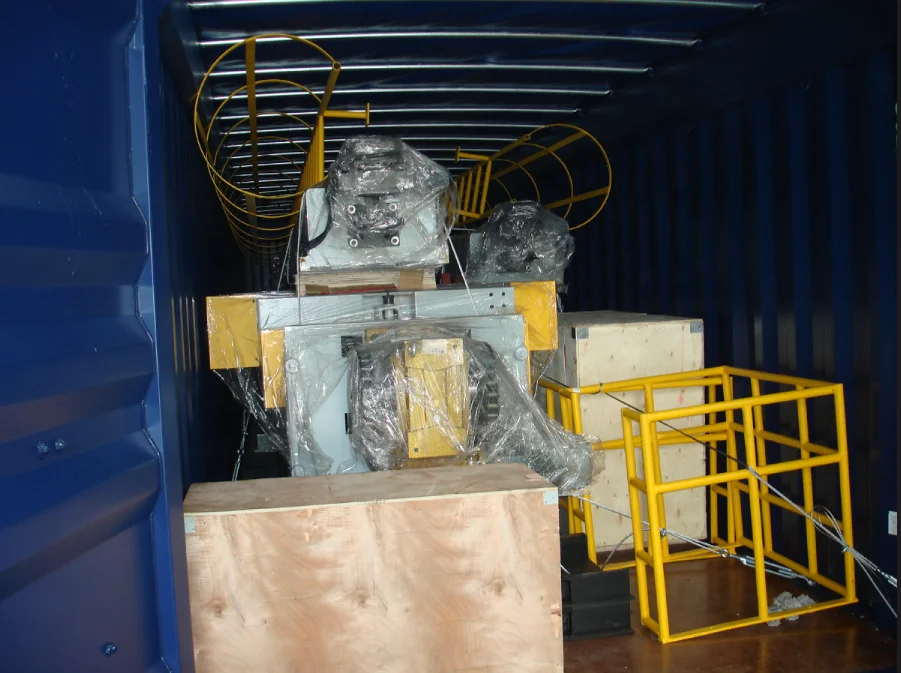

Packaging
Factory View
Our Factory
Processing Equipment
Company Information
Our company has been established since 2004,and steady development by introduction and training of talents.
standardization of the management and construction of enterprise culture.Now our companypossesses the asset
of ten million more and covers anarea of 8,000 square meters.Our main products include Automatic Welding
Equipment,Surfacing Welding Equipment,CNC Cutting and Beveling Equipment,Arc welding Robots,Piet/Wind
Tower Product line and so on.
Why choose Volcano Brand welding equipment?
1. We are welding equipment MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.
2. We have strong design & technical capacity, we can design and manufacture as per the customer's requirement.
3. Our factory has been approved BUREAU VERITAS certificate.
4. Our main products (Includes Welding Manipulator, Welding Rotator, Welding Positioner, Longitudinal Seam Welding Machine) have been approved CE certificate.
5. We have successfully exported to Europe, USA, Middle East, Southeast Asia and so on foreign countries. We all get good feedback.
6. We provide a FREE ONE YEAR WARRANTY for all our items.
7. OEM brand.
