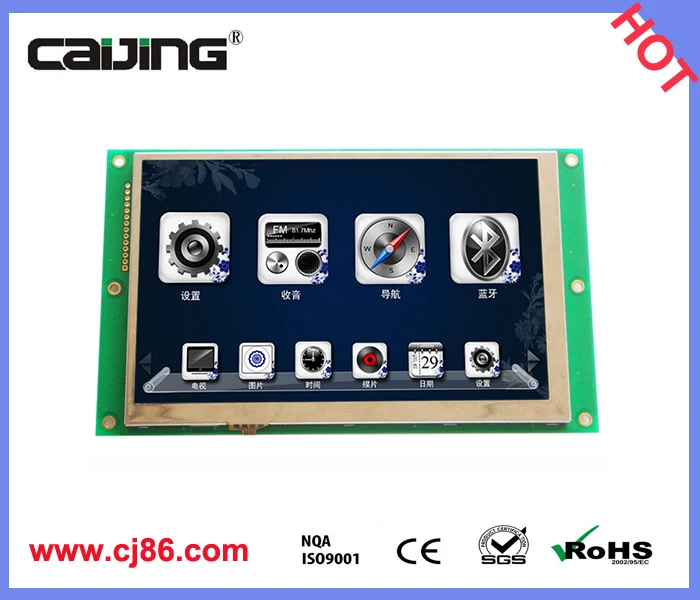

7 inch tft lcd module display

Selling Point

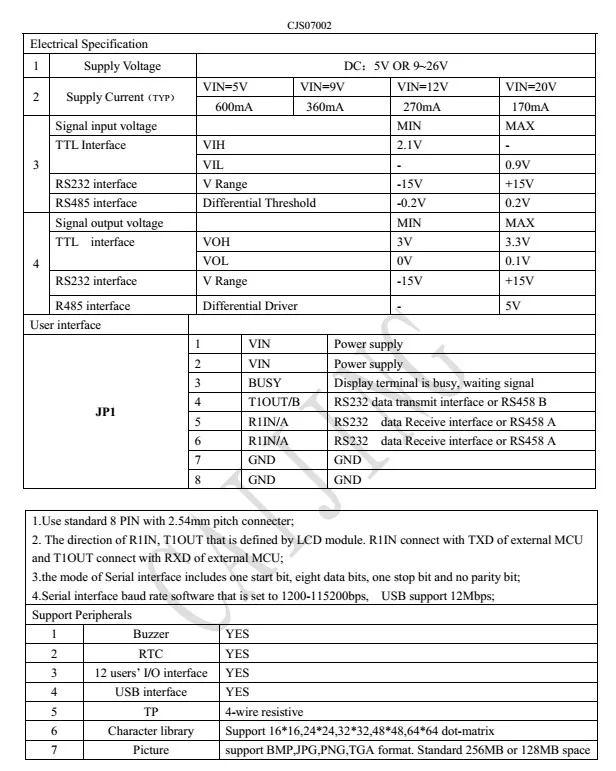

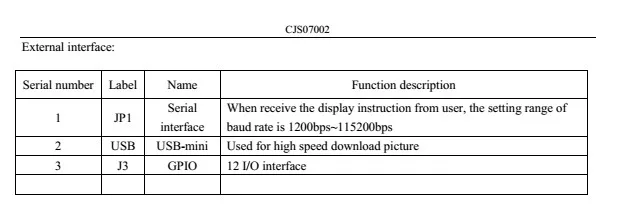

Supporting RS232, RS485, USART (3.3V TTL) interfaces, baud rate from 1,200 to 115,200bps wide input range VDD (9-26V)
RTC real-time clock
Embedded 4-wire touch panel controller

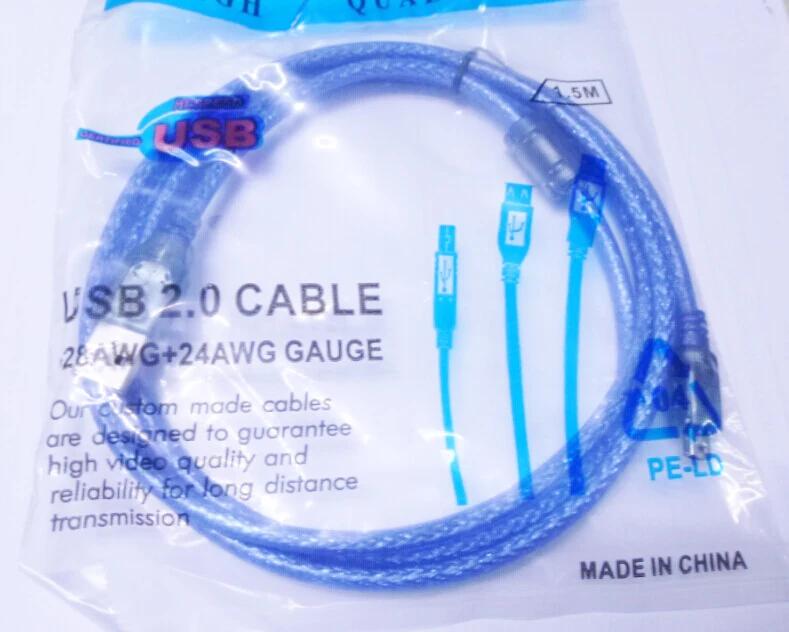

USB picture download
Multiple pages DDRAM

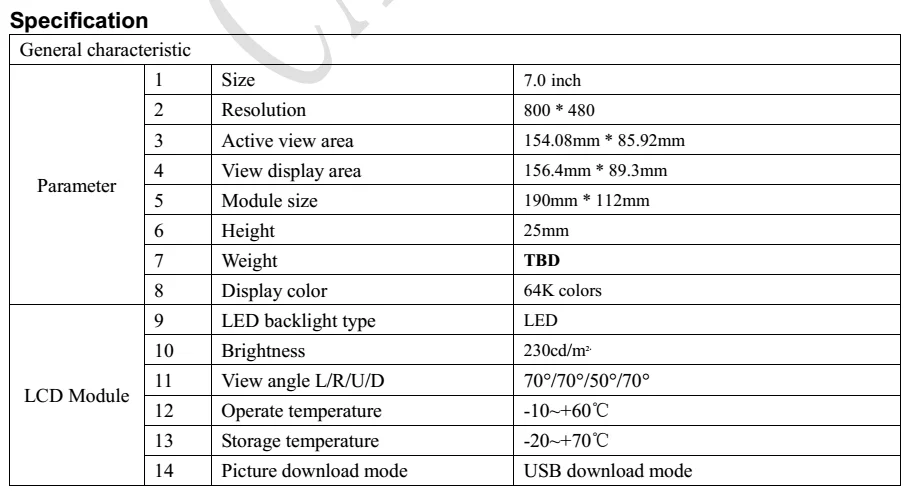

Color depth TFT: 65K colors
2/4GB flash
PWM for backlight
Management of datasheet file
Efficient development tool for PC, most development work can be done on the PC
Hardware acceleration, transferred image quickly

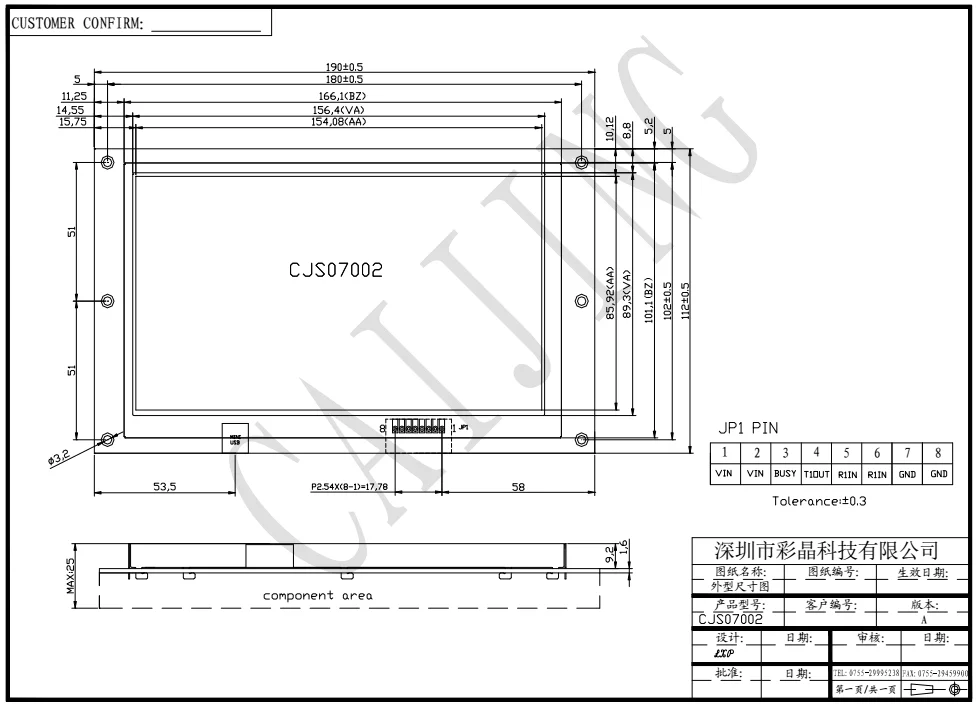

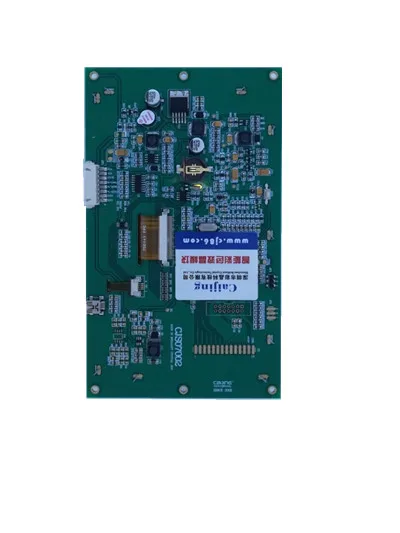

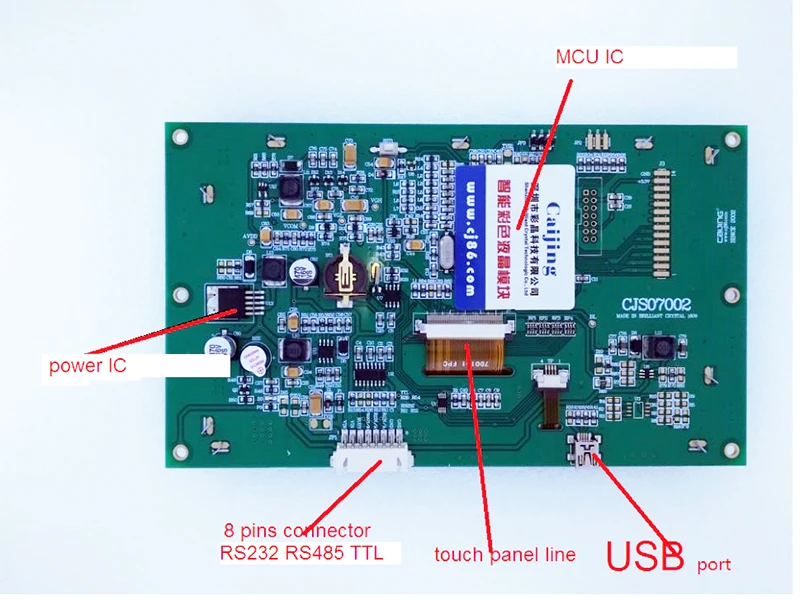

Hardware

Software

 TFT smart terminal lcd module is widely used in Healthcare Biomedical Instrumentation,and clinical diagnostics,Wind Sensors for Measurement,Control, Alarm, Internet Access,metering pumps and dosing systems,water treatment ,charging pile and car beauty equipment and Industrial control equipment, instruments and meters, bank terminal and so on .

7 inch tft lcd module display related product

• 4.3 inch (480x272pixel)
• 5 inch (800x4800pixel)
• 5.6 inch(640x480 Pixel)
• 7 inch(800x480 pixel)
• 7 inch(1024x600 pixel)
• 8 inch(1024x768 pxiel)
• 8 inch(800x600pixel)
• 10.1 inch(1280x800 pixel)
• 10.4 inch(800x600 pixel)

With more than 15 years experience,Shenzhen Brilliant Crystal Technologic Co.,ltd became remarkably proficient in complicated order handling, especially on competitive price and high quality and service This is our most important core competence to fulfill customers' requirement and expectation.
We provide products and services with high price-performance as well as the logistics support to deliver products and services competitively. Shenzhen Brilliant Crystal Technologic Co.,ltd is an ISO approved for quality NQA ISO9001 manufacturer. Qualified engineers and production management that making our product also becomes better and better . All our lcd modules has passed CE,ROHS,SGS and othe domestic certificates.
As a leader manufacturer in the display module market, We will continue to dedicate the research & development, design, of new technology of LCD, TFT, custom displays.

We have complete equipment and strict tests .

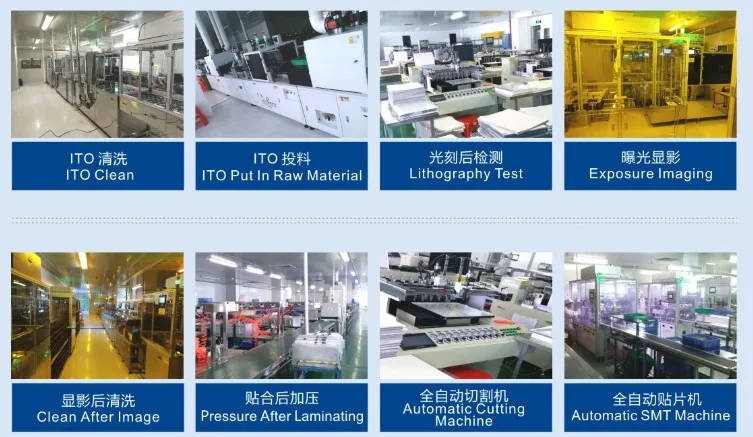

Here are some production process and machine .

Here are some test machines after finish production .

 All our products can pass these tests .
