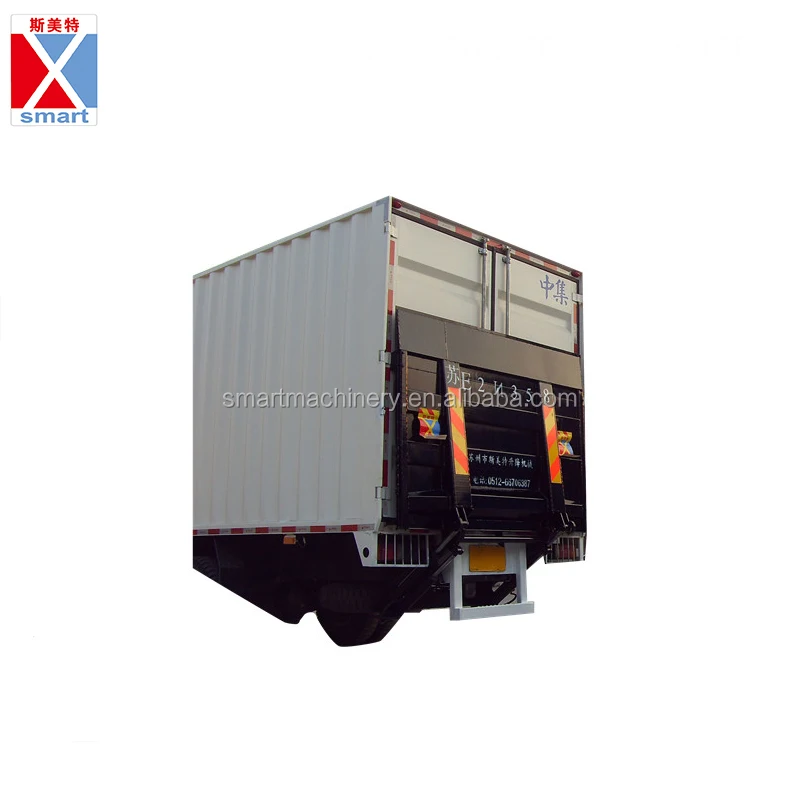

1.5 ton Hydraulic tail lift,truck tail lift,tail lift truck

Share on (60695255162):


Price:RUB 76,510.20 - RUB 306,040.80

Quantity:


Product Overview

Description







Product Description
Type

Hydraulic truck tail lift

Material used Manganese steel
Usage Truck loading and unloading cargos
Package Packed with wooden case,or as your require
Delivery time 15 days after the order is confirmed
Payment terms

T/T or L/C at sight

Warranty time12 month



Why choose us?



12 years manufacturing experience in hydraulic lifting industry.

Do you know what is it makes us walk such far?



1.Competitive price

We are the manufacture,and have lots of orders from domestic and foreign each year,so we can purchase the raw material with much

cheaper price which will directly effects the price of the lifting machines.

2.Reliable quality

a.Material used.The thickness of the rectangular tube is 5mm which make the whole machine more steady and durable.

b.Oil Paint. The oil paint we used meet international standard which looks more bright and smoothly, also not easy to remove or come off.

3.Good service

We assure you reply the email within 24 hours.

We assure you 12 mouth quality warranty time.

4.Keeping innovations

We welcome every recommendation and opinion from you and make progress together with you.

We can design a new machine as your requirements,until to your satisfaction.



Tail lift Specifications



ModelSMT-WB10

SMTWB15

SMTWB20SMTWB30
Platform size(mm)                                     1700*18001800*20002000*20502000*2400
1800*20001800*23002000*2340
It can be made according the width of the vehicle
Capacity(Kg)1000150020003000
Self weight(Kg)320460540620
Motor power(Kw)222.53
MotorDC12V-24V/100AH-160AH
Using height from the vehicle box to ground(mm)700-1550
Average lifting speed(mm/sec)60-80
Hydraulic oil32#-46#Anti-wear hydraulic oil
Platform working angle5Degrees -9Degrees

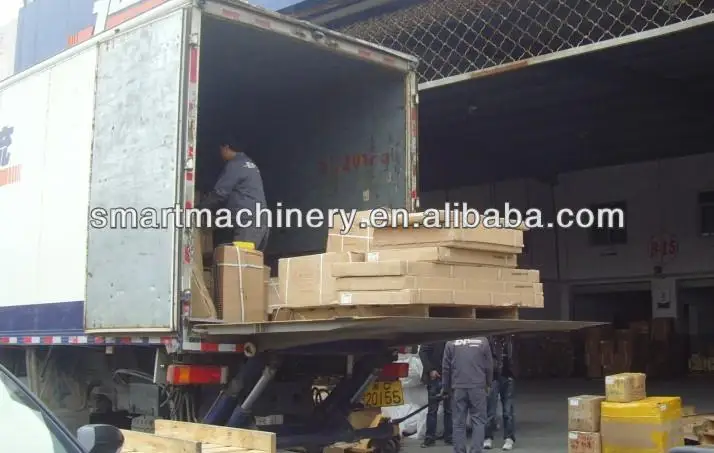

Tail lift pictures









 car lift.jpg



Note:For enquiry the special tailboard,pls provide the accurate data of B,D,E,H,L,so we can send the plan which is suitable for you.




Company Information

Certificate







Our Services

Warranty



We provide 1 year after the date of Bill of Lading to the Tail lift.



During the warranty period we guarantee to supply free replacement parts to any defective of our product

which proved to be defective in material or workmanship when under proper operation during warranty period;
