high speed mopa 3d laser engraver price laser marker 60w for relief engraving

Product Overview

Description

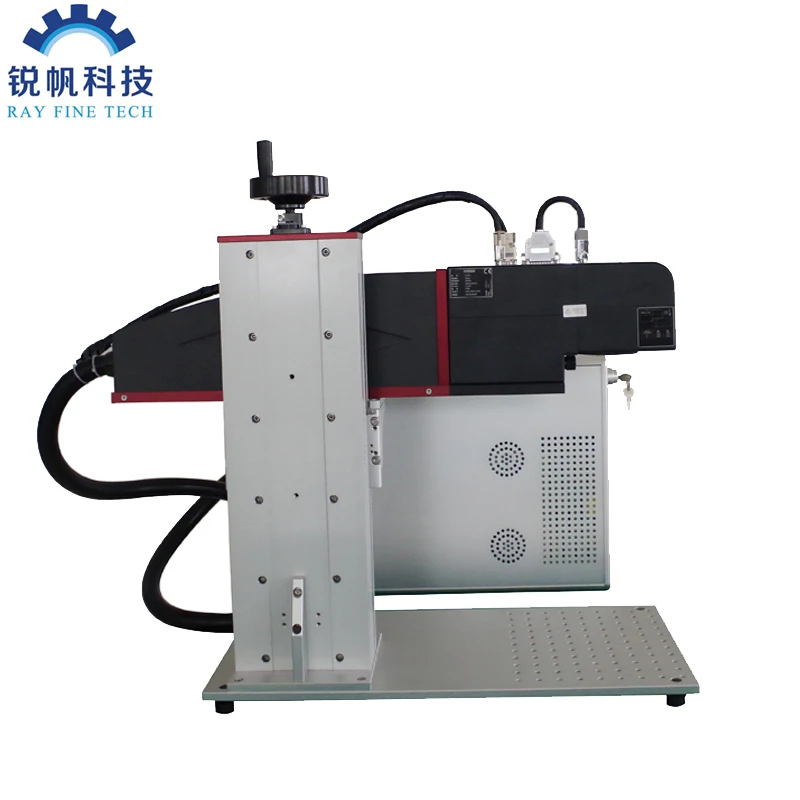

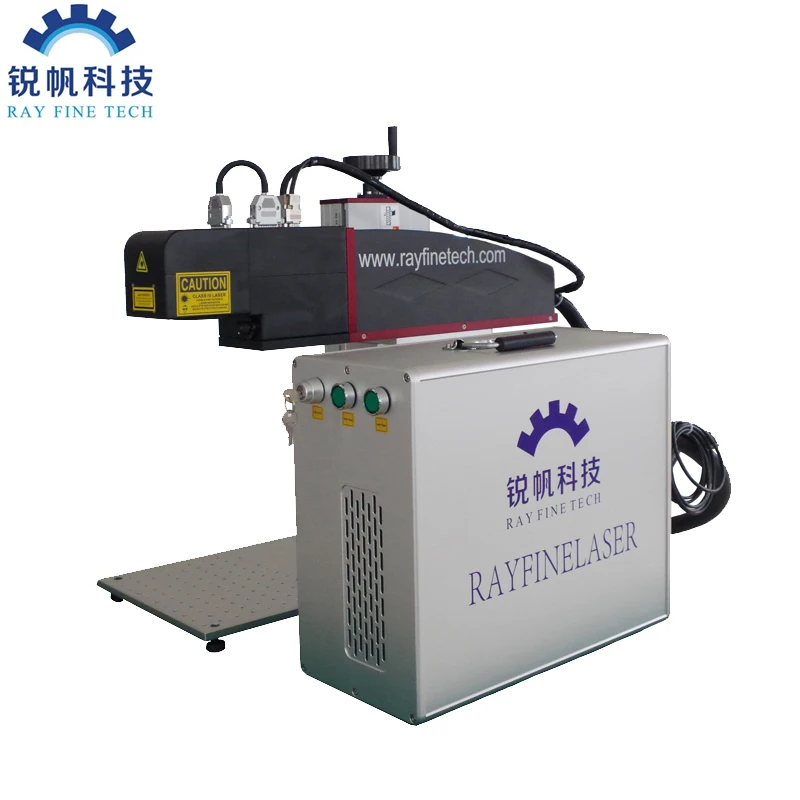

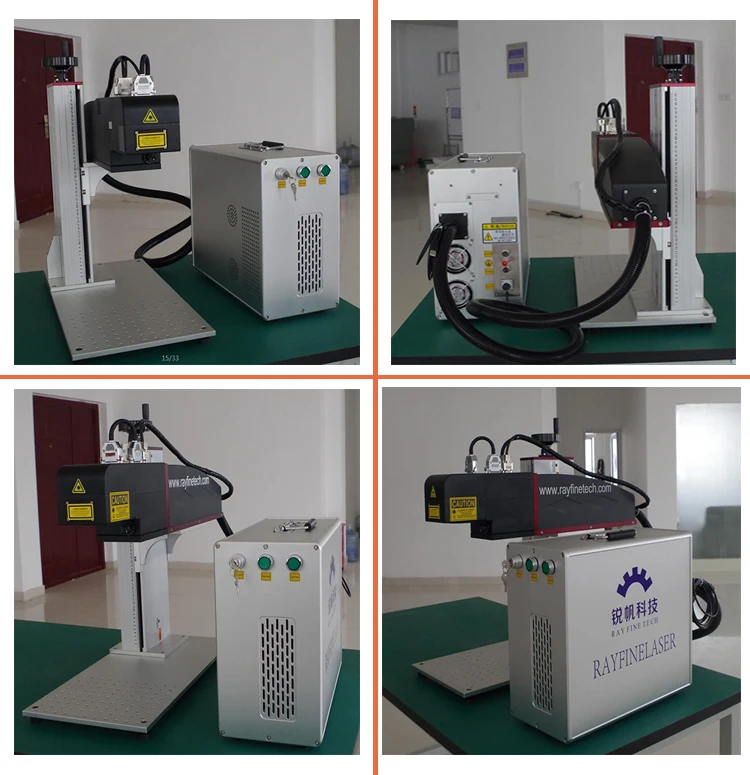

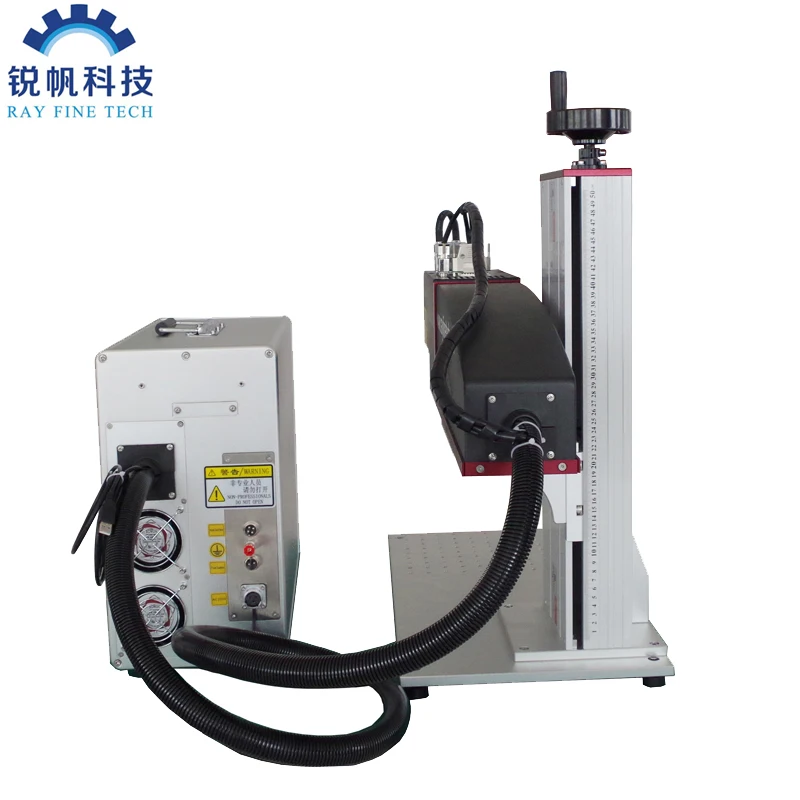

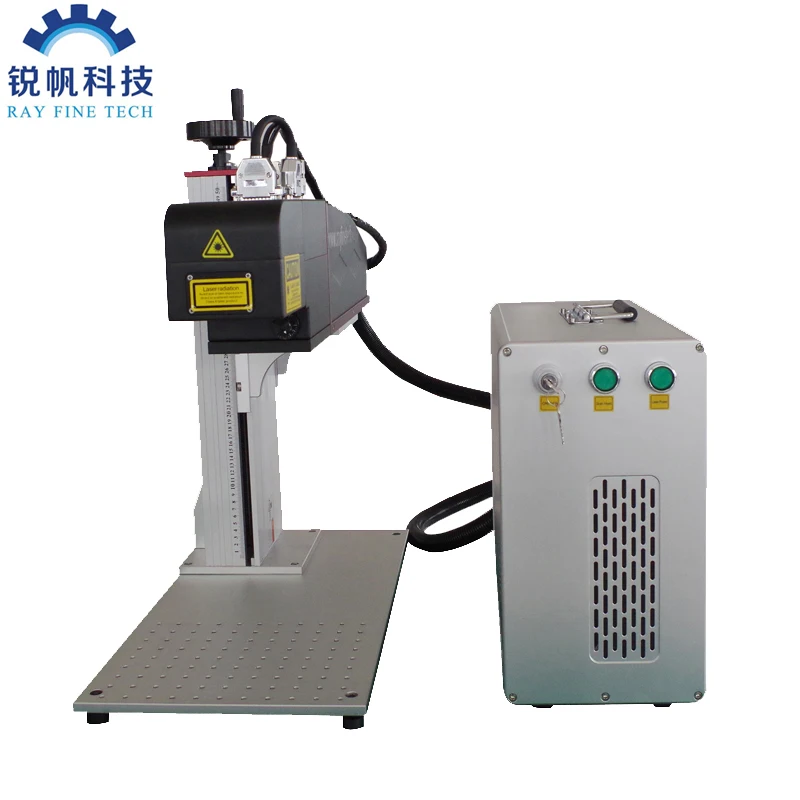

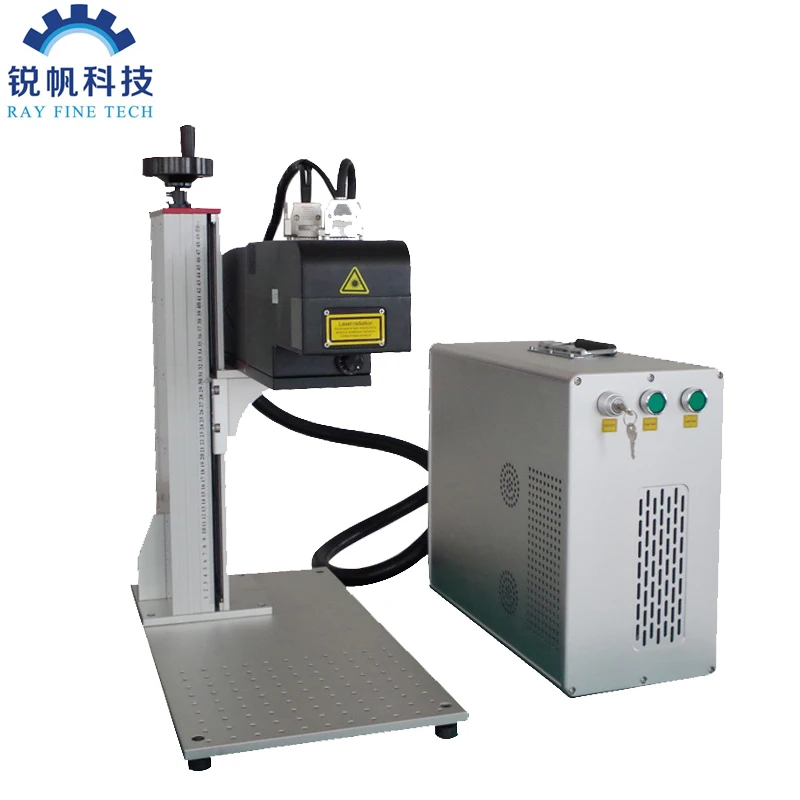

High speed mopa 3d laser engraver price laser marker 60w for relief engraving
It is mainly used on curved surface marking and 3D deep relief engraving

Applicable Industry: It is widely used in food and beverage, pharmaceutical, tobacco, leather, packaging, building materials, lighting, accessories, cosmetics, electronics and other industries, low consumption, non-toxic, no pollution.

Applicable Material:
This series fiber laser marking machine apply to mark on metal such as stainless steel, carbon steel, aluminum, brass, silver,gold ect and some non-metal such as plastic, leather,ceramics ect.

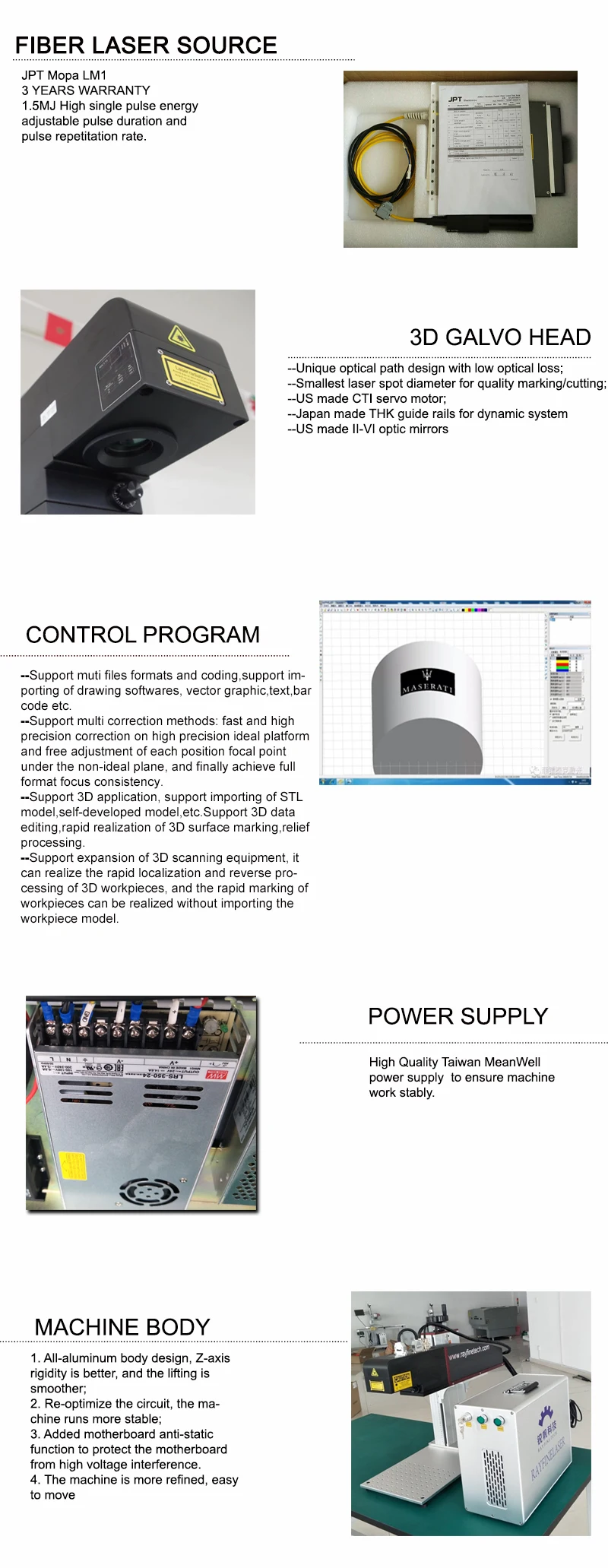

Technical parameter

Model	RF-3D-60W
Laser power output	>60W
Max Single pulse energy	1.5mj
Pulse duration	10-350ns
Frequency	1-1000khz
Laser beam quality M2	<1.8
Wavelength	1064
Marking Area	110x110x40mm/200x200x80mm
The Smallest Spot  diameter @ 1/e²	0.025/0.0415mm
Repetition Accuracy	8urad
Max processing speed	600 character/s
Long-term drift over 8h	<0.5mrad
Min. Character size:	0.2mm
Data interface	USB
Software	LENMARK-3DS
Compatible format	Jpg,bmp,gif,ai,dxf,plt,stp mode
working voltage:	AC220V 50HZ
Cooling type	Air cooling
Operating parameter	0-40℃
Power consumption	<=1500w
Packing size	102*48*83cm
Gross weight	90kg

  Packing list

Machine	1 set
Accessories
Focus ruler	1pcs
English user manual	1pcs
U-disk for software	1pcs
software Setup CD	1pcs
Foot switch	1pcs
Allen wrench	1pcs
Power cable(as per request)	1pcs

Pre-sale service

We arrange final test before shipment. We run the machine without materials for a few days, and then mark materials for test. After making sure the machine is the best performance, then ship out the machine.
After sale service

Details english manual book which explain the use of machines and software. Guide the customer proper use, extend product life and reduce energy consumption.
2.English documents instruction to show you how to install the machine according to each machine of order(including photos and words).
3.Online remote support appointment: after receiving your machine you can make appoint 24 hours before install the equipment. then our engineer supply online support when you are ready to start installment.
4.Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
About warranty

The whole machine warranty is 2 years, And the laser source warranty is 3 years.

If problems within warranty period ,we do as following:

1)Electrical components: Switching power supply, AC contactor, Switch buttons. If have quality problem in within 2 years,we sent to you a new one and free.

2).Motherboard and galvanometer have quality problems, We will send the new one to you , But the customer needs to return the old part to us.

3).If the laser source have quality problems,the user need send the fiber laser source back to our company and we will repair it and send back to you free.

Note :Product damage by All man-made or accident are not covered.
