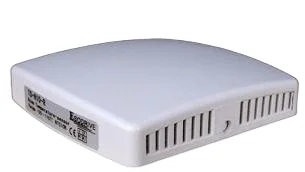

Room / Indoor Temperature Sensor PT1000

Sensing Probe

Thermistor:

Range

Accuracy

NTC

-30----70°C

±0.5k

Platinum-Film:

Range

Accuracy

PT,  0.3851ohm/k

-30----70°C

±0.3k

Nickel Thin Layer

     Range

     Accuracy

NI, 5000 ppm/k

-30----70°C

±1k

Connection

Connection Terminals

2.5 mm²

Environment

Operation
Climatic Conditions
Temperature
Humidity

To IEC 721-3-3
class 3 K5
-4070°C
<95% r.h.

Transport & Storage
Climatic Conditions
Temperature
Humidity
Mechanical Conditions

To IEC 721-3-2 and IEC 721-3-1
class 3 K3 and class 1 K3
-4080°C
<95% r.h.
class 2M2

Standards

          conform according to
EMC Standard 89/336/EEC
EMEI Standard 73/23/EEC

EN 61 000-6-1/ EN 61 000-6-3

Automatic electrical controls for household and similar use

Special requirement on temperature dependent controls

EN 60 730 1

EN 60 730 2 - 9

Pollution Class

Normal acc. To EN 60 730,RoHS compliant

Degree of Protection

IP56 to EN 60 529

Safety Class

III (IEC 60536)

Housing Materials

       Cover & Mounting Plate
Probe

Fire proof ABS plastic

Stainless Steel

General

Dimensions [mm]

Cover: 42 x 112 x 88 (H x W x D)
Probe: ø 6 x 200 (Diameter x L)

Weight (including package)

135g
