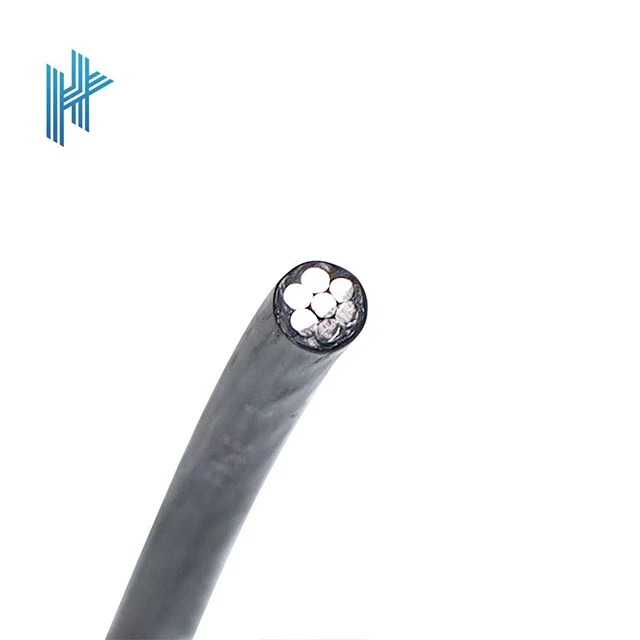

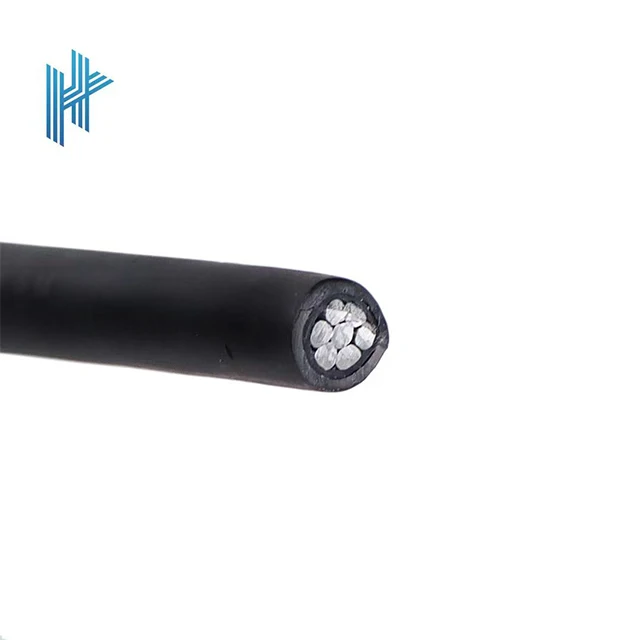

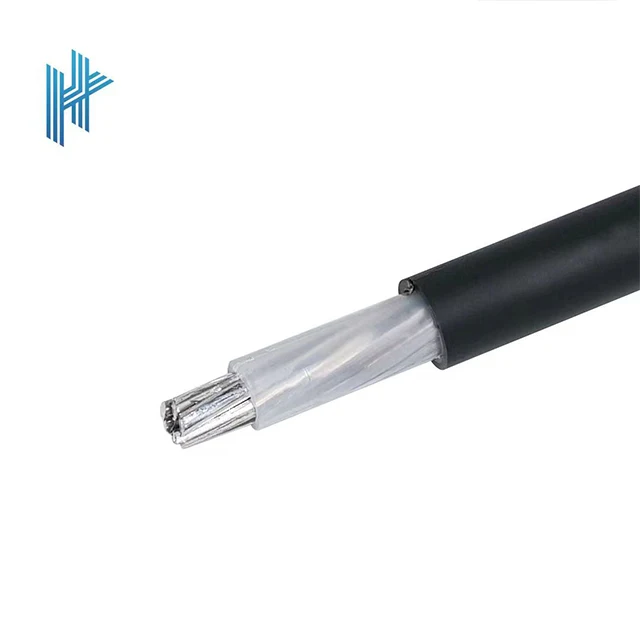

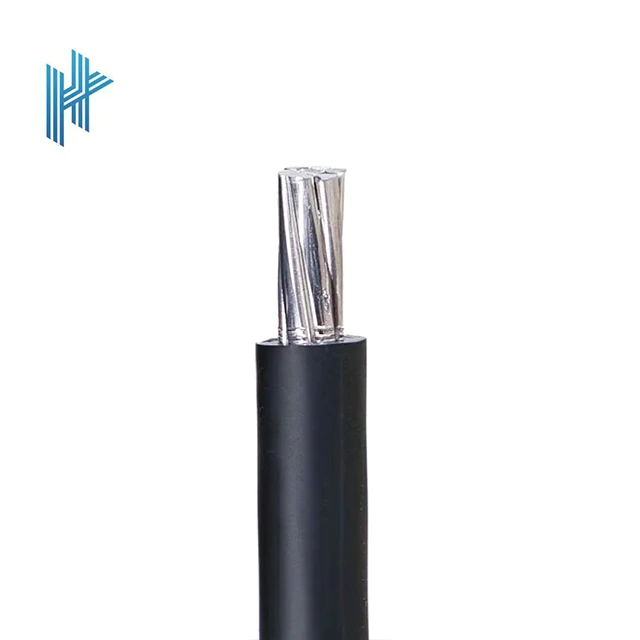

Low voltage cable XLPE insulation 12AWG Aluminum concentric cable manufacturer
- Category: >>>
- Supplier: Henan Huaxing Wires And Cables Co. Ltd.
Share on (60695320707):
Product Overview
Description
Exhibition
Product description

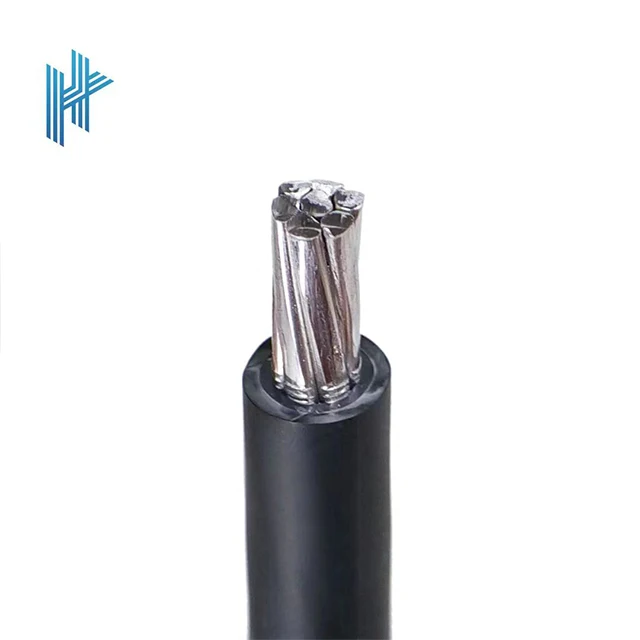

Concentric cable
Cable characteristics:
1. The rated voltage uo / u is 0.6/1kv.
2. The maximum allowable working temperature of cable conductor for a long time: 90 ℃ for XLPE insulation and 70 ℃ for PVC insulation.
3. When the cable is short circuited (the longest duration is not more than 5S), the maximum temperature of conductor is 250 ℃ for XLPE insulated cable and 160 ℃ for PVC insulated cable.
4. The ambient temperature for laying shall not be lower than 0 ℃, and the temperature lower than 0 ℃ shall be heated in advance.The allowable bending radius of the cable is not less than 20 times of the outer diameter of the single core cable; The multi-core cable shall not be less than 15 times of the outer diameter of the cable.
2. The maximum allowable working temperature of cable conductor for a long time: 90 ℃ for XLPE insulation and 70 ℃ for PVC insulation.
3. When the cable is short circuited (the longest duration is not more than 5S), the maximum temperature of conductor is 250 ℃ for XLPE insulated cable and 160 ℃ for PVC insulated cable.
4. The ambient temperature for laying shall not be lower than 0 ℃, and the temperature lower than 0 ℃ shall be heated in advance.The allowable bending radius of the cable is not less than 20 times of the outer diameter of the single core cable; The multi-core cable shall not be less than 15 times of the outer diameter of the cable.
Application:
Concentric Cable used in service entrances replacing low voltage bundled cables. Also suitable for submain distribution and particularly used within high-rise buildings and street lighting systems.
Conductor | stranded aluminum alloy AA8000 class B according to ASTM B 231 and UL 854 | ||||||
Insulation | XLPE (Cross-Linked Polyethylene) | ||||||
Concentric Conductor | Single layer of aluminum wires AA8000 served as the neutral conductor, equal to theequivalent AWG size of the power conductor | ||||||
Separator Tape | A separator tape is applied overtop the helicallyapplied neutral conductor wires. The tape actsas a reinforcing bedding for the PVC jacket | ||||||
Sheath | A PVC jacket is extruded overtop of the cableassembly | ||||||
Product Parameter
Model | Model description | ||||||
Copper core | Aluminum core | ||||||
VV-T YJV-T | VLV-T YJLV-T | PVC (cross linked polyethylene) insulated concentric conductor PVC sheathed power cable | |||||
VV22-T YJV22-T | VLV22-T YJLV22-T | PVC (cross linked polyethylene) insulated concentric conductor steel strip armored PVC sheathed power cable | |||||
VV32-T YJV32-T | VLV32-T YJLV32-T | PVC (cross linked polyethylene) insulated concentric conductor thin steel wire armored PVC sheathed power cable | |||||
VV42-T YJV42-T | VLV42-T YJLV42-T | PVC (cross linked polyethylene) insulated concentric conductor thick steel wire armored PVC sheathed power cable | |||||
ZR-VV-T ZR-YJV-T | ZR-VLV-T ZR-YJLV-T | Flame retardant PVC (cross linked polyethylene) insulated concentric conductor PVC sheathed power cable | |||||
ZR-VV22-T ZR-YJV22-T | ZR-VLV22-T ZR-YJLV22-T | Flame retardant PVC (cross linked polyethylene) insulated concentric conductor steel strip armored PVC sheathed power cable | |||||
ZR-VV32-T ZR-YJV32-T | ZR-VLV32-T ZR-YJLV32-T | Flame retardant PVC (cross linked polyethylene) insulated concentric conductor fine steel wire armored PVC sheathed power cable | |||||
ZR-VV42-T ZR-YJV42-T | ZR-VLV42-T ZR-YJLV42-T | Flame retardant PVC (cross linked polyethylene) insulated concentric conductor thick steel wire armored PVC sheathed power cable | |||||

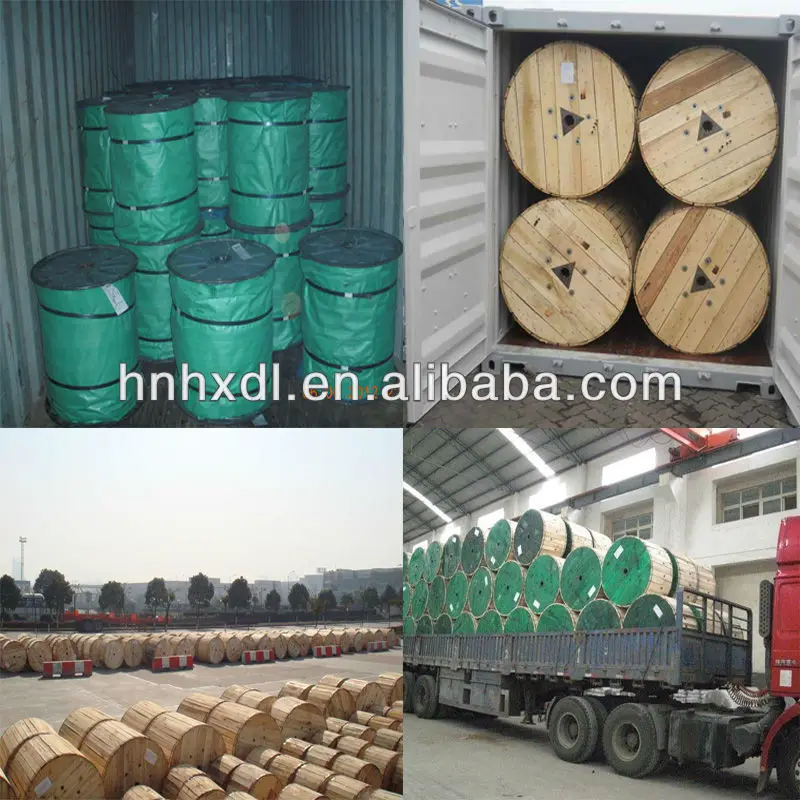

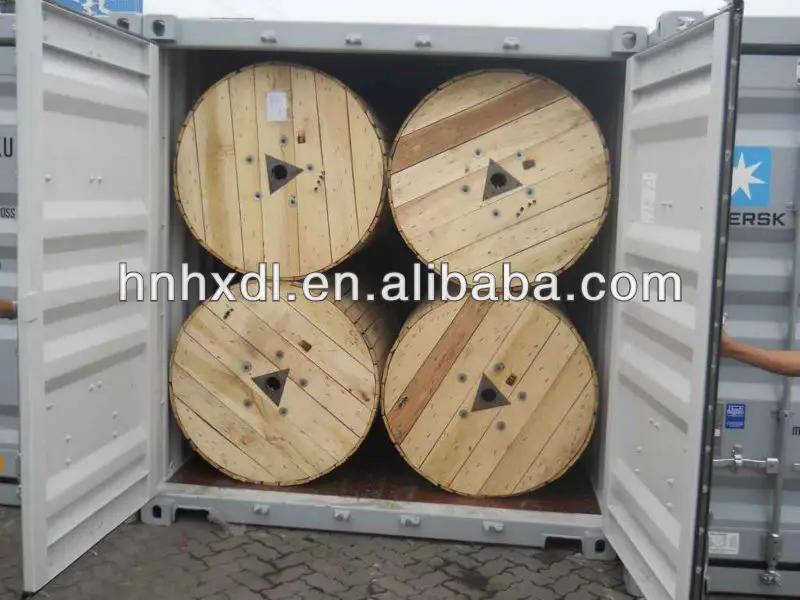

Product packaging
Inspection of quality
Certifications
Company Profile
About Huaxing
Henan Huaxing Wire and Cable Co., Ltd. is one of the wire and cable manufacturers of China Electric Power, located in Yongan Industrial zone, Gongyi City. Our company was founded in January 1984 and expanded in 2005, covering an area of 67,000 square meters. The building area is 28,000 square meters, and the total assets are 360 million YUAN. The company has 180 employees, including 5 senior technical engineers; Nearly 100 middle and junior technicians. The company integrates research and production.
The main products are AAC/AAAC/ACSR/ACAR Conductor, overhead bunched cable (ABC cable),Control cable, concentric cable, low voltage and medium voltage power cable, plastic wire, solar power cable, protection cable, etc.
