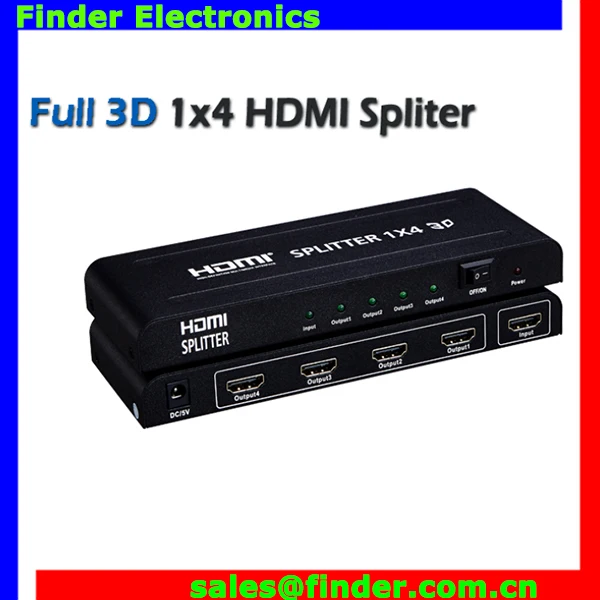

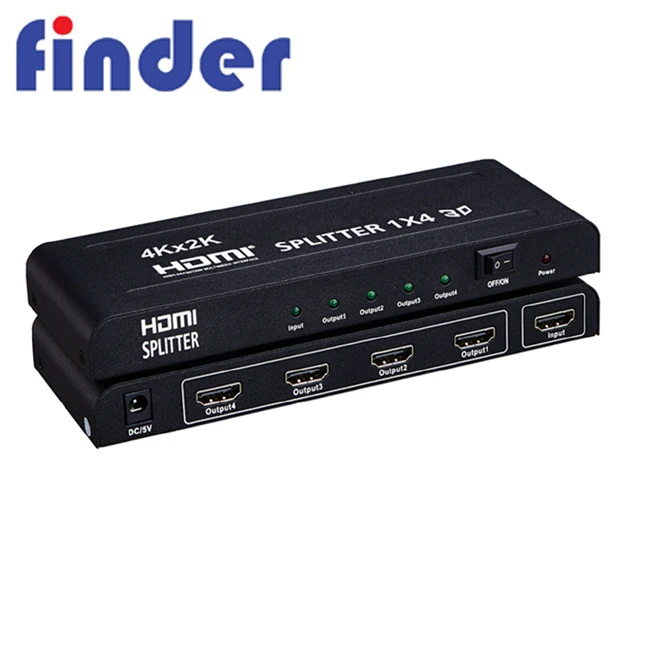

4K 4Port HDMI Splitter 1x4 HDTV Distribution Amplifier Support 3D

Product Overview

Description

4k 4 Port HDMI  Distribution Amplifier Splitter 1x4



Model: HD-SP104N
HDMI 1.4 Version
Support Full HD, 3D, 4Kx2K





Introduction:

This 1x4 hdmi splitter use a single HDMI source,accessing to multiple HDMI sinks .It allows one HDMI device to be split easily to four HDMI compatible monitors or projectors.In addition,It can also be placed at the end of a long HDMI cable to regenerate the HDMI signal. The resolution of this hdmi splitter can be up to 3840X2160/30Hz.





Features:

One HDMI input signal split to four HDMI sink devices

Support Full HD, Full 3D

Support 4Kx2K resolution

Support CEC

Support deep color 30bit, 36bit, 48bit

Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC

Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD/HD(HBR)

Support signal retiming

Support input up to 15metres AWG26 HDMI standard cable length, output up to 25metres AWG26 cable length

No loss of quality

Installs in minutes

Need DC5V/3A power supply





Specification:

HDMI version	HDMI 1.4b
HDMI resolution	up to 3840*2160/30Hz
Support video color format	8/10/12 bit deep color
Support audio format	DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth	340MHz
Max baud rate	3.2Gbps
Input/Output TMDS signal	0.5~1.5Volts p-p(TTL)
Input/Output DDC signal	5Volts p-p (TTL)
Input cable distance	(1080p resolution) ≤15m,(4K resolution)≤10m AWG26 HDMI standard cable
Output cable distance	(1080p resolution) ≤20m,(4K resolution)≤12m AWG26 HDMI standard cable
Max working current	500mA
Power adapter format..Input	input AC (50HZ, 60HZ) 100V-240V; output: DC5V/1A
Operating Temperature range	(-15 to +55°C)

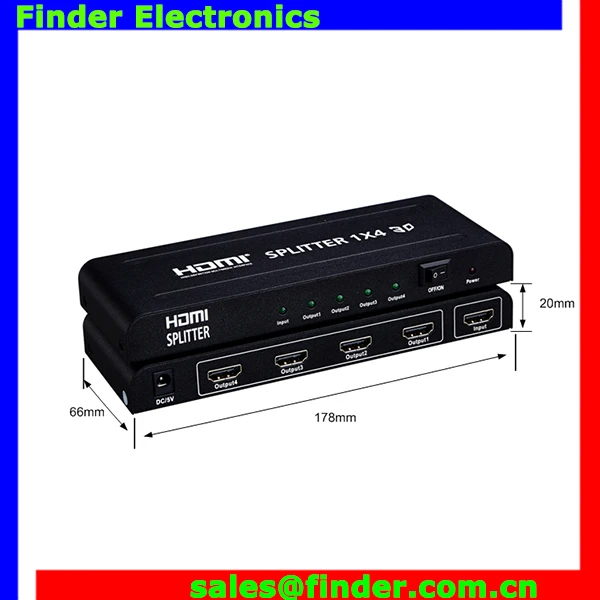

Dimension (L x W x H)	178x66x20 (mm)
Weight	220g
Accessories	5V Power Adaptor, Manual



Operating and Connecting:

1: connect the HD source to the splitter input with one hdmi cable
2: connect the splitter output to the displays with 4 hdmi cables
3: connect 5V/1A power adapter to the splitter
