GOWORLD CTS 409 Electromagnetic Ultrasonic Thickness Gauge for metal magnetic through coating(paint or rust)
- Category: Gauges >>>
- Supplier: Guangdong Shantou Goworld Electronic Co. Ltd.
Share on (60695369131):
Product Overview
Description
Product Description

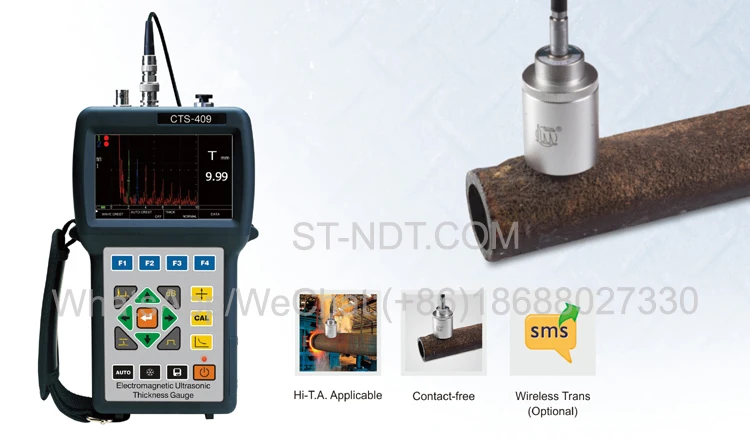

CTS-409 is a portable electromagnetic ultrasonic thickness gauge, which can measure the thickness of any metal or magnetic material without coupling agent or with non-contact mode, pushed out latest by Guangdong Goworld Co., Ltd. Ultrasonic Instrument Branch. Compared with the conventional ultrasonic thickness gauge, it has a unique advantage using in the high temperature, high speed, coating material thickness measurement.
Features
- Accurate measurement results without being affected by angles ( Up to 0.01mm of accuracy).
- Convenient measurements without coupling agent, probe with wear-resisting layer, the hardness 80D+ (HS).
- Measurement results without being affected by rough surface oxide coating / paint of work pieces; Measurements can be made through coating layers.
- Suitable for high temperature thickness measurements, Suitable for steel, copper, stainless steel and other conductive metal materials.
Specification
| Standard | EN 12668-1 compliance |
| Matching probe | EMAT-001(Can be customized) |

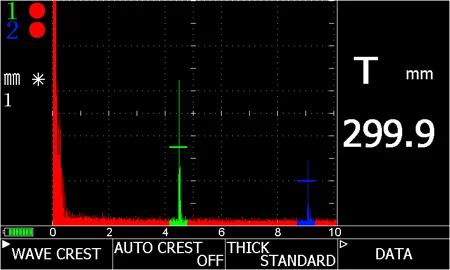

| Measuring range | 1.0~300.0mm |
| Temperature range of work pieces | -40~300℃ |

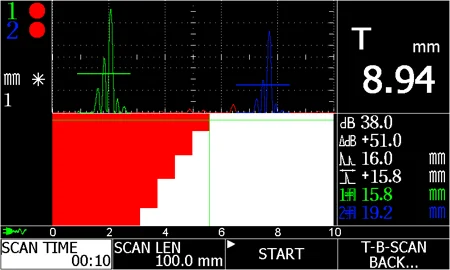

| Display | 4.3" industrial-leveled TFT color LCD with 800×480 WVGA resolution |
| Excitation Pulse Intensity | 350 Vpp |
| Sampling Frequency / Bits | 160MHz/10Bit |
| Bandwidth Range | 300kHz~5MHz |
| Rectification | Positive half wave, negative half wave, full wave and RF |
| Range Adjustment Step | 1mm (Transverse wave) |
| Gain | Total attenuation of 110dB, step as 0.1, 2.0 and 6.0 |
| Distance from test object | 3mm |
| Horizontal Linearity Error | <0.4% |
| Dynamic Range | ≥30dB |
| Excitation Mode | permanent magnet |
| Weight | <1.0kg |
| Power Supply | Large-capacity lithium battery without memory effect, more than 8 hours |
