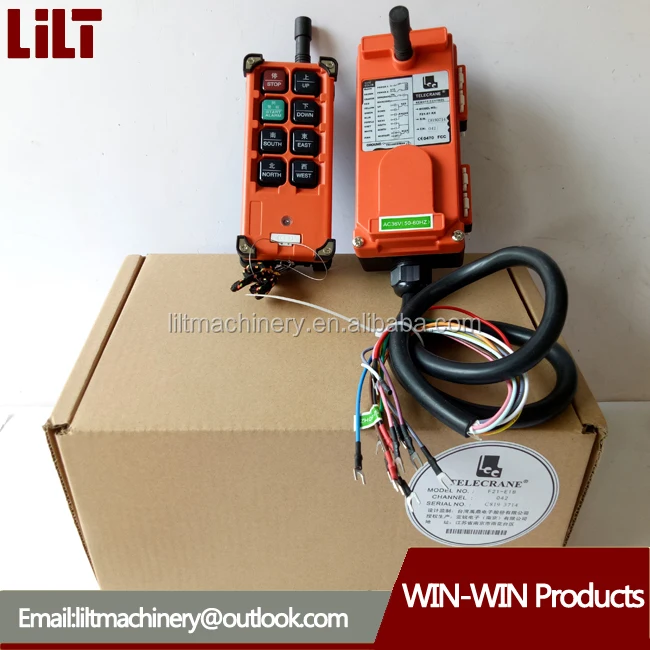

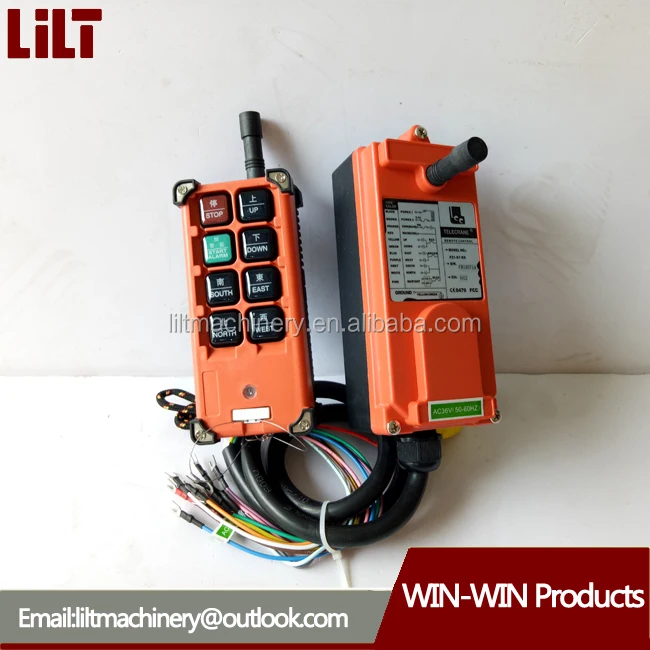

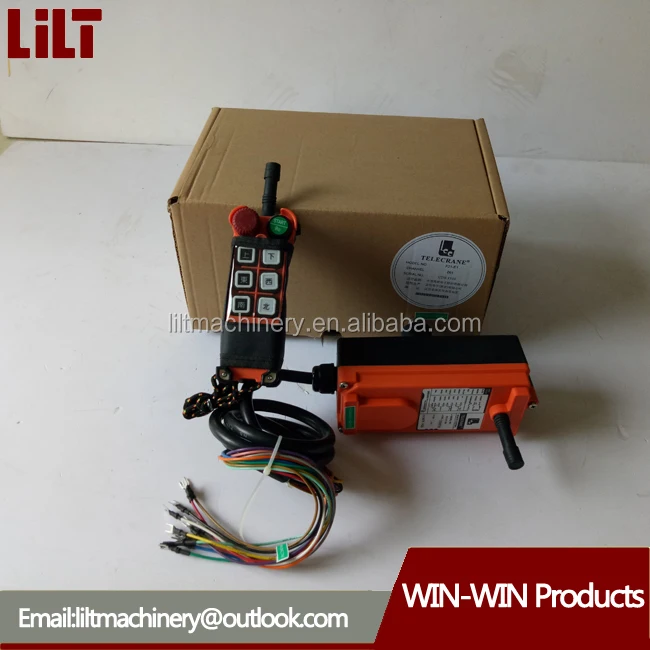

Joystick Crane Overhead Radio Pendant F21 e1b Industry Remote Control

Joystick Crane Overhead Radio Pendant F21-e1b Industry Remote Control application:

Joystick Crane Overhead Radio Pendant F21-e1b Industry Remote Control The installation of the receiver:

A, The production should be installed by trained electricians.

B, The wiring diagram: please reference the receiver machine’s external wiring diagram.

C, Power supply options: Receiver can be divided into direct current(DC) or alternating current(AC).

D, The receiver suitable for dc power supply, can be directly access to 12 or 24v dc power supply.

E, The receiver suitable for ac power, have to confirm the normal access to the rated voltage of the receiver.

F, To avoid signal disturbance, the receiver’s installation locating must be as far as possible from transformer, motor and cable.

G, The receiver cannot be installed in the electric control cabinet and correct installation method is to fix the receiver on top of the electric control box(for external) position, and then wear the receiver output cables into the electric control box with proper connection.

H, Though this series of remote controller have 4 billion groups of security codes, and we do not set the same security code into different controllers, but the installer still have to confirm the same installation work area cannot have the same security code remote controller to prevent accident.

I, Do not use the same channel equipment within 200 m range, in order to avoid radio interference.

J, Check the wiring correctly installed.

click get more information!!!

Joystick Crane Overhead Radio Pendant F21-e1b Industry Remote Control.

Crane remote control Scope of application:
Single and double beam crane, gantry crane, door crane, crane, concrete pump truck, roller coaster, mining machinery, crane, dump truck, hoisting locomotive, lifting machine, crawler crane and other heavy lifting machinery and equipment.

Machine Parts

Name: hand shank

Brand:LILT

Original: China

6pcs single speed key&master/alarm bell&scram

Main Features

Name: Receiver
Brand: LILT
Original: China
The details of receiver

Machine Parts

Name: Hand shank wire line
Brand: LILT
Original: China
1 meter, can be customized

Main Features

Name: Receiver
Brand: LILT
Original: China
lateral view of receiver
