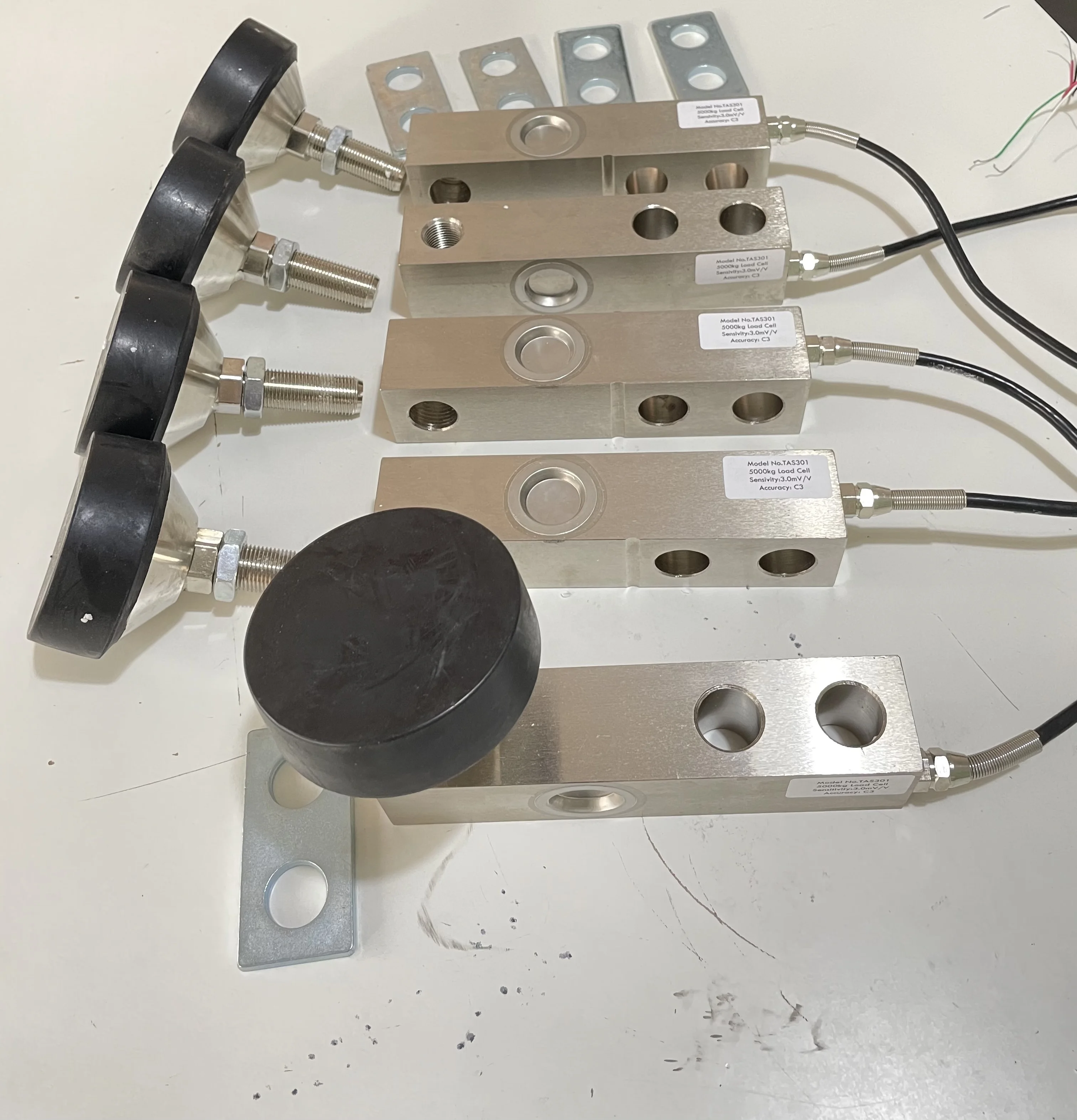

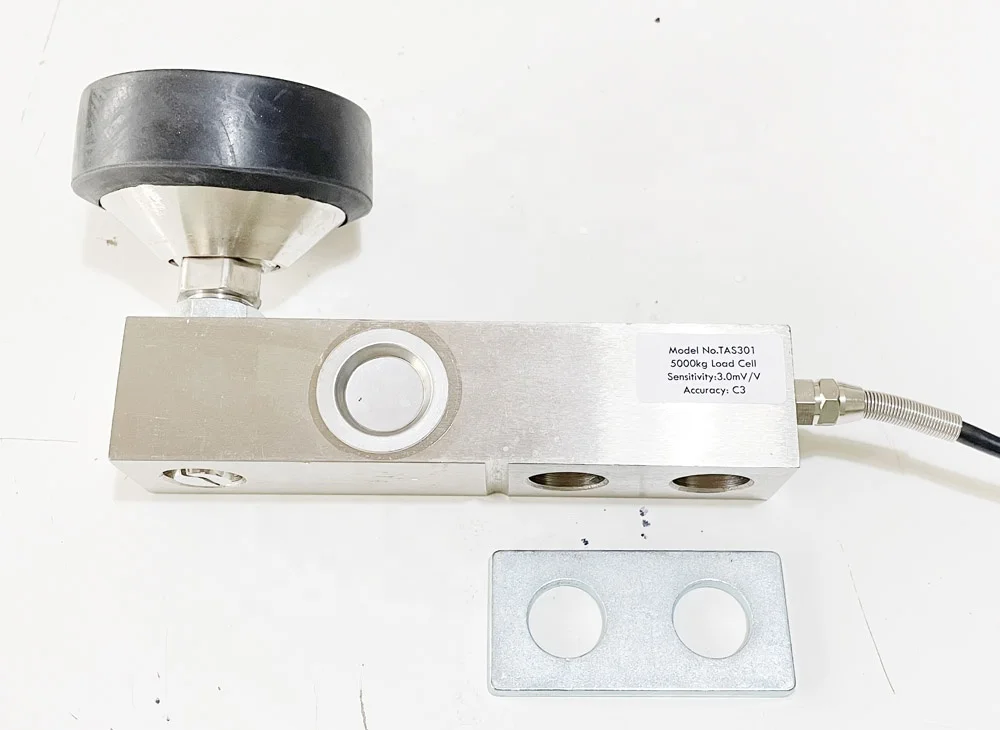

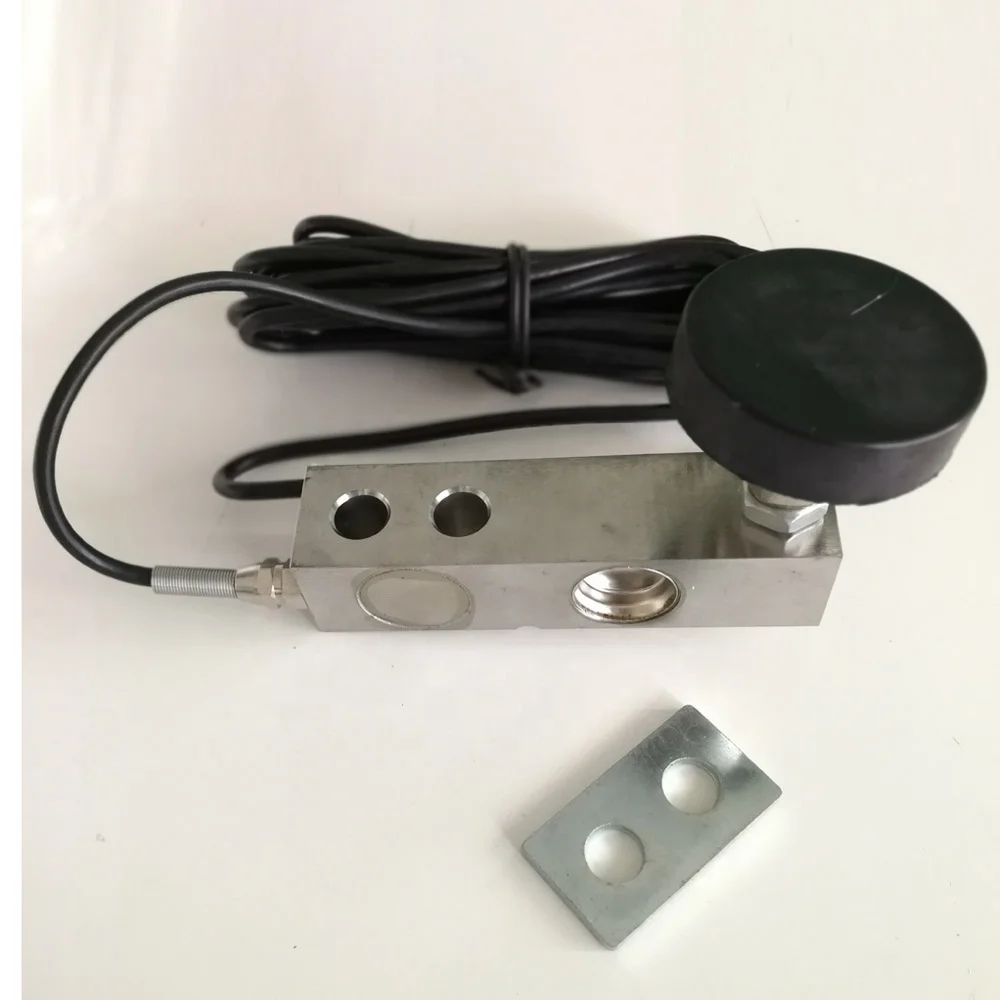

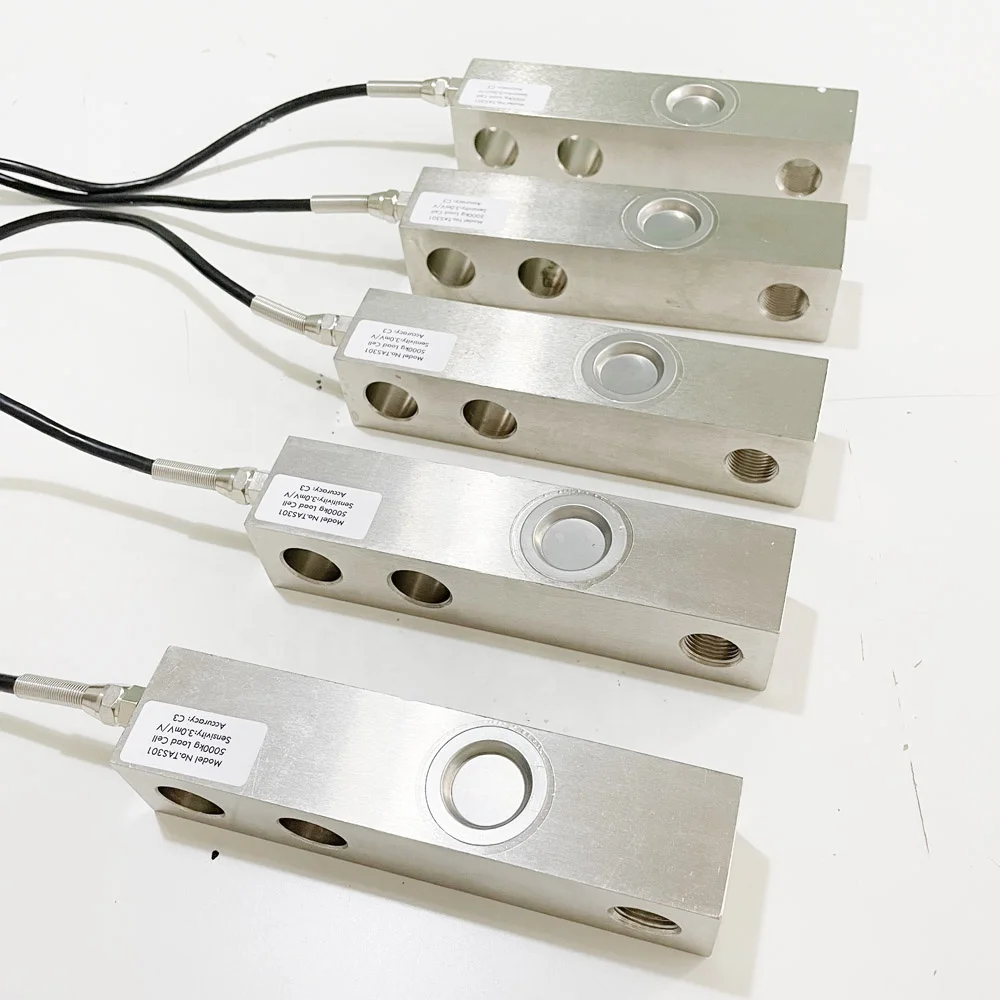

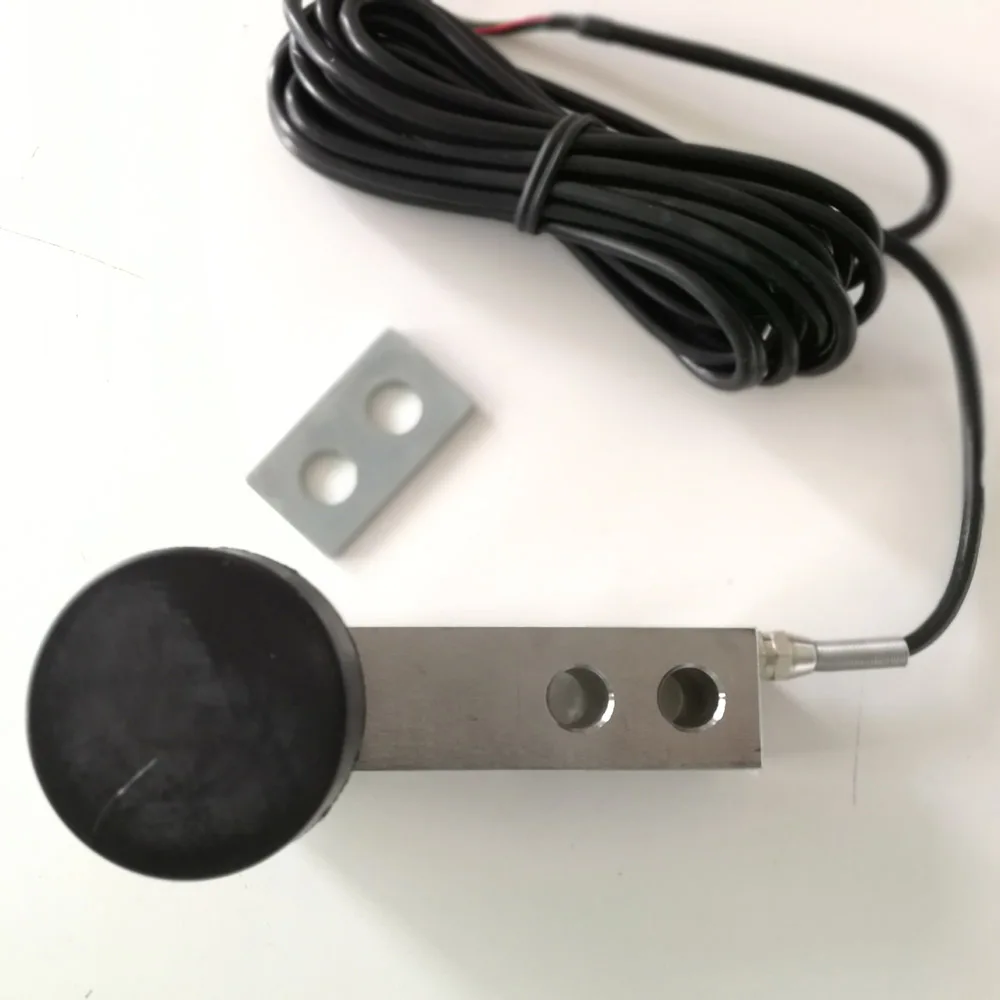

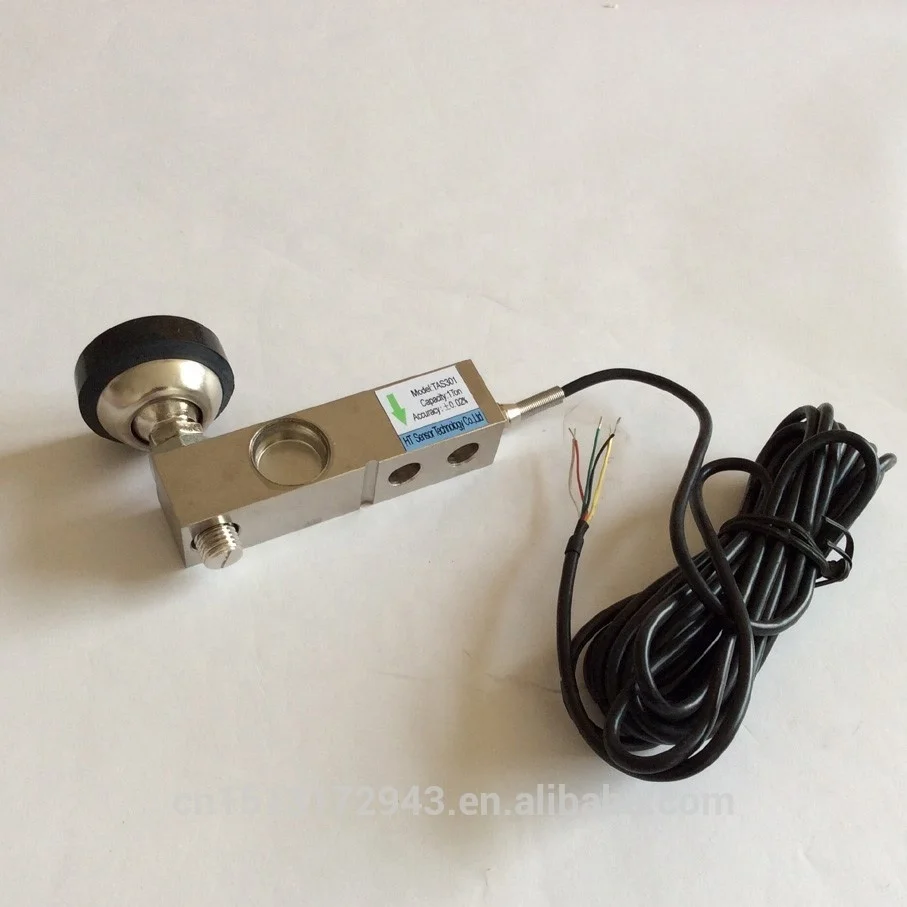

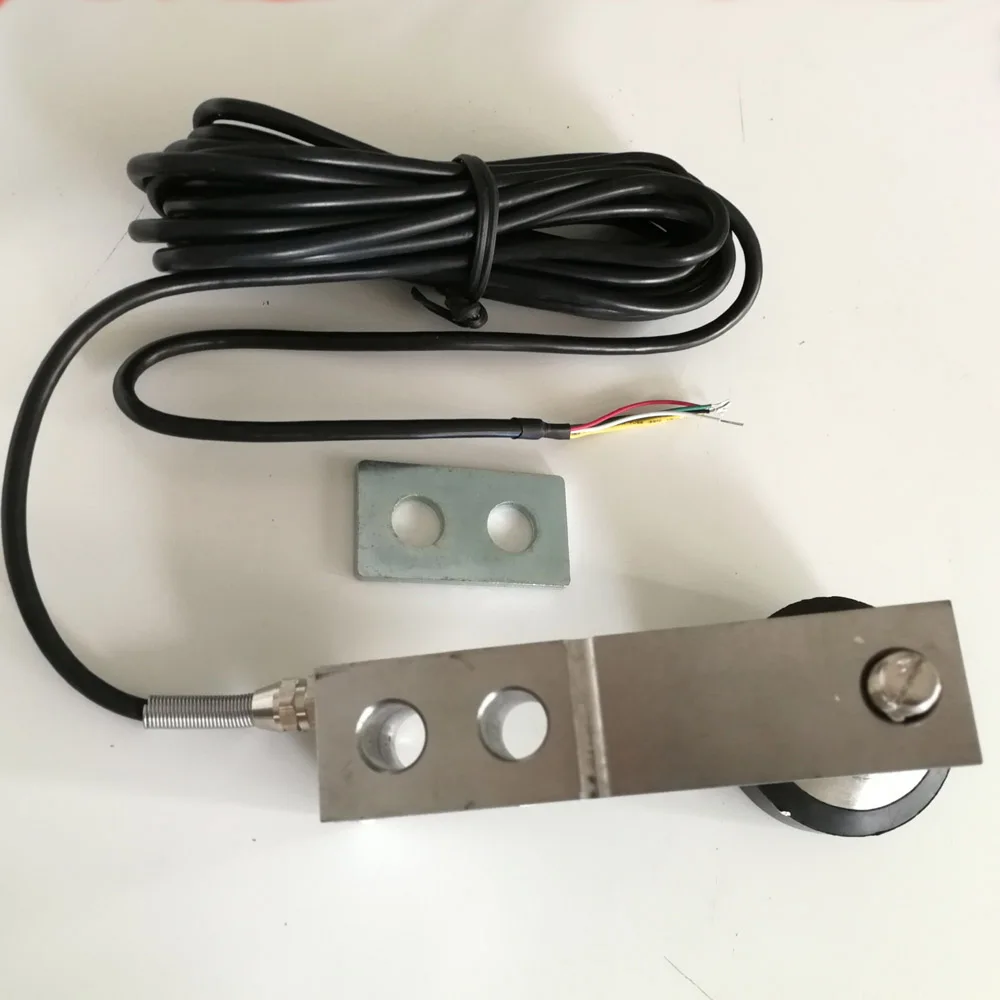

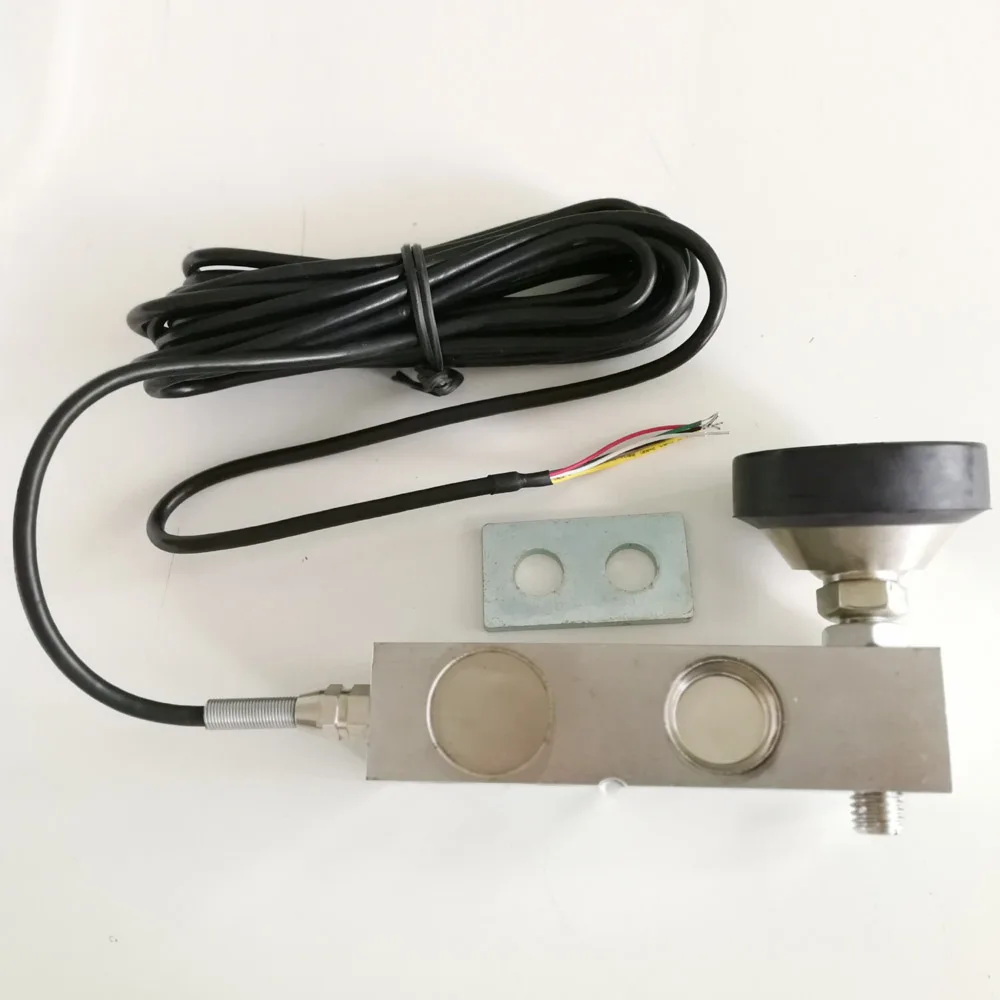

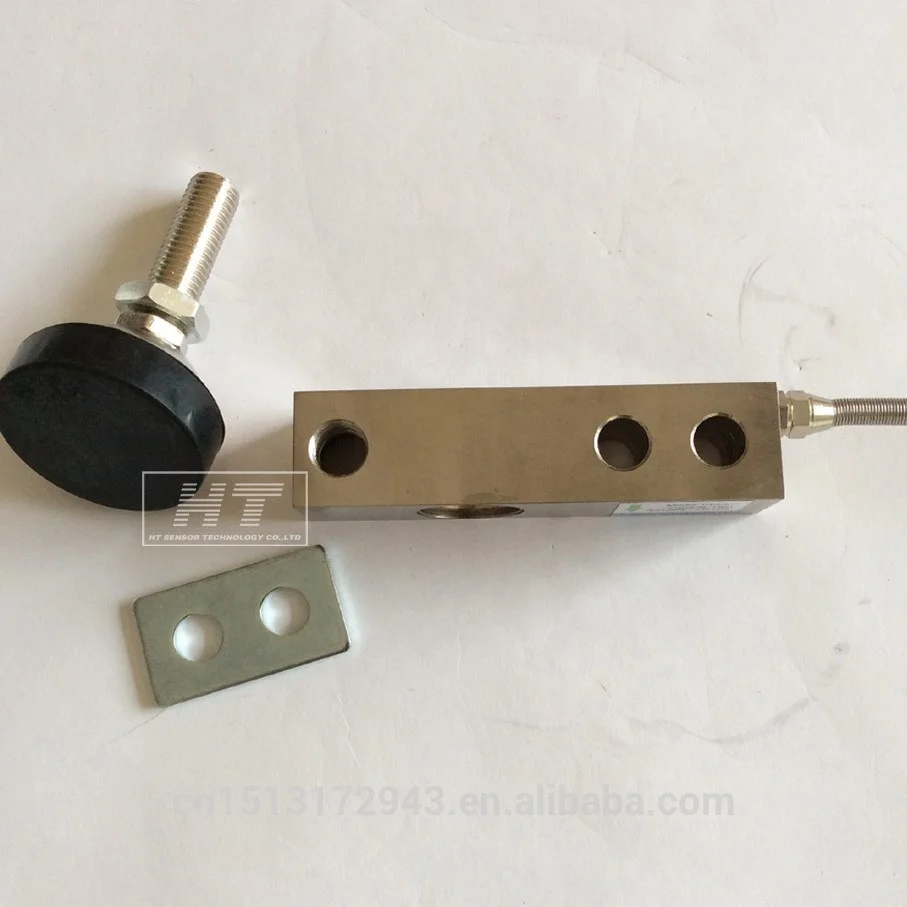

500kg 1000kg 2000kg 3000kg 5000kg floor scale single shear beam load cell 1 ton 2 ton 3 ton TAS301
500kg 1000kg 2000kg 3000kg 5000kg floor scale single shear beam load cell 1 ton 2 ton 3 ton TAS301
500kg 1000kg 2000kg 3000kg 5000kg floor scale single shear beam load cell 1 ton 2 ton 3 ton TAS301
500kg 1000kg 2000kg 3000kg 5000kg floor scale single shear beam load cell 1 ton 2 ton 3 ton TAS301
500kg 1000kg 2000kg 3000kg 5000kg floor scale single shear beam load cell 1 ton 2 ton 3 ton TAS301
500kg 1000kg 2000kg 3000kg 5000kg floor scale single shear beam load cell 1 ton 2 ton 3 ton TAS301
500kg 1000kg 2000kg 3000kg 5000kg floor scale single shear beam load cell 1 ton 2 ton 3 ton TAS301

500kg 1000kg 2000kg 3000kg 5000kg floor scale single shear beam load cell 1 ton 2 ton 3 ton TAS301

Share on (60695480189):


Price:

Quantity:


Product Overview

Description



Welcome to HT sensor


















capacity
Ton
0.5,1,2,3,5,10
safe overload
%FS
150
ultimate overload

%FS
200
rated output

mV/V
3.0 ± 0.003
excitation voltage

Vdc
9~ 12
combined error
%FS
± 0.03 & ±0.02
zero balance

%FS
± 1.0
non-linearity

%FS
± 0.02
hysteresis

%FS
± 0.02
repeatability

%FS
± 0.015
creep
%FS/30min

± 0.023
input resistance
Ω
350± 5
output resistance

Ω
350 ± 3
insulation resistance
M Ω
≥ 5000 @ 50Vdc
operating temperature range

℃
-20 ~ +55
compensated temperature range

℃
-10 ~ +40
temperature coefficient of SPAN

%FS/10℃

± 0.02
temperature coefficient of ZERO

%FS/10℃

± 0.03

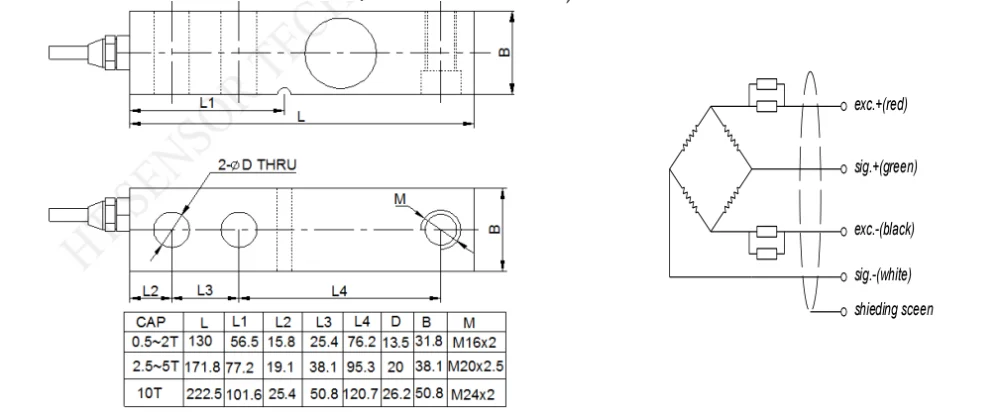

Electrical    connection
cable
4 core shielded PVC cable, Ø 5 × 3000 mm or 6000mm
