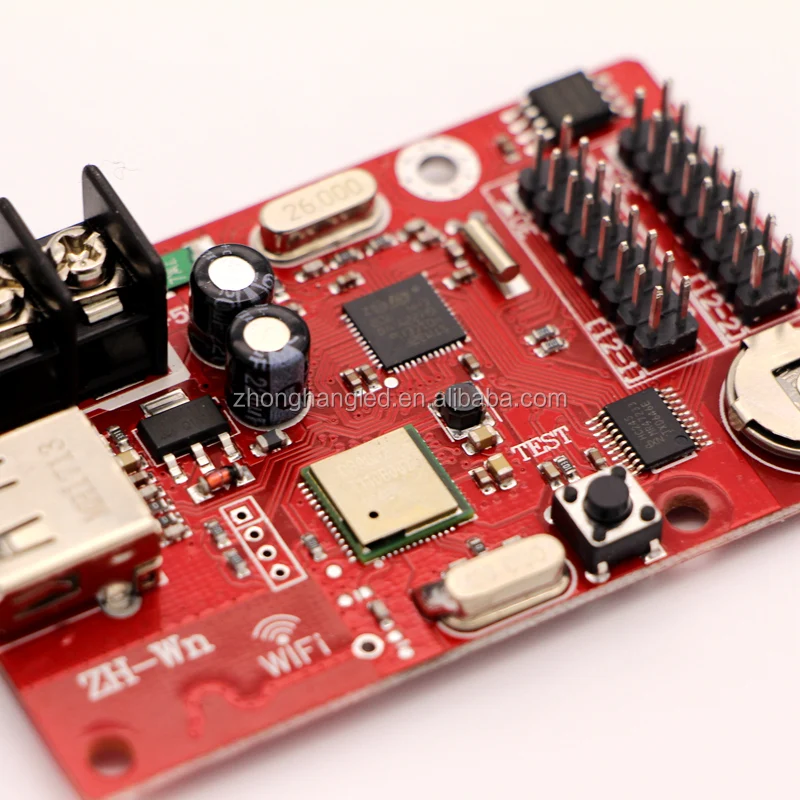

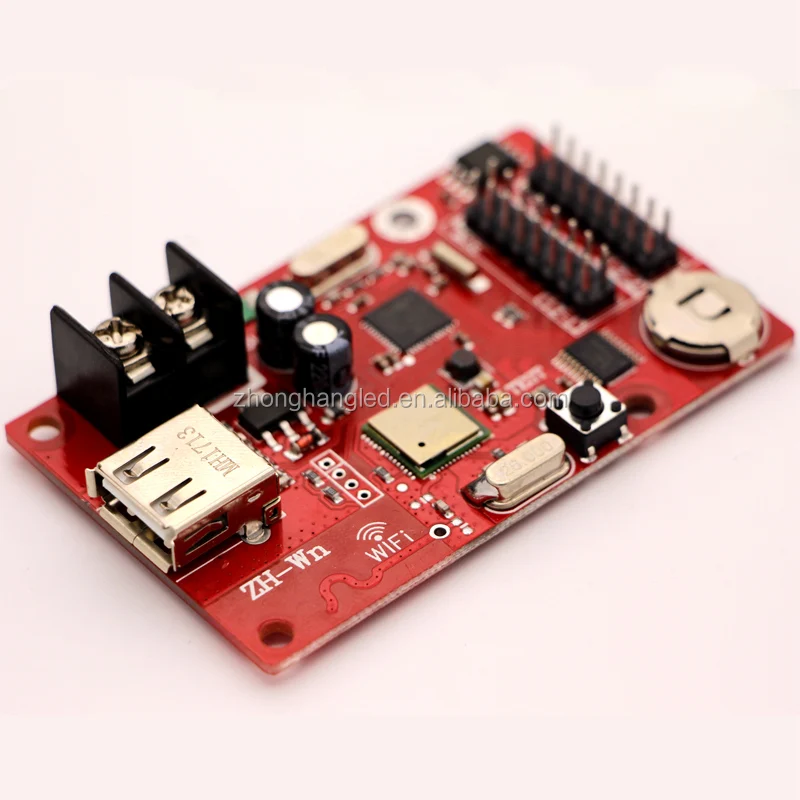

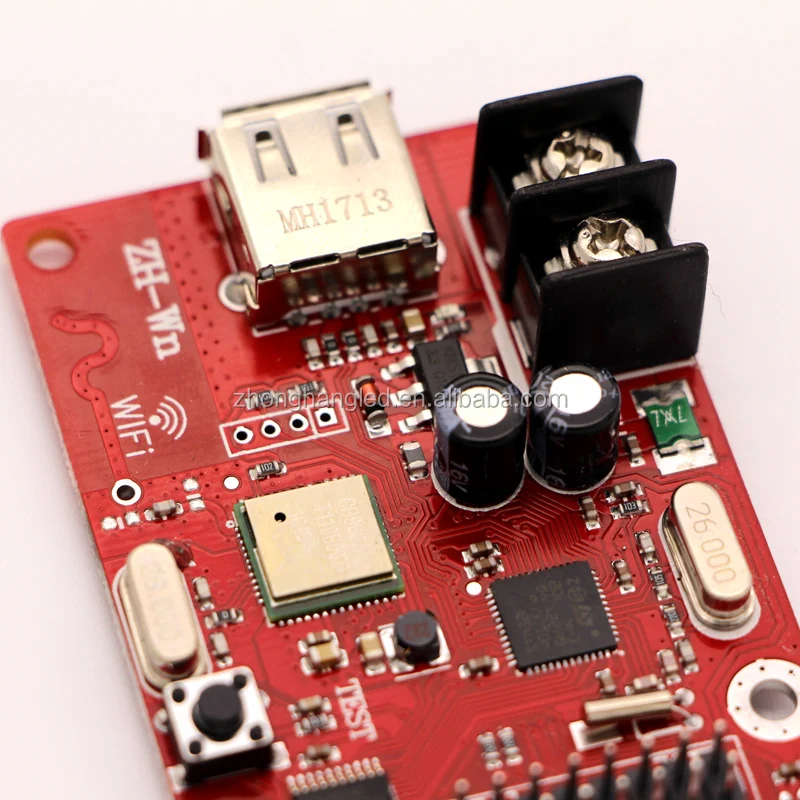

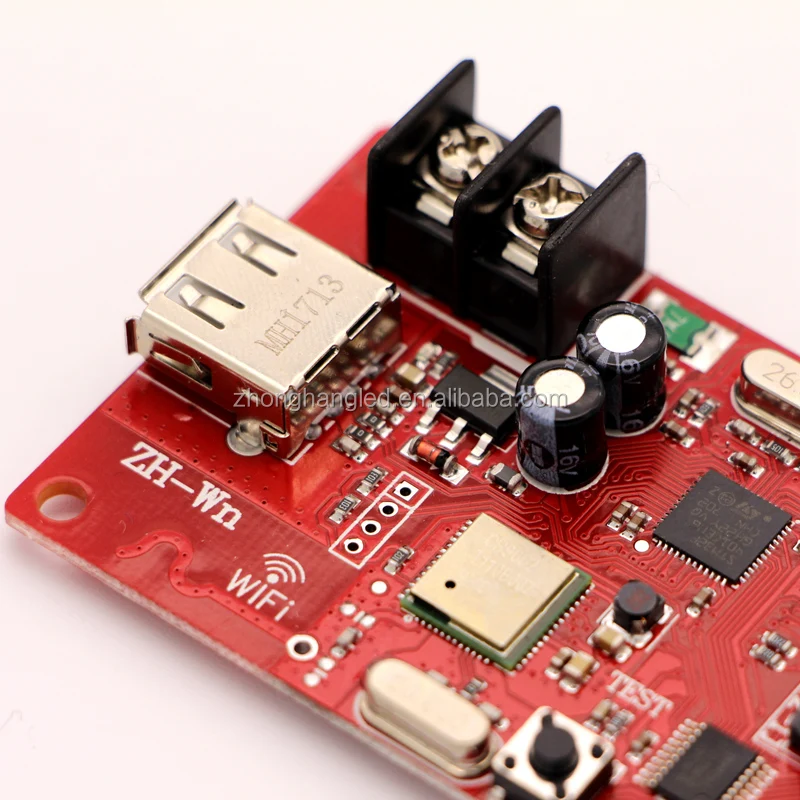

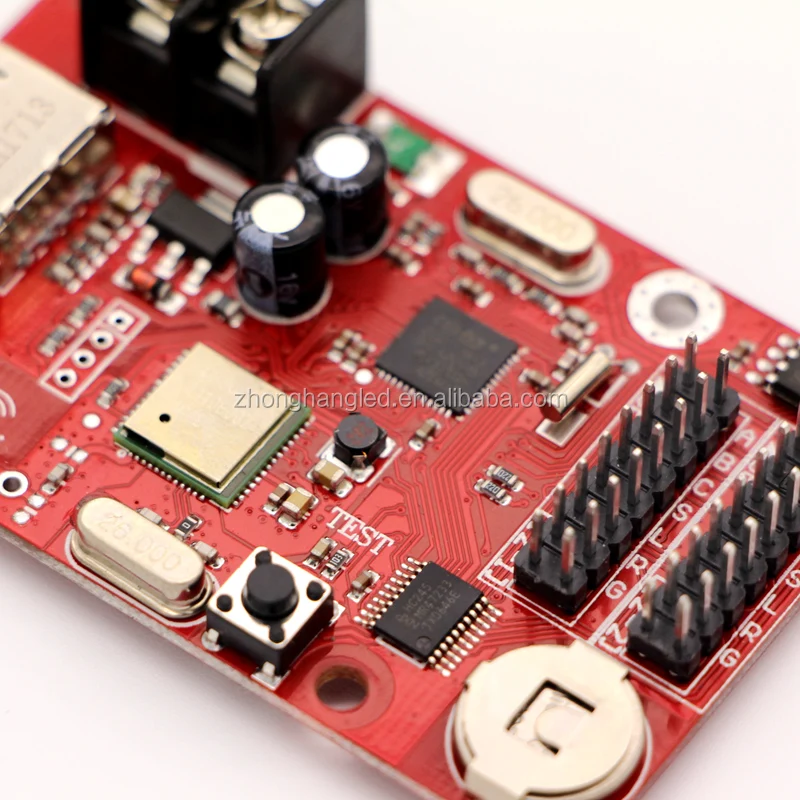

Model Number : ZH-Wn

Maximum support Points：32*320,16*640

Truly free wiring, with wireless router inside
Support the smart phone, tablet, laptop
Computer software switches WIFI network
Replaces the U disk completely without complicated network setting

Data transmission is stable and reliable and application:

1, In general, laptop can spread through the distance of 100 meters directly; desktop computer can communicate with wireless controller through the wireless network card.

2, Laptop can connect directly, control card owns router function; desktop can connect through the wireless card.

3, Available in the area with wifi coverage, such as airport, high-speed rail station, smart building, etc.

Function advantages:

Truly free wiring; simple operation; without any subsequent cost; simple point to point communication; can automatically search WiFi network and establish reliable connection.

Main functions:

Data wireless transparent transmission; support 100M Ethernet network; support TCP/IP/UDP network protocol stack; support routing/bridge model network frame; support 802.11 b/g/n wireless standards;

Maximum power:

≤3W

Receive sensitivity:

≤ (802.11 b: - 89 DBM, 802.11 g: - 81 DBM, 802.11 n: - 71 DBM)

Maximum transmission distance:

200M (the actual application transmission distance suggestion: ≤100 meters)

Wireless standard:

802.11 b/g/n

Working frequency band:

2.412 GHz to 2.484 GHz

Configuration antenna:

2.4 GHz special inside antenna

Working voltage:

+4.5V~6V

Working temperature:

-30℃~70℃

FOB Shenzhen (approx 20 working days after the advanced payment)

Service after sales

If you have any questions about our LED module and LED display product, you can inform us by mail or call, and we will reply you in 24 hours when we get your email or call,and offer you a good solution for your problem.

Warranty


All of LED modules :Two years quality warranty.

Our products have won many certificates and are familiar around the world.Offer high quality products, competitive price, best service for our customers is our business philosophy.

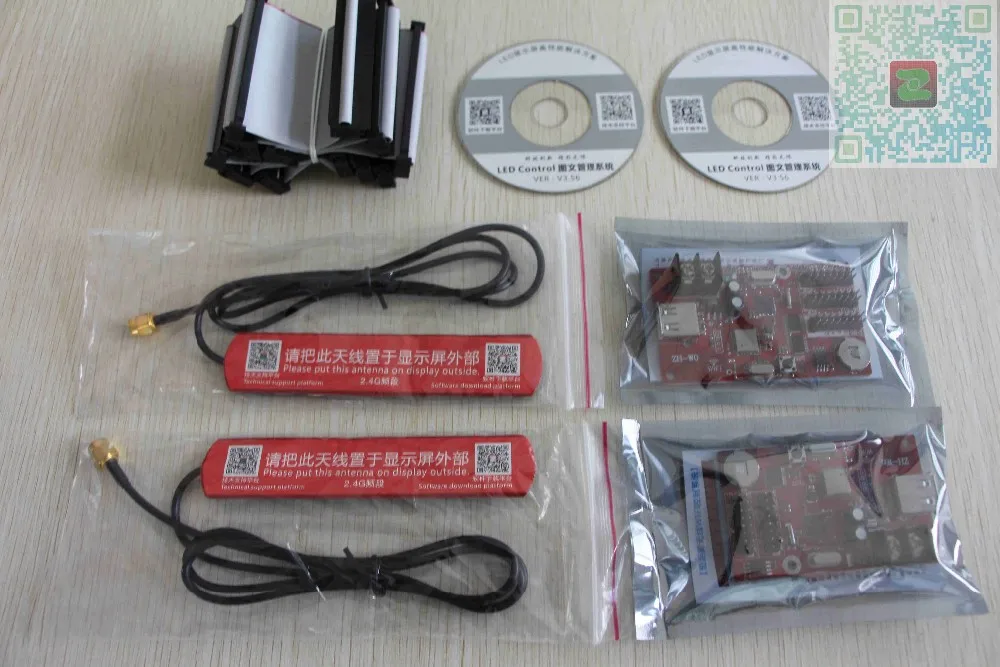

Packaging Details: PVC bag and carton box


Delivery Time: After payment

A. By air, From factory to the most closed air port of destination.
B. By world wide express, always use DHL,UPS, TNT, Fedex, EMS, door to door service
C. By ship, the slowest shipping, from factory to the most closed sea port of destination.
