Product Name

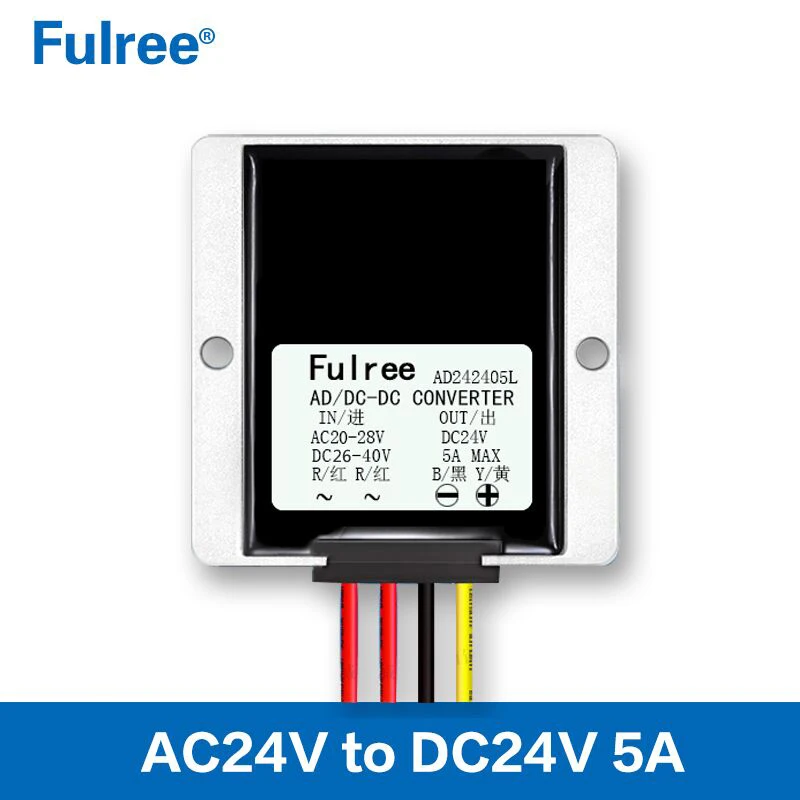

24vac to 24vdc converter

Brand

Fulree

Model No.

Module Properties

non-isolated module

Rectification

synchronous rectification

Input

Input Voltage

AC 24V

Input Voltage Range

AC 20-28V DC 26-40V

Output

Output Voltage

DC 24V

Output Current

5A

Output Power

120W

 Conversion Efficiency

Voltage regulation

±1%

Load regulation

± 2%

Ripple (Full load test)

< 150mV

No-load current

<100mA

Working Temperature

-40~80℃

Waterproof Rating

IP68

Protection

Over-current protection

Overheat protection

Output Short circuit protection

Application

Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts

GPS Navigation, Monitoring, Air conditioning

LED car display, DVD, LED bulb lights

Wind Power System, Solar Panel Power System

Electrical appliances, water pumps, industrial equipment, telecommunications and so on.

Certification

CE/RoHS/FCC

  Case Material

Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on

  Product Size (L x W x H)

74*74*32mm

Product Weight

280g

Warranty

12 months, lifetime up to 100,000 hours

Cooling Way

Free air convection

OEM&ODM Service
