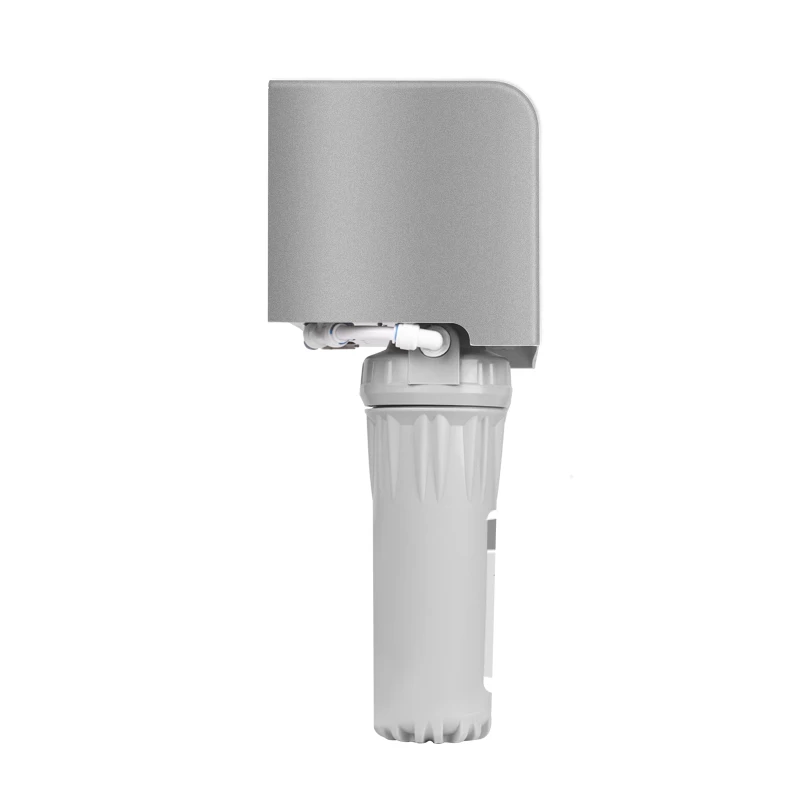

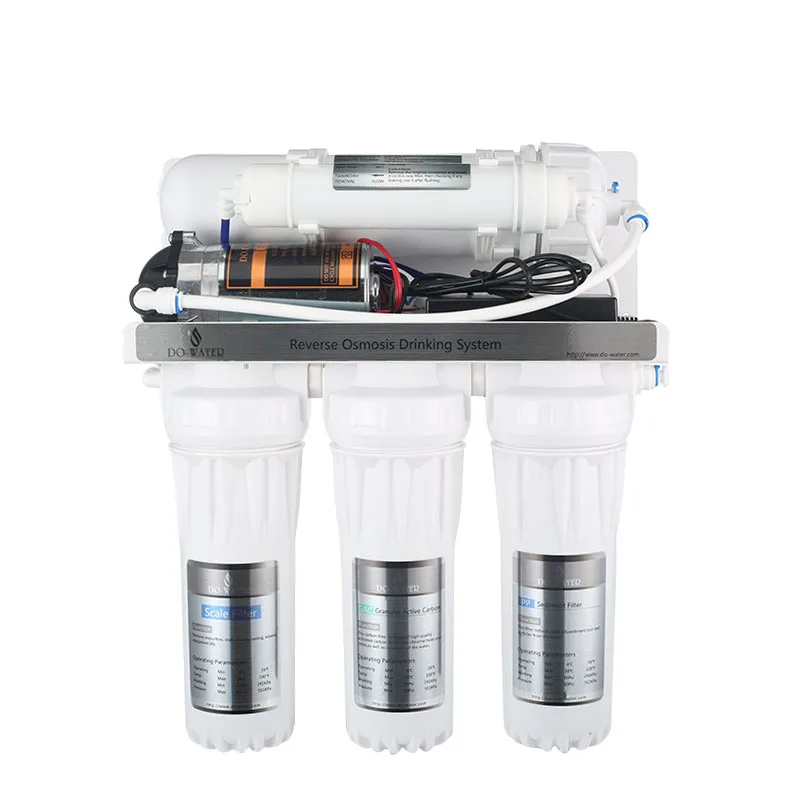

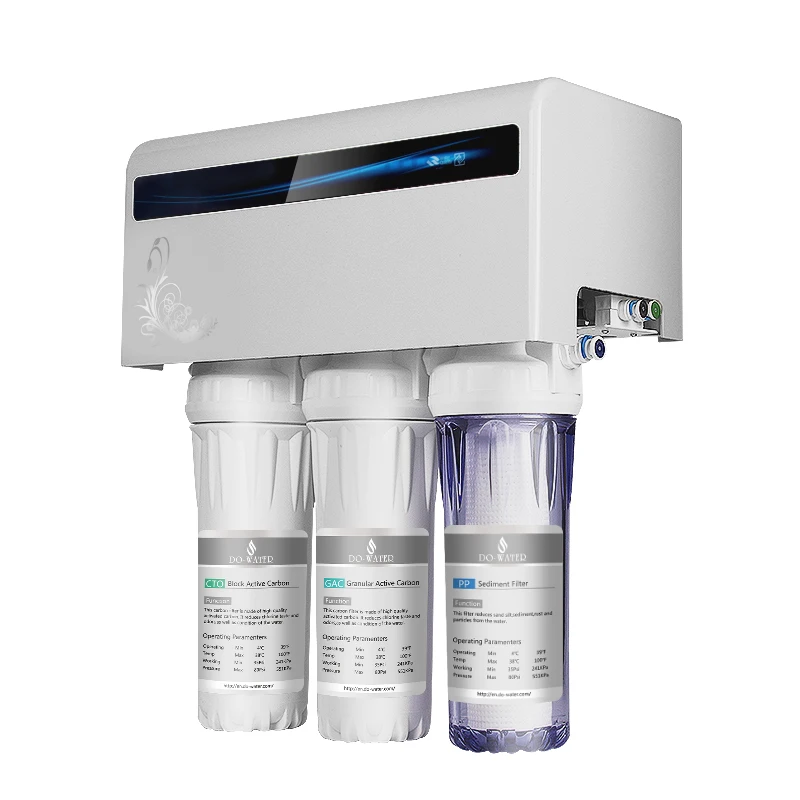

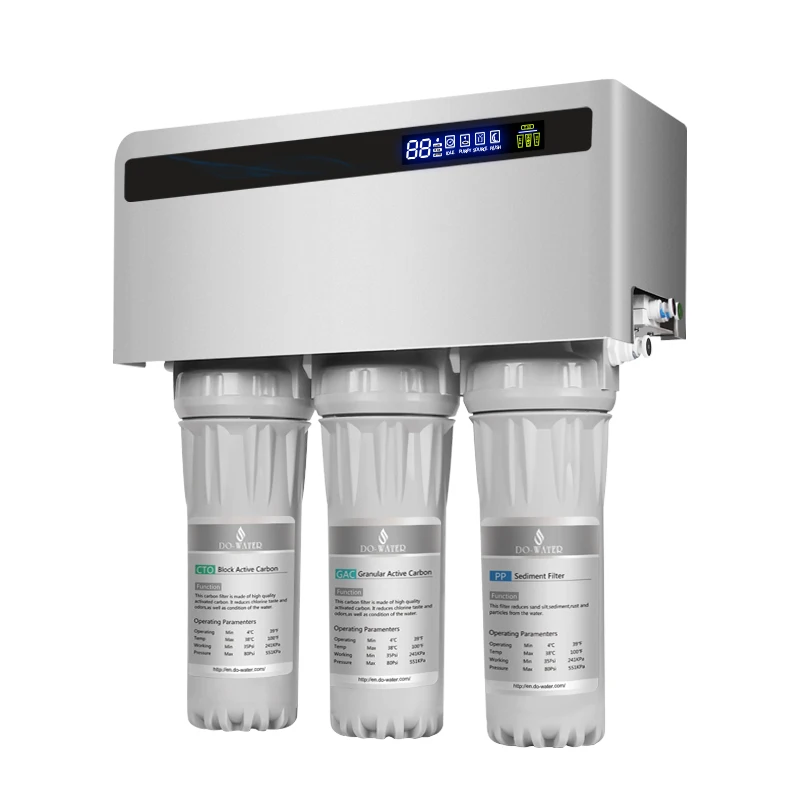

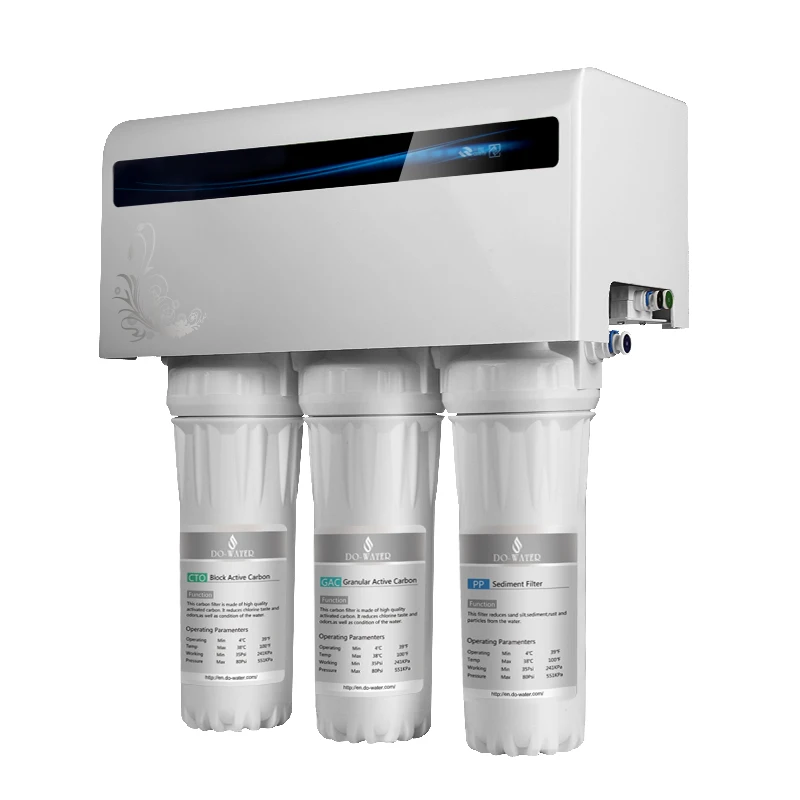

RO 400 Gpd Reverse Osmosis Systems Water Purifier Machine

Product Overview

Description

400 Gpd Reverse Osmosis Systems Water Purifier Machine

Specificaton:

(1)Capacity: 400G

(2)Flush type: automatic flush with TDS display

(3)Power supply:110V/220V , 60Hz /50HZ
(4)RO membrane: FS-DO.F
(5) Booster Pump: pump with adaptor
(6)Fitting type: Quick Push connector

Model	400G-SA-2
Power	96W
Rated voltage/frequency	110V-220V, 50/60HZ
Output Capacity	1514L/Days
Water pressure	0.1-0.6Mpa
Feed water temperature	5-45℃
Treatment stages	5 stages (Also can be added in mineral,alkaline,UV light)
1st Stage	10" PP 5 micron filter, Clear filter housing
2nd Stage	10" GAC carbon filter, White filter housing
3rd Stage	10" CTO carbon Block Filter, White Filter Housing
4th Stage	RO membrane 50GPD / 75GPD/80GPD
5th Stage	10" in-line post carbon cartridge
Pressure tank	no tank
Filter Housing	Double O-ring filter housing
Booster Pump	110V or 220V
Faucet	Press-handle gooseneck faucet 1/4" or Three-way Handle Long Reach Faucet 1/4"
Fittings type	Quick fittings
Other parts	Solenoid valve 1/4'' or Auto Shut-off Valve 1/4''
	High pressure switch, Low pressure swith
	1/4" tubing for system connection
	Feed water connector, 1/4" ball valve
	Drain water clip
	Each components have been passed 10,000 times strict cycle testing  under 125 PSI water pressure or burst testing.
Color	White or silver
Packing	590*430*340mm





Filter Cartridge Lifetime:

Stage 01--5 micron PP cotton filter: 4 tons, replace in 6 months

Stage 02--particle coconut activated carbon: 4 tons, replace in 6 months

Stage 03--1 micron PP cotton filter: 8 tons, replace from 6 to 12 months

Stage 04--reverse osmosis membrane: 28-36 tons, replace in 3 years

Stage 05--post inline coconut activated carbon: 8 tons, replace from 6 to 12 months8 tons





Precautions:

(1) Never place the water purifier in a direct sunshine

(2) Move the machine carefully and lightly.

(3) The water purifier shall operate at a temperature of 5-42°c,,and must not filter hot water,otherwise this may cause damage;in winter,pay attention to heat preservation and

protect against freeze.

(4) By using a cloth dipped in water,clean the water purifier with soft detergent rather that strong

volatile solvent such as gasoline

(5) In case of failure,disconnect the water source promptly,and see the introduction or ask us.

(6) In case of Long-term no use.pull the power plug,close the feed ball valve and cut off the water

source.

(7) In the cases where the water purifier is used for the first time or resued after long time idle

drain out the first two tanks of water through the goosennect tap after the tank is full,and then

use the machine.

(8) Don’t use a power supply that does not match the related voltage
