ЖК экран для 3D принтера с высоким разрешением 3840x2160 10,1 дюйма 4K
- Category: >>>
- Supplier: Shenzhen Aptus Technology Co. Ltd
Share on (60695701792):
Product Overview
Description
Product Description

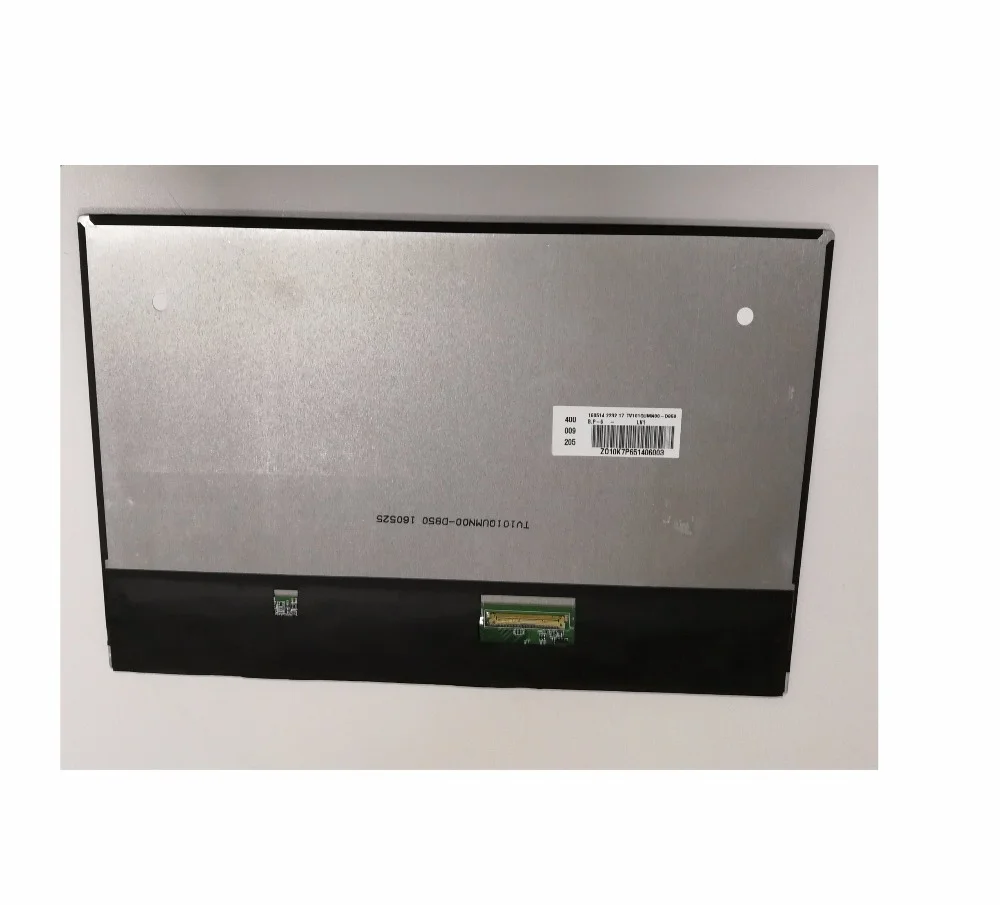

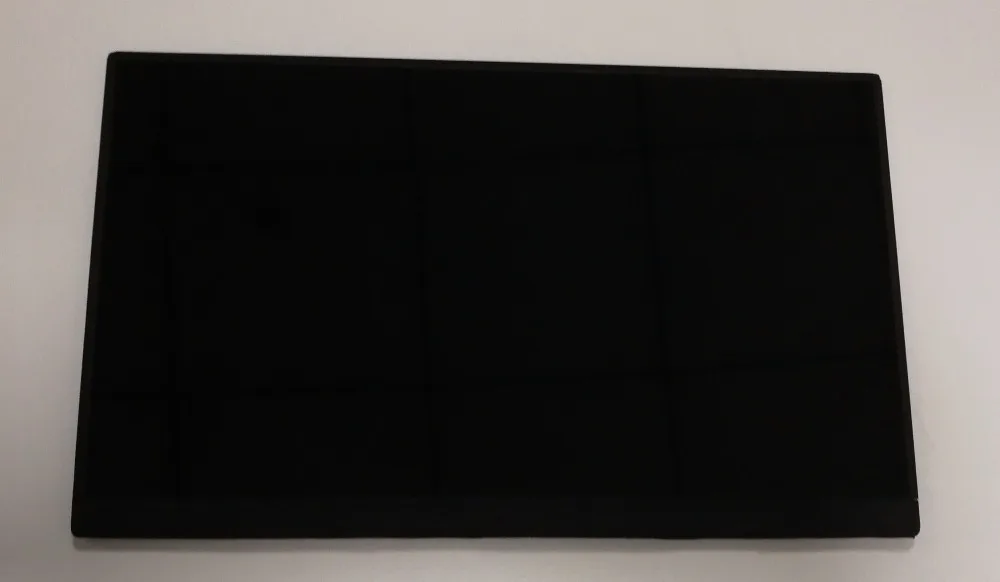

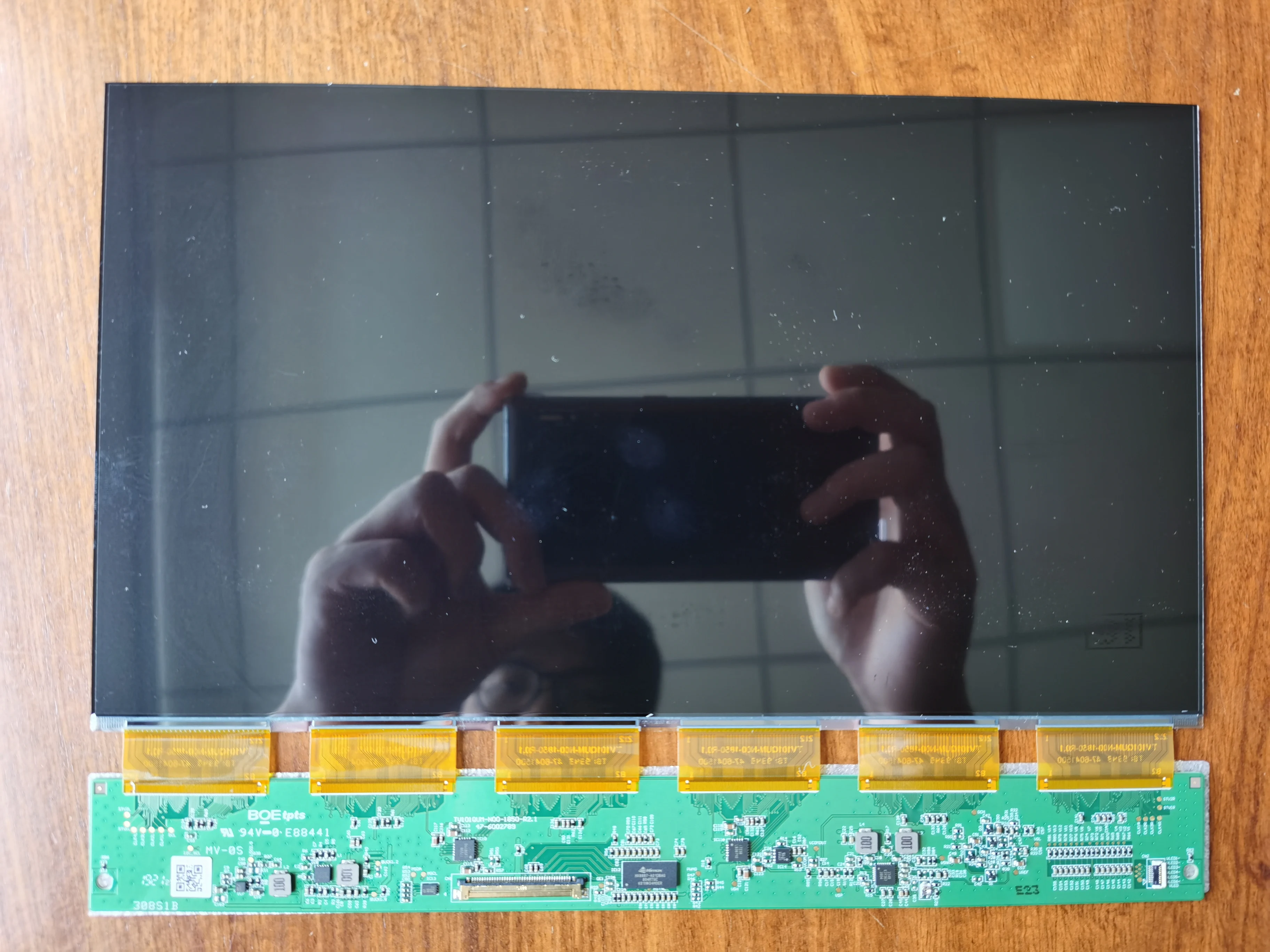

high resolution : 3840x2160 10.1 inch 4K LCD monitor driver board and android board optional TV101QUM-N00
Product parameter
No. | Item | Specification |
1 | LCD size | 10.1 inch(Diagonal) |
2 | Model Name | TV101QUM-N00 |
3 | Resolution | 3840*2160 |
4 | Display Area | 222.912(W)×125.388(H) mm |
5 | Outline Size | 231.6(W)×140.9(H) mm |
6 | Brightness | 450 cd/m² (Typ.) |
7 | Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
8 | Best View on | Symmetry |
9 | Display Colors | 16.7M 100% (CIE1931) |
10 | Frequency | 60Hz |
11 | Signal Interface | eDP (4 Lanes) , 40 pins , Connector |
12 | Input Voltage | 3.3V (Typ.) |
13 | Environment | Operating Temp.: 0 ~ 40 °C ; Storage Temp.: -20 ~ 60 °C |
14 | Panel Type | a-Si TFT-LCD , LCM |
15 | Pixel Format | RGB Vertical Stripe |
16 | Contrast Ratio | 1500:1 (Typ.) |
17 | Response Time | 30 (Typ.)(Tr+Td) |
18 | Lamp Type | 8S6P WLED , 15K hours , Without Driver |
19 | Display Mode | ADS, Normally Black, Transmissive |
20 | Application | Laptop |
Product Description
Total solution for 3D printer
1. LS055RISX04 5.5 inch 1440*2560 LCD
2. HDMI driver board for 5.5 inch LCD
3. Parallel UV light source

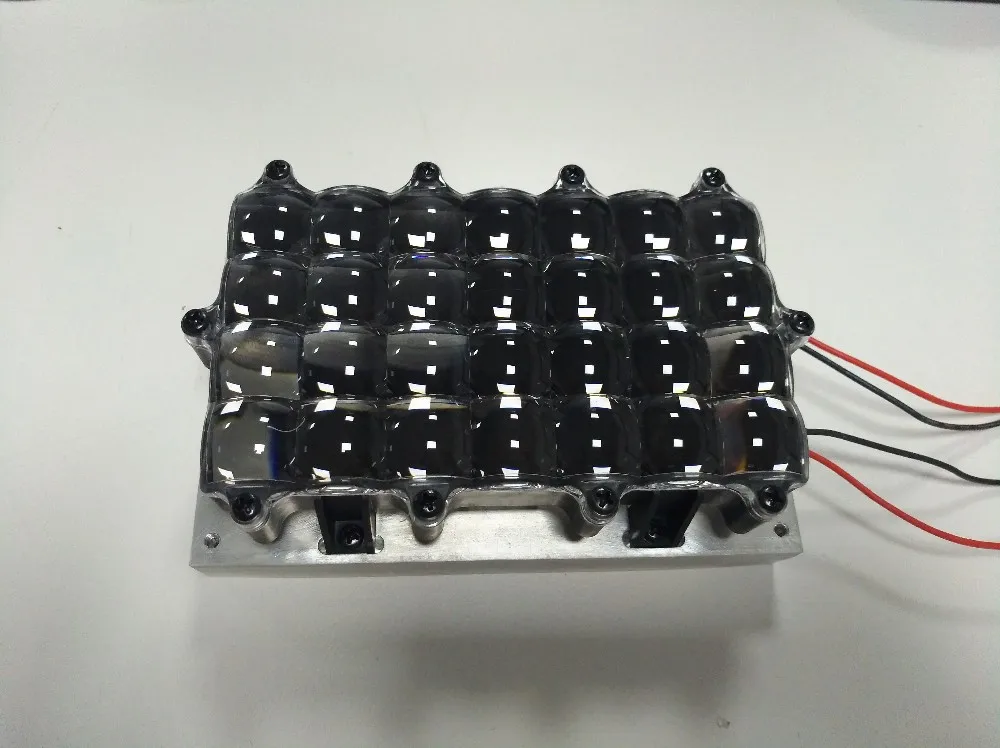

Parallel UV Light source
This is parallel UV LED light source for 5.5 inch and 6 inch LCD for 3D printer.

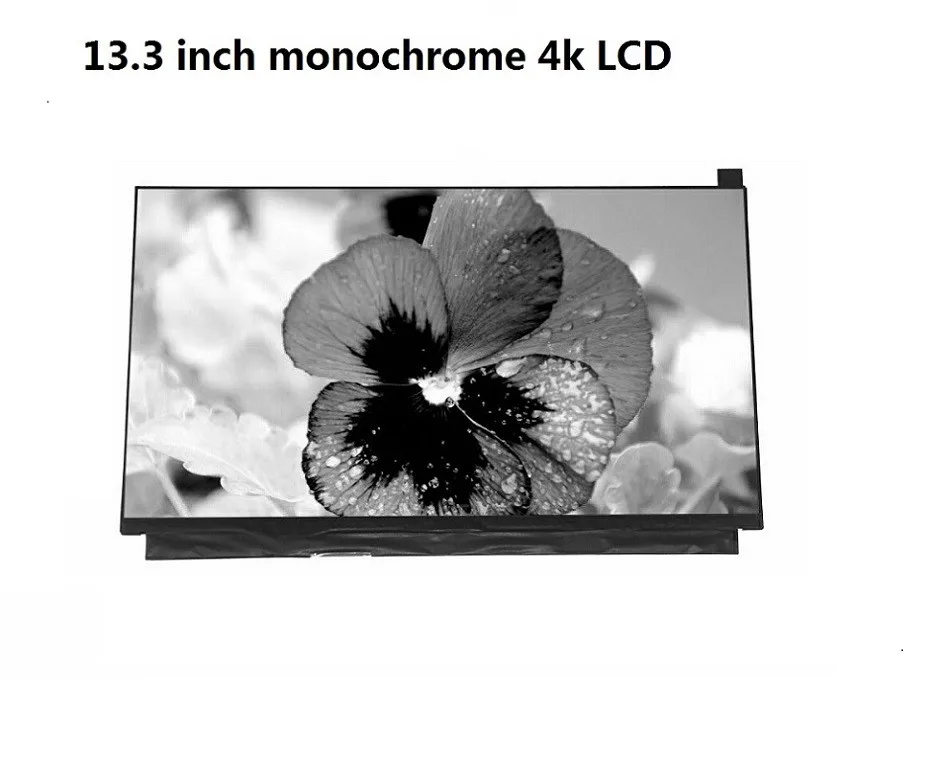

4k Monochrome LCD for 3D printer.
General Clauses
1 | MOQ: | 1 pcs |
2 | Lead time: | Samples in stocks,3~6 weeks for mass production |
3 | Trade Terms : | EXW or FOB |
4 | Payment: | 100% Paypal or T/T or Western union in advanc for samples |
5 | Warranty: | 12 months |
6 | Package: | Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton |
All our products are standard packed, you can contact us sales for detailed information.
We can ship the products by DHL, UPS, FedEx,EMS Express.
Our Company
Product Line
1.Wide Operating Temperature : - 30 ~+85 ℃
2.High Brightness :500~1500 nit
3.High resolution:3840*2160 4k LCD
4.Standard Product
5.Driver Kits
Our Factory
OEM and ODM
Certifications
ISO9001
ISO14001
TS16949
FAQ
Q: What is the MOQ?
A: Generally if you choose the different products, our minimum order qty also will be different.
high resolution : 3840x2160 10.1 inch 4K LCD monitor driver board and android board optional TV101QUM-N00
Q: What about the delivery time?
A: The LCD products need 5-6 weeks to be made after receive deposit.
Q: Does your product have any warranty?
A: Yes, we offer 12 months warranty for our products. Damage due to misuse, ill treatment and unauthorized modifications and repairs are not covered by our warranty.
Q: What's your payment method?
A: We usually accept the payment methods include T/T, Western Union and Trade Assurance. 50-100% deposit in advance and balance before shipping upon the payment amount. Buyer can choose which payment ways that you accept.
Q: What's your shipping method?
A: We provide comprehensive shipping methods.
For small quantity orders we ship by UPS Air-Express,or DHL/FEDEX/TNT/EMS Express service, it is safe and fast.
For large quantity orders we ship by buyer's cargo agent in China, we can also ship by Air transportation or sea transportation.
Q: Do you offer custom solution?
A: Yes,we can offer custom solution if standard products couldn't meet buyer' requirements.
Q: How to Contact us?
A: Send your Inquiry Details in the Below, Click "Send" Now!
