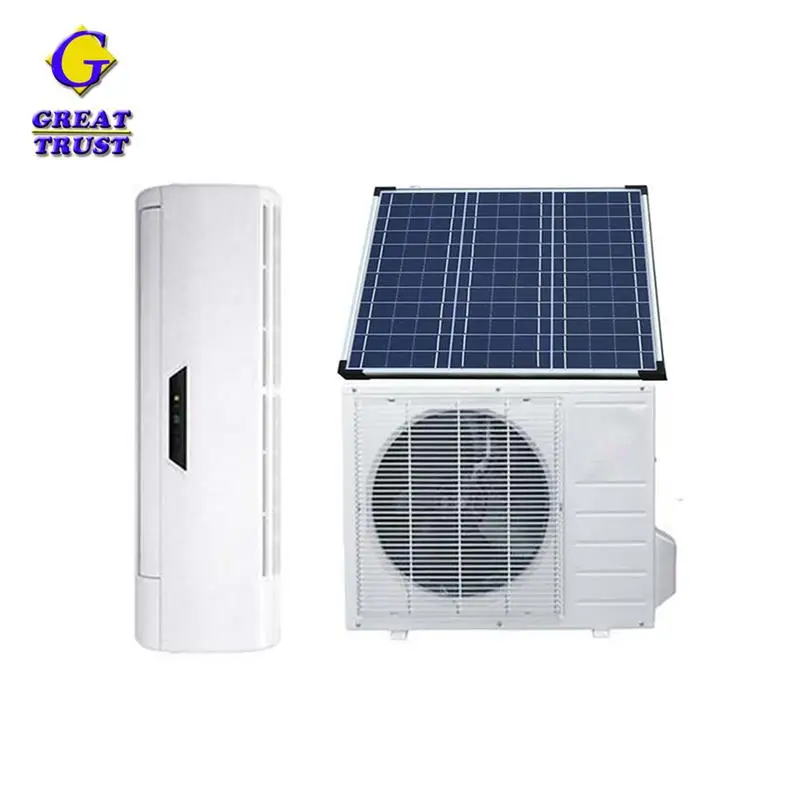

♦ 100% driven by solar energy,100% energy saving
♦ 48V DC power drive, no inverter required, no AC power power required
♦ Deep cycle batteries as energy bank for overnight operation, over 8 hours back up time.
♦ DC inverter permanent magnet compressors
♦ Lowest energy consumption,lowest noise level
♦ DC brushless indoor and outdoor fan motors
♦ Short investment recovery period(2 years)
♦ R410a eco-friendly refrigerant
♦ Lowest energy loss, SEER>19
♦ Operating voltage range: 60-100V
|48V DC solar air conditioner||250W PV panels|
|PV mounting hardware||Solar charge controller|
How does the solar air conditioner work?
PV solar panels produce electricity, Electricity is saved in the batteries as an energy bank.
Batteries drive the solar air conditioner to run both cooling and heating.
The solar controller protects the whole system and provides stable power supply.
Which kind of fan motor is used?

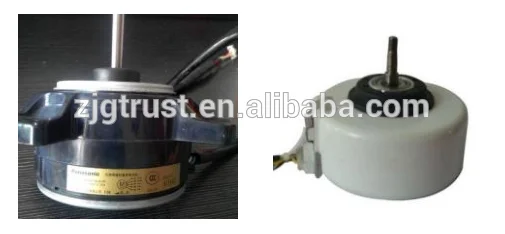

We use 310V DC brushless PANASONNIC fan motors for our solar air conditioners.
DC brushless fan motors can greatly reduce energy consumption,and run with super low noise.
How many solar panels are needed to drive solar air conditioner?
According to different using time, and different effective illumination time.
The number of solar PV panels is different, at lease 4 pieces.
Both mono-crystalline and poly-crystalline solar panels can be accepted.
About the electric control
Our company own development.
We have 48V solar air conditoner letter of patent.

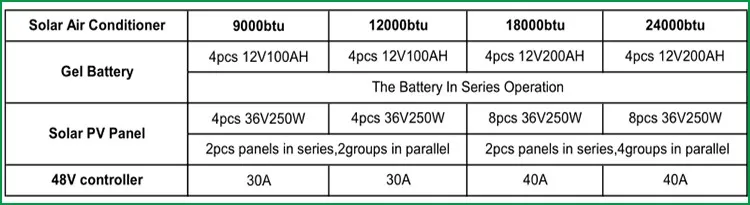

About the 48V solar air conditioner configuration
Assume 5 hours of effective illumination, using 10 hours a day.
What will happen when the battery power is nor energy to drive air conditioner?
When the voltage of batteries is lower than 43V, the solarair conditioner will bee shut off automatically.
When the energy in the batteries is sufficient, the solar air conditioner will re-start automatically.
What functions else included?
"Auto re-start" function: All previous setting(mode,temp,fan,speed etc) will be reserved after each power off.
"Timer": helps you to set auto ON/OFF time. Real 24 hour setting makes it easy to set the auto ON/OFF time of operation.
"Self-diagnosis": The display on the solar air conditoner will show error codes when there is any faults with the system operation.By given error codes, you can easily find a solution.
