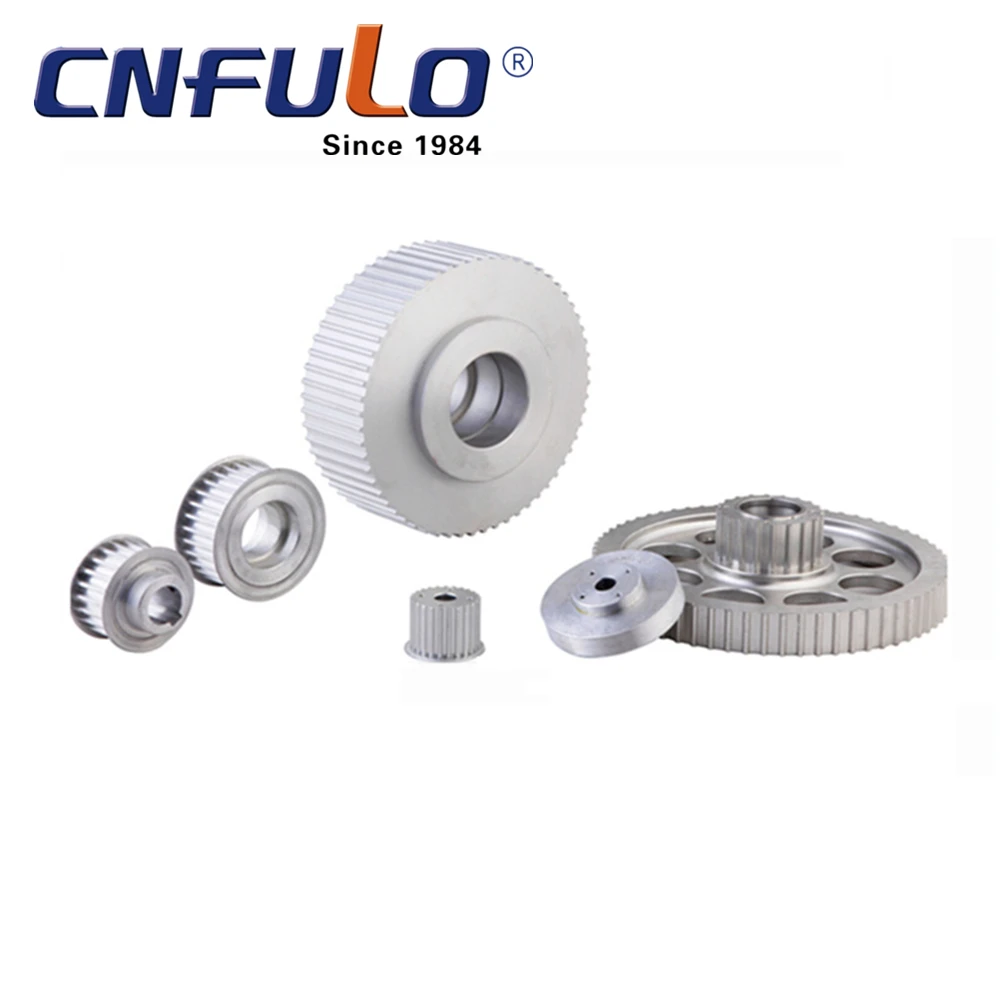

AT10 Aluminum Zinc Plating Pulley

Founded in 1984, FULONG covers 45,000 square meters with over 350 employees. As a national high-tech enterprise now, we passed ISO9001, TS16949. With national lab(CNAS) and municipal innovation center, we set over ten national and trading standards. What’s more, annual output is more than 10 million pieces of belts and 600 thousand pieces of pulleys. Matched belts and pulleys make sure the life-span of products longer.

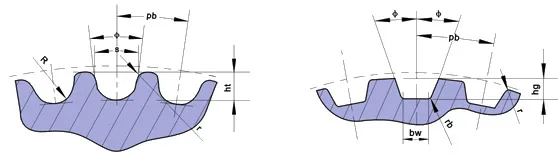

Pulley Introduction

Type	pb	hg	R	r1	s	2δ	Angle
3M	3	1.28	0.91	0.26~0.35	1.90	0.762	≈14°
5M	5	2.16	1.56	0.48~0.52	3.25	1.144	≈14°
8M	8	3.54	2.57	0.78~0.84	5.35	1.372	≈14°
14M	14	6.20	4.65	1.36~1.50	9.80	2.794	≈14°
20M	20	8.60	6.84	1.95~2.25	14.80	4.320	≈14°





Type	MXL		XXL		XL		L		H		XH		XXH
bw	0.84±0.05		1.14±0.05		1.32±0.05		3.05±0.10		4.19±0.13		7.90±0.15		12.17±0.18
hg	0.69	0	0.84	0	1.65	0	2.67	0	3.05	0	7.14	0	10.31	0
		-0.05		-0.05		-0.08		-0.10		-0.13		-0.13		-0.13
Φ+1.5°	20		25		25		20		20		20		20
rb	0.35		0.35		0.41		1.19		1.60		1.98		3.96
rt	0.13	+0.05	0.30	+0.05	0.64	+0.05	1.17	+0.13	1.60	+0.13	2.39	+0.13	3.18	+0.13
		0		0		0		0		0		0		0
2β	0.508		0.508		0.508		0.762		1.372		2.794		3.048





Dimension&Tolerance

Linear Type Pulley (mm)

Type bw hg Ψ+1.5° rb rt 2δ Details MXL 0.84±0.05 0.69 20 0.35 0.13 0.508 Details XXL 1.14±0.05 0.84 25 0.35 0.30 0.508 Details XL 1.32±0.05 1.65 25 0.41 0.64 0.508 Details L 3.05±0.10 2.67 20 1.19 1.17 0.762 Details H 4.19±0.13 3.05 20 1.60 1.6 1.372 Details XH 7.90±0.15 7.14 20 1.98 2.39 2.794 Details XXH 12.17±0.18 10.31 20 3.96 3.18 3.048 Details

T Type Pulley (mm)

Code Type Type y grad rb rt 2a Details S E br N br S E hg N hg   Devia -tion   Devia -tion   Devia -tion mix ±.15° max   Devia -tion   T2.5 1.75 +0.050 1.83 +0.050 0.75 +0.050 1 25 0.2 0.3 +0.050 0.6 Details T5 2.96 +0.050 3.32 +0.050 1.25 +0.050 1.95 25 0.4 0.6 +0.050 1 Details T10 6.02 +0.10 6.57 +0.10 2.6 +0.10 3.4 25 0.6 0.8 +0.10 2 Details T20 11.65 +0.150 12.6 +0.150 5.2 +0.130 6 25 0.8 1.2 +0.10 3 Details



HTD Type Pulley (mm)

Tyep PB HT R S R Angle Details 3M 3 1.28 0.91 1.90 0.3 ≈14° Details 5M 5 2.16 1.56 3.25 0.48 ≈14° Details 8M 8 3.54 2.57 5.35 0.8 ≈14° Details 14M 14 6.20 4.65 9.80 1.4 ≈14° Details



Flank Width

Type	Belt width		Min.width of pulley
	Code	Belt width	Double capped edge pulley	Single capped edge pulley	No capped edge pulley
MXL	012	3.0	4	5	6
	019	4.8	5.8	6.8	7.8
	025	6.4	7.5	8.5	9.5
XL	025	6.4	7.5	8.5	9.5
	031	7.9	9	10	11
	037	9.5	11	12	13
L	050	12.7	14	15.5	17
	075	19.1	21	22	24
	100	25.4	27	28.5	30
H	075	19.1	21	23	25
	100	25.4	27	29	31
	150	38.1	40	42	44
	200	50.8	53	55	58
XH	200	50.8	57	60	63
	300	76.2	84	87	90
	400	101.6	111	114	117
XXH	200	50.8	57	61	64
	300	76.2	84	88	92
	400	101.6	111	115	118
	500	127.0	138	142	145
T2.5	4	4	6	7	8
	6	6	8	9	10
	10	10	12	13	14
T5 AT5	6	6	8	9	11
	10	10	12	13	15
	16	16	18	20	22
	25	25	27	29	31
T10 AT10	16	16	18	22	24
	25	25	27	30	33
	32	32	34	37	40
	50	50	53	56	59
T20 AT20	32	32	35	38	40
	50	50	53	56	60
	75	75	78	81	85
	100	100	105	108	112
3M S3M	6	6	9	10	11
	9	9	12	13	14
	15	15	18	19	20
5M S4.5M S5M	9	9	12	13	14
	15	15	18	19	20
	25	25	28	29	30
	30	30	34	36	38
8M S8M	30	30	34	36	38
	40	40	44	46	48
	50	50	54	56	58
	85	85	90	92	94
14M S14M	55	55	65	68	70
	85	85	95	99	102
	115	115	126	130	133
	170	170	180	183	187
20M	70	70	80	84	89
	85	85	96	100	104
	115	115	127	131	134
	170	170	182	185	190
	230	230	245	248	254
	290	290	295	300	310
	340	340	355	360	370
