wenzhou yueqing industrial factory, Clion miniature electronic relay 30a NNC67E T90(JQX 115F) 12v 24 v relay hot selling
- Category: >>>
- Supplier: Clion Electric Co. Ltd.
Share on (60695955745):
Product Overview
Description

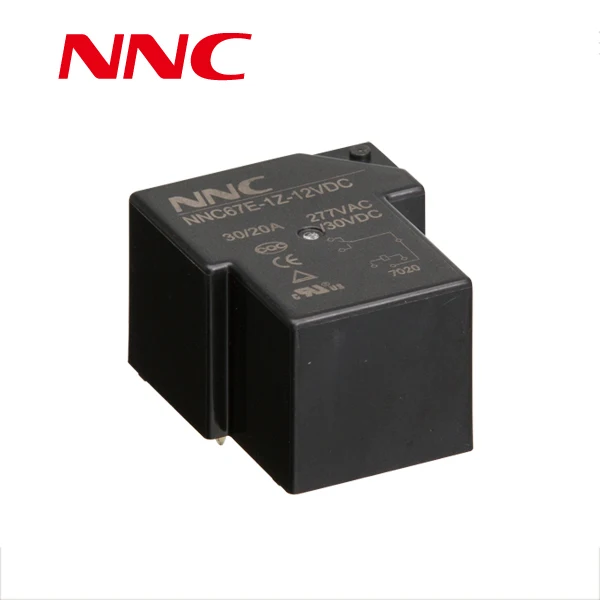

Clion miniature electronic relay 30a NNC67E T90(JQX-115F) 12v 24 v relay
Exhibition
Product display
Product display
| Part NO. | NNC67E(T90) | ||||
| Dimension | 32.5*27.6*20.2 | ||||
| Contact Feature | Form | 1A,1B,1C | |||
| Rated load | A:30A/240VAC 28VDC Z:20A/240VAC 28VDC | A:40A/240VAC 28VDC Z:30A/240VAC 28VDC | |||
| Contact resistance | ≤100mΩ | ||||
| Material | Silver Alloy | ||||
| Electrical life | ≥1*105 | ||||
| Mechanical life | ≥1*107 | ||||
| Operate voltage (23℃) | DC:≤75%*Rated voltage | ||||
| AC:≤80%*Rated voltage | |||||
| Release voltage (23℃) | DC:≥10%*Rated voltage | ||||
| AC:≥30%*Rated voltage | |||||
| Maximum voltage (23℃) | 110%*Rated voltage | ||||
| Normal coil voltage | DC | 3-11OV | |||
| AC | 6-220V | ||||
| Normal coil power | DC | 0.93W | |||
| AC | 1.2VA | ||||
| Pick-up time | ≤15ms | ||||
| Release time | ≤10ms | ||||
| Dielectric strength | Between Same-pole contacts | 1500VAC/1min(leakage current 1mA) | |||
| Between Opposite-pole contacts | |||||
| Between contacts and coil | 1500VAC/1min(leakage current 1mA) | ||||
| Insulation resistance | ≥100mΩ(500VDC) | ||||
| Ambient temperature | -55℃ ~70℃ | ||||
| Ambient humidity | 35%-80%RH | ||||
| Atmospheric pressure | 86-106KPa | ||||
| Shock resistance | 10G (sinusoidal half-wave pulse: 11ms) | ||||
| Vibration resistance | 10-55Hz (double amplitude: 1.5mm) | ||||
| Installation | PCB | ||||
| Packing | Inner box | Paper box(PCS) | 50 | ||
| Outer box | Paper box(PCS) | 500 | |||
| Dimension of the carton | CTN | 360*210*325mm | |||
| Weight | 1PC | Approximate: 33g | |||
| 1CTN | G.W:16.7KG N.T:15.7KG | ||||

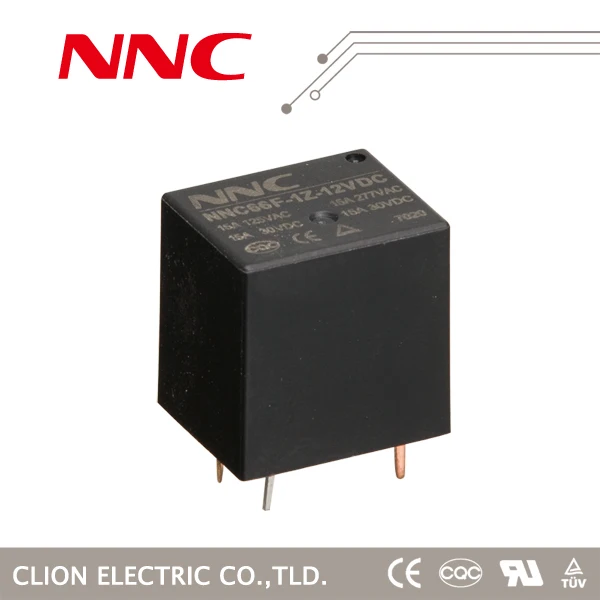

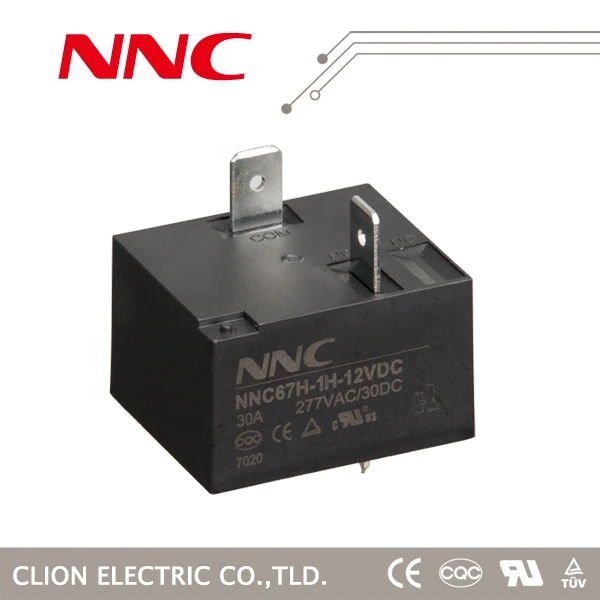

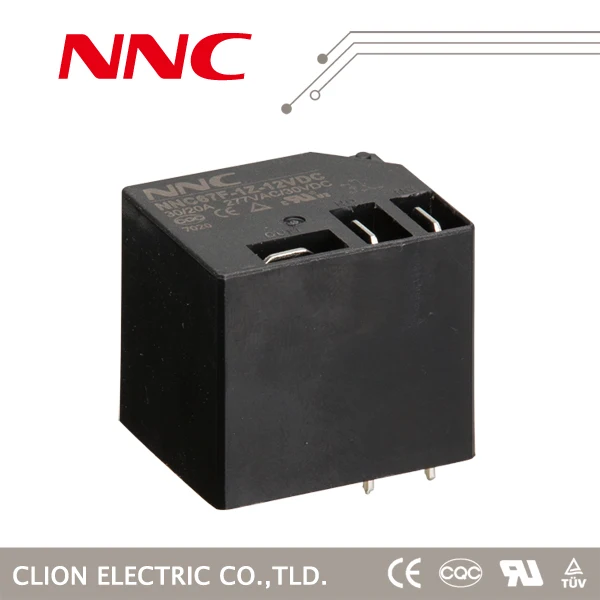

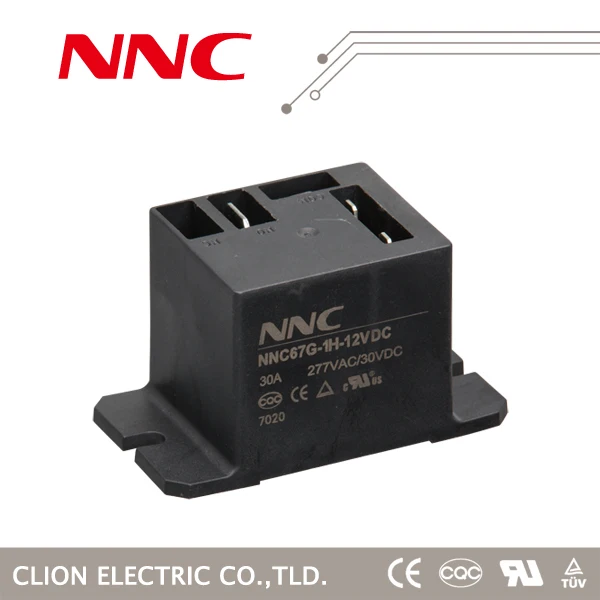

Related products
Related products
Certificate
Certificate
Shipment & Packaging
Shipment & Packaging
FAQ
FAQ
Q1: Are you Factory?
A1:Yes,we focus on relay and micro switch more than 13years.
Q2: How do you control the products' quality?
A2: Auto inspection machine and manual testing together before packing.
Q3: What's your payment term?
A3:We usually accept T/T(30% deposit,the balance before delivery.)
Q4: Would you accept to use our logo?
A4: If you have good quantity,we can make OEM for you.
Q5: Can I get a sample for reference?
A5: We provide free samples for testing,you only need to pay the express cost.
Q6: What is your delivery time?
A6: Usually it takes 20-35 working days for production.
Q7: What is your warranty time of the products?
A7: 12-24 months
