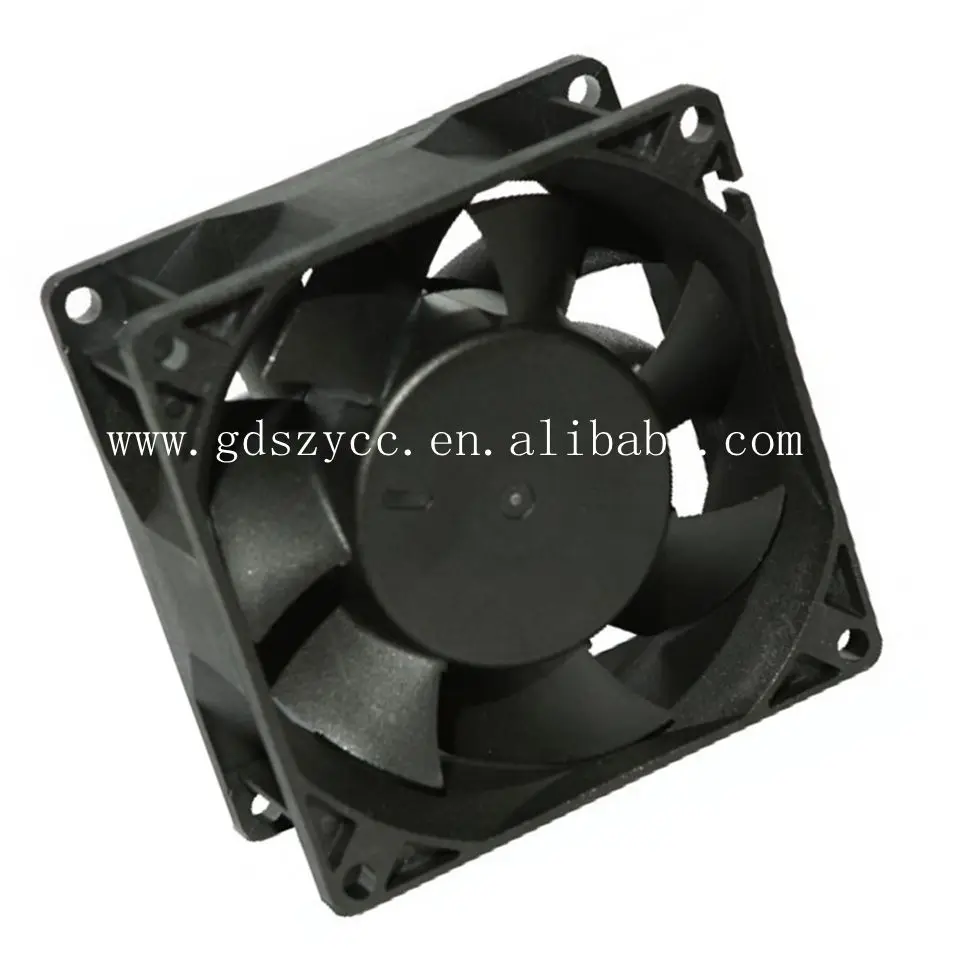

high speed CFM 80mm 80x80x38 8038 dc brushless powerful small axial flow fan 12v for air purifier
- Category: >>>
- Supplier: Shenzhen Yccfan Technology Co. Ltd.
Share on (60695967068):
Product Overview
Description
Product Description
high speed CFM 80mm 80x80x38 8038 dc brushless powerful small axial flow fan 12v for air purifier

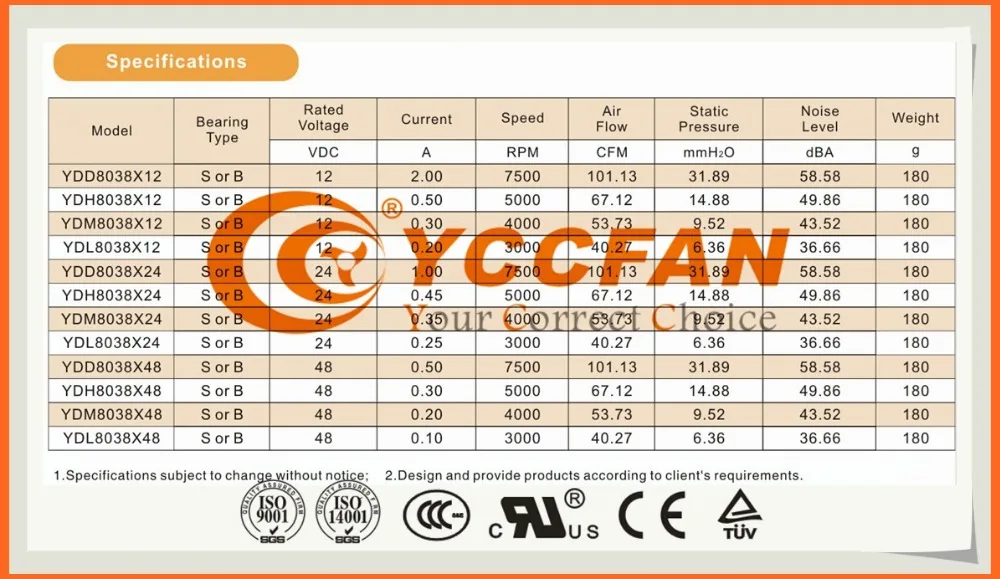

| Specification | |

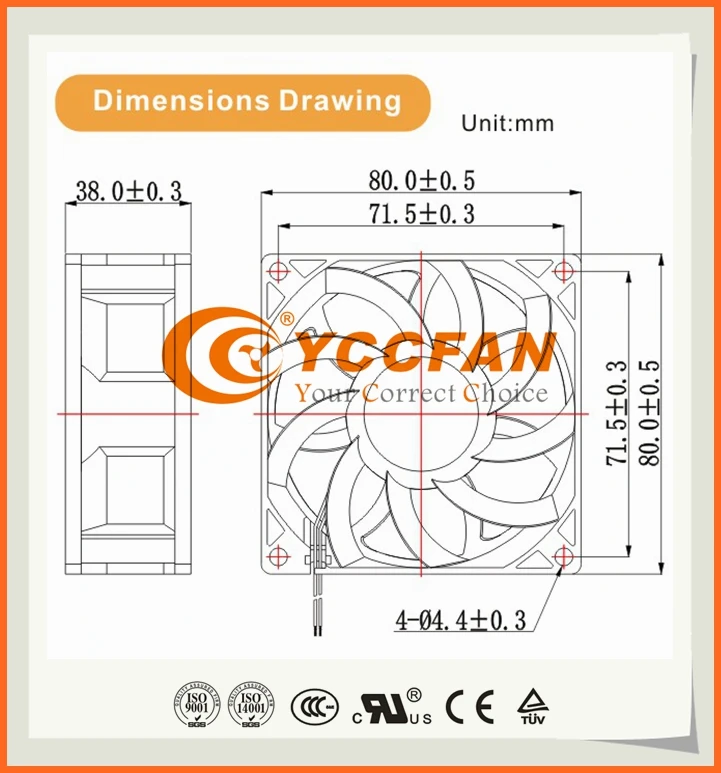

| Dimension mm (LXWXThickness) | 80x80x38mm |
| Frame | BLACK PBT (UL94V-0) |
Impeller | BLACK PBT (UL94V-0) |
Bearing System | Sleeve Bearing |
Rated Voltage(v) | 12.0 |
Operating Voltage Range(V) | 10.8~13.2 |
Start-up Voltage(V) | 6.0 |
Rated Current(A) | 0.39±0.04 |
Rated Power(W) | 4.68 |
Rated Speed(RPM) | 5000±10% |

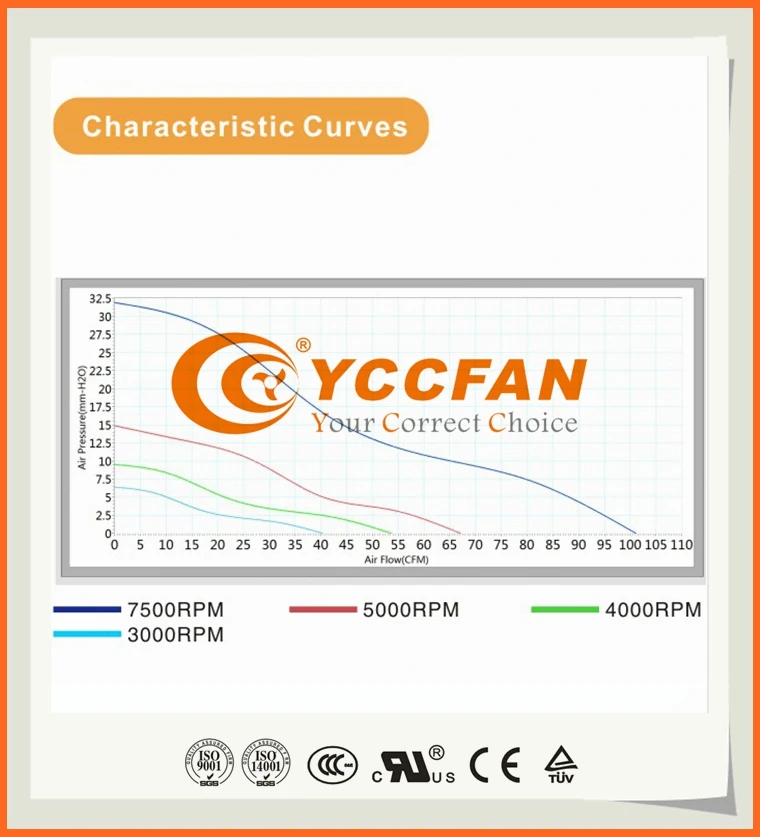

| Air Flow(CFM) | 67.12 |
| Air Pressure(H2O) | 14.88 |
| Noise (dBA) | 49.86 |
| Motor Protection | No |
| Auto Restart | Yes |
| Soft Start | Yes |
| Certificate | UL CUL CE |
| Lead Wire | Red(+), Black(-) |
| FG (Tachometer Sensor) | No |
| RD (Locked Alarm) | No |
PWM (Speed Control) | No |
Waterproof Class | Below IP44 |
| IP55 | |
| Above IP55 | |
Tell me the cooling fan you are looking for:
Size: L x W x Thickness(We can produce 20mm to 250mm cooling fan)
Voltage: DC(3V, 5V, 7V, 9V, 12V, 18V, 24V, 48V...)
AC(100-125v, 220-240v, 380v)
Bearing Type: Sleeve Bearing( 30,000 hours in 25℃ operation temperature with 1 year warranty)
Dual Ball Bearing( 50,000 hours in 40℃ operation temperature with 2 years warranty)
Parameter: Speed(RPM), Air Flow(CFM), Noise(dBA),
Power Joint: Terminal
Lead Wire(+, -, Tachometer Sensor, Lock Alarm, Speed Control )
Dustproof & Waterproof: IP xx(IP 68 is the highest level)
80x80x38mm dc axial fan

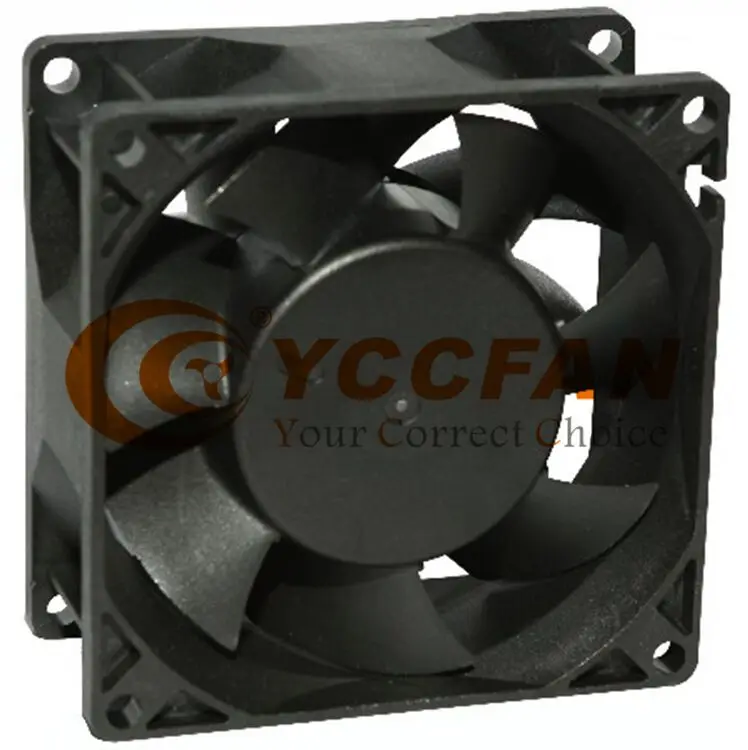

Product Images
high speed CFM 80mm 80x80x38 8038 dc brushless powerful small axial flow fan 12v for air purifier
80mm cooling fan
Production
high speed CFM 80mm 80x80x38 8038 dc brushless powerful small axial flow fan 12v for air purifier
Production Process of cooling fan
Quality Control:
1.Incoming quality control
2.In process quality control
3.QA Inspection
4.100% testing before the packing
Services
1. 100 % testing before the fan leave our factory
2. Good after services to every customer
3. We often give one-year warranty on quality of products, and will give your refund if any quality problems occurs when you receive our items.
80x80x38mm dc axial fan
Packaging & Shipping
high speed CFM 80mm 80x80x38 8038 dc brushless powerful small axial flow fan 12v for air purifier
Packing: carton box or as customer's requirements
Shipping:
1. The fan will be delivered by express ( FedEx, DHL, DHl or TNT ) for under 100 kg, our shipping agent have perfect discount with these express company.
2. Large Measure are shipped by ship or air as customer's requirements.
3. The fan can be dispatched by our truck driver if your factory is in Shenzhen, Dongguang or Guangzhou City.
80mm cooling fan
Company Information
high speed CFM 80mm 80x80x38 8038 dc brushless powerful small axial flow fan 12v for air purifier
YCCFAN Technology Co., Ltd
www.yccfan.com
Producing cooling fan since 2006
AC/DC/EC brushless cooling fan manufacturing, sales and service enterprise
Plant area 6,000 square meters, 240 employees, monthly production capacity 1,200,000 pieces
UL, CUL, CE, ROHS, SGS, CCC, ISO9001: 2008, ISO14001:2004
AC cooling fan(60mm-220mm)
DC cooling fan:
1.Super Mini Model(20×20mm-50×50mm)
2.Normal Models(60×60mm-200×200mm)
3.Special Models: customize the products according to the client’s requirements
EC cooling fan: high efficiency, long lifetime, energy saving, safety
80x80x38mm dc axial fan
Certificates
high speed CFM 80mm 80x80x38 8038 dc brushless powerful small axial flow fan 12v for air purifier
RoHS: All the material of our products are in harmony with RoHS requirements
UL&CE: Most our products has been approved by UL&CE.
80mm cooling fan
