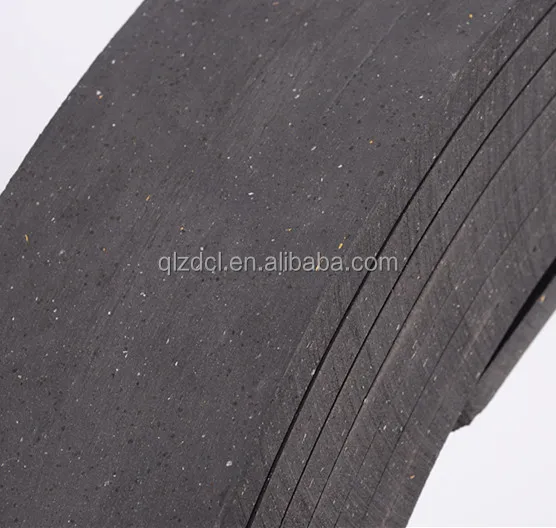

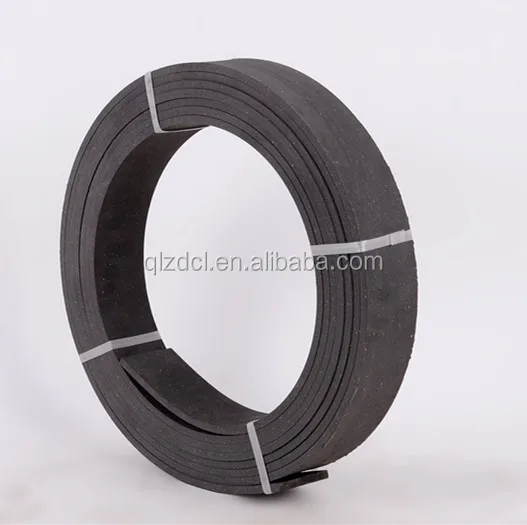

Non Asbestos flexible moulded rubber brake roll Lining

Product Overview

Description

Non Asbestos rubber based Brake Lining in Roll



Color: as per your request

Thickness: 5-20mm;

Width: ≤300mm;

Length: 10m 15m 20m, or as per your request



Material: metal fiber, Aramid pulp, synthetic rubber, phenolic resin, inorganic filling.

Work condition: 200°C, Pressure: 1.0 mpa



Standard: GB/T11834-2000



Application: widely use in decelerating and braking of engineer machines, industry machine and mining machines.



Performance: good elasticity, high tenacity, shock resisting, heat resisting, good duality and anastomosis, agile brake, etc.



We can manufacture the color, length and material as per your request



 Wear Performance of Woven Resin Brake Lining in roll

Interface Temperature	Friction coefficient	Wear rate(CM3/NM)
100°C	0.40—0.65	≤0.7×10-7
150°C	0.35—0.65	≤1.1×10-7
200°C	0.30—0.60	≤1.3×10-7
