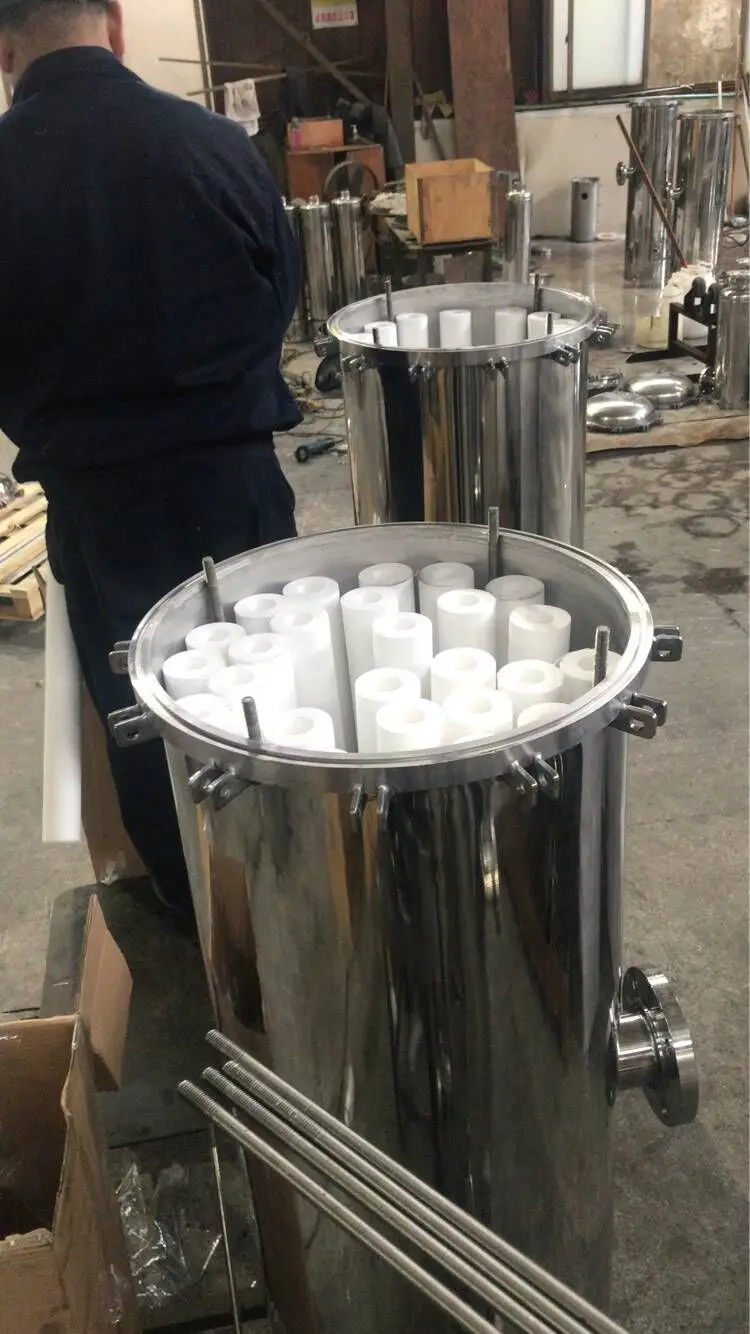

SS304 5 filter cartridges 40 inch water housing with JIS ANSI ASME BSP flange
- Category: >>>
- Supplier: Yancheng Yongkang Environmental Protection Equipment Co. Ltd.
Share on (60696008872):
Product Overview
Description
SS304 5 filter cartridges 40 inch water housing with JIS ANSI ASME BSP flange

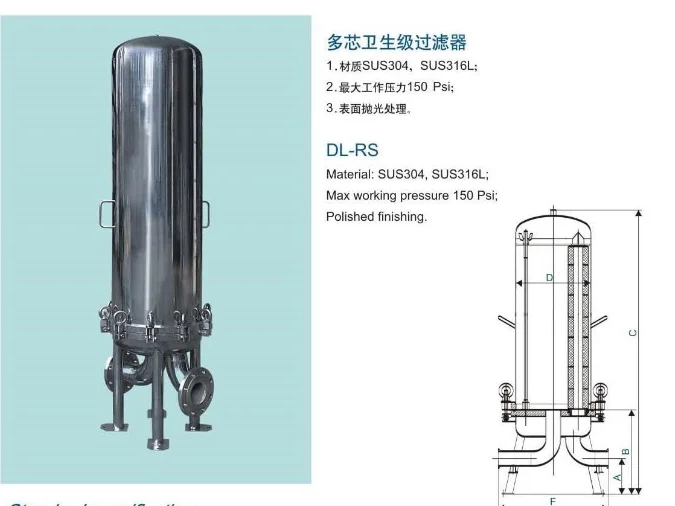

Product Description
Specification
| Model | Specification (D*A mm) | Thickness | Flow | Inlet/outlet |
| (mm) | t/h | |||
| 3 element-10" | Φ167-490 | 1.5 | 1 | DN25 |
| 3 element-20" | Φ167-740 | 1.5 | 1.5 | DN25 |
| 7 element-10" | Φ219-490 | 1.5 | 2.5 | DN25 |
| 7 element-20" | Φ219-740 | 1.5 | 5 | DN32 |
| 7 element-30" | Φ219-990 | 1.5 | 7 | DN40 |
| 7 element-40" | Φ219-1245 | 1.5 | 10 | DN50 |
| 10 element-40" | Φ300-1650 | 1.5 | 15 | DN50-65 |
| 15 element-40" | Φ350-1675 | 2 | 22 | DN65-80 |
| 20 element-40" | Φ400-1700 | 2 | 35 | DN80 |
| 25element-40" | Φ450-1875 | 2.5 | 45 | DN 80-100 |
| 30 element-40" | Φ500-1900 | 3 | 55 | DN 80-100 |
| 35 element-40" | Φ550-1925 | 3 | 65 | DN 100 |
| 45 element-40" | Φ600-1950 | 3 | 75 | DN 100-125 |
| 50 element-40" | Φ650-1975 | 3 | 80 | DN 100-125 |
| 60 element-40" | Φ700-2000 | 3 | 100 | DN 125-150 |
| 65 element-40" | Φ750-2025 | 3 | 105 | DN 125-150 |
| 70 element-40" | Φ800-2100 | 3 | 110 | DN 150 |
| 80 element-40" | Φ900-2150 | 4 | 120 | DN 150 |
| 100 element-40" | Φ1000-2200 | 4 | 160 | DN 150-200 |
Application
| Food & Beverage Industries | Beer & Wine & Milk | Electronics Industries |
| Pharmaceutical Industry | Chemical Industries | Water Treatment |
