Max cutting size: 2000mm width x 2500mm length x 1300mm height .
Multi-wire :

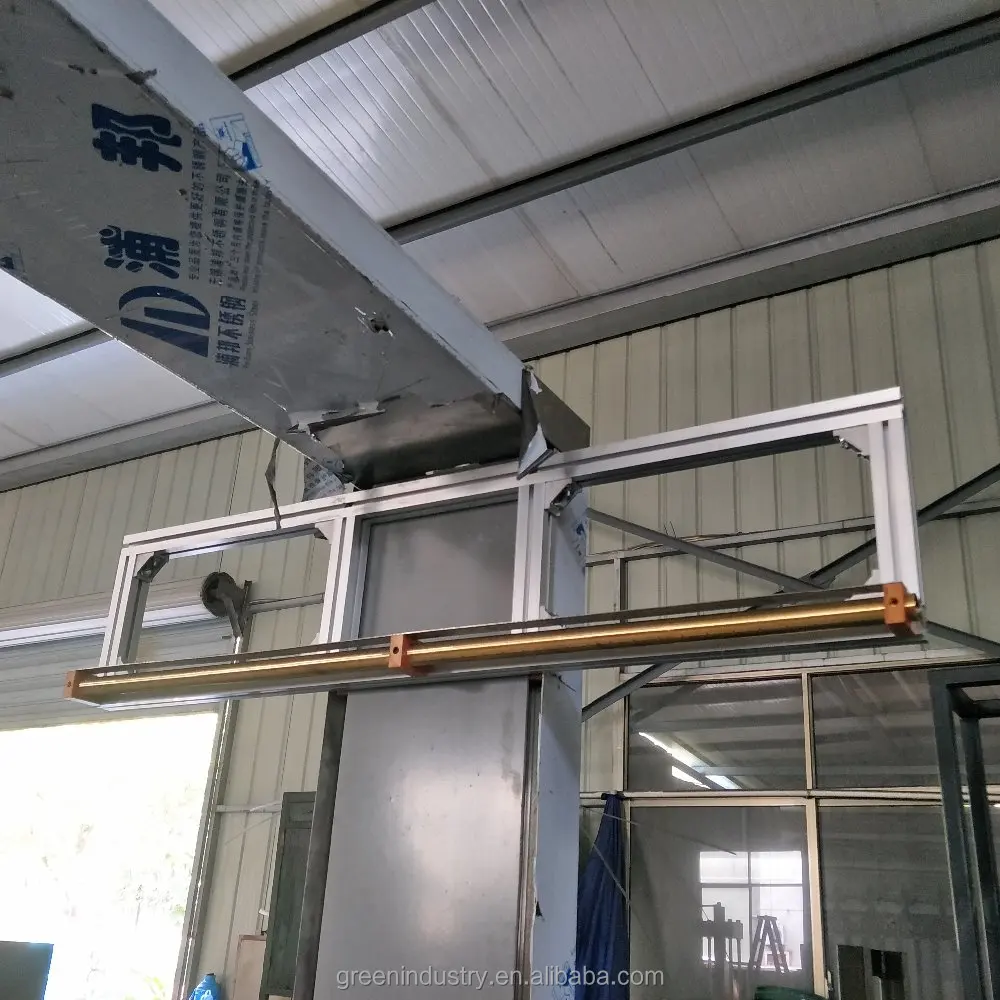

With 15 cutting wires. One cutting table
2D Computer controlled profile cutter .
High Accuracy :

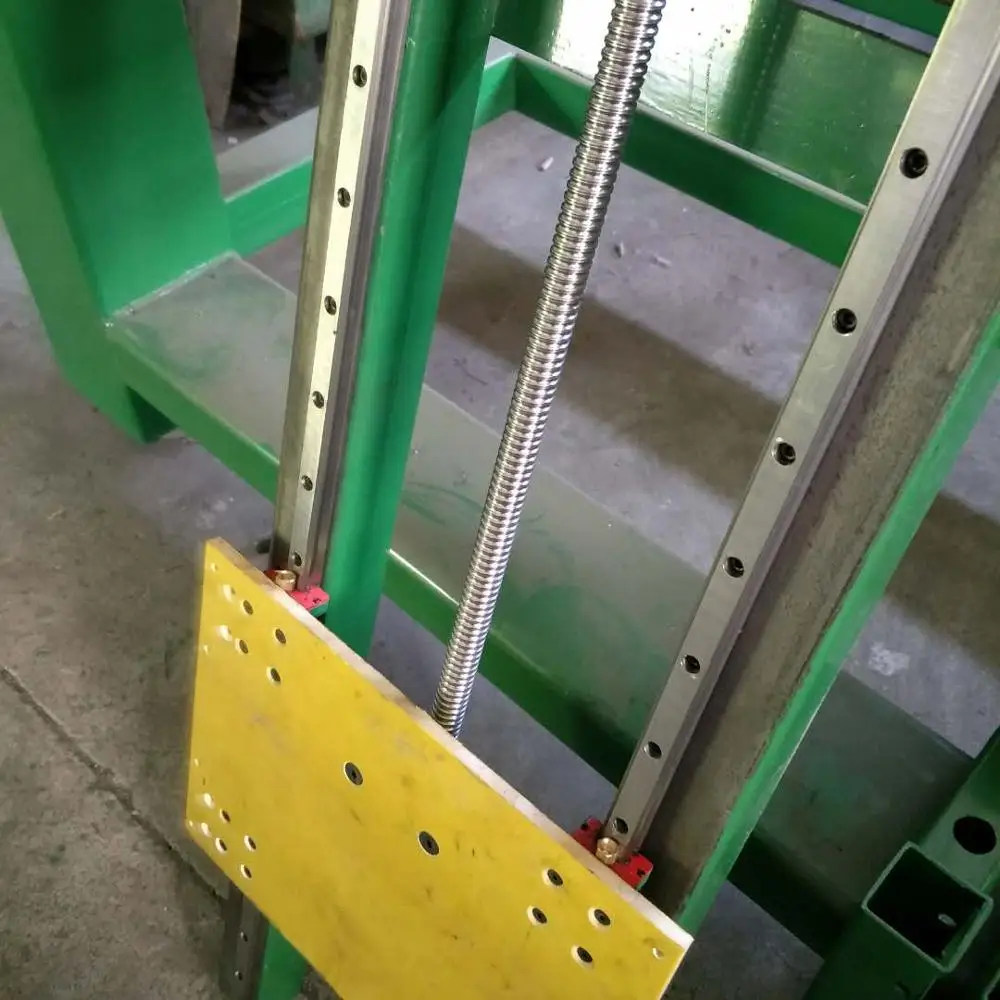

X.Y all by controlled by step motor with screw rode movement.( 4 sets of step motor and screw rod for seperate controls)
Easy software : (Directly open Autocad drawings for cutting )
The drawings software is Autocad . You can use CAD file directly
Cutting software is designed by supplier. Both are English version.
Power : 220v, 50HZ /2N .6kw
Include the following main parts:
1, With cutter table, movable shelf

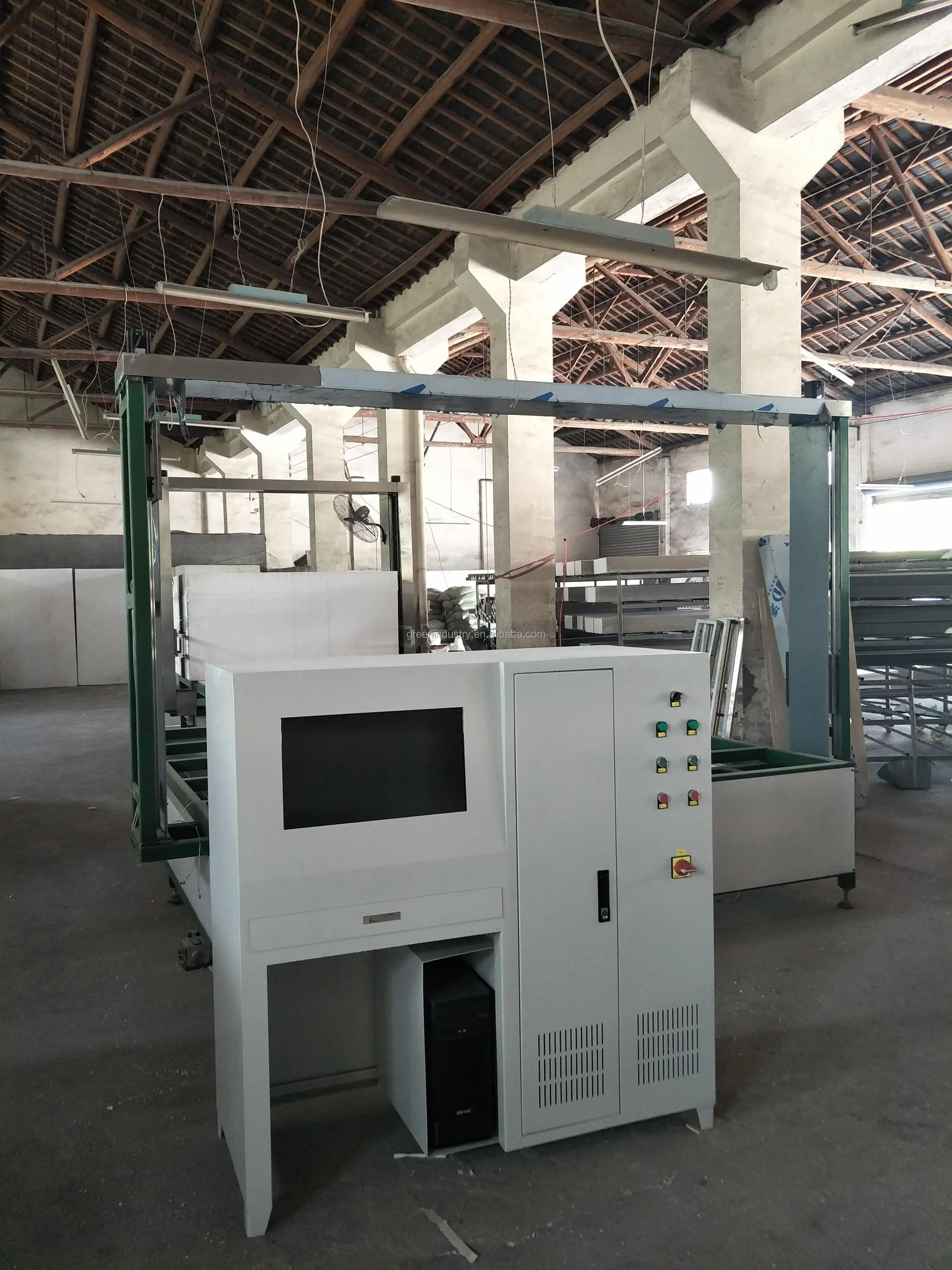

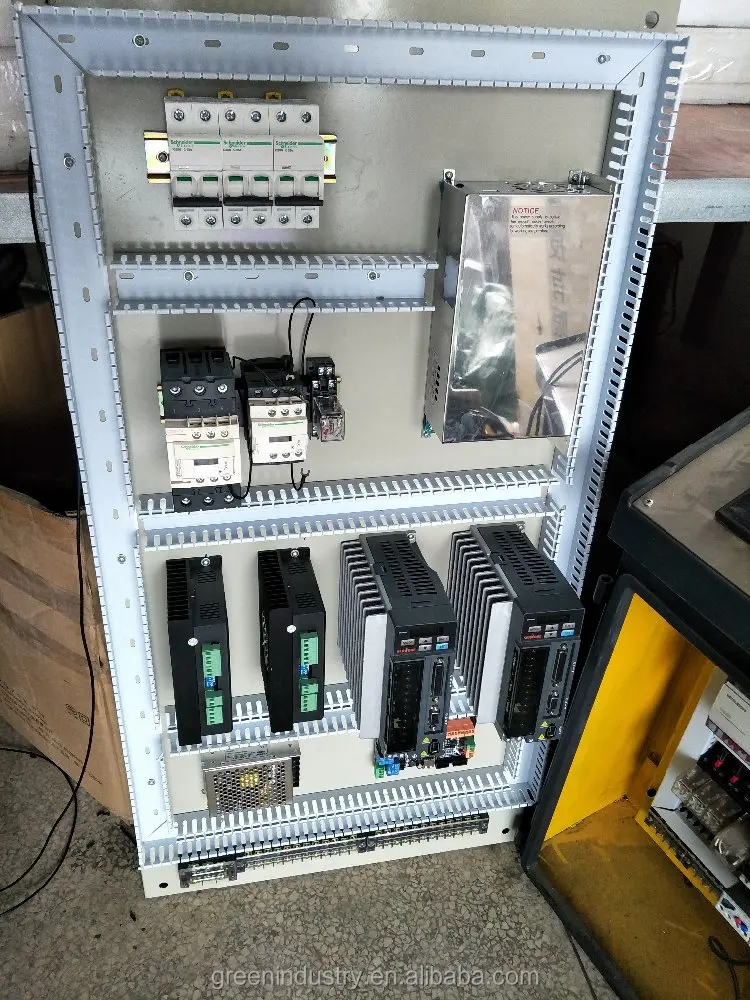

2, control box and computer.
3, With remote manual adjustment controller

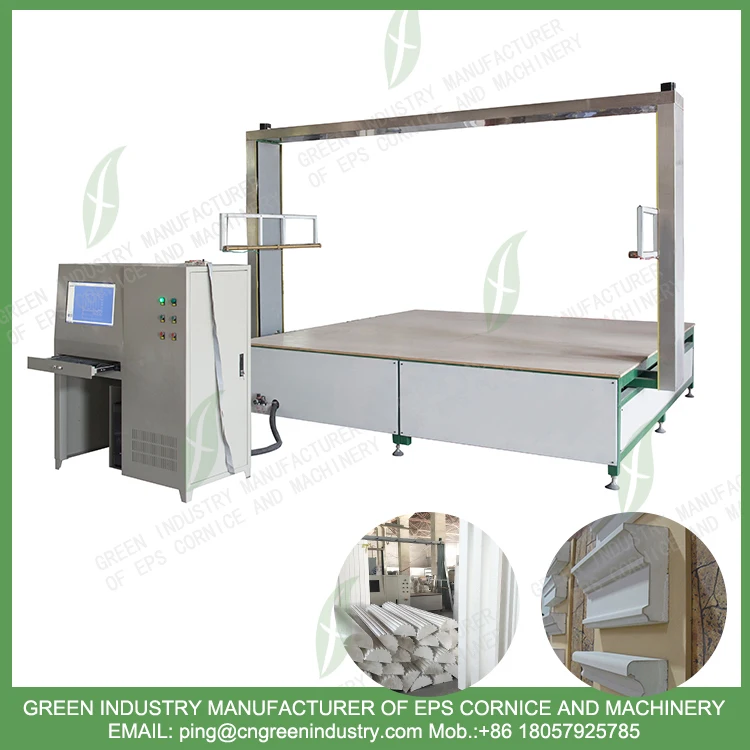

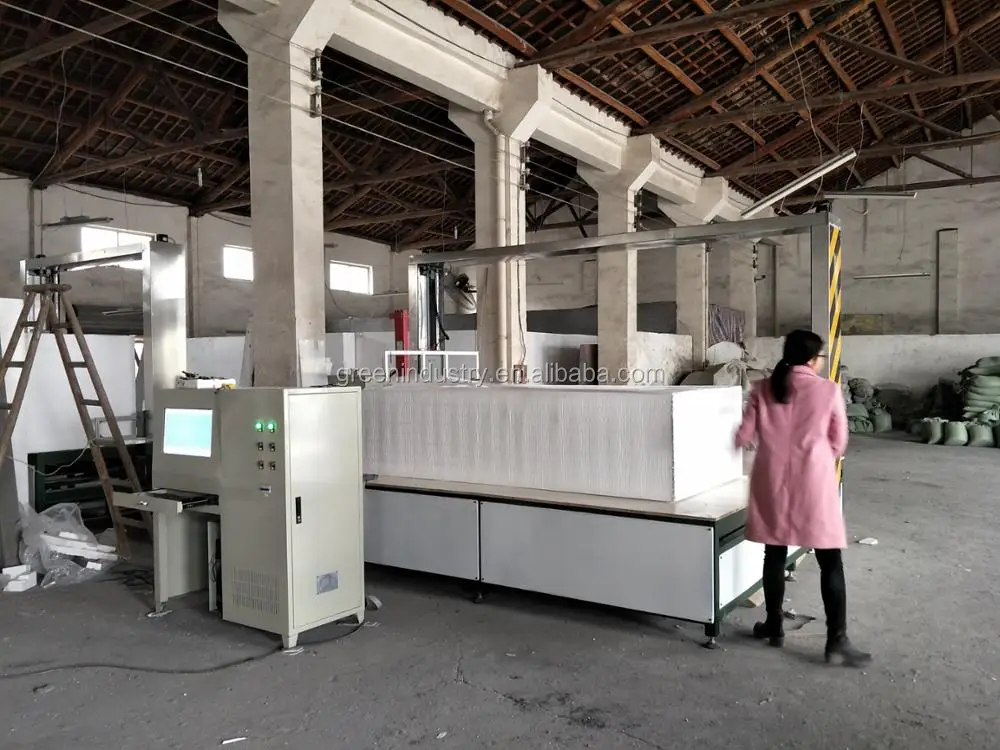

GB-FC series EPS 2D CNC cutting machine is used for cutting various specifications of plastic foam board products, large electric heating cutting machine, foam plastic products factory is the production of large foam plate equipment. This machine can realize linear cutting, cutting; cutting equipment of automobile model, EPC, aviation model, movie props, place raw materials needed to cut.
Main Features
1,The main frame of the machine is welded by connecting sections and various special connectors. It is stable in movement and high in accuracy;
2,The machine adopts X direction servo motor, Y direction stepper motor drive, smooth movement, free speed regulation, suitable for cutting special graphics, need to constantly change speed requirements, mechanical control accuracy is 0.5mm;
3,Voltage regulation: This machine is equipped with a 15KW transformer, and through electronic voltage regulation, voltage output is 0---220V adjustable. The cutting frame can be installed 15 heating wire, can cut 15 identical patterns or text at the same time

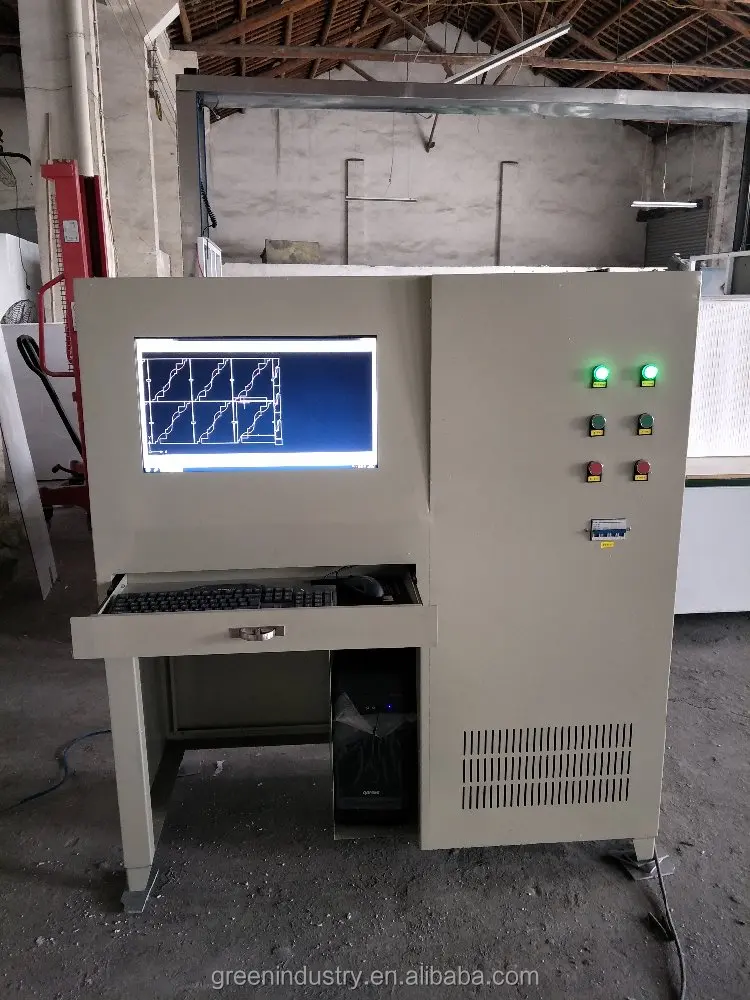

4,This machine adopts touch key input, less operation keys. Simple patterns can also be input directly through the controller. Screen display cutting pattern, tracking cutting function. Adjustable cutting speed, the maximum speed is 4000mm/ minutes. Parameter setting is simple and convenient. At the same time travel device has protection function, when the moving distance beyond the prescribed stroke, automatic the protective stop device.
PRODUCT PARAMETER
NO.
Description
UNIT
GB-FC200 DATA
GB-FC300 DATA
1
Max. Cutting Size
mm
2000×2500×1300
3000×2500×1300
2
Cutting Wire
Material/ Specification
mm
Φ0.4 G20Ni80
Φ0.4 G20Ni80
3
Step motor torsion
N.M
8.5
8.5
4
Servo motor power
KW
1
1
5
Total capacity
KW
20
20
6
Cutting speed range
m/min
0~20
0~20
7
Voltage regulator
Power
KVA
6
15
Voltage
V
0~220(ajustable)
0~220(ajustable)
8
Overal size
mm
On machine label
On machine label
9
Gross Weight
Kg
1200
1360
COMPANY INFORMATION
OUR SERVICE
Our service :Based on 17 years EPS industry`s experience. We can provide you full solution of EPS industry . Especially EPS exterior wall decoration projects. We believe , our professional service, qualified products and reliablity of team work will really benefit both side.
After-service:We will take reponsiblity for what we offer. Ensure to provide the qualified products to your side. What is more, the qualified start-up and training service can be provided from our side. In case , any problem in future, fast on- line service avaible.
FAQ

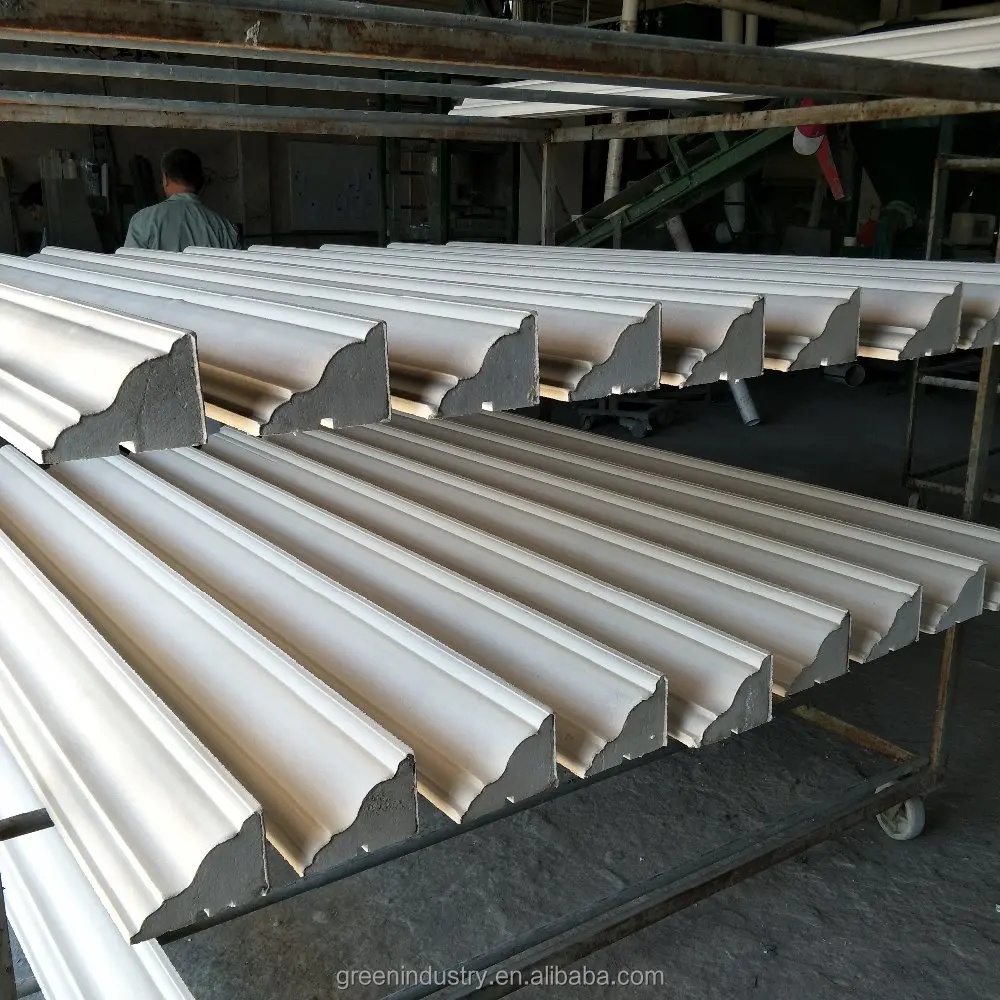

1, what is full business range ? EPS decorative elements (column , cornice, trim) , EPS decorative machine and projects, EPS foam relative machinery
2, why we select your company ? Our qualified products, our professional service and our reliablity will benefit your side more.
3, where is your location, and sea port or airport?
We are 300KM far from shanghai, jinhua city ,zhejiang province. Ningbo port is not far from us.
4.If you visited, ?You can take international flight to shanghai or hangzhou airport. ?
Our nearest domestic airport is Yiwu city.
5, what is the delivery time?
As for EPS decorative elements , it will take 3-4 weeks , as for machinery , 2 month delivery time is required
6, how is payment term?
T/T , L/C payment is avaible
7, how is gurantee ?
All machinery gurantee is one year. In case any problem owing to quality issue during gurantee. We will take free changes.
