Heavy duty sheet warehouse aluminium warehouse storage metal hose rack rack
Product Description
One. Warehouse Storage Drive In Rack detailed introduction
Features
1. 90% picking efficiency, and appropriate for picking heavy goods by pallet. 2. Surface finishing with araldite static powder coating. 3. High Strength and durability, easy for complete installation. 4. Pallets can be located, accessed and moved individually. 5. Rapid handling of almost all types of palletised goods. 6. Bottom level of pallets can be stored on the floor, lowering structure costs. 7. Strength and rigidity prevents compression damage to goods. 8. Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs. 9. Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
Beam & Frame
1. Frame depth normally from 800-1000mm, height is limited by handling equipment of approximate 11mm. 2. Beam length from 1000-3300mm depends on requirement or design. 3. Operation aisle is from 2200-3800mm depends on operating truck
1. Loading capacity: 500-4,000 kgs UDL/beam level. 2. Height: 1,000-11,000mm 3. Depth: 400-1,500mm 4. Length: 1,500-3,300mm 5. Specail sizes also avaiable to specific storage needs.
Delivery Time
Within 25 days for ordinary order quantity. Big production capacity allows us in a position to make quick delivery.

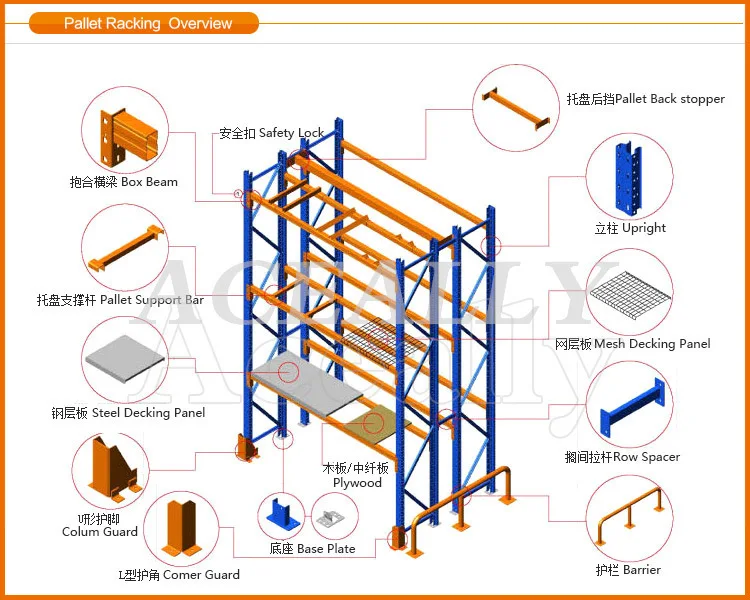

Two. Below listed pictures is related topallet rack shelving detailed instruction.
Pallet rack shelving Beam Post Distributed Loading Chart
UPRIGHT LOADING TABLE
80x60x1.8 8500KG/BAY
80x60x2.0 9400KG/BAY
100x70x1.8 11800KG/BAY
90x70x1.8 10000KG/BAY
100x70x2.0 13500KG/BAY
90x70x2.0 11800KG/BAY
100x70x2.3 15000KG/BAY
90x70x2.5 15000KG/BAY
100x70x2.5 16300KG/BAY
BOX BEAM LOADING TABLE
Beam length (mm)
80*50*1.5
100*40*1.5
100*50*1.5
110*50*1.5
120*40*1.5
120*50*1.5
140*40*1.4
140*50*1.5
160*40*1.5
160*50*1.5
1500
4286
1800
2977
1900
2672
3809
4535
2200
1993
2841
3382
4219
2300
1823
2599
3095
3860
3918
4665
2400
1674
2387
2842
3545
3598
4284
2500
1403
2000
2381
2970
3014
3598
4340
5160
2600
1297
1849
2201
2745
2787
3318
4010
4771
2700
1203
1715
2041
2546
2584
3077
3716
4425
5068
6033
3000
974
1389
1655
2065
2093
2492
3010
3585
4105
4887
3300
708
1010
1202
1500
1522
1812
2189
2610
2985
3555
3600
600
849
1010
1260
1279
1523
1839
2190
2508
2986
3800
540
762
907
1135
1148
1369
1658
1965
2251
2680
4000
485
687
818
1024
1036
1235
1550
1774
2032
2419

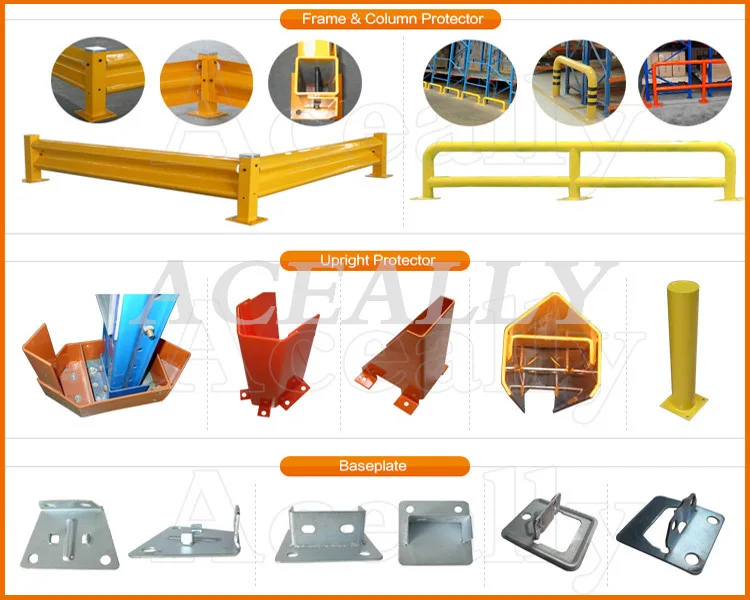

Pallet rack shelving accessories
Packaging & Shipping
Exhibition
Company Information
Aceally (International) Group is a manufacturer of innovative and professional logistics equipment products for warehousing storage markets worldwide. Which specializes in light duty shelving, medium duty racking, heavy duty ones and various storage and shelving solutions for over 15 years. Business scope:
Light duty rack
Selective pallet racking
VNA Pallet Racking
Wire mesh panel
Tool cabinet
Modular wire shelving
Double deep pallet racking
Mezzanine Rack
Wire mesh container
Dock leveler
Slotted angle shelving
Drive In pallet racking
Steel platform
Steel pallet
Supermarket shelving
Boltless rivet shelving
Radio shuttle racking
Mobile shelving
Storage cage
Shopping basket
Longspan shelving
Cantilever racking
Steel locker
Steel pallet box
Transportation cart
Our products are 100% compatible to major brands such as Dexion, Redirack, Interlake etc. Designed to AS4084-1993 and complying with the European FEM regulations , SEMA and CE certificate . Our ability to design and custom build systems that suit your specific needs yet accommodate your strictest requirements allows us to propose material handling solutions for virtually any application.
The working flow of steel shelving, as follows
Remarks: Our storage racking are with advanced equipment, especially 1. Shot Blasting Machine: it's one of the most advanced technology for surface cleaning, using high-speed particles to clean metal surface. Compared with traditional acid pickling , it's better at cleaning and more efficient . 2. AkzoNobel Powder Coating: it's one of the best powder , colorful and highly decorative 3. GEMA airbrush: By controlling the coating thickness uniformity, it can eliminate blind angle , achieve high-grade coating effect and improve production efficiency.
Our Services
We offer professional consultation and design. Our experienced staff would assist you in designing a storage system that best suits your particular needs.
We also offer: 1. Professional CAD Drawings 2. Stamped Engineered Drawings 3. Custom designed and built to meet your specific needs and requirements. 4. Custom sizes and colors are also available.
After Sales Service 1.Professional engineer and application specialists respond to your requests efficiently; 2.Online via SKYPE MSN; Also through mail, voice phone message and fax if network is not accessible for customer; 3.Follow up the case, record the entire process, report complaint to QC department; 4.QC will find defect from which department ,who is in charge to identify responsibility 5.Record customer respond,suggestion,requirement.
FAQ
Are you distributor or manufacturer? We are professional and leading manufacturer for nearly 15 years.We produce and export high quality pallet racking and shelving system which have a very high reputation among our customers. Our pallet racking, long span shelving, cantilever racking and rivet shelving, drive in rack, steel mezzanine sell very well among our distributors in Europe, Mideast, Australia ,South Africa and Asia.
1) Our Excellent Service For a quick, no hassle quote just send email to ours We promise to reply with a price within 24 hours - sometimes even within the hour.
2)Our quick manufacturing time For Normal orders, we will promise to produce within 25 days.
3)Our Warranty The High Standards in the Design and Manufacturing of its systems enables us to support its products with a limited 3-Year Warranty, the Longest Manufacturer's Warranty !
4)What are our company delivery times? This depends on the product. Typically standard products are delivered within 25 days. The delivery time of the special products is according to the time of setting up of the tooling.
5)What are the payment term? A. 30% T/T down payment and 70% T/T payment against receipt of the copy of B/L. B. Letter of credit payment
6)May I know the status of my order? Yes .We will send you information and photos at different production stage of your order. You will get the latest information.
