200ton big ton hydraulic punching tool/ hydraulic hole puncher CH 200
- Category: >>>
- Supplier: Taizhou Juling Tools Co. Ltd. [Zhejiang China]Taizhou
Share on (60696162862):
Product Overview
Description

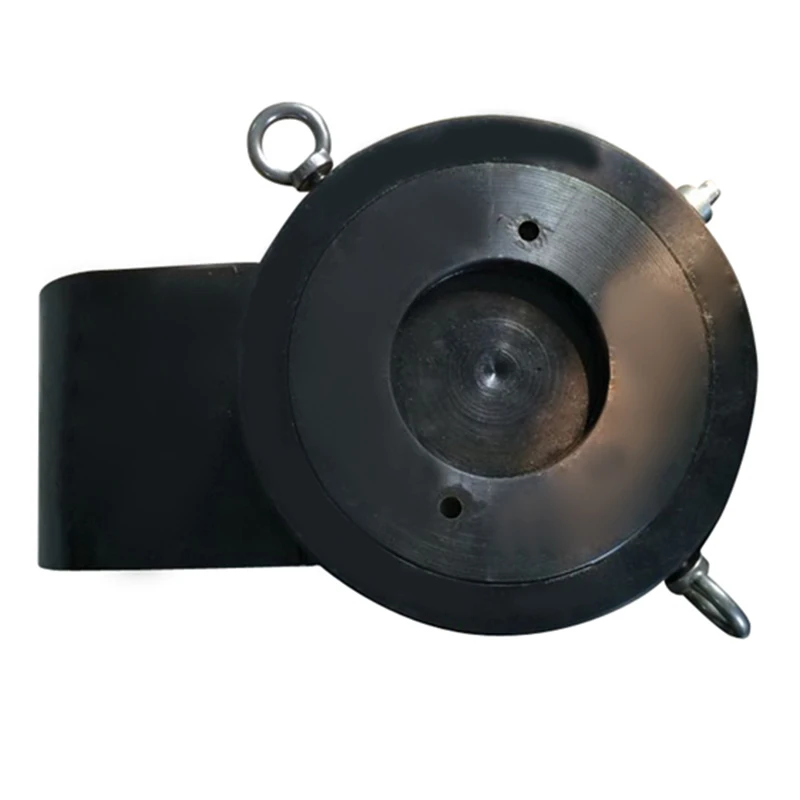

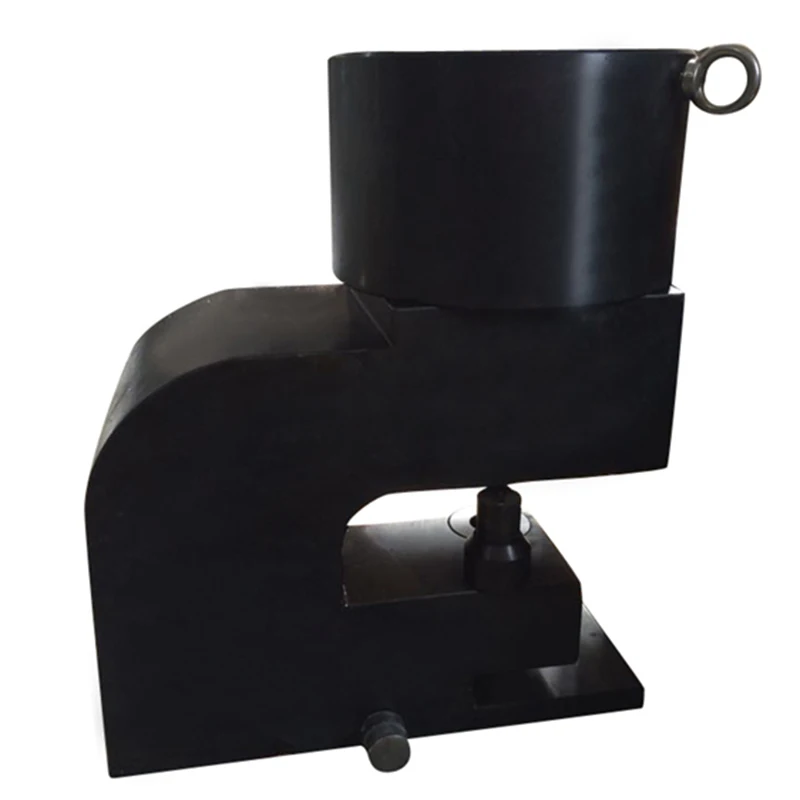

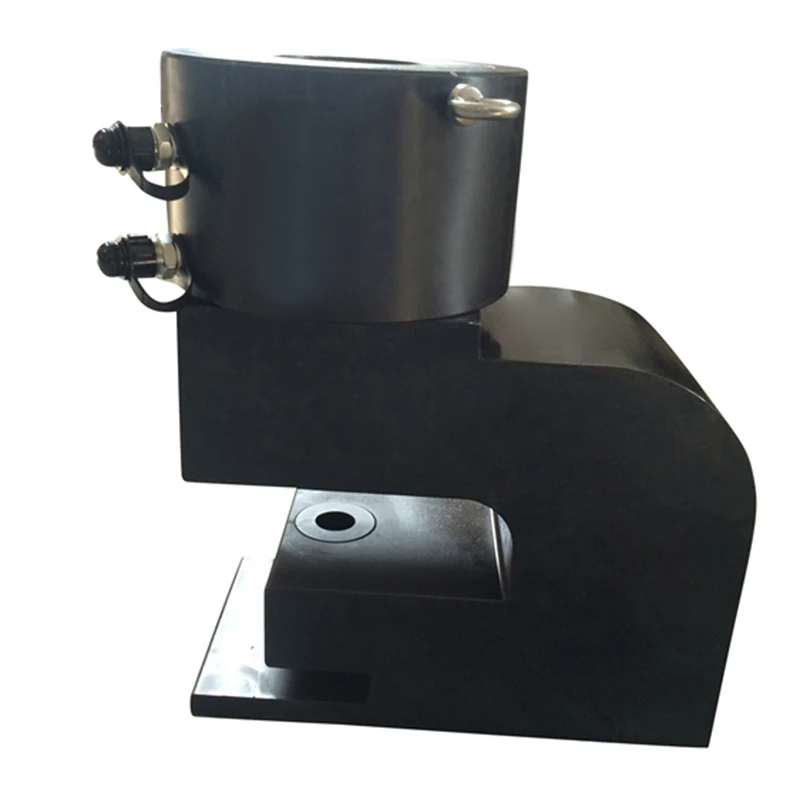

200ton big ton hydraulic punching tool/ hydraulic hole puncher CH-200
FUNCTION:
1.This CH-200 Hydraulic punching tool bottom is flat ,it is very steady. Hydraulic punching machine used for angle iron, flat iron, copper, aluminum and other metal sheet punching row, especially for electricity, construction and other industries operating in the field.
2.It can work with the electric Hydraulic pumps.
3.With pressing mechanism design, punching precision is good.
4.It is double acting hydraulic punching tool.
Techincal parameters
Model:CH-200
Aperture(mm):Φ22,Φ25,Φ28,Φ32,
Output(T):200
Max thickness(mm):Iron steel 30mm, copper plate 38mm
Throat Depth(mm):150
Weight(kg):235
Data Sheet
| Type | Output | Throat Depth | Model(mm) | Weight | Thickness iron steel/copper |
| CH-60 | 31T | 95mm | 10.5,13.8,17.5,20.5 | 19.5kgs | 6mm/10mm |
| CH-70 | 35T | 110mm | 10.5,13.8,17.5,20.5 | 28kgs | 10mm/12mm |
| CH-80 | 50T | 115mm | 16,18,22,25 | 50kgs | 16mm/20mm |
| CH-80A | 50T | 115mm | 16,18,22,25 | 75kgs | 16mm/20mm |
| CH-100A | 100T | 130mm | 22,26,28,32 | 80kgs | 20mm/24mm |
| CH-200 | 200T | 150mm | 22,26,28,32 | 235kgs | 30mm/38mm |
1. What is your payment terms?
1) Trade Assurance, 2) L/C, 3) T/T, 4) Western Union, 5) Paypal
2. What is your delivery time?
Usually within 7-15 days after the deposit.
3. What is your power supply?
In usual, we produce the voltage in 220V&380V&415V,50HZ&60HZ,can be customized for you.
4. What is the warranty time?
1 year.
5. What is your requirement for exclusive / sole agent?
We are looking for sole agent in world market.
If the importer credit is good and reliable. And the monthly order quantity meet local market demand.
We will come to further association.
