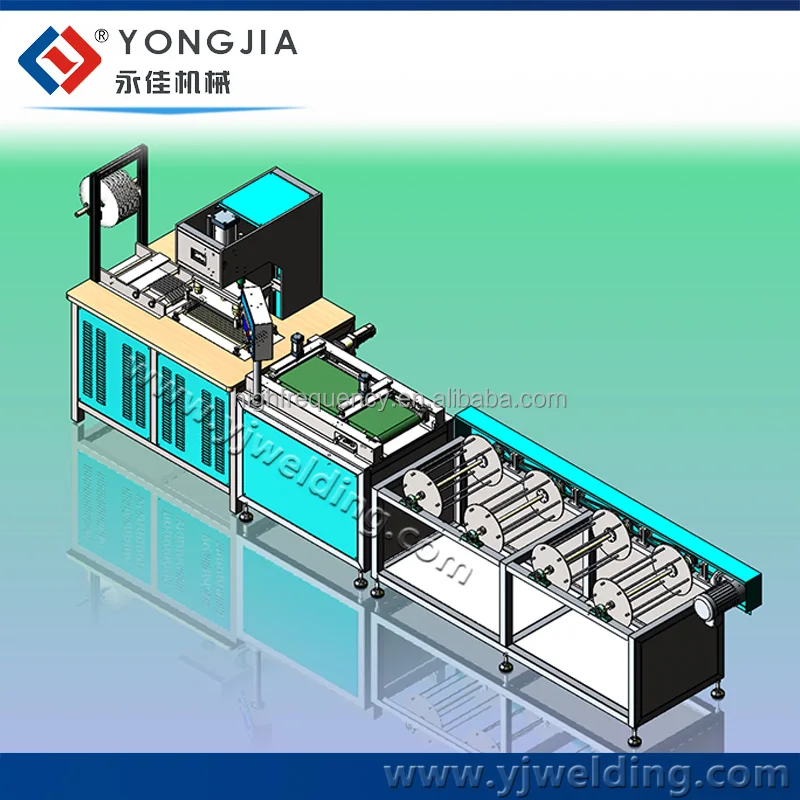

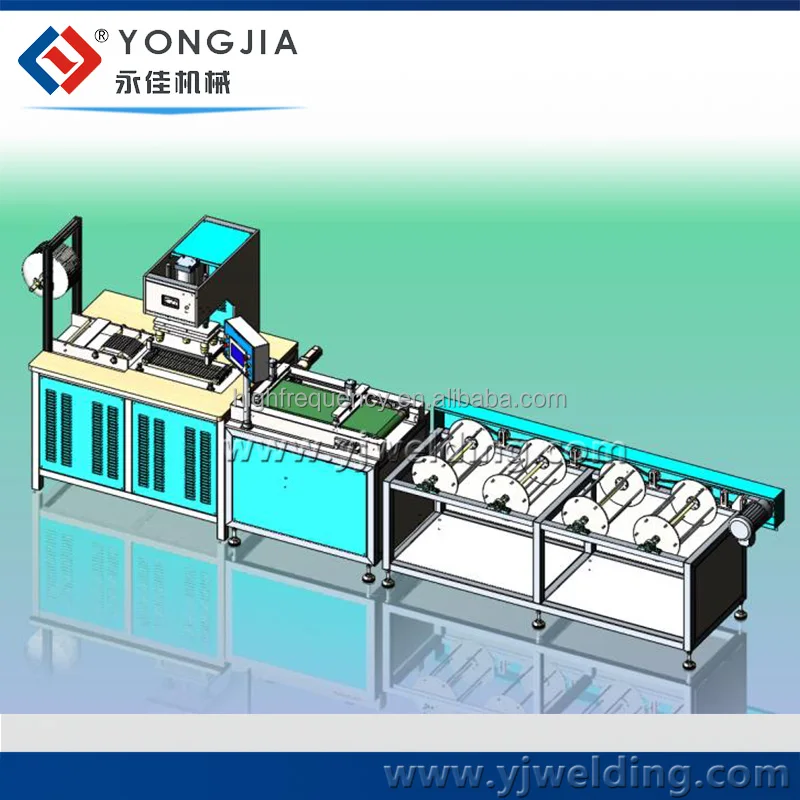

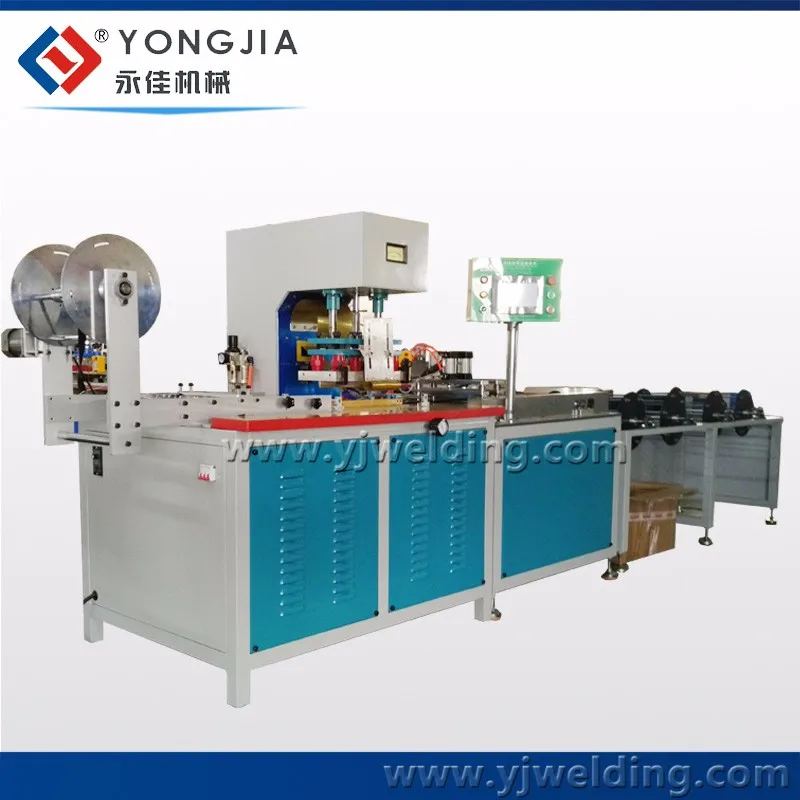

Feature for Automatic High Frequency Elastic Band Logo Embossing Machine
1):Anti-spark Protection When spark occurs, the high sensitiveness spark protects electric system, cutting high frequency power immediately toprotect mold and material.
2):Jamming prevention device Equipped with frequency stabilizer and high frequency magnetic leakage suppressor, this device provide leakage of suppressor, this device provide leakage of electron magnetic radiation to avoid jamming other electrical instruments such as television and radios etc
3):Safety device When the current exceeds its limit, the overload relay functions automatically to protect oscillation tubes and rectifier. Frequency deviation caused by disoperation is also prevented.
4):High power welder Using a special designed mechanism, the maximum pressure of foot pedal can reach up to 400KGS so as to meet most operating conditions. The high quality components make these machines work very smoothly and precisely.
5):Special protection circuit The selectable output power ensured a stable quality of the products for it could reduce the heating time when joining is being carried out.
6):Easily adjustable tuner Output power can be adjusted at the tuner according to electrode size and material thickness. In addition,othercontrol devices and special electrical circuits have cut down required welding time considerably to raise the machine productivity.
Application for Automatic High Frequency Elastic Band Logo Embossing Machine
Automatic HF elastic webbing tape logo embossing machine is suitable for webbing embossing,with feeding and recharge material automatically motor.
It is used extensively to medical transfusion bag, medical blood transfusion bag, medial catheterization bag ,douche bag , hydrops bag etc for all medial disposable bags .plastic bag,plastic shopping bag,biodegradable plastic bag,plastic packaging bag,clear plastic bag,plastic zipper bag,plastic gift bag,plastic woven bag,transparent plastic bag,hdpe plastic bag so on.
Detailed Images
Model
HF Power
Power voltage
High frequency
Max Output
Oscillation
Input power
YJ-ZR-8KW
8KW
50/60HZ AC380V
27.12MHZ
1000KG
8T25RB
25KVA
Activity Distance
Rectifier
Weight
Speed
Size of up mold
Size of down mold
Welding time
160mm
Silicon Diode
3000KG
3500pcs/8H
350*400MM
400*600mm
0-10s

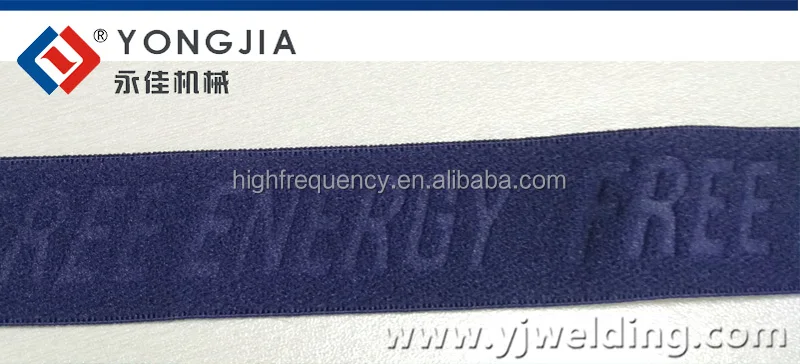

Sample display
Packing & Delivery
Our Company
Dongguan Yongjia Machinery Equipment Co.,Ltd, founded in 2003, is a large professional high frequency equipment factory, with strong technical capacity, advanced production equipment, experienced team and excellent service, using scientific management system, strictly follow production standards and testing standards, our products quality and service have been widely recognized by the industry, with many years production practice and technology development, we are a leading company in the industry with complete high frequency equipment product lines; our products include automatic high frequency plastic packaging production line, digital products hot pressing equipment, automotive interior components welding equipment, membrane structure canvas welding machine, industrial belt skirt baffle welding machine, automatic medical bag high-frequency welding machine and other kinds special high frequency welding machines; automatic high-frequency welding equipment, automatic cylinder production line, soft line glue box machine and hundreds of products. At the same time, we provide customized non-standard and special equipment, according to the needs of different customers, has a strong team of foreign trade business, the products are exported to Germany, Russia, Brazil, America, Southeast Asia and are hot selling in domestic market too. Yongjia enterprise, based on out superb technology and complete, high quality service, provides customers great service.
