Segmented Mold Cure Hot Tyre Retreading Machines

Tyre vulcanizing machine vulcanization process for automatic discharge gas after preheating, feeding, automatic pressure maintaining sulfide, timing alarm, open mold, products out of the mold, and other functions in one.Adopt PLC programmable controller or manual operation according to the actual needs of users (order), record the required process and convenient operation management.
Vulcanizing machine electric heating, steam heating and heat conduction oil heating three forms.
This machine is fully functional, compact structure, with timing clamping, automatic filling pressure, automatic temperature control, automatic timing, then alarm functions, such as hot plate surface temperature uniformity, accurate temperature control, temperature controller can accurately record the temperature data, pressure maintaining stable and reliable, safe and convenient operation etc.

Technology parameters of Melion curing press machine:
Total pressure 1.00MN 2.00MN 3.00MN
Max.Hydraulic pressure 16Mpa 16Mpa 16Mpa
Plunger stroke 300mm 300mm 300mm
Plunger diameter 300mm 400mm 500mm
Speed of closing 15mm/s 15mm/s 15mm/s
Speed of opening 22mm/s 22mm/s 22mm/s
Platen size 600*600*60mm 1000*1000*60mm 1000*1000*60mm
Daylight opening 300mm 300mm 300mm
Total heating power 8.4kw 12kw 12kw
Max.Temperature ≤200℃ ≤200℃ ≤200℃
Pump power 2.2kw 3kw 5kw
Overall dimension(L*W*H) 1540*1750*1870mm 1800*1620*2200mm 2000*2500*2200mm
Weight ≈3.5T ≈6T ≈9t

Packing & Delivery

Packing Details  : 40 Hq container for one set equipment

Delivery Details : 45 days after deposit payment

1. Loading Curing Chamber

2. Loading Tread Rubber

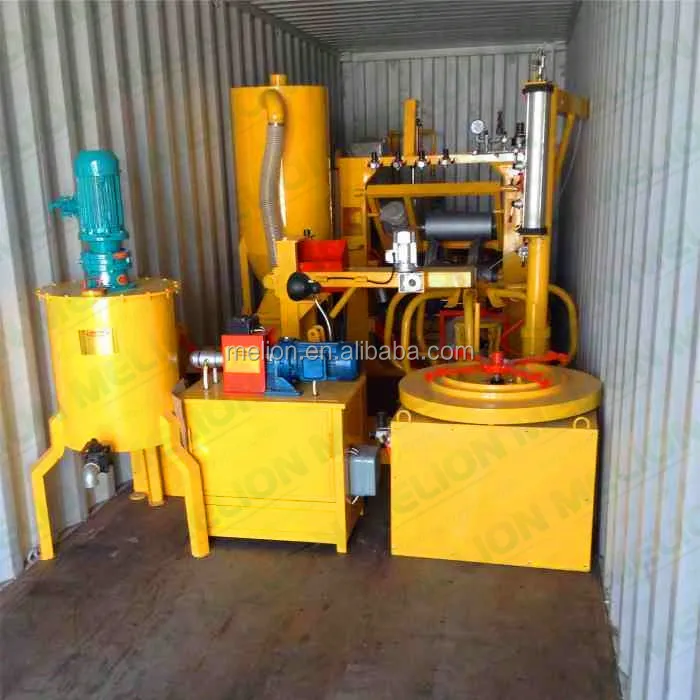

3. Loading Retreading Machines

Classic Cases

Customers Show

Customer Photo

Rizhao Melion Industry Co., Ltd

As a tire retreading equipment manufacturing supplier who providing Turn-Key Service,Melion provide customers with complete solutions all the time,including professional marketing planing,production line procedure analysis,suitable raw materials supply,free technical training and so on.With its quality products and technical support ,Melion has widely gained excellent reputation from all customers from China and abroad.

FAQ

Q: Can you provide complete tire retreading supplies?

A: Yes,we are complete tire retreading solutions supplier who can supply equipment,rubber materials,consumable tools from A to Z.

 Q: How long is your delivery time?

A: Generally it is 45 days production time after receive deposit.

Q: Do you provide overseas installation and training service ?

A: Yes, we could send our engineers go to your country for installing and training services.

Q: Can I come to your factory for learning?

A: Welcome for visit any time!
