Flexible Angle | Up to 10 degree |
Back Sheet | PET, TPT, Aluminum or Fiberglass |

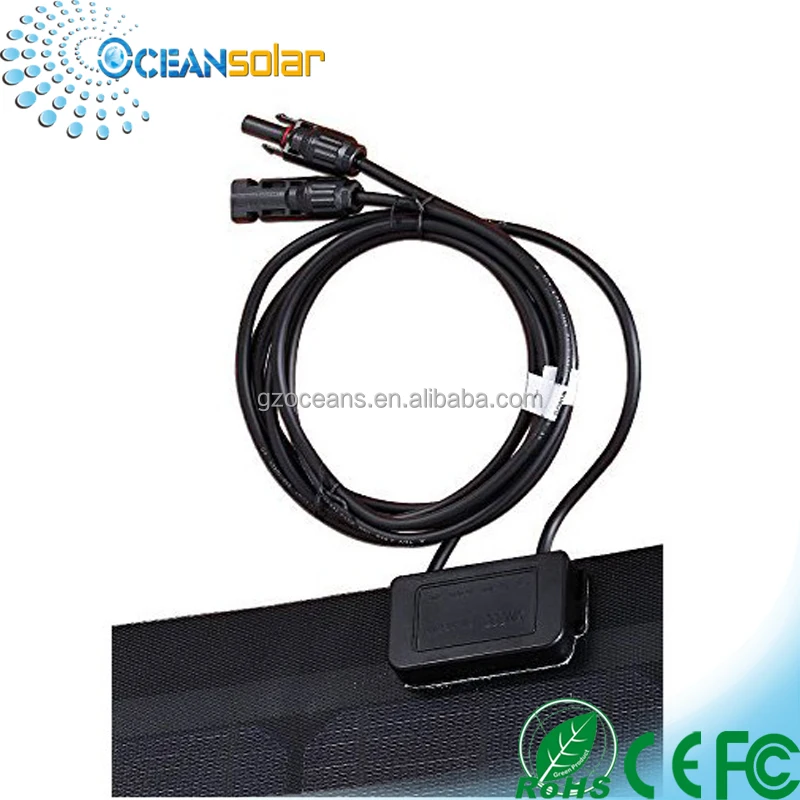

J-Box | IP65 Rated |
Thickness of ETFE | 0.025mm |
Thickness of solar panel | 2.5mm or 3mm |
Cables/Connector | 1.5 meters, 2*2.5mm2 cable with MC4 connectors |
Type of Solar Cells | 156 Monocrystalline silicon cells |

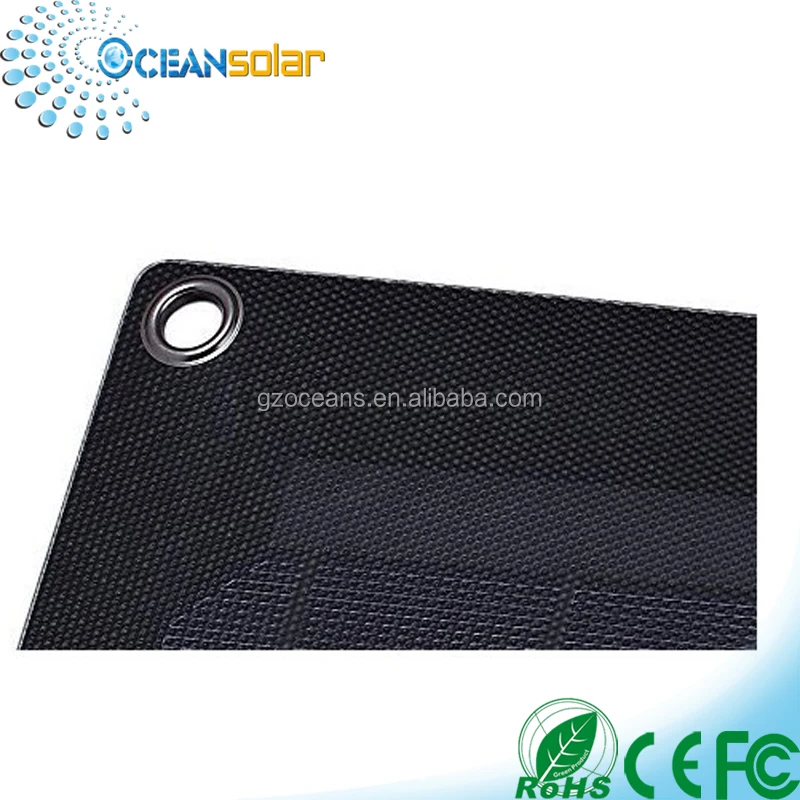

Eyelets | 4pcs in the corners |
By pass diode | 2pcs (10A for each ) |
Number of Cells | 36pcs |
Item Number | OS55-18MFX |
Pmax | 55W |
Vmp | 18V |
Imp | 3.06A |
Voc | 21.24V |
Isc | 3.77A |
Size | 740*505*2.5 mm |
Net Weight | 1.55 kg |
Solar Cell Efficiency | 18.5%-20% |
