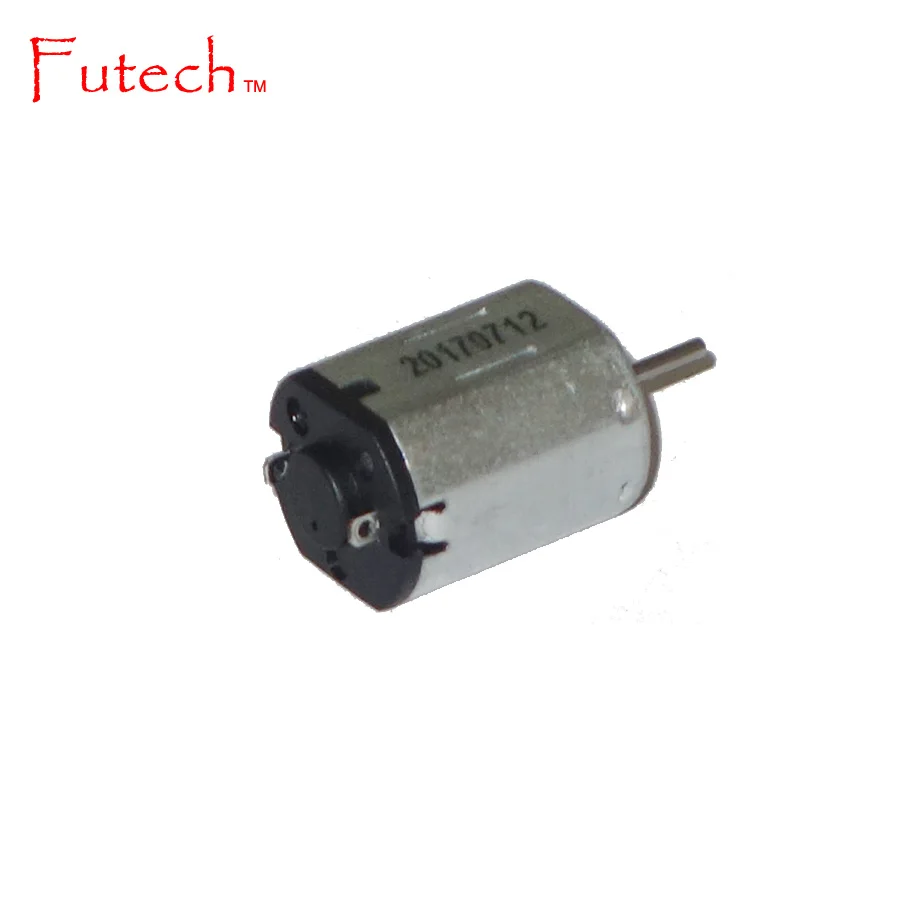

N20 2.4V 3V 6V Mini DC Motor

Product Overview

Description

FT-N20   12mm N20 2.4V 3V 6V Mini DC Motor

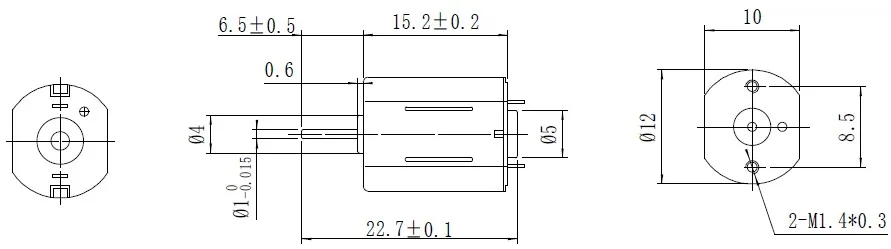

DRAWING (mm)



SPECIFICATIONS

The specifications are for reference only. Contact us for customized data.

Motor model	Rated Volt.	No load		Load				Stall
		Current	Speed	Current	Speed	Torque	Power	Torque	Current
	V	mA	rpm	mA	rpm	gf.cm	W	gf.cm	mA
FT-N20	2.4	≤96	15800	≤330	12200	2.8	0.35	≥13	≥1150
FT-N20	3	≤45	12100	≤160	9390	2.1	0.2	≥9.4	≥540
FT-N20	6	≤20	10400	≤40	8000	3	0.25	≥12	≥150
FT-N20	6	≤35	15500	≤80	12400	4	0.52	≥16	≥350



CERTIFICATES: CE & ROHS



FAQ

Q: Can you make a motor with custom specifications?

A: Yes, actually this is what we are good at.

Q: Can you change the output shaft of the motor?

A: Yes, no problem.

Q: Does the motor rotate in both directions (CW and CCW)?

A: Yes, it does.

Q: What is delivery time for a sample?

A: It depends, normally 1~2 weeks.

Q: What is delivery time for mass production?

A: 3~4 weeks if there is no additional requirements.

Q: Do you have quality control?

A: Yes, it is a must. We do 100% inspection on all motors.

Q: Do you have warranty?

A: Yes, one year.

Q: Are you a real factory?

A: Yes, we are.

Q: How much does a sample cost?

A: We don’t expect to make any profit from samples. Please contact us and we’ll let you know.

Q: What are your payment terms?

A: 30% deposit, balance due before shipment or against shipping documents.

Q: Do you accept PayPal?

A: Yes, but for samples and for small amount of money only.

Q: How do you handle shipment?

A: a) For samples and small batches, we recommend FedEx and UPS express door to door. It is very fast, safe and convenient.

b) For mass production, we recommend shipment by sea and by airfreight and go with FOB/CIF/CFR terms.

Q: I don’t know too much about motor, can you recommend me a motor?

A: Sure. Normally we will ask you some questions regarding application, dimensions, rated voltage, speed at load/no load, torque at load/stall. i.e. a toy motor with diameter 24mm, 12V, 6,000rpm and 20gf.cm at load.
