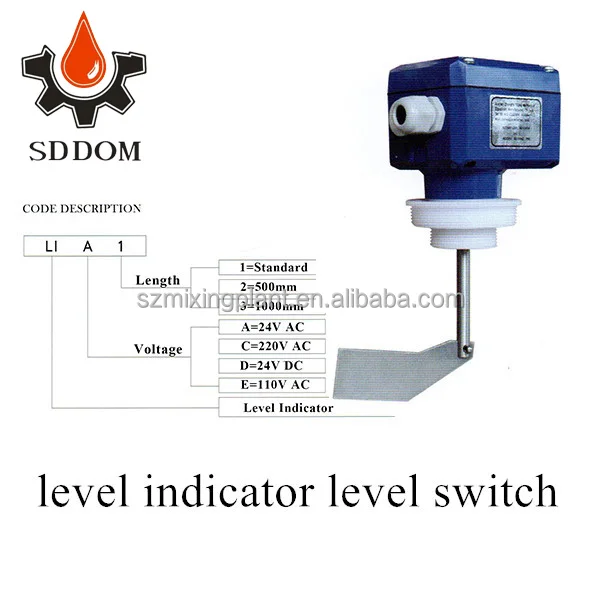

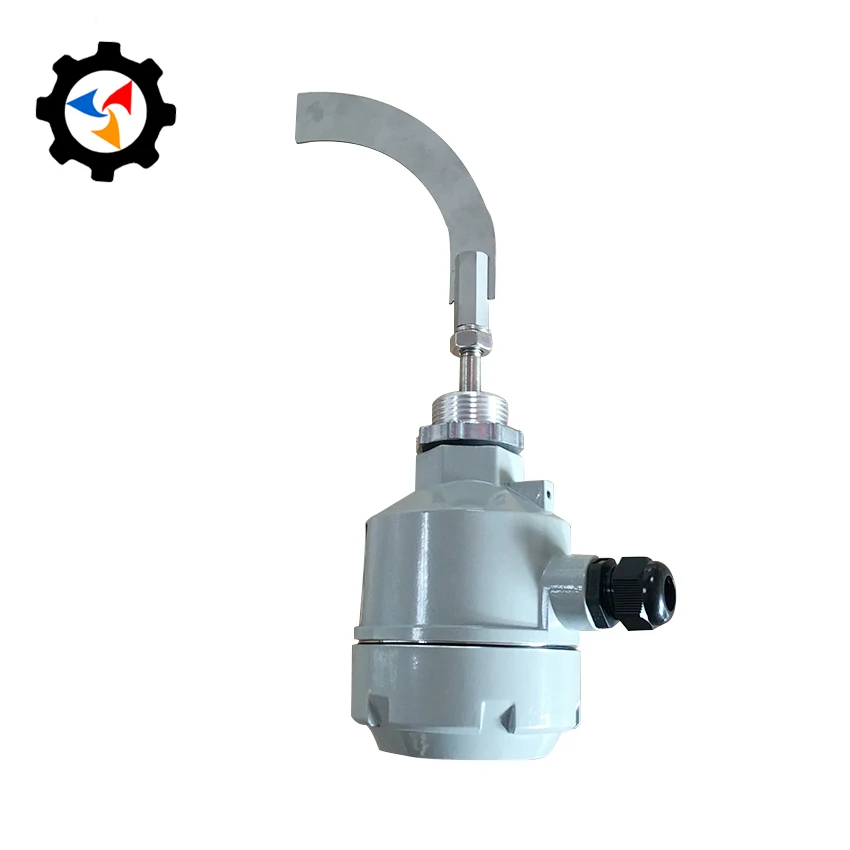

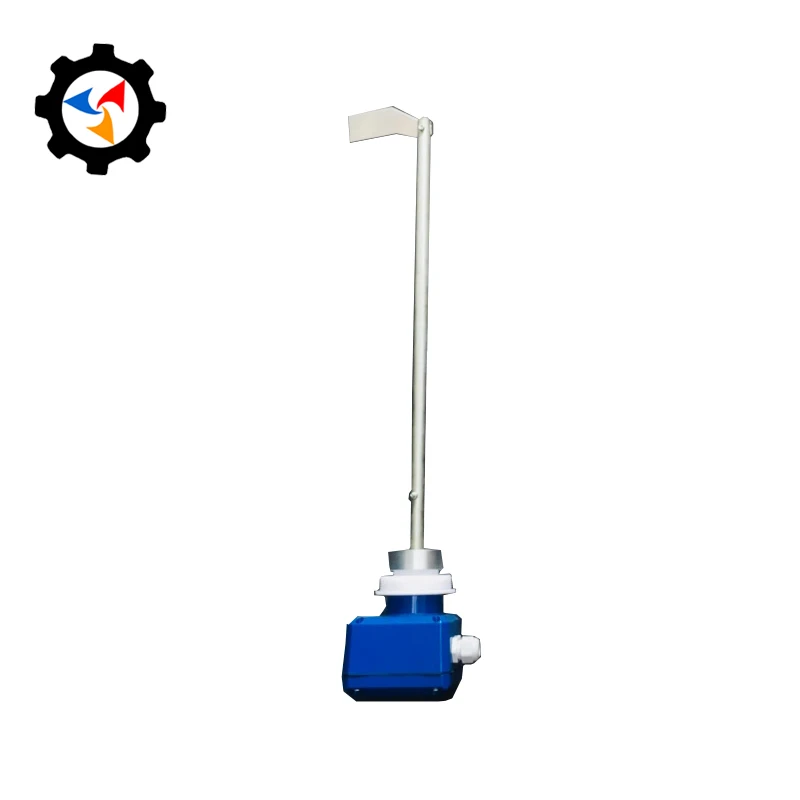

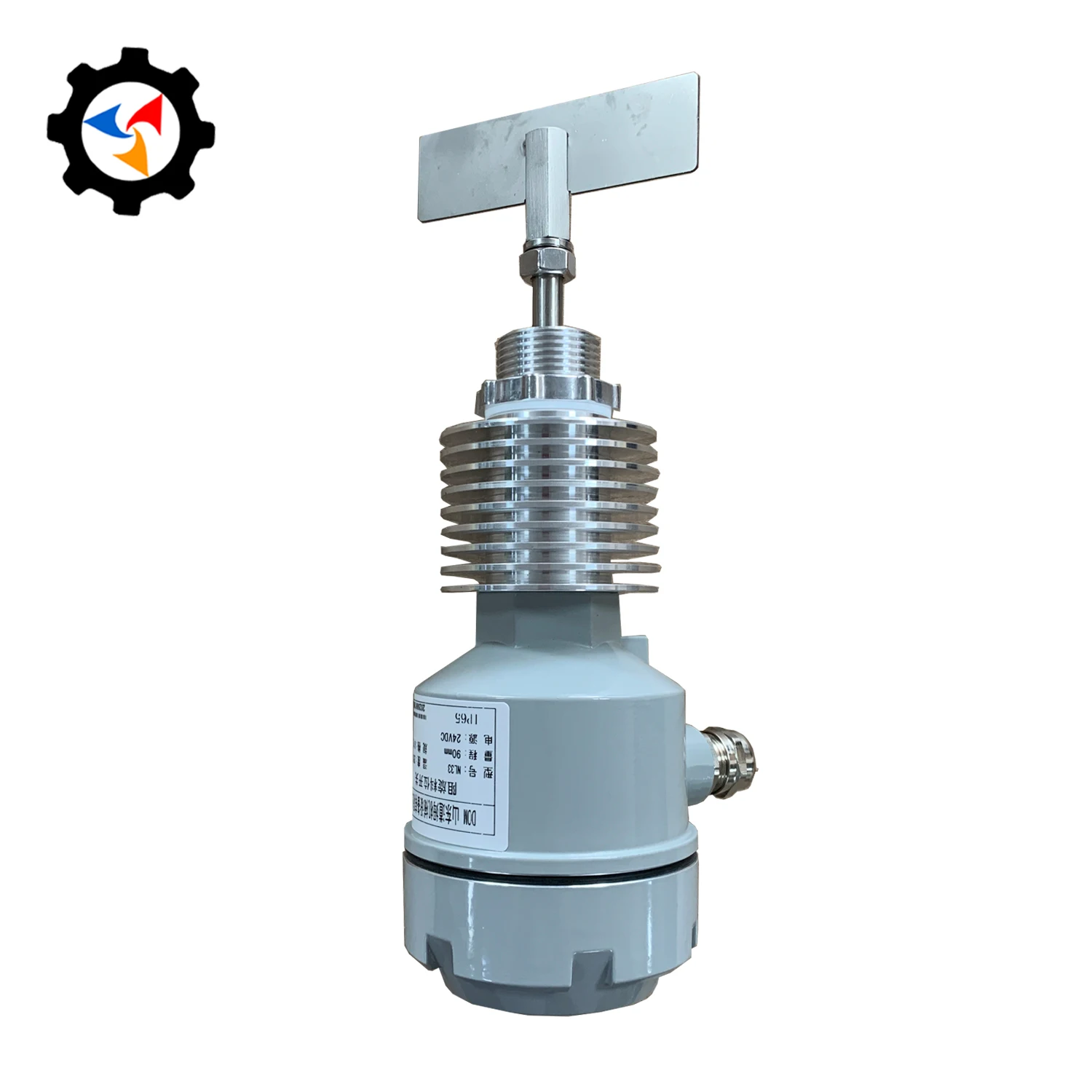

High sensitive cement silo level measurement instruments Rotary Paddle Level Switch
- Category: >>>
- Supplier: Taian Concrete Machinery Technology Co. Ltd.
Share on (60696228717):
Product Overview
Description
Product Description
Resistance rotary switch is used for solid materials including powder, massive, granular, gel, etc.) level controller. It has
good sealing; overload capacity is strong, lightweight drag large capacity, output, contacts, etc. In view of the different
proportion of material can be done by adjustable tension of the spring, contact material part of its full stainless steel

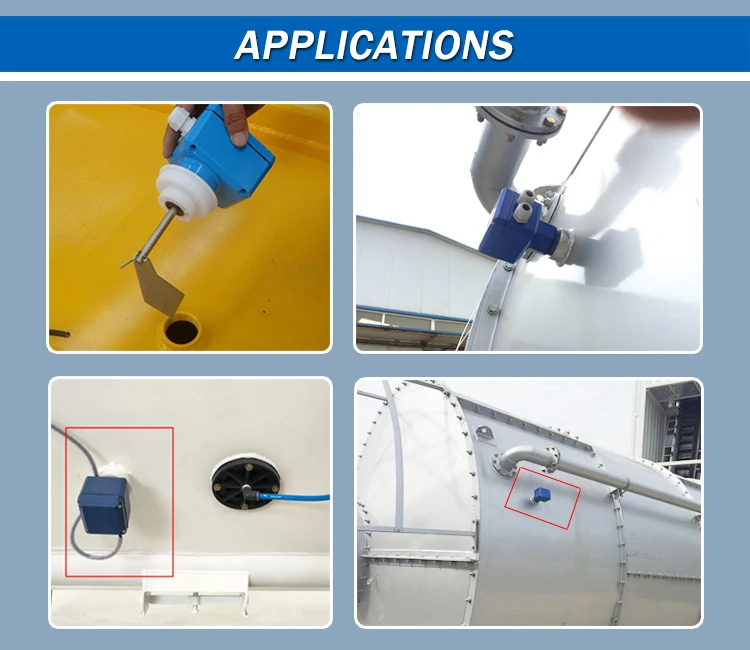

material. Resistance rotary switch in the chemical, plastic, cement, medicine, feed, food and other industries widely used.
good sealing; overload capacity is strong, lightweight drag large capacity, output, contacts, etc. In view of the different
proportion of material can be done by adjustable tension of the spring, contact material part of its full stainless steel
material. Resistance rotary switch in the chemical, plastic, cement, medicine, feed, food and other industries widely used.
Specification

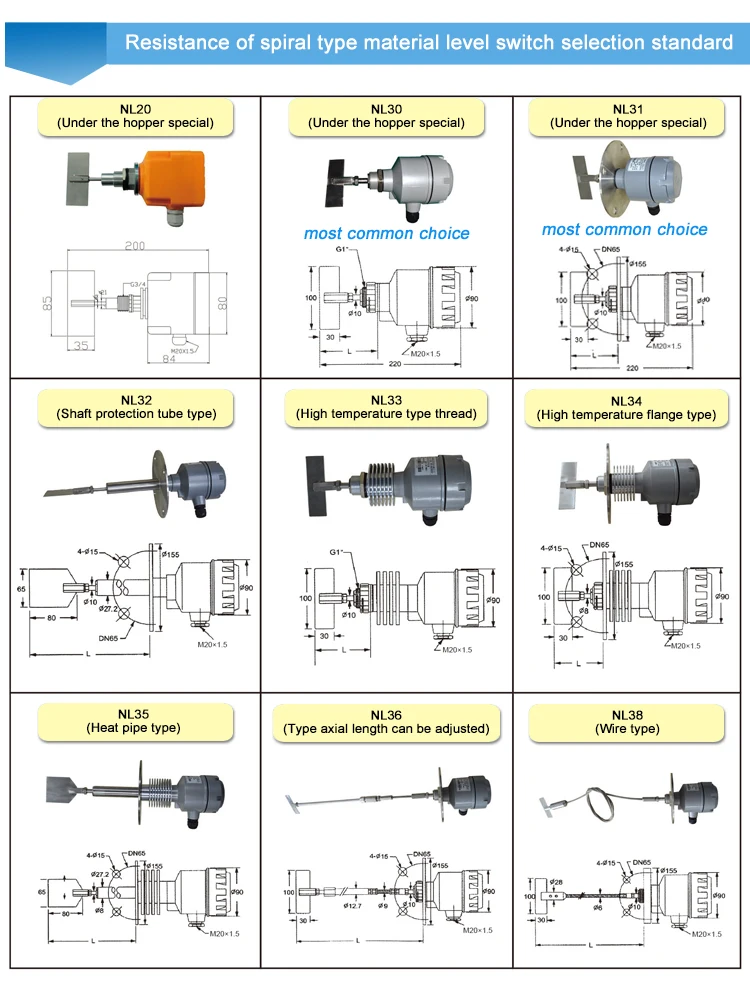

Model | NL Series | LI Series |
Protection Grade | IP 65 | IP 65 / IP66 |
Connector and paddle | Stainless steel SUS304 | Stainless steel SUS304 |
Cover | AL Alloy | AL Alloy |
Reed type clutch | Protect gear when the blade is impacted | Protect gear when the blade is impacted |
Signal delay | Less than 1.2s | Less than 1.2s |
Sensibility | Adjust by 3 spring | Adjust by 3 spring |
Blade Rotating Speed | 1RPM | 1RPM |
Installation | Screw installation | Screw installation |
Voltage | 24V AC/ 24V DC 220VAC/110VAC | 24V/48V/110V/220V – 50Hz 24V/48V/ -DC |
Power | 4W | 4W |
Wiring | Max 1*1.5 mm² | Max 1*1.5 mm² |
Signal Output | 24VDC/220VAC | AC: Max 250V, 2A, 500W |
AC: Max 300V, 2A, 600W | ||
Protection Grade | l | l |
Pressure in Cover | Max 0.6bar | Max 0.8bar |
Working temperature | -10~+80°C | -20~+70°C |
Shaft length | 90-500mm | 80mm,500mm,1000mm |
Mobile Concrete Batching Plant
Container cement Silo
Stackable Cement Silo
Planetary Mixer
Twin Shafts Mixer
Mobile Cement Silo
Bolted Cement Silo
HZS type Batching Plant
Big Bag Cement silo
1.Are you original manufacturer?
A: Yes. We SDDOM are factory in construction machinery in China with whole concrete mixing / silo storage convey products you need.
2.What kind terms of payment can be accepted?
A: Normally we can work on T/T term or L/C term.
3.Which incoterm 2010 terms can we work?
A: Normally we work on EXW, FOB, CFR, CIF, DAP
4.What about the delivery time?
A: 7-30 days after receiving the deposit.
5.What about the warranty time?
A: 12 months after delivery generally.
6.What about the MOQ?
A: MOQ 1 unit
A: Yes. We SDDOM are factory in construction machinery in China with whole concrete mixing / silo storage convey products you need.
2.What kind terms of payment can be accepted?
A: Normally we can work on T/T term or L/C term.
3.Which incoterm 2010 terms can we work?
A: Normally we work on EXW, FOB, CFR, CIF, DAP
4.What about the delivery time?
A: 7-30 days after receiving the deposit.
5.What about the warranty time?
A: 12 months after delivery generally.
6.What about the MOQ?
A: MOQ 1 unit
