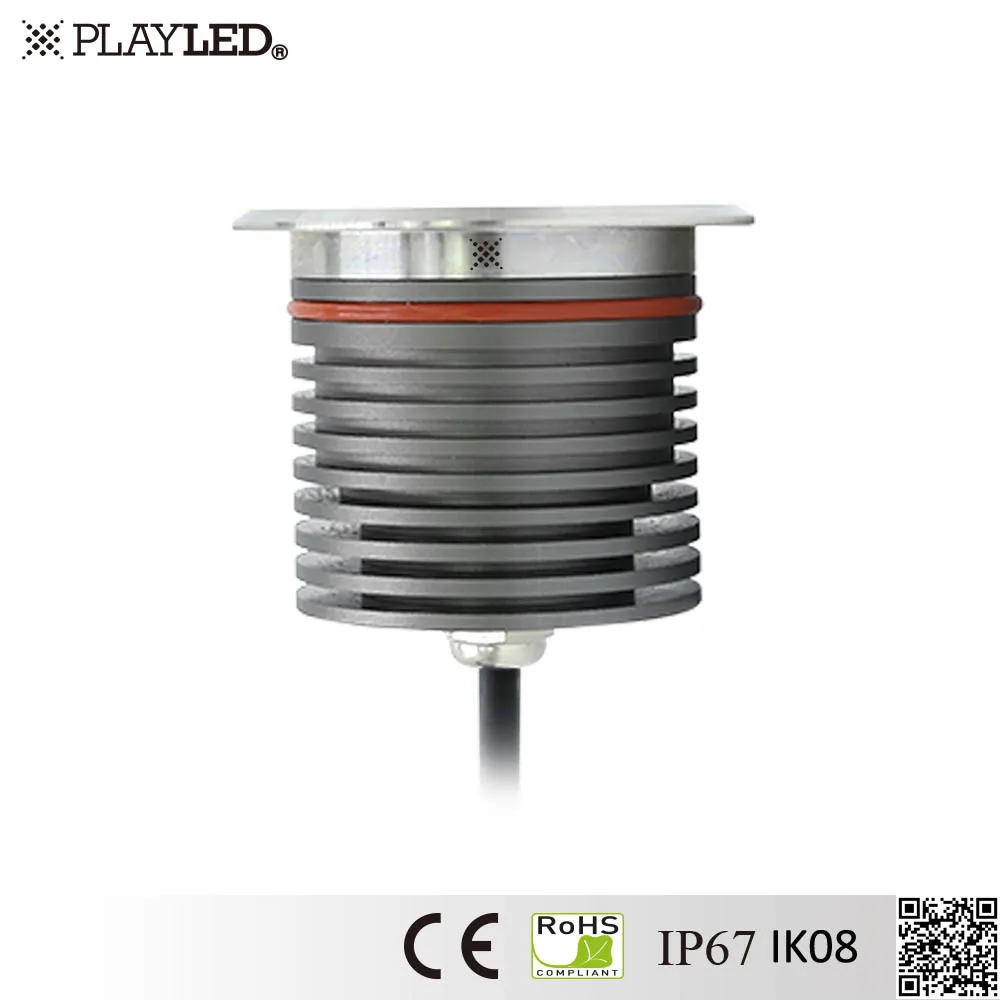

9W IP67 driveway lighting COB led underground light DC24V outdoor lighting ground

. 1 PC 9W COB LED with high lumen and beautiful light output.
. Stainless steel 316 (not 304) trim and tempered glass with high loading capacity.
. 20~25 um thickness passivated anti-corrosion protection film that won't be fading even after 2 to 3 years
. 25°,40°,60° beam angle as options
. 700-750 l m luminous flux output
. IP67 waterproof
. 3 years warranty
. 8~10 years professional sales and technicians to serve you

Data Sheet
\t
General Data
\t
Item No.
\t
UL-9W-COB
\t
Power
\t
9 Watts
\t
LED type
\t
1 PC 9W COB LED
\t
Luminous flux
\t
700-750 l m
\t
CCT
\t
2700K,3000K, 4000K, 6000K
\t
CRI
\t
80+
\t
Beam angle
\t
25°,40°,60°
\t
Dimension
\t
Φ78x60 (mm) Diameter x length
\t
Cut out
\t
66 mm
\t
Net weight
\t
0.59 kgs
\t
Warranty
\t
3 years
\t
Certifications
\t
CE, RoHS
\t
Electrical Data
\t
Input voltage
\t
DC24V as standard, (AC100~245V as options)
\t
Insulation class
\t
Class III
\t
Cable
\t
1PC rubber cable 1.5M H05RN-F 2x0.75mm square
\t
Driver
\t
Low voltage constant current output ,excluding the transformer
\t
Construction Data
\t
IP rating
\t
IP67 Waterproof
\t
IK rating
\t
IK08
\t
Housing
\t
Solid Passivated (Anodizing) Aluminum CNC machined
\t
Protection finishing
\t
20~25μm thickness anodized film for housing .Dark grey standard,silver color as options.
\t
Trim
\t
Stainless steel 316
\t
Glass
\t
Step tempered Glass.T=8mm.
\t
Loading capacity
\t
2000 kgs
\t
Cable Gland
\t
PG7 IP67
\t
Gasket
\t
O-ring PMQ silicone seal
\t
Accessories
\t
Mounting Sleeve
\t
Passivated (Anodizing) Aluminum CNC machined in dark grey
Detailed Pictures

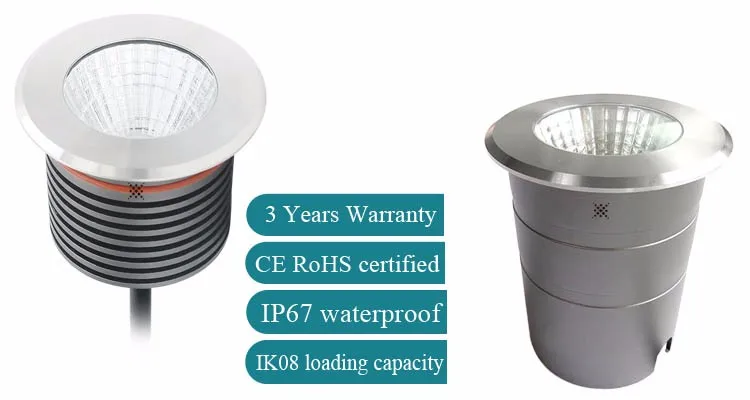

This ground spot cob led inground light is widely used in the exterior illumination and the garden decoration illumination., and with waterproof IP67 and  IK08 loading capacity.

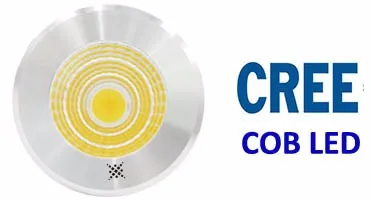

It's with imported high quality COB LED for long life and high lumen.

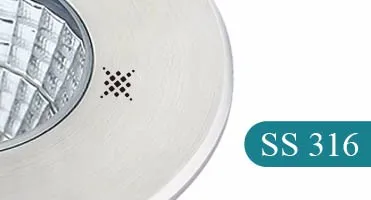

With stainless steel 316 (not 304) front cover and the Tempered glass.

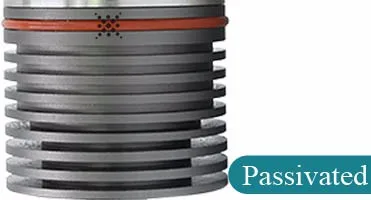

Passivated (Anodizing) Alumnium housing CNC machine that won't be fading even after 2 to 3 years.

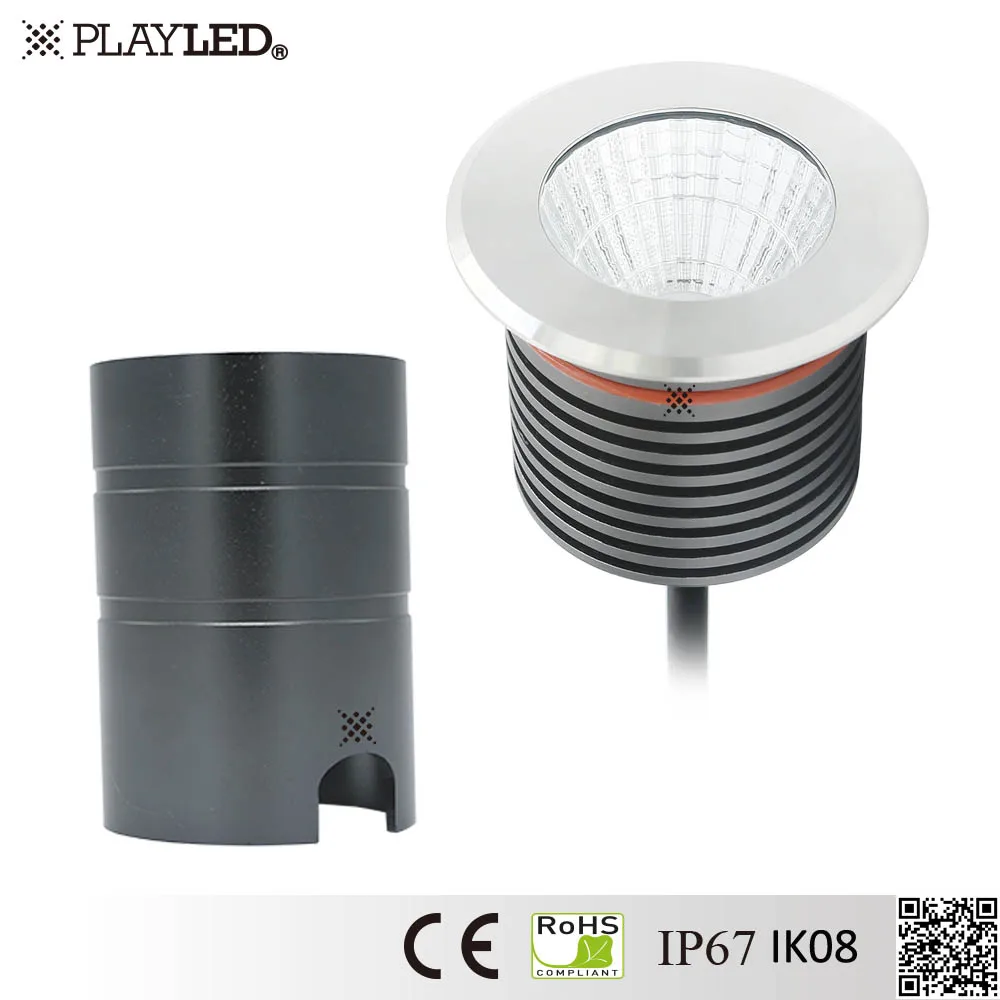

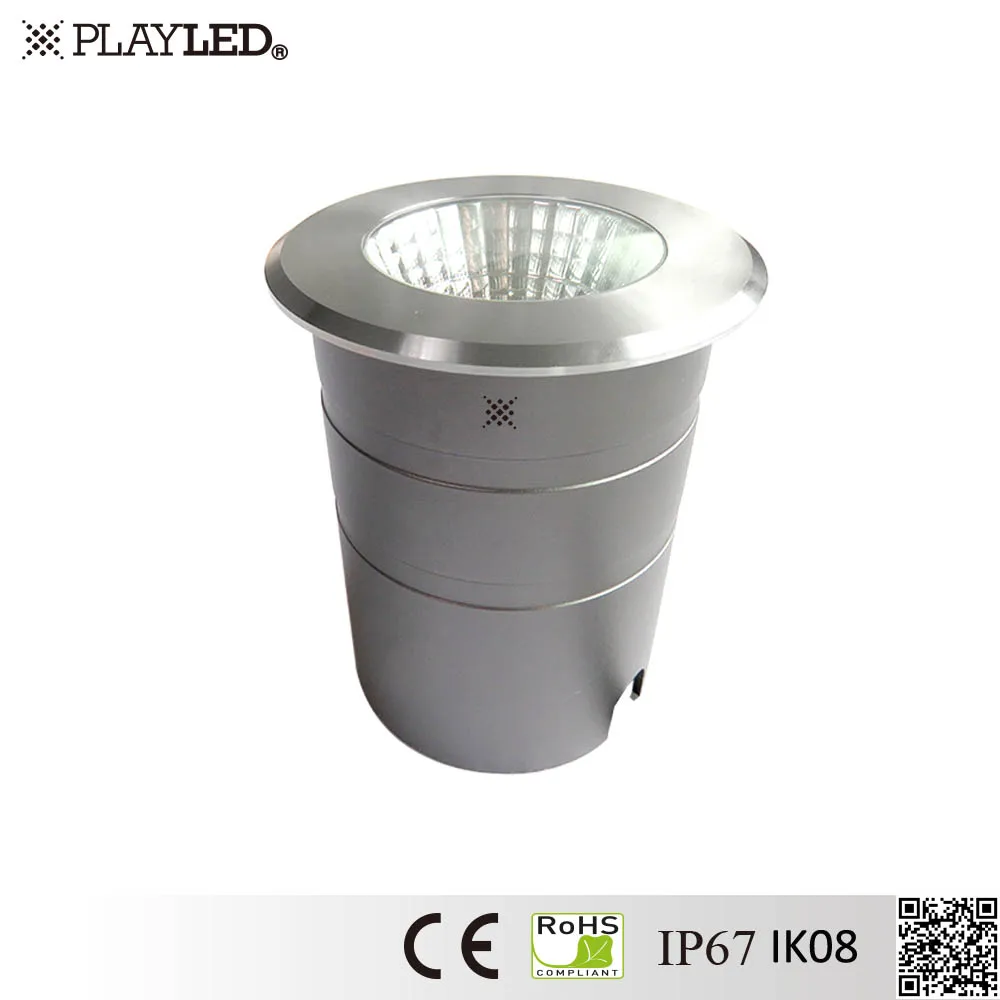

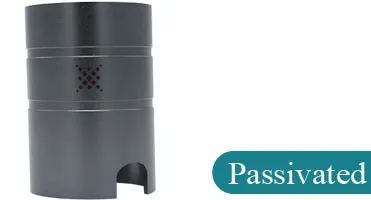

Passivated (Anodizing) Alumnium CNC machined mounting sleeve that is better for the lamp cooling.




Illumination picture showcase

It's with CCT 3000K,and 40 degrees beam angle.

We have our own IES photometrical machine to make the IES test.

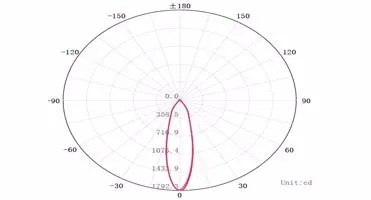

                   Light distribution cureve

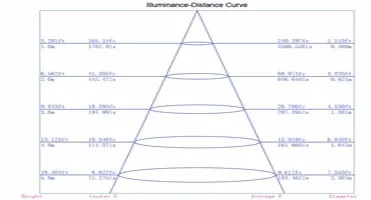

                               Lux distance curve

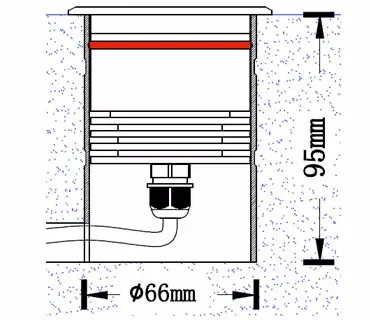

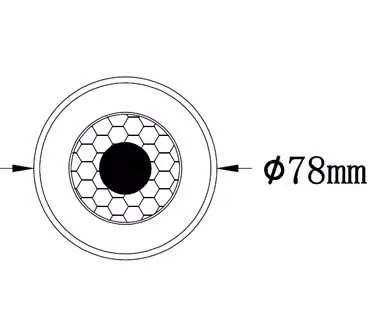

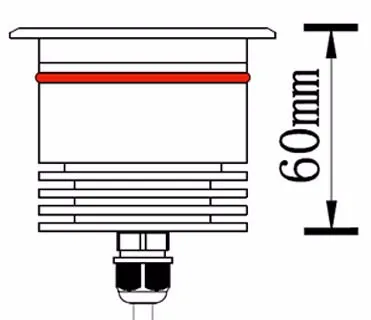

Dimension
Related products
Please click the picture to check this adjustable inground light series !

Please click the below picture to check our main products series or send me the Email info5(@)pyledlight.com for the PDF file E-catalogue to check our whole range products . (Pls remove "()")

Application Pictures

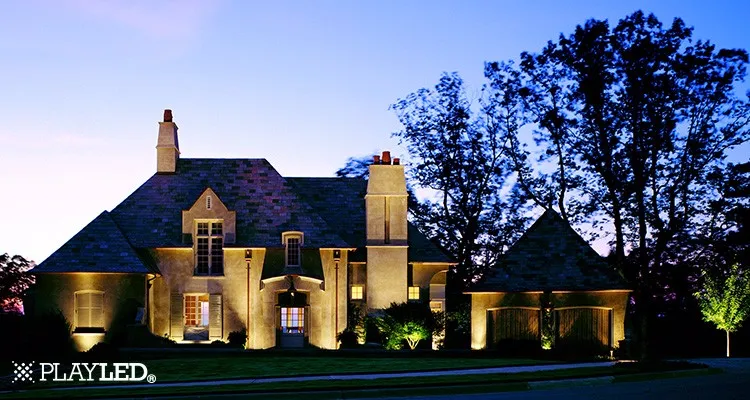

These  ground spot cob led inground lights are widely used at spotting walls, lighting columns, trees, flowers etc,.

Company Introduction

Puyuan Electronic Illumination Co., Ltd. with registed brand PLAYLED is a professional LED lighting manufacturer in China,established in 2007 years.

It is specialized in producing Exterior LED lights, such as LED inground light, LED deck lights, Spike spot lights, step lights, underwater pool lights,LED flood lights,wall washer etc.. We not only pay much attention on quality but also on the details such as design ,finishing optics etc..

We adhere to quality standards of operation and is compliant with ISO9001:2008 for quality management operations system and ISO14001:2004 for environmental system certification.Our products have varying quality certifications such as CE,RoHS,TUV and cUL assure reliability,particularly those which are exported to Europe, North America,South America,Australia,Iceland,Malaysia,Indonesia and Philippines,UAE,Saudi Arabia etc.

We usually attended Guangzhou Fair, HongKong International Lighting Fair ( Autumn Edition),HongKong International Lighting Fair ( Spring Edition),Japan Light Fair,LED Expo Thailand,Light Middle East in DUBAI etc.

Contact Us

1.Are you a trade company or a manufacturer?

We are an ISO approved manufacturer that's specialized in exterior LED lighting Products. OEM & ODM service are available.

2.What is your delivery date?

 The delivery date is around 7-15 days for samples,and 15~25 days  for regular orders after receipt of payment.

3.What is your payment terms?

For samples: 100% deposit.

For regular order:30% deposit in advance and 70% balance before shipment.

The payment method can be Paypal,western union bank, bank for TT .

4.What's your delivery terms ?

We can provide EX-WORKS ,CIF or FOB JIANGMEN,FOB HESHAN,FOB SHENZHEN delivery terms.

5.What's your warranty ?

We are confident on our quality of design,and the warranty is 3 years.

6.Can I buy the quantity below MOQ ?
Yes, please contact us for the detailed prices based on your detailed quantity requirement.
