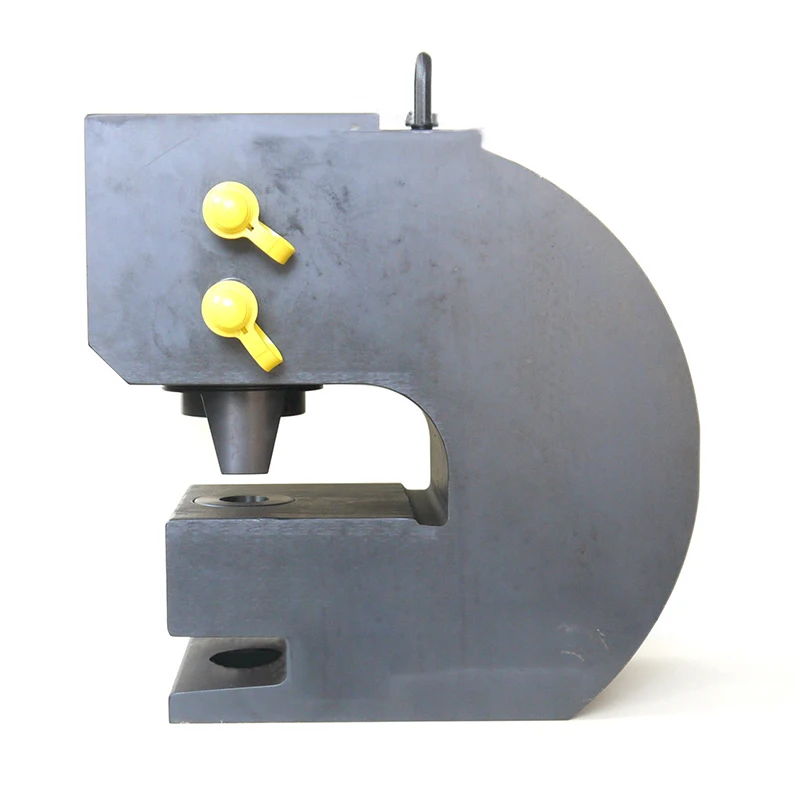

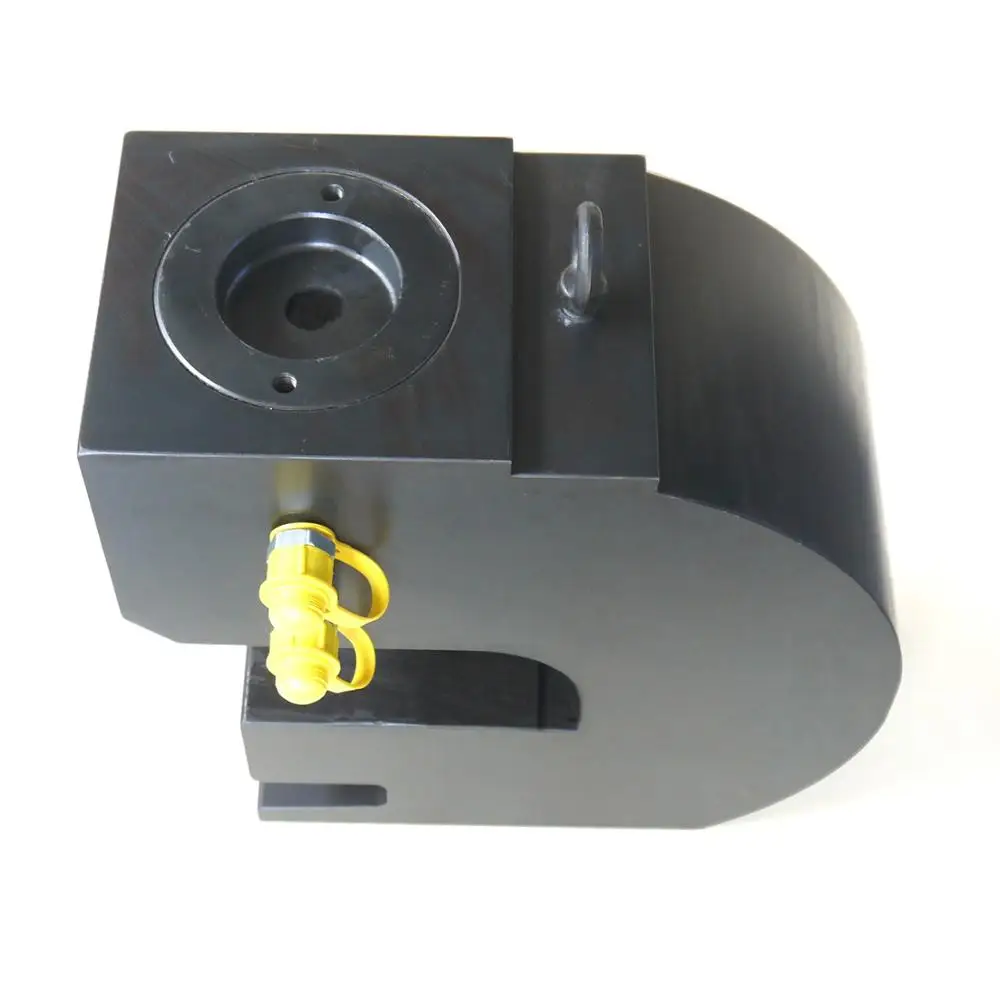

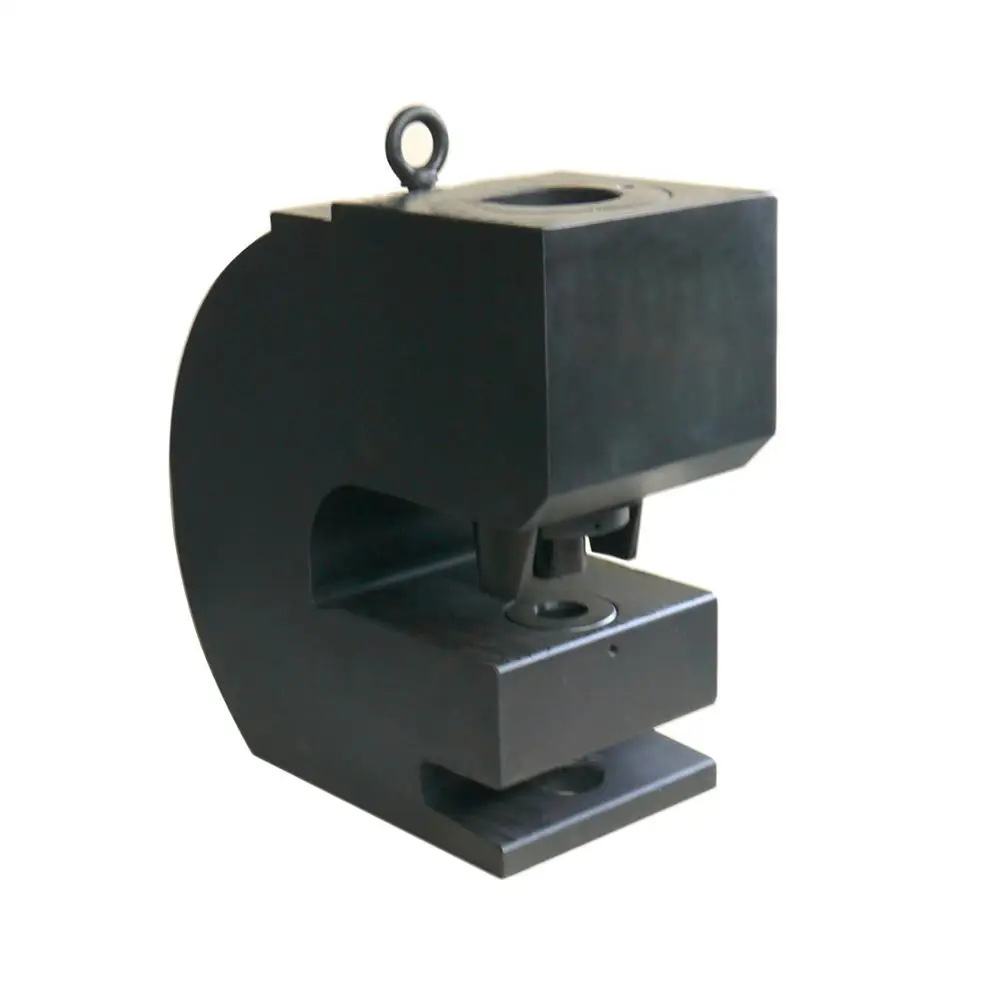

Heavy Duty Hydraulic Punch CH 100A For Metal Sheet Hole Punching

Application:

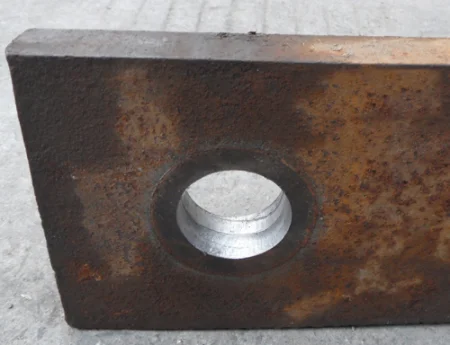

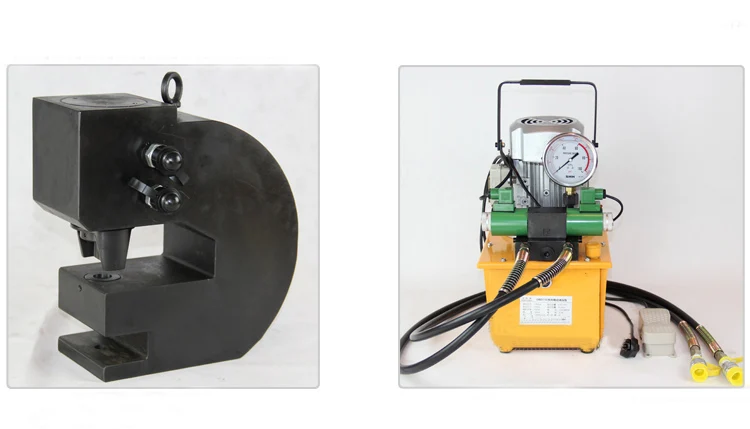

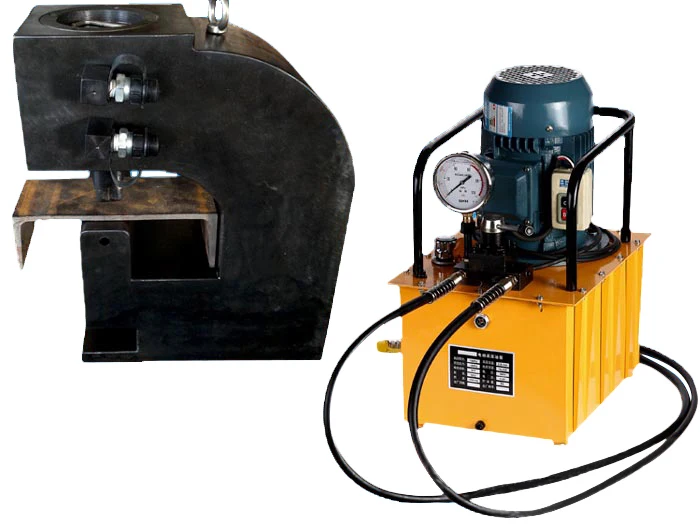

CH -60/70/80/100/200 eyelet punching machine is a remote control tool, works with an external hydraulic pump (Hand Foot or Electric pump). It is designed to punch round holes on Cu/Al Busbar and Steel plate. With 4 pairs standard punching dies (22 / 26 / 28 / 32mm), punching hole size is between diameter 10mm and diameter 32mm. Busbar thickness should below or equivalent to 24mm,Steel plate thickness should below or equivalent to 20mm, With hydraulic power, 4 pairs sharp punching dies, easy fast and clean punching can be achieved.

FUNCTION:

This machine is a dedicated bus installation, punching machines and tools required to complete pump (manual pump,Treadle pumps,electric
pumps) use.
1. It is designed for punching holes on Cu/AI bus bar.
2. Fast speed punching, accurate position without deviation.
3. AlI kinds of punching dies could be ordered.
4. Hydraulic punching could avoid cutting scraps while punching hole.It is much safer and clearer while operation.
5. Portable unit could be taken to site or fixed in factory for batch punching work.
6. Standard assembling of four dies in 22,26,28,32mm supplied with the puncher.
7. one packing box, one fixing spanner and one hexagon spanner assemblied.

Techincal parameters

Model:CH-100A
Aperture(mm):Φ22,Φ26,Φ28,Φ32
Output(T):100
Max thickness(mm):Iron sheet:20, Copper Busbar:24mm
Throat Depth(mm):130
Size(mm):400×300×420
Weight(kg):160
