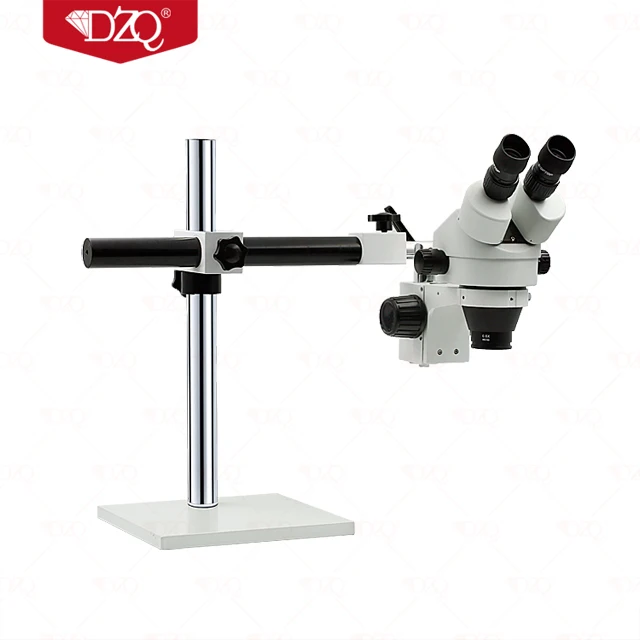

ZQ 2 Extensible Microscope for Jewelry Tools

Product Overview

Description

 ZQ-2 Micros Cope

Product description:

Microscope is a high rigidity, compact and stable frame. It’s save the space. Optical performance design is excellent, large zoom ratio and wide field of view. Fully meet the Jewelry industry operating needs, focusing is convenient. It is the essential tools in Jewelry industry.

The following is product features of Microscope:

 1. To provide User-friendly operating system.

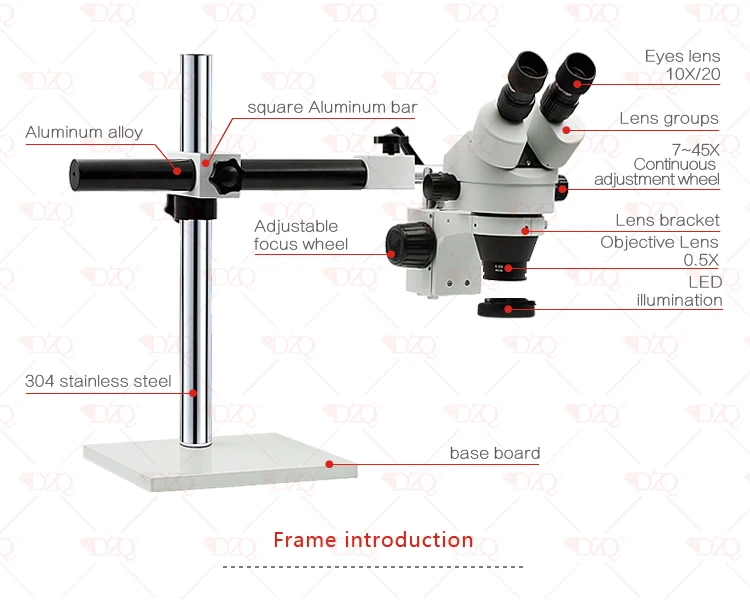

 2. Lens of microscope is using wide field of vision technology, continuous zoom stereoscopic microscope head, high-definition, depth of field, wide view range, sense of stereoscopic is strong, easy and convenience operation.

ZQ-2    Technical parameters of Microscope
Optical system	The light path variable times within the system
	Boday perspective 13°,45° oblique viewing
TOTAL Magnification	7X~45X
Eyes lens	WF10X
Objective	0.5X
Continuous zoom	0.7X~4.5X
Operating distance	165mm
Field range	5.1mm~33mm
Interpupillary distance	55mm~75mm
Weight of packing	14.5KG
Dimension of packing	L440 x W330 x H310mm (0.0450cm³)

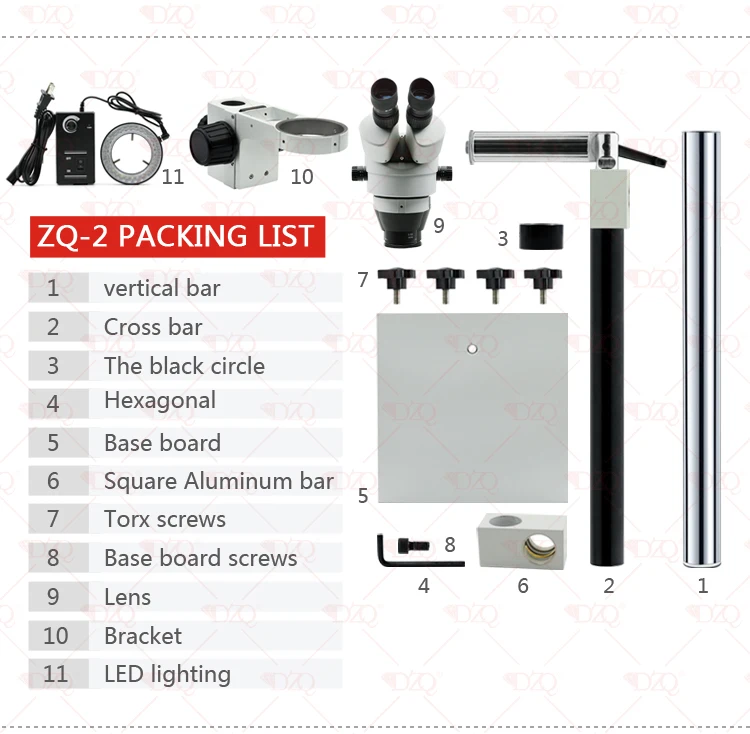

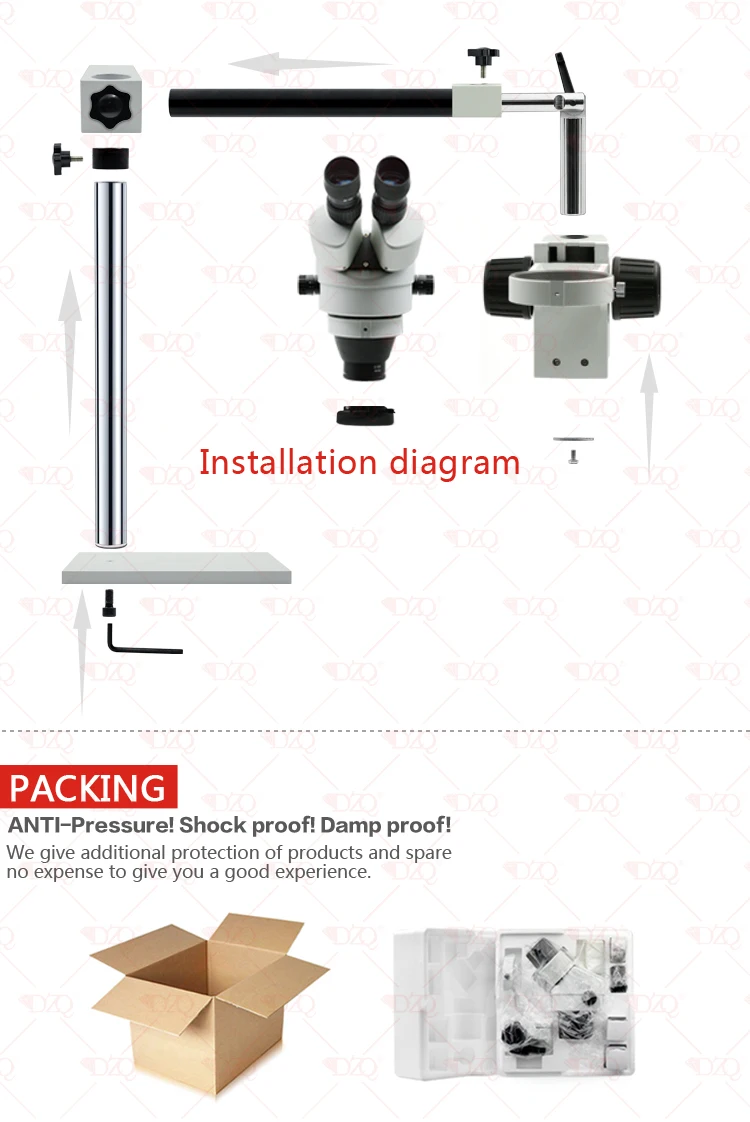

Packing list

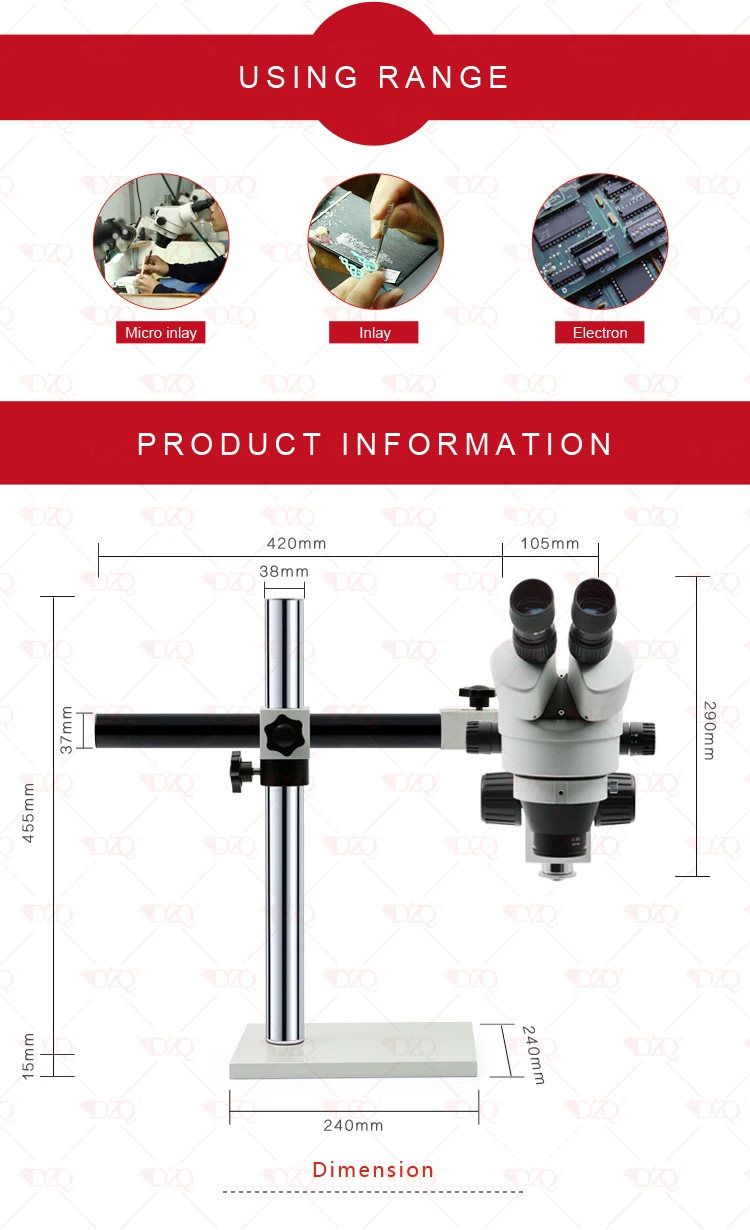

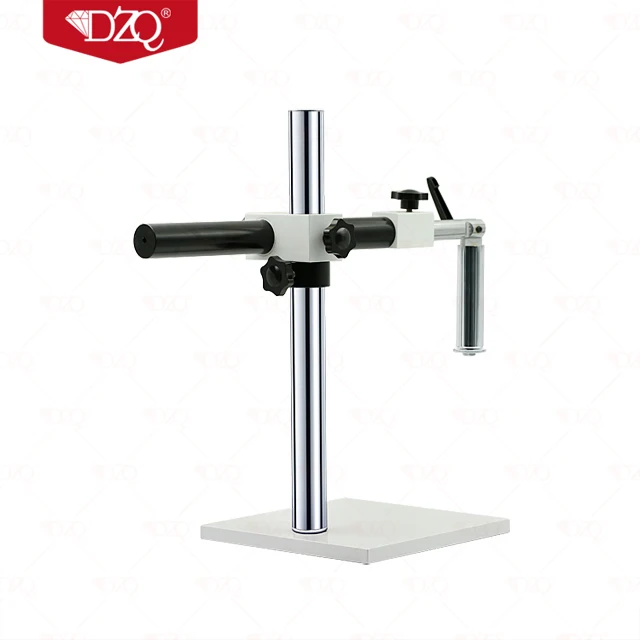

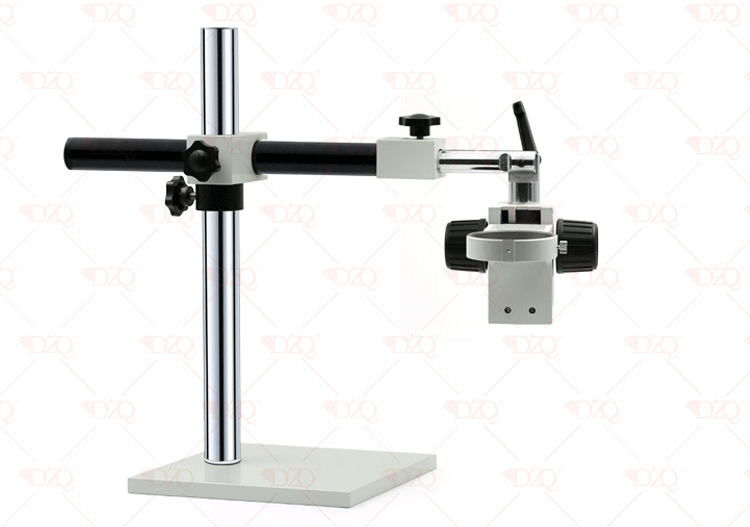

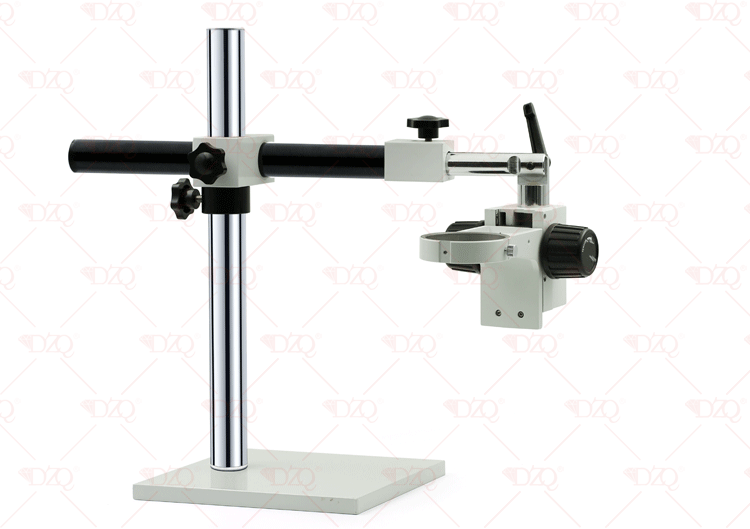

Vertical bar	length of cross bar  (adjustable)	Dimension of baseboard	Thickness of baseboard
H500 x φ28mm	φ37x500mm	240x240mm	15mm



 Lens performance

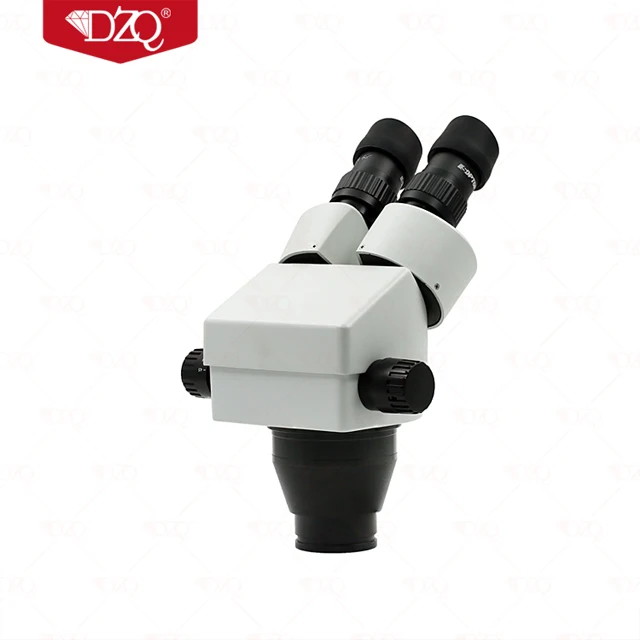

1. The stand microscope is kind of binocular observation of continuous zoom microscope. The lens is high-definition technology which is imported from the United States. This specific design is for people who has high operating distance, long operating time, wild observe viewing. It has clear imaging and nice appearance.

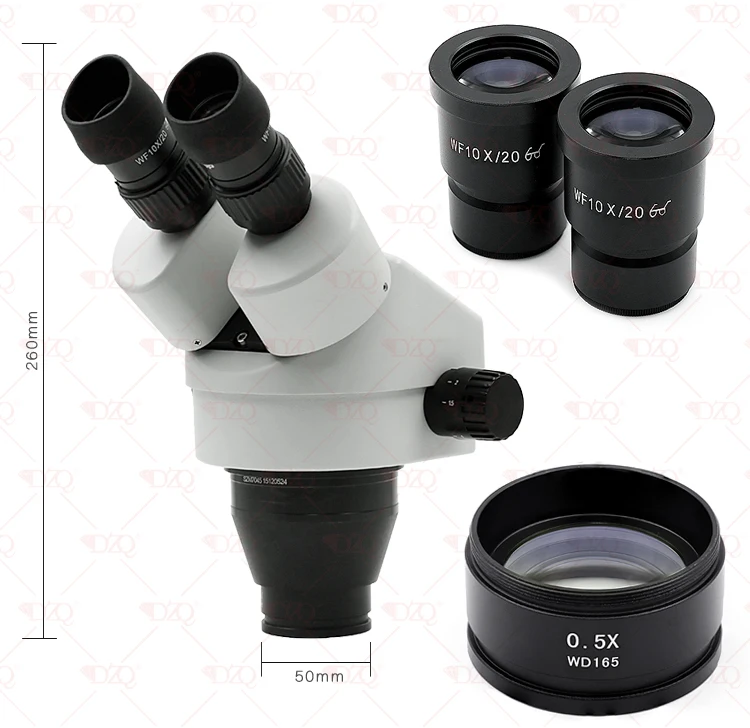

2. The machine included 10X eyes lens and 0.5X objective lens. The range of magnification is from 7X to 45X.

3. Microscope  can enlarged the small objects to form a clear 3D image. It can apply to Jewelry processing industries, jewelry training schools, jewelry research departments for observation and analysis, but also it can apply to electronics industries and instrumentation industries for fine parts of the inspection, assembly, repair.
