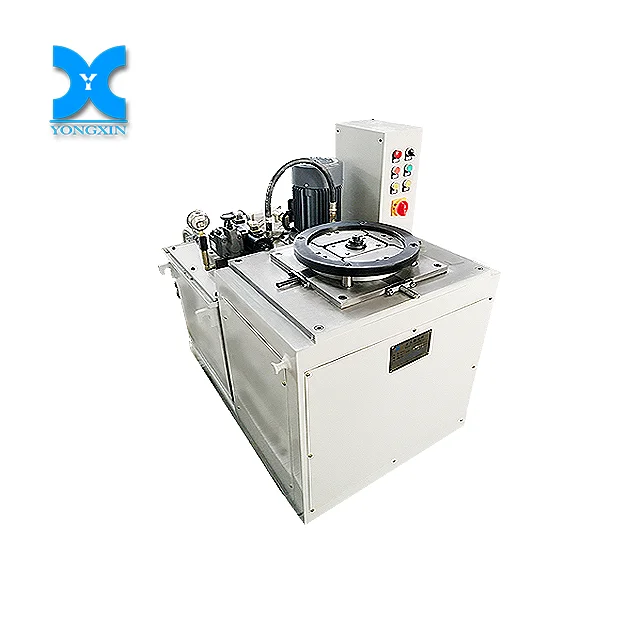

Automatic Rectangle can flanging Machine for small rectangle can making cheese can
- Category: Packaging Forming Machines >>>
- Supplier: Jiujiang Yongxin Can Equipment Co. Ltd.
Share on (60696391776):
Product Overview
Description
| Sepecification |
| Model | GTFY-5 |
| Usage | Mainly apply for 1-5L Square Can Flanging Making |
| Operation Mode | Automatic Pedal Switch Operate Hydraulic Drive |
| Output Capacity (CPM) | 30 cans per min. (Operator Dependent) |
| Feeding Mode | Manual Feed-in |
| Pail Body Thickness Range | less 0.5mm |
| Support Pail Material | Tinplate / Steel-based / Chrome |
| Pail Body Material Hardness | T2.5-DR8 |
| Forming Die Changeable Function | Provided |
| Forming Die Function | Flanging,expanding,seamer top and bottom |
| Forming Dia Material | High-grade Alloy Tool Steel (Cr12MoV) |
| Power System Overload & Short-Circuit Protection | Provided |
| Main Frame Material | High Strength Steel for Canmaking |
| Protection Grade for Electrical Switch-gear Box | Class Index IP65 |
| Standard | IEC60947 for Electrical Sys. |
| Electrical Control & Distribution Sys. Provider | Schneider Electric + Omron |
| Hydraulic Assy. Provider | COMPASS |
| Pedal Switch Provider | CHINT |
| Motor Provider | SIEMENS |
| Motor Power | 3.0KW |
| Power Supply Required | 380V AC 50/60Hz Three-phase sys. |
| Weight | 700KG |
| Construction Size | 1200 X 700 X 1150 (mm) |
| Shipment Lead time: | 4-8 weeks from order |
| Packaging | Plywood Case (Standard Export Packaging) |
| Warranty: | 1st Year FREE CHARGE for parts from shipping date + Lifetime services |
| Operator Manual & Instruction | PDF / Printed paper provided |
