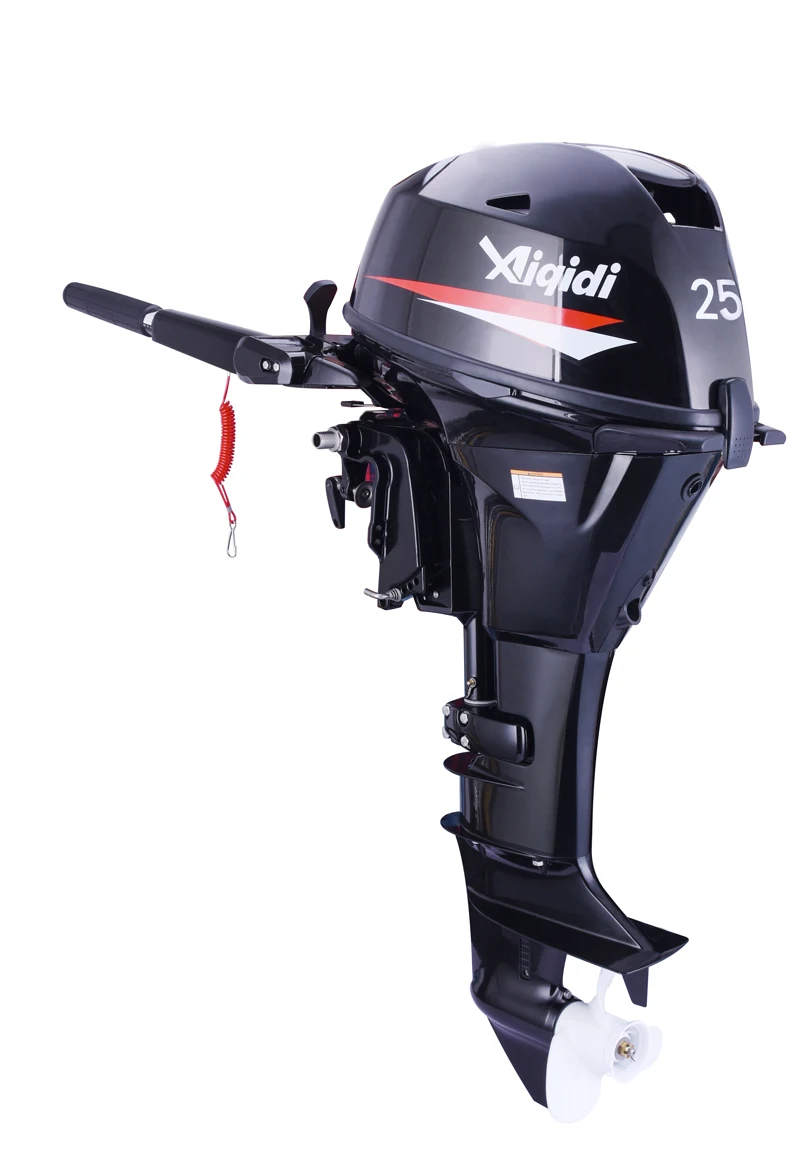

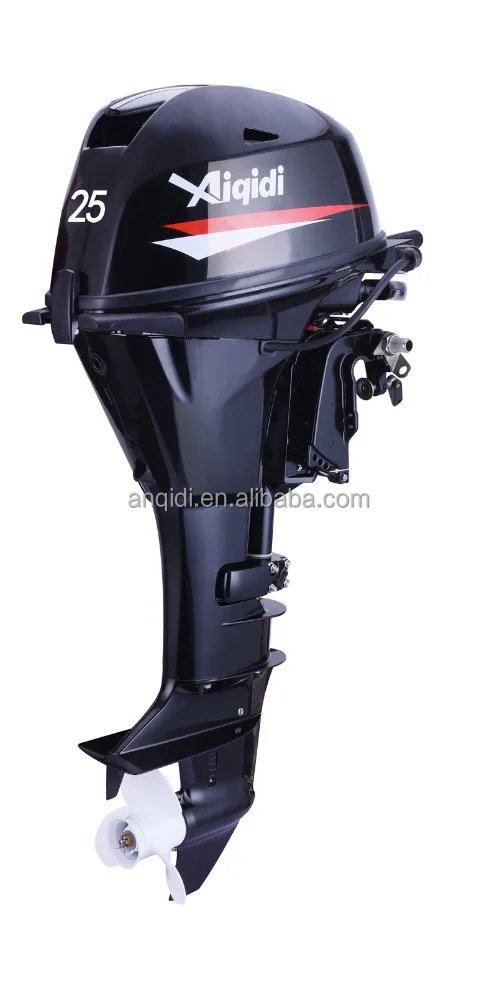

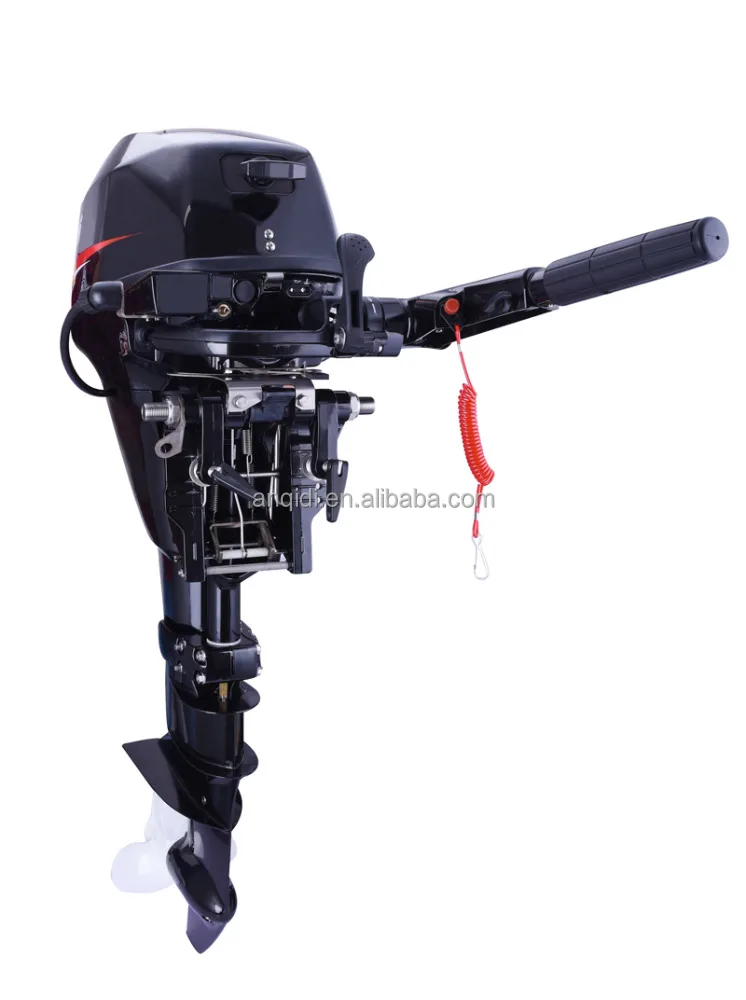

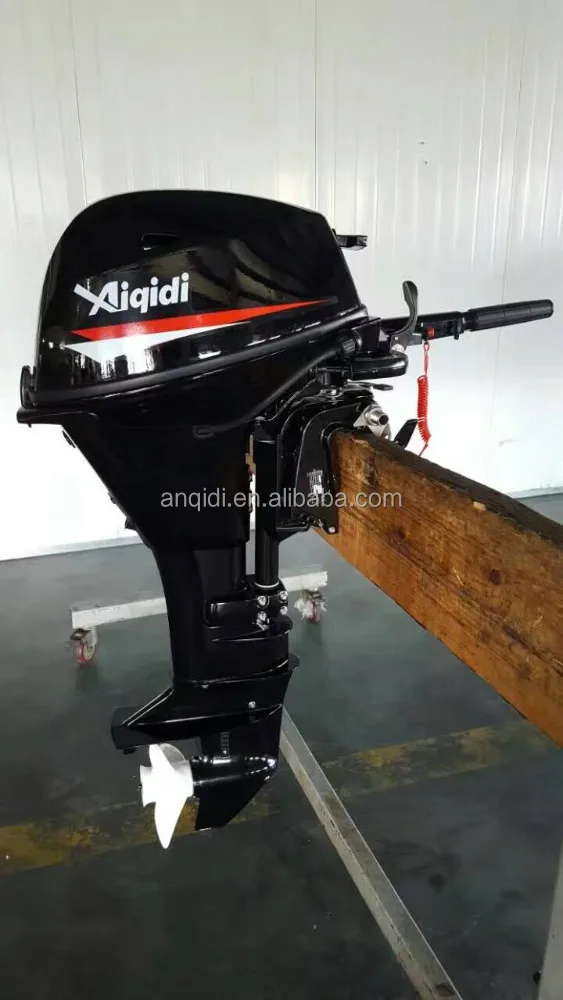

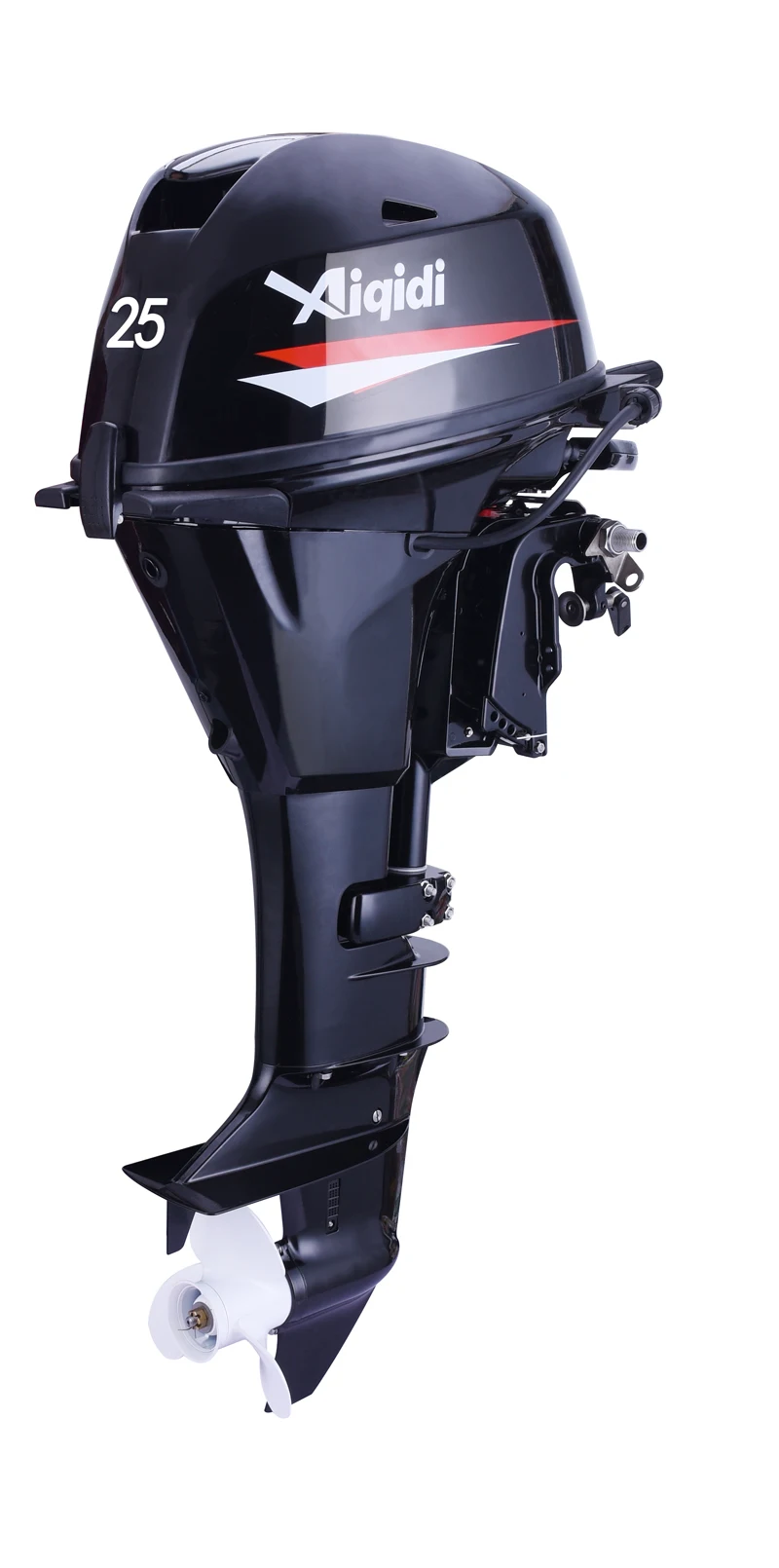

electric starter 4 stroke 25HP outboard motor

Product Overview

Description



Advantages

1,We are manufacture,Most die casting parts and plastic parts are made by our own factory, assure the quality control.

2,We can offer the OEM services

3,No MOQ Policy,Only different the price

4,We have a special surface pretreatment production line, passivated surface made the parts & engine more durable, anti corrosion;



Product model	F25
Engine Model	4 STROKE ,2 Cylinder
Full Throttle Operating Range	5000-6000 r/m
Idling Speed	1050±50r/m
Engine Displacement(cc)	362
Bore×Stroke(mm)	63×58.1
Ignition System	CDI
Spark Plug	NGK DPR6ED-9
Spark Plug Gap	0.8-0.9mm
Control System	Tiller Handle
Starting System	Manual
Starting Carburation System	Choke Valve
Max. Power Output[kw(ps)/r/min]	18.4(25)@6000
Gear Position	Forward-Neutral-Reverse
Gear Ratio	2.08(27/13)
Recommended Fuel	Unleaded Gasoline
Gear Oil	0.250L
Transom Height(mm)	438/565
Fuel Capacity	24L(extraposition)
G.W/N.Weight(kgs)	L:67.5/53         S:65.5/51
Propeller Options(in)	3-9 1/4*11
Packing Size(mm)	L:1410×760×515  S:1295×770×525
