Product Overview

Description


Product Description

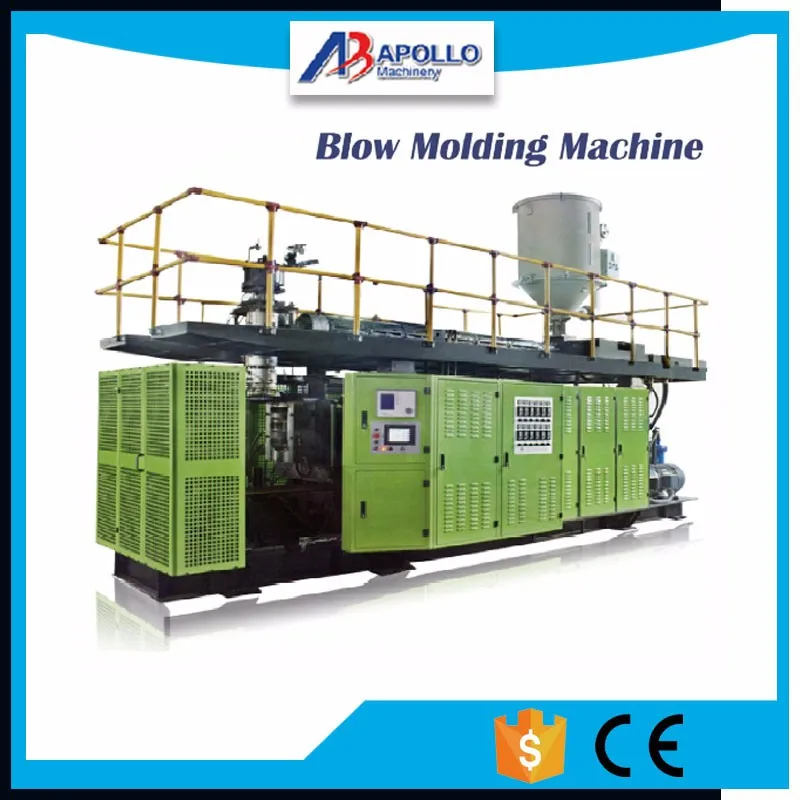

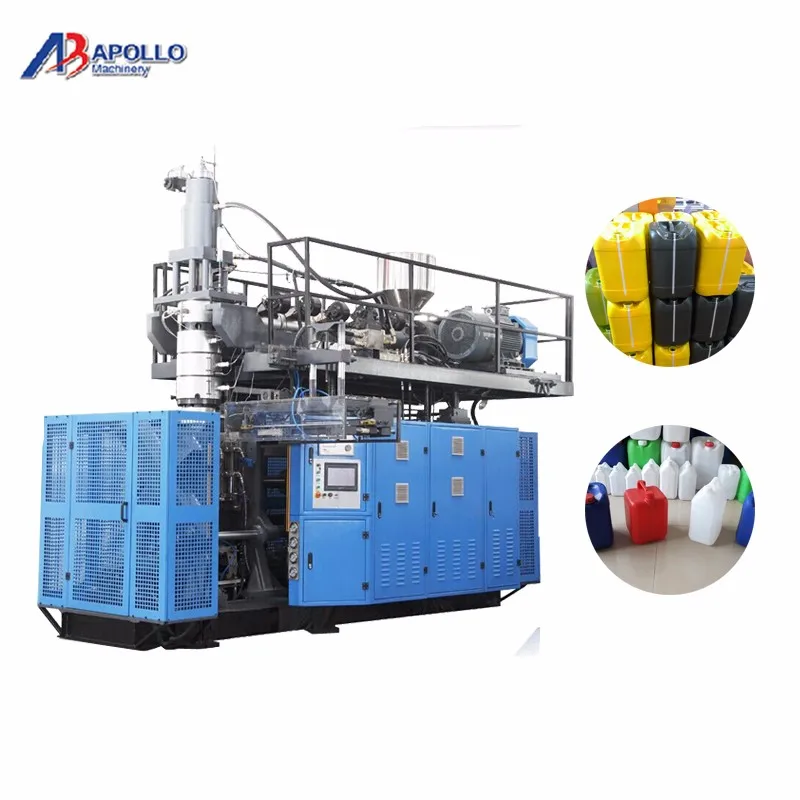

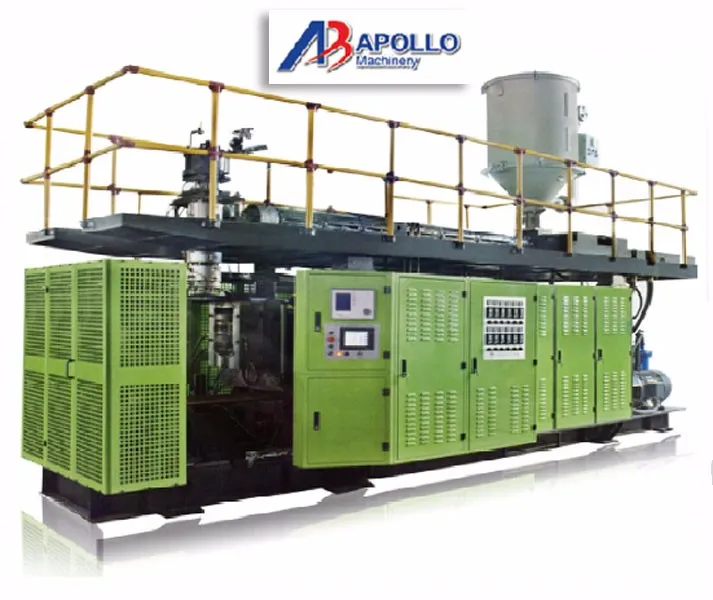

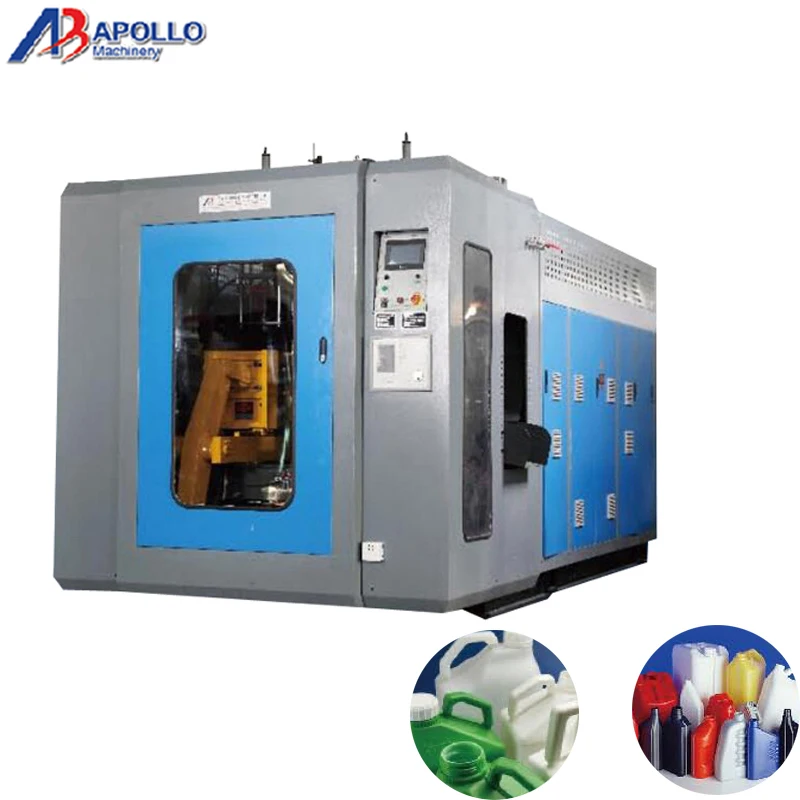

30L Extrusion Plastic Barrel Blow Molding Machine

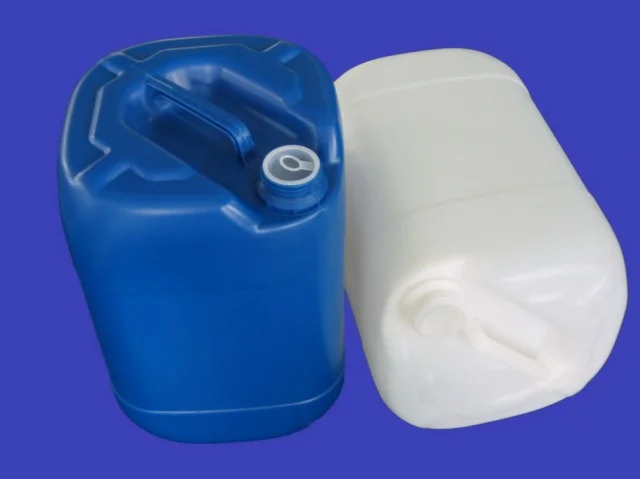

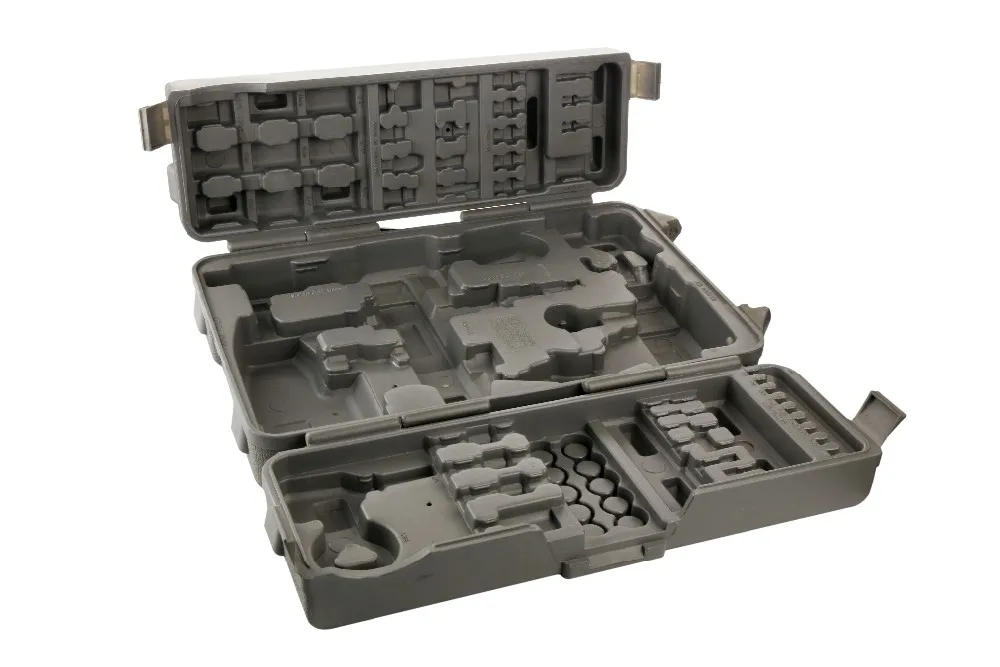

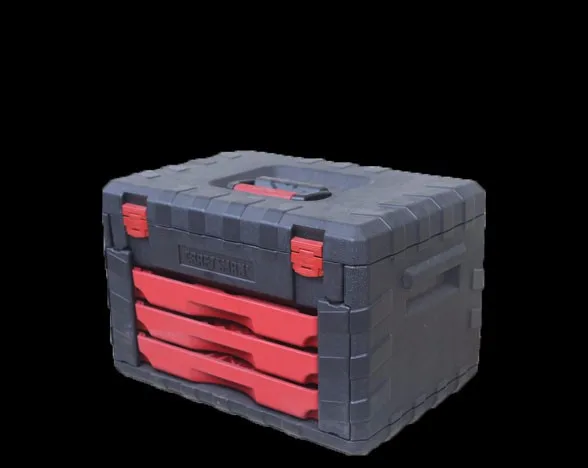

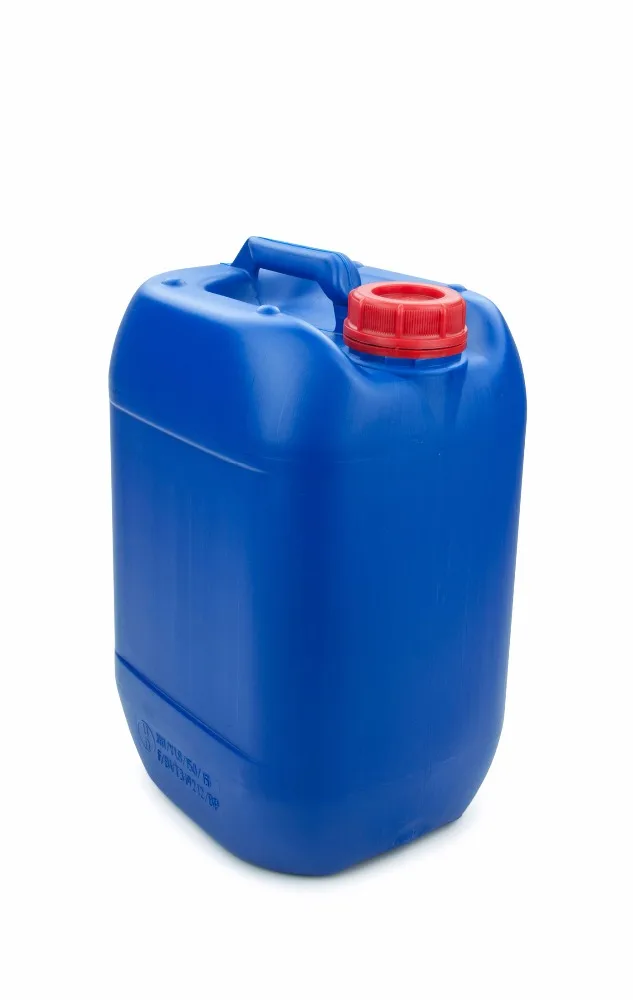

It is widely used in bottles, kettles, jerry cans, vessels,toolboxes, toys and so on.
It is equiped with Japanese Mitsubishi PLC & temperature controller, Schneider contactor, Delta or ABB invertor, Siemens Motor, Hitech oil pump, Original Japan MOOG 100 points parison controller.
Oil pump motor adopt latest servo motor, saving more than 40% energy consumption.
Optional function for special blow molding such as: Bottom blowing, Side blowing, Material support, inner and outter screw mould release, sub-mould open and close, automatic sealing, mechanical robot so on.



\t
SPECIFICATIONS FOR ABLD80 BLOW MOLDING MACHINE
\t
NAME
\t
UNITS
\t
ABLD80
\t
Max. product volume
\t
L
\t
30
\t
Dry cycle
\t
PC/H
\t
600
\t
Screw diameter
\t
MM
\t
80
\t
Screw L/D ratio
\t
L/D
\t
25
\t
Screw drive power
\t
KW
\t
37
\t

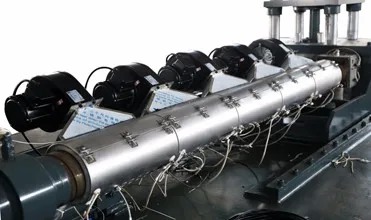

Screw heating capacity
\t
KW
\t
16
\t
No. of heating zone
\t
ZONE
\t
4
\t
Output of HDPE
\t
KG/H
\t
120
\t
Oil pump drive power
\t
KW
\t
15
\t
Clamping force
\t
KN
\t
210
\t
Max. size of mold
\t
MM
\t
700*900
\t
Material storage
\t
L
\t
4.4
\t
Template size
\t
MM
\t
800*800
\t
Mold stroke
\t
MM
\t
350-900
\t
Max. die diameter
\t
MM
\t
280
\t
Die heating power
\t
KW
\t
15
\t
Die heating few segments
\t
ZONE
\t
4
\t
Blowing pressure
\t
MPA
\t
0.8
\t
Air volume
\t
M3/MIN
\t
0.8
\t
Cooling water pressure
\t
MPA
\t
0.3
\t
Water consumption
\t
L/MIN
\t
60
\t
size of machine
\t
L*W*H
\t
4.4*2.6*3.8
\t
Weight of machine
\t
TON
\t
11

Main Features

1) This type of machine is suitable to produce different shapes of plastic bottles of 30L.
2) Adopt Mitsubishi PLC from Japan.
3) Contactor use Schneider from France.
4) Most of spareparts of hydraulic system and pneumatic system are imported from Japan, Korea, France and Taiwan,          China to ensure the quality of the machine.
Detailed Images

Machine Parts

Name: Microcomputer Control System (PLC)

Brand: MITSUBISHI

Original: JAPAN

Used to control all electric components and touch screen.

Machine Parts

Name: Valves

Brand: YUKEN
Original: Japan

It has high quality.

It is consistent and reliable.

Machine Parts

Name: Touch screen

Brand: WEINVIEW
Original: Taiwan

It is can be used in Chinese or English

All movement operated by touching screen

Making the process full automatic

Certifications
Packing & Delivery

Packing

Standard sea freight package for sea freight by 20+40 CY.
Delivery
No later than 40 working days, after we received the deposit.




After Sale Service

a. One year quality warranted
b. 24 hours service available
c. Free installation and test aboard
d. Free training operators

Related Products
FAQ

 1. Can the machine customized only for my products?

Yes, most APOLLO machines can be customized as per clients’ requirements, including the structure special design and brand of parts special request.

2. How about the molds ?

APOLLO has its own mold manufacture company for injection and blowing mold. Machine and mold can be tested for samples and smooth matching before shipping. Mold raw material is various for optional.

3. What is the business item for this project ?

a. Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed by buyer and APOLLO .

b. Port of Loading: SHANGHAI, CHINA.

c. Payment: 30% TT deposit, balance before shipment or 100% irrevocable L/C at sight.

d. Container needed: One 20GP container.

4. How is APOLLO after-sales service?

a. Inspection

Before delivery, APOLLO takes responsibility to finish the machine in time and send the righ t samples to clients for approval. Clients also are welcome to APOLLO factory to inspect the testing of machine, so that the provided machine could be safely and smoothly put into operation once reach the client`s factory.

b. Debugging Instruction

APOLLO takes responsibility to have debugging overseas, and client abroad please sends in vitation forward of time to engineer of APOLLO , provides the engineer with round-trip tickets, accommodation, food, vehicle and USD80/Day/Person as salary; Before Tonva`s engineers arrive at the buyer`s factory, the buyer must make sure that all of equipment are put in the correct position in their factory, the raw material, power and water supply must be ready in the factory.

C. User Training

APOLLO takes responsibility to indoctrinate technical training in both APOLLO and clients’ factory to the users, so that they could understand the machine features and could operate the machine by themselves.

5. What is the warranty period?

a. APOLLO machine Main parts is one year warranty with a lifelong maintenance.

b. Mould within one year or 5 millions warranty.
