Industrial hose crimping machine price hydraulic wire rope tool terminal
- Category: >>>
- Supplier: Taizhou Juling Tools Co. Ltd. [Zhejiang China]Taizhou
Share on (60696466989):
Product Overview
Description
Product Description
10 Years experience of busbar machine
Product Detail
| Model Number | CO-300C |
| Type | Hydraulic Crimping Tools |
| Applicable for | Crimping lugs |
| Material | Carbon Steel |
| Output | 10T |
| Crimping Range | 16-300mm2 |
| Crimping type | Hexagon |
| Remote Control Style | Crimping Head |
| External Hydraulic Pump: | Required 700Bar |
| Coupler | PT3/8 |
| Product Keywords | industrial hose crimping machine price,hydraulic wire rope crimping tool,hydraulic terminal crimping tool |
Features:

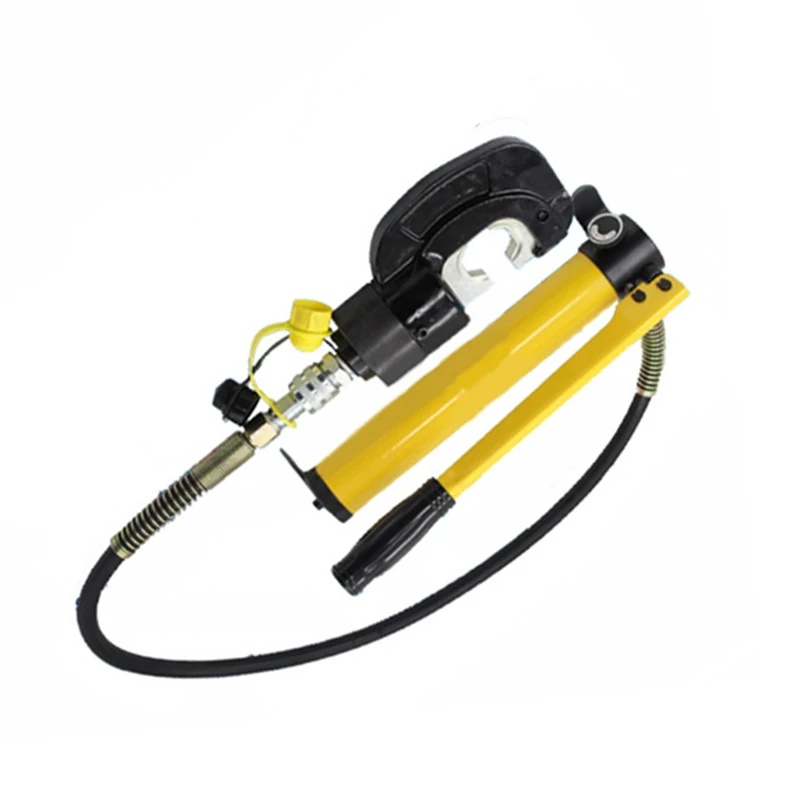

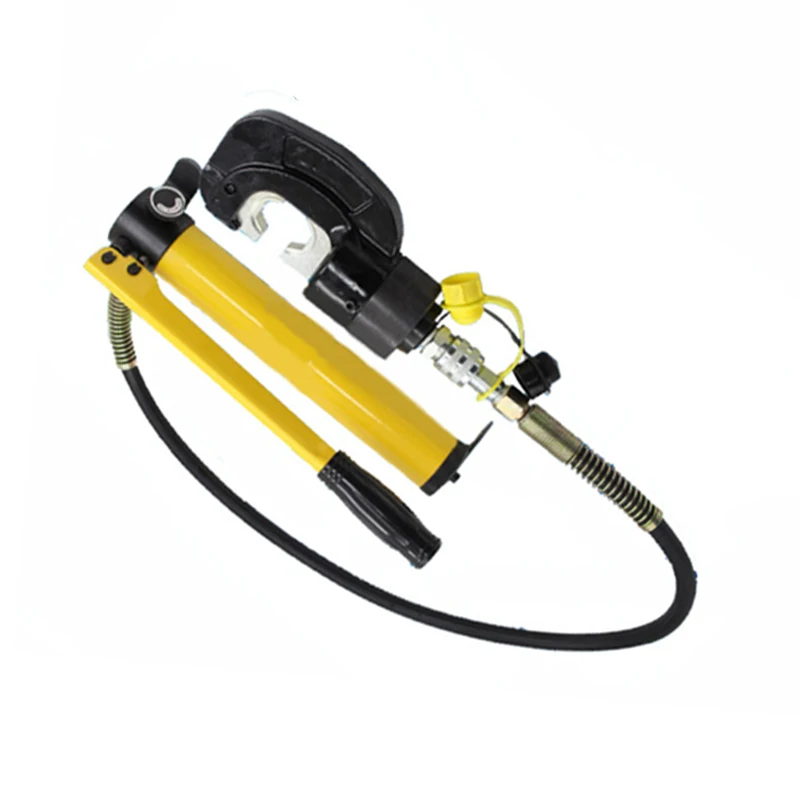

CO-300C split-unit hydraulic crimping tool
Features:
1)The compression pliers are designed for hydraulic crimping on power cable and wire. The crimped conductor is tested in high conductivity and close contact so that it's uneasy to break out and turn hot .
2)Open cut design for convenient operation.
3)The head could be rotated 180° freely for narrow space working.
4) Standard die assembling 16,25,35, 50, 70, 95, 120, 150,185, 240, 300mm2
.
5) The oil pipe coupler fitted with PT 3/8'' thread
6) To be worked with pedal pump, manual pump and electric driven hydraulic pump.
CO-300C | |
Output | 10ton |
Stroke | 22mm |
Crimping Type | Hexagon Crimping |
Crimping Range | 16-300mm2 |
Mould | 16,25,35,50,70,95,120,150,185,240,300mm2 |
Size | 255x165x50mm |
Weight | 3.5kg |
