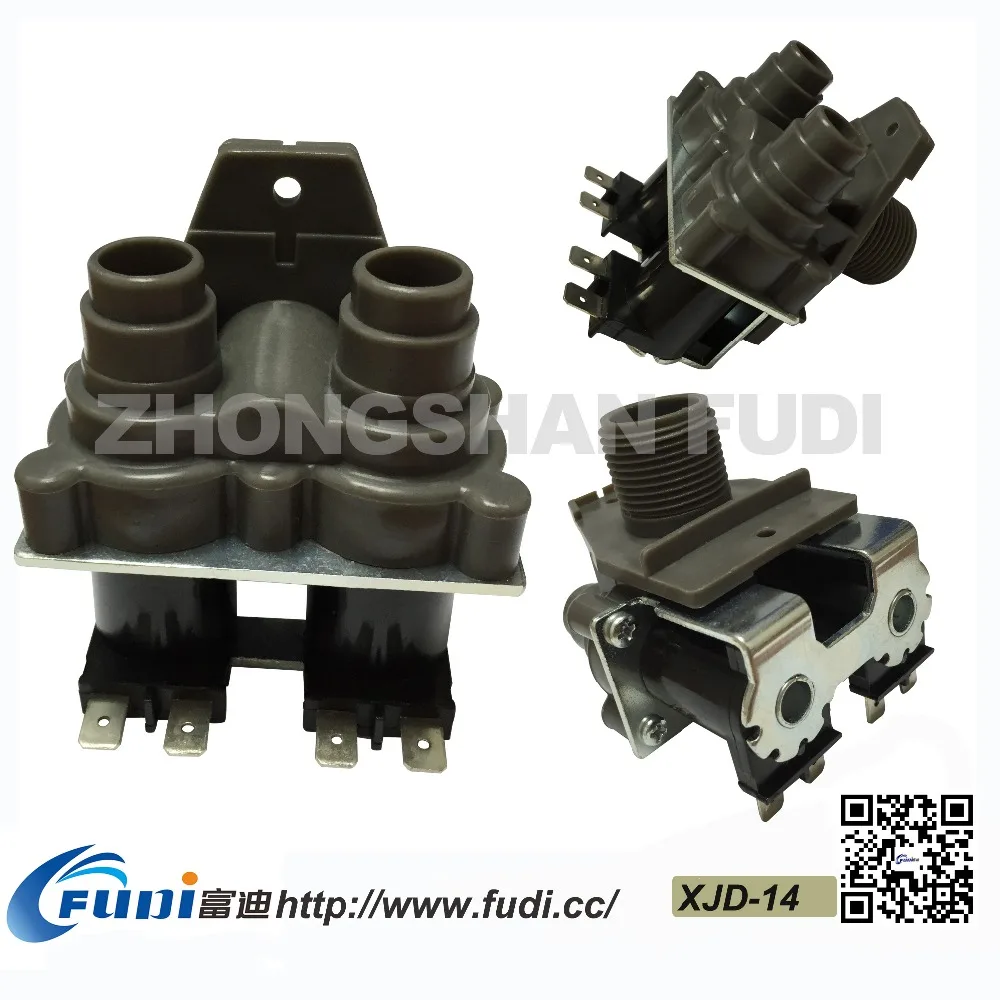

Toshiba,LG,Samsung water valve (G3/4*15mm)
- Category: >>>
- Supplier: Zhongshan City Fudi Electrical Co. Ltd.
Share on (60696480812):
Product Overview
Description
Water inlet valve/ Drainage valve-Use in Washing machine,dishwashers,drinking fountain,showers,air conditioning systems and other domestic or commercial applications.
Materials:
The materials from which the valve is made are suitable for both hot and cold water,the plastic parts are made from glass-filled nylon to ensure high resistance to water,the internal metal parts are stainless steel and the external metal parts are zinc plated steel.
Rated voltage | 110V-120V, 220V-240V,12VAC&DC,24VAC&DC |
Rated Frequency | 50hz/60hz |
Power Draw | 6 watt at 230v |
Inlet/outlet direction option | 90°C |
Coil Terminals | (4.8x0.5mm) or ( 6.3x0.8mm) |
Coil Insulation | Class F(140°C wire operating temperature) |
Terminal mounting direction | 0°C/90°C/180°C/270°C or upen request |
Operating pressure range | 0.02-1.0Mpa / 0.2-10bar (0-80°C) |
Insulation | Class II to water no grounding required |
Fluid | Drinking water |
Flow rate | 4L / 10L / 12L /21L or upon request |
Internal leakage | Maximum 1 drop/minute on pressure range 0.2 to 10 bar |
Temperature rise | ≤105k |
Water Temperature | 90°C maximum according water temp.&duty cycle |
Ambient temperature | 85°C maximum according water temp.&duty cycle |
Noise | ≤40dB(A) |
Operating duty cycle(220V) | Tu 25°C,Tm 90°C&Tu 60°C,Tm 25°C,continuousS(100%ED) |
Life under extreme conditions
| >50000 cycles (10bar-60°C amb.T.-90°C water temp./3’’on/3’’off |
>200000 cycles (5bar-60°C amb.T.-70°C water temp./3’’on/3’’off | |
>500000 cycles (5bar-60°C amb.T.-25°C water temp./3’’on/3’’off |
