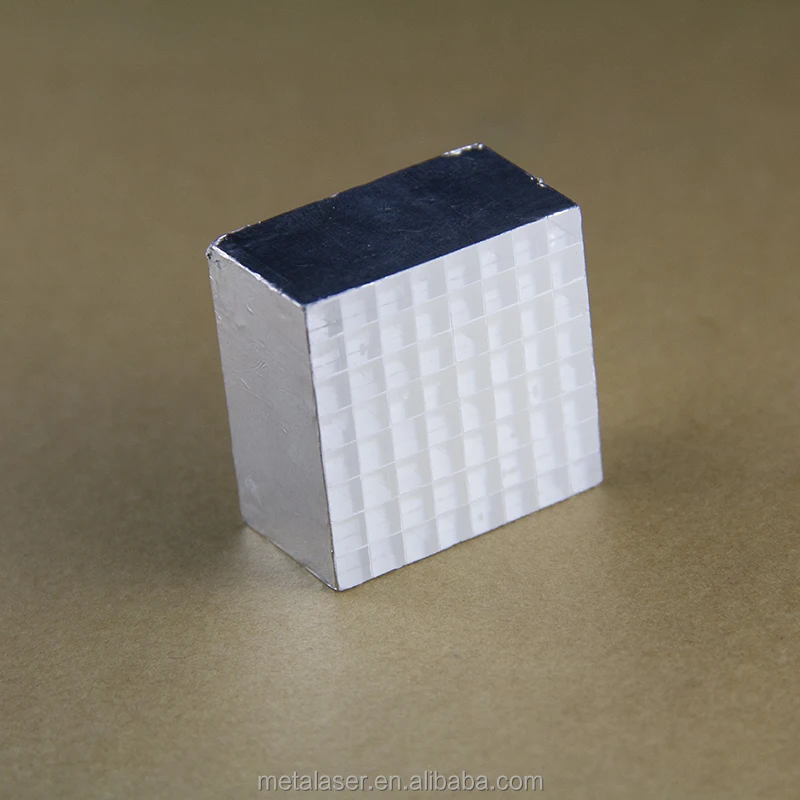

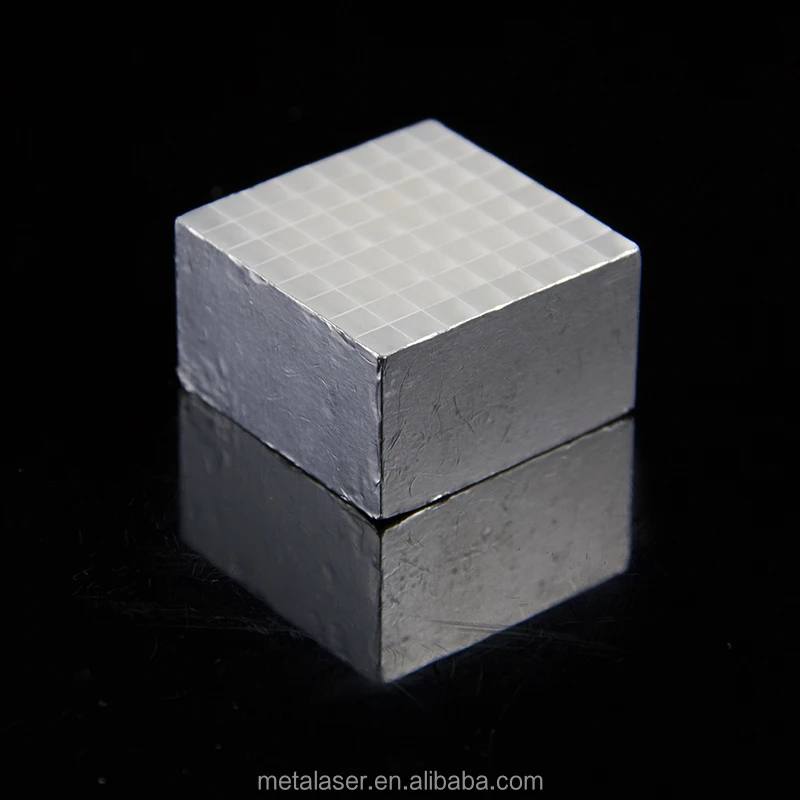

high quality X ray imaging Cerium doped Lutetium Yttrium Orthosilicate

Product Overview

Description



high quality X-ray imaging Cerium-doped Lutetium Yttrium Orthosilicate

LYSO:Ce ( (Lu,Y)₂SiO₅:CeLutetium-Yttrium OxyorthoSilicate, Ce⁺³ doped, Cerium-doped Lutetium Yttrium Orthosilicate) scintillator crystal is a new type of scintillation materials, it has the excellent scintillation properties, like high light output, short decay time, high density and anti-radiation hardness, and with stable chemical and physical properties. These properties make LYSO an ideal candidate for a range of ray detection applications in nuclear physics and nuclear medicine, which require higher, improved timing resolution and superior energy revolution.

 1. High-density

 2. Good mechnical stability and chemical stability

 3. Suitable emission wavelength for PMTs

 4. Rapid decline(70ns)

 5. Suitable for reading by photoelectric diode and avalanche diode

 6. Good temperature stability

 7. Custom design prouction (special doping concentration, shape, coating) is available



MetaLaser LuYSO:Ce



1. Grown by Czochralski Method

2. Y concentration: 8-10%

3. Maximal Size: dia 80mm

4. Lower afterglow





Parameters of materials
Materials	Ce:LYSO
Mohs Hardness	5.8
wavelength/nm	420
Decay time/ns	41
Melting Point	2050°
Refractive Index	1.81
Density g/cm3	7.1

Scintillation Properties
Materials	Ce:LYSO
Light yield (Photon/MeV)	34000
Decay time (ns)	40
Peak emission (nm)	420
Energy resolution (%@622kev)	10-12(5*5*5mm)
Hygroscopicity	No

Polishing  Specification  for  Optical Grade
	Standard Precision	High Precision	Super Precision
Orientation Tolerence	< 1°	< 0.5°	< 0.2°
Thickness/Diameter Tolerance	±0.10 mm	±0.05 mm	±0.02 mm
Surface Flatness@633nm	<λ-2λ	<λ/2-λ/4	λ/4-λ/6
Wavefront Distortion	<(2-4)λ	<(1-2)λ	<(λ-λ/2)
Surface Quality	60/40	40/20	20/10
Parallel	45	1	10
Perpendicular	60	30	20
Clear Aperture	>90%
Chammfer	<0.2mm×45°
Coating	Available upon request
