24V 20Ah li ion battery pack for Solar supply system
US $0.50-$280.00
24V 36v 48v 7ah 8ah 9ah 10Ah 13ah 15ah 17ah 20Ah 30Ah lithium ion battery pack for electric wheelchair scooter unicycle ebike
- Category: Battery Packs >>>
- Supplier: Shenzhen Matrix Battery Co. Ltd.
Share on (60696535731):
Product Overview
Description
Product Description
24V 36v 48v 7ah 8ah 9ah 10Ah 13ah 15ah 17ah 20Ah 30Ah lithium ion battery pack for electric wheelchair scooter unicycle ebike
Specification:
Item. | Matrix 18650- 10S4P |
Nominal Capacity | 10.4Ah |
Nominal Voltage | 36V |
Continuous discharge Current | 20A |
Peak discharge current | 30A |
Charger | 2A Charger |
Battery cell | Sam sung 18650-2600mah |
Actual Weight | 2kg |
Dimensions | 41*81*375mm or 350*80*40mm |
Discharge connector | Female XT 60 or customized |
Charge connector | Pin |
Charge Method | CC/CV |
Operating Temperature | 0℃~45℃ (charge) |
| -20℃~60℃ (discharge) |
| -20℃~45℃ (storage) |
package | PVC |
Protection function: Over-charge, over-discharge, Over current and short circuit protection.
Other Optional Models for Electric Skateboards:
10S2P 36V 4.4AH battery
3C Discharge rate 2200mAH 10s2p 20 pieces cellls.
1*XT 60 Connector Size:230*140*20mm
10S3P 36V 7.5AH battery
10S3P 2500mAH 30 pieces cells, size: 330*140*20mm
1*XT 60 Connector JST input charge port
10S2P 36V 6AH battery
10S2P 20 pieces Cells.
Size: 230*140*20mm 1*XT 60 Connector
10S3P 36V 9AH battery
10S3P 18650 battery cells 30 pieces,3000mAH each cells
Size: 330*140*20mm
7S2P 24V4.4AH battery
7S2P 7S2P 12 pieces Cells.
Size:270*70*20mm, XT60 connector
10S2P 36V 5AH Battery
10S2P 18650 20 pieces Cells.
Size:230*140*20mm
10S2P 36V 4.8AH battery
10S2P 20 pieces cells, 2400mAH each cells.
Size: 230*140*20mm, XT60 connector
10S3P 36V 7.2AH battery
10S3P 30 pieces 18650 cells 2400mAH each cells
Size:330*140*20mm, XT60 connector
Standard Battery Models for E-bike/ E-scooter:
*Applications:
E-bike, e-Scooter, Skateboard, solo wheel, self-balancing unicycle, golf cart, hoverboard, electric wheelchair, e-motocycle
* Product Features:
1. Safety: safest Li-Ion battery, built-in BMS, none fire, none explosive
2. Clean and Green energy, no toxic material contained
3. Long life cycle, > 500 times deep cycle,8 times of lead acid battery
4. No memory effect,highly efficient charge anytime, no reduction of capacity
5. Operation temperature: -20~70°C
6.Small size, light weight: 1/2 size of lead acid battery, 70% size of Ni-MH Ni Cd battery, 1/2 weight of lead acid battery
7. Good performance at high temperature and high temperature resistance
8. Low self-discharge rate: < 3% monthly

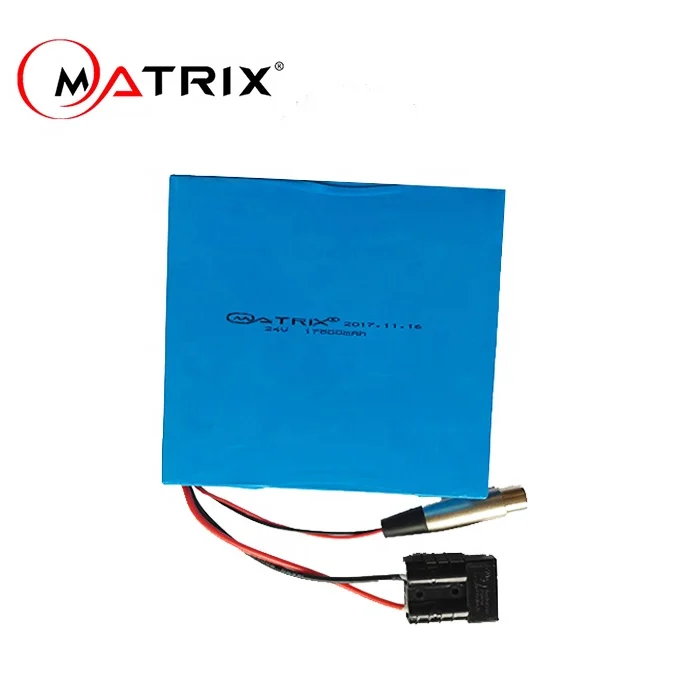

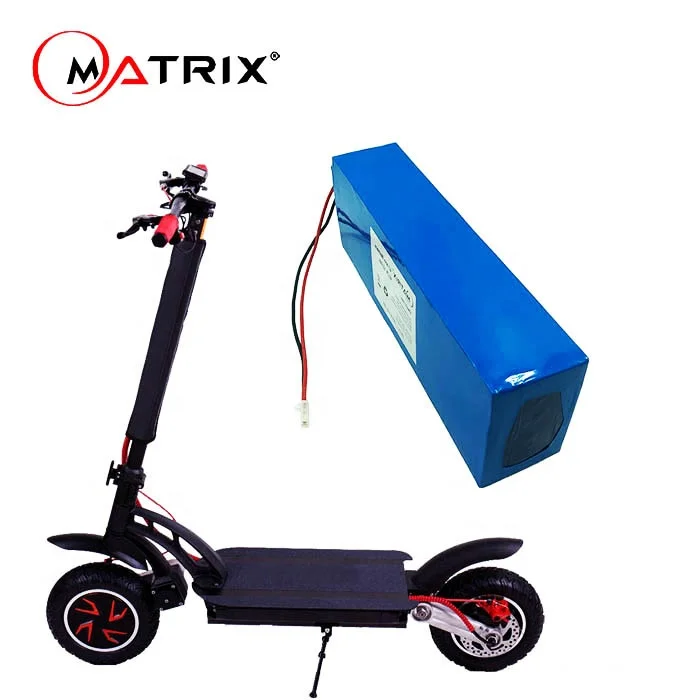

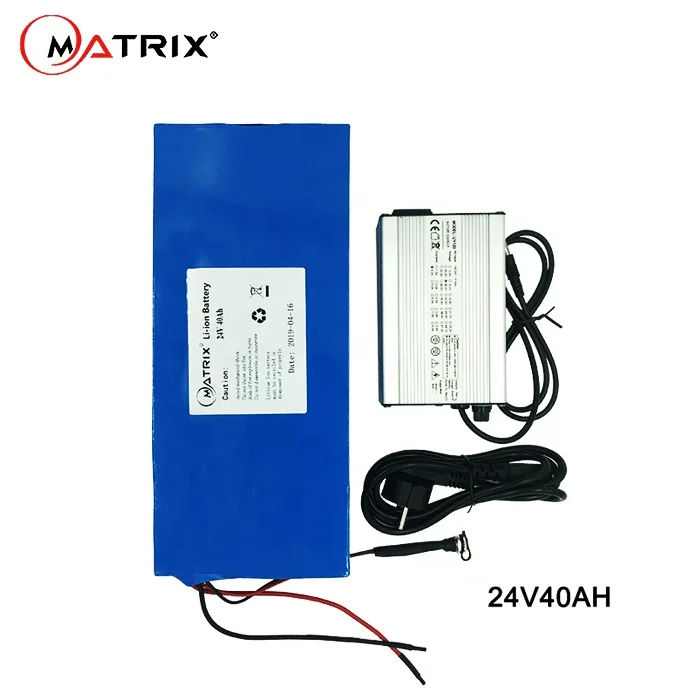

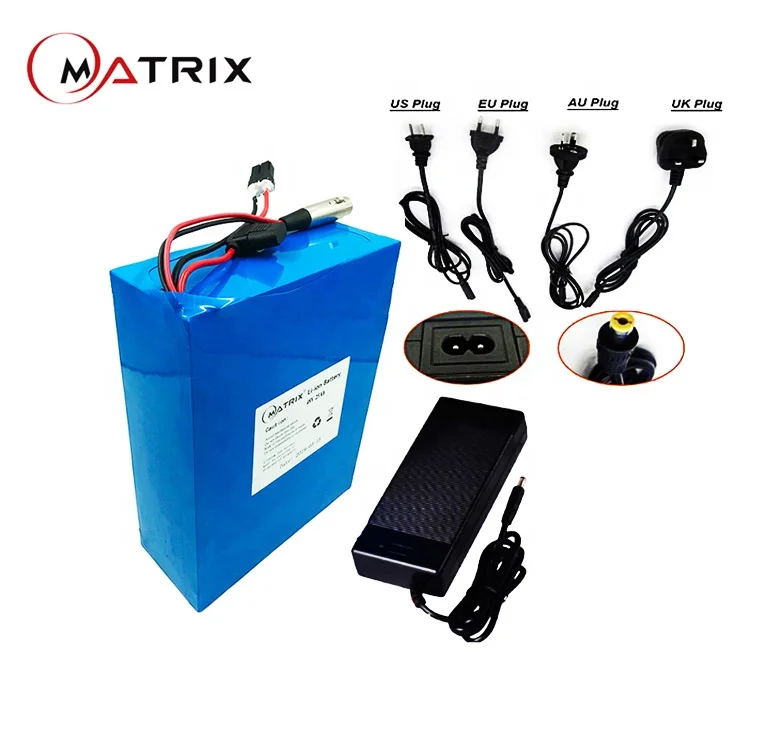

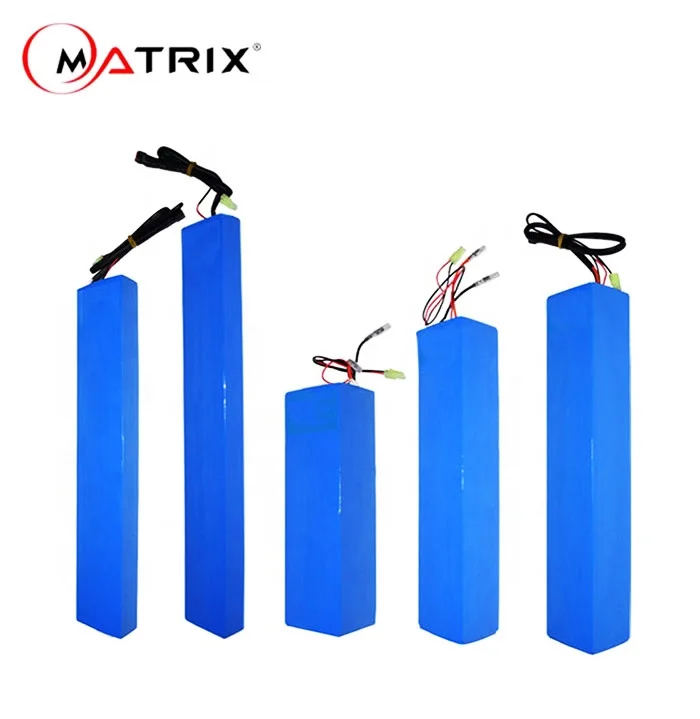

Battery Pictures:
24V 36v 48v 7ah 8ah 9ah 10Ah 13ah 15ah 17ah 20Ah 30Ah lithium ion battery pack for electric wheelchair scooter unicycle ebike
24V 36v 48v 7ah 8ah 9ah 10Ah 13ah 15ah 17ah 20Ah 30Ah lithium ion battery pack for electric wheelchair scooter unicycle ebike
24V 36v 48v 7ah 8ah 9ah 10Ah 13ah 15ah 17ah 20Ah 30Ah lithium ion battery pack for electric wheelchair scooter unicycle ebike
Hot products
24 volt batteries
36 volt lithium ion battery for electric bicycle
48 volt 20ah lithium battery
baterias para motos electricas
baterias de litio 72v
72 volt battery
60v 20ah lithium battery for electric scooter
electric bicycle battery
scooter battery
battery for electric scooter
Company Information
Customer Visit
Certificate
FAQ
Can be customized Size and Li-lon Type battery
1.Q:Can you accept OEM and ODM Service?
A:Yes,we supply OEM&ODM service as clients requirement.
2.Q:Can we get samples?
A:Yes,but free samples are not available at beginning.
3.Q:What's your payment term?
A:TT,L/C,West Union,Paypal etc.
4.Q:What's your warranty for products?
A:Generally speaking,it's one year's warranty,for quality problems,we will send a new one to you.
5.Q:How long will be the delivery?
A:Usually delivery in 7-15 days,but could be change according to the quantity or other things.
6.Q:How do you control your product quality.
A:AlIl batteries have 10 steps testing during the whole production.
