SUCCESS Optics Instruments Optical Used Cold Mirror UV Quartz Plate Fused Silica Infrared Quartz Sheet

Share on (60696602041):


Price:

Quantity:


Product Overview

Description





Product Description




Clear Or Opaque Type Fused Silica Quartz Plate

We are a manufacturer of Quartz glass fused silica plate/sheet .
Size&design: Accept customize according to different diameter , thickness, length or sending your drawing.

Advantage of Quartz Glass Plate/Sheet/disc:
1) High Temperature Resistance.
2) Good Thermal Stability.
3) Corrosion Resistance.
4)High purity :SiO2> 99.9%.

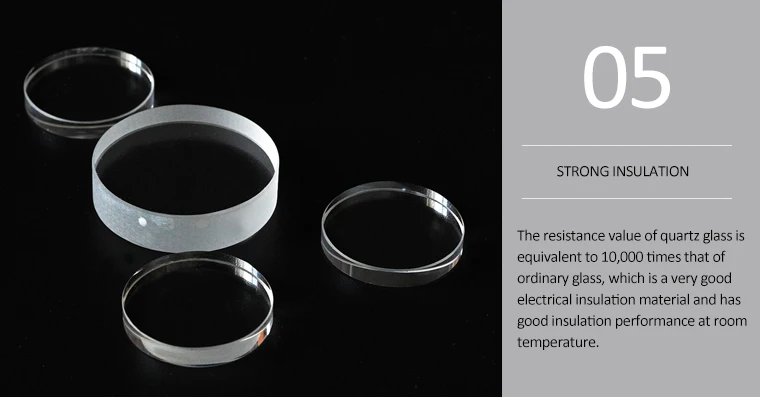

5) Strong Insulation.
6) High Transmittance> 85%.
7)Size can be customized.




 Size of Round Quartz Glass Plate/Substrate /Sheet


Diameter
5mm-1500mm
Thickness
0.8mm-100mm


Size of Square Quartz Glass Plate/Substrate /Sheet



Length
10mm-800mm
Width
10mm-600mm
Thickness
0.5mm-100mm


Physical property of Quartz Glass



Property
Value
Sio2
>99.9%
Density
2.2x103kg/m2
Hardness
570KHN100
Tensile strength
4.8x107Pa(N/m2)
Compression strength
>1.1x109Pa
Coefficient of thermal expansion(20℃-300℃)
5.5x10-7cm/cm℃
Thermal conductivity(20℃)
1.4W/m℃
Specific heat(20℃)
660J/kg℃
Softening point
1730℃
Annealing point
1250℃


【Application scope】:Used to make semiconductors, electric light source device, semi-conductor communication devices, lasers, optical instruments, laboratory instruments, electrical equipment, medical equipment and chemical instruments, chemical industry, electronics, metallurgy and other industries

【Product advantages】: not easy to be corroded, can withstand high temperature, beautiful appearance, compact structure, easy to operate, strong light transmission, good electrical insulation


Detailed Images

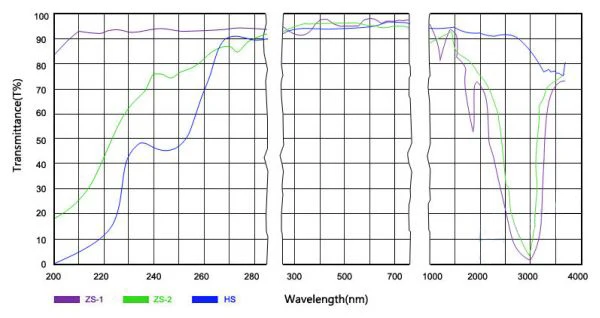

We can do JGS1/JGS2/JGS3
JGS1 Far-UV Optical Quartz Glass
JGS2 UV Optical Quartz Glass
JGS3 Infrared Optical Quartz Glass












Production Process






Packing & Delivery


Packing

1.Plastic air cushion film
2.Foam material
3.Carton box
4.Wooden case





Our sercives


& After-sales service
We promise that we can change or Refund the products if there is any quality problem.
&. Sample
We would like to give suitable suggestions about the crystal singing bowl according to your application.
Supply sample as required within 2-5days, are usually delivered by EMS/DHL or other express.

& OEM
Accept OEM orders





Related Products






Our Factoy




FAQ


Why Choose Us:
1.High Quality Control
We are professional manufacturer about quartz poduct in China, combined with design produce together. We'll check each item one by one to make sure the products in high quality before shipment.
2.Competitive Price
We are factory, and we are the source, We promise to offer you competitive factory price.


Our advantage:
1). We are a professional manufacturer for quartz product
2). We will try our best to offer the most affordable price and best service
3). We can accept customized
4). We can send you samples for review the quality before your ordering.
6). We will take detailed pictures for you check before shipping,
7). We can delivery the order on time.
8). we will keep all the files and full set of printings for re-orders


How to order:
Step1 Please choose the goods with links or pictures which you want to order, Then click contact supplier or chat with me Or just send an inquiry. When we get your inquiry, we will give you a quotation soon within 24hours.
Step2 You can email us your order list with details, we'll reply right away when we received your email.



Send your inquiry Details in the Below for free sample ,Click "Send"now.
