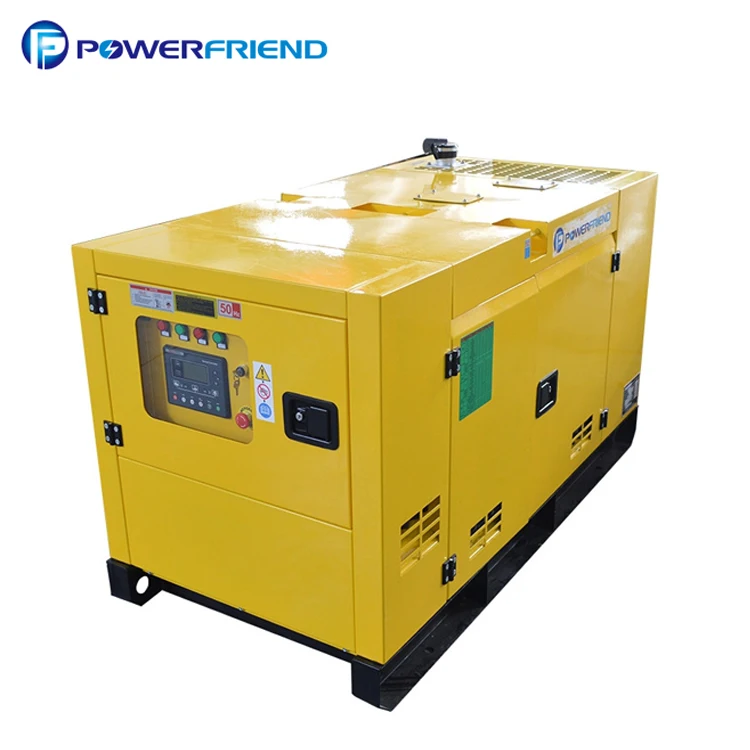

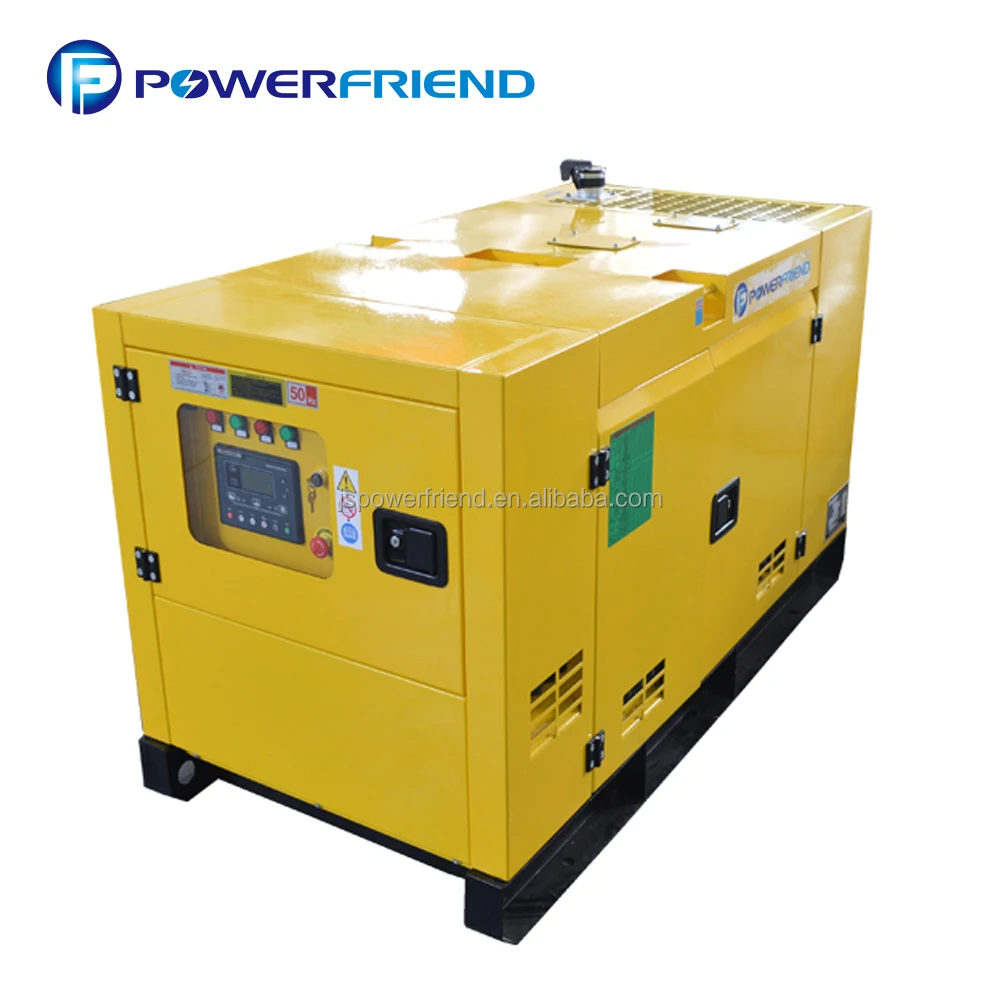

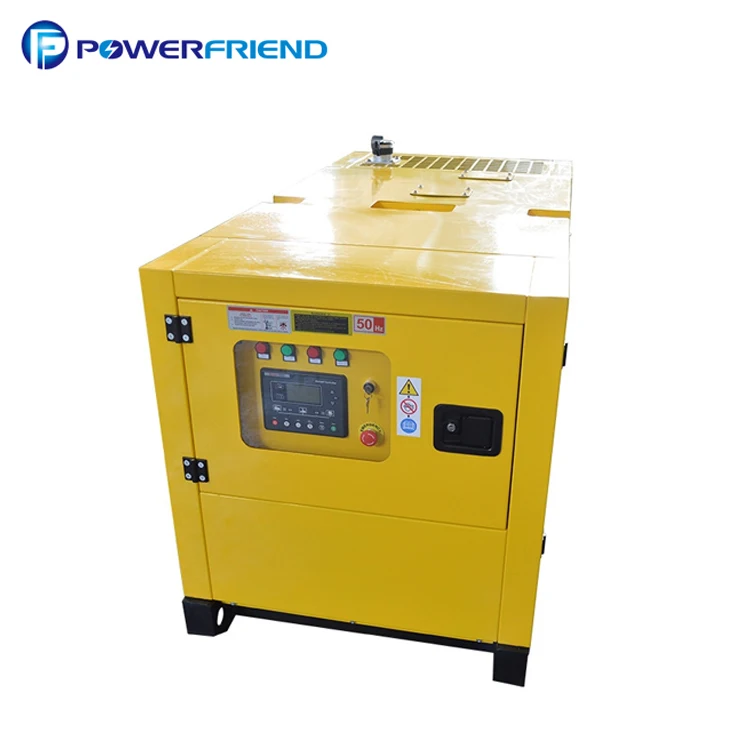

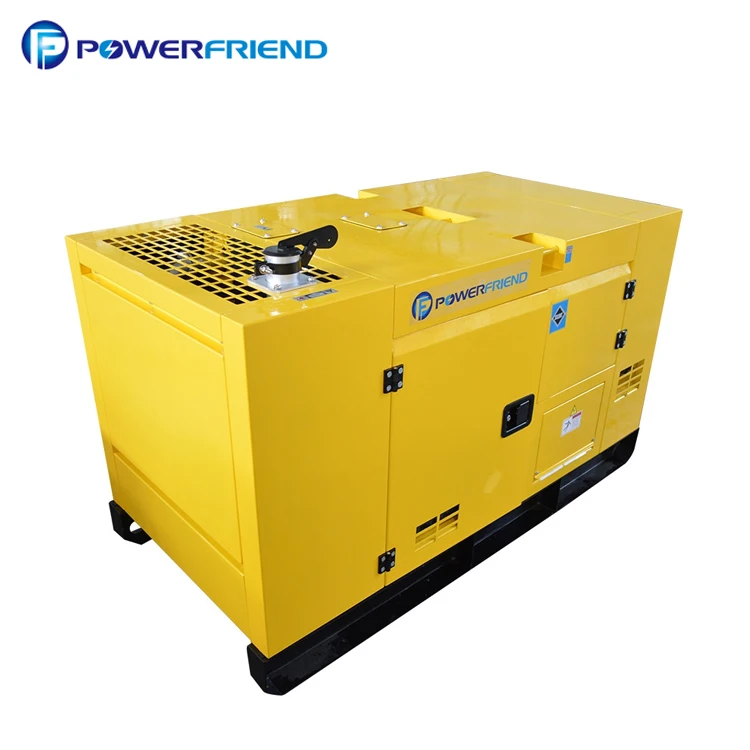

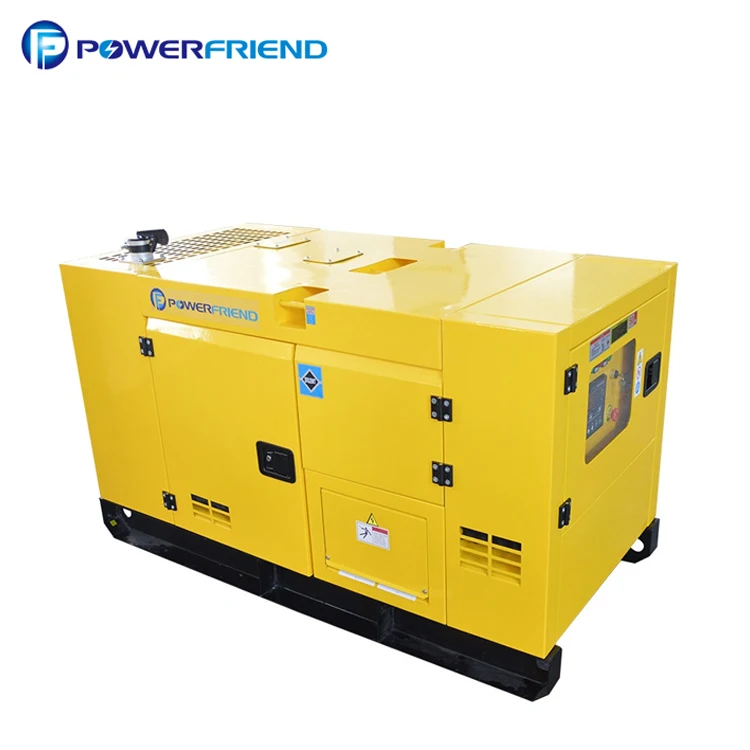

38 KVA 30 KW soundproof water cooling electrical diesel generator

Share on (60696619672):


Price:$5,719.00

Quantity:


Product Overview

Description


38 KVA 30 KW soundproof water cooling electrical diesel generator



Product Description
























































































































 Technical specification
Genset Model PF-L41S
Prime Power30KW/38KVA
Standby Power33KW/41KVA
Phase Number3
Power Factor0.8
Rated Voltage230/400V
Frequency50 HZ
Rated Current55A
Genset Structure SILENT
Dimension2400×1000×1400mm
Net Weight1050KG
Noise level68dB at 7 meters
Fuel Tank Capacity95L
Engine Model1003TG
Engine Features3-cylinder,4 stroke,water cooled ,natural intake
Bore * Stroke100mm × 127mm
Displacement2.99L
12-hour Power(kw)35KW/1500
Fuel Consumption L/H8.0L/H
Compression Ratio16.5:1
Governor typeMechanical
Alternator ModelSTAMFORD / PI144J
Excitation Modebrushless self-excited
Insulation ClassH
Protection ClassIP23
Construction TypeSAE Disc-coupling
Controler PanelDeepsea/ ComAp/ Smartgen




















Production Flow

































 Digital Punching


& cutting


Powder PaintingGenset AssemblingWiring

 ShippingPackingTidy & CleanTest













































Quality Inspection Process



  • Strict inspection of the raw materials





  •  Repeated inspection during the production process





  •  Each generator is tested strictly before delivery. Check status under load 0, 25%, 50%, 100%, 110%, 100%, 75%, 50%, 25%, 0





  • After testing, drain out all the oil, diesel & water from the genset


       Clean the genset, and packed, then transport










ATS


Features of ATS











  • Automatically transfer and re-transfer load from main power to gen-power without operator intervention.(Both Automaic and manual operation.)

  • Available from 40-3200A, better protection for 4 pole switch.

  • Showing generator set/mains availability and switch position.

  • Drip Installation:Wall-mounted & Floor standing.

  • ATS installed inside the canopy:this is optional for the range smaller than 100Amp.




Features of Paralleling System











  • PLC centralized logic control

  • Easy to extend the volume to satisfy the need of load increase

  • Synchronizer auto capture and parallel

  • Load divider automatically divide load according to proportion

  • Auto add and lessen the number of sets according to load capacity

  • Short circuit, overload and reverse power protection

  • Max.32 paralleling sets

  • Rotate operation of many sets










Our Services








Our services


  • After-sales:


Once receive any feedback of quality problem we will respond at the first time, and solve the problems within 24 hours.



  • Guarantee:


Warraty period is one year or 1000 hours (depends on which occurs first ).  If the failure is caused by turbine manufacturing defects, we will be responsible for problems caused by quality of production or raw material, except the damageable spare parts of genset caused by crew wearing parts, consumable parts for daily use, human error , negligence or failure of following the original maintenance manual provisions, etc.



  • Free training:


We can professionally arrange experienced engineers to provide users with free training in our factory . Certainly , we also provide the paid training of customers’ site.











Company advantages


  • We are a powerful and unity sales team:


          we are not just sales, but also professional engineers here to give you fast response of Technical support and power solutions.


         90% of our sales team members are with more than 5 years of experience in the generator field.



  • We have professional electrical & mechanical engineers, standby you, to solve the pre/after-sales service.



  • We have strict Inspection dept. to make sure each genset is carefully test before leaving factory.



  • With the experience and knowledge of Gensets, we are enthusiastic and patient, and can communicate with you easily and efficiently.


email








Company Information





JIANGSU UNITED POWER FRIEND TECHNOLOGY CO., LTD is focus on power generator products and service in China.


Being in  the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators.


We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.


We supply Generator Sets from 2kva to 3000kva.




PowerFriend Projects----




          500kva for Guatemaia                Genset for Property                      Genset for Government




 IVECO gensets for Sinopec     40 sets of silent genset for Ukraine Army     14 sets of Paralleling Gensets


OEM Partners----




PowerFriend Team----




PowerFriend Show----



Certificate----








Trade shows----


Our company has participated in several exhibitions, such as Canton Fair(Guangzhou) and many foreign trade shows.


trade show3




Packaging & Shipping----


Delivery Time: 30 days after deposit,   By Sea


Package: nude packing or plywooden case


package-big generator.jpg



FAQ



1. What is your warranty period?
Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).
2. What is your payment terms?
T/T 30% advance payment, the balance 70% shall be paid before shipment.
L/C Irrevocable L/C at sight.
3. What is your delivery time?
Our standard delivery time is 20 to 30 days. If you have urgent demand, the delivery will be shorter depending on the requirements. If you have special requirements, the delivery will be longer.
4. Can the generators be customized?
Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.
5. Can you use our logo?
Yes. For mass orders, we can use customer's logo instead of ours.
