Product Overview
Description
Model No.: Meanwell LRS-350-48 350W AC DC Power Supply 48VDC china dc power supply
Product Description
Descriptions:
LRS-3500 series is a 350W single-output enclosed type power supply with 30mm of low profile design. Adopting the input of 115VAC or 230VAC (selectable by switch), the entire series provides an output voltage line of 3.3V,4.2V,5V,12V,15V, 24V, 36V and 48V.
In addition to the high efficiency up to 89%, the design of metallic mesh case enhances the heat dissipation of LRS-350 that the whole series operates from-25℃ through 70℃ under air convection without a fan. Delivering an extremely l0w no load power consumption (less than 0.75W), it allows the end system to easily meet the worldwide energy requirement. LRS-350 has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety regulations such as UL60950-1. LRS-350 series serves as a high price-to-performance power supply solution for various industrial applications.
Features:
Meanwell LRS-350-48 350W AC DC Power Supply 48VDC china dc power supply
· AC input rangle selectable by switch
· Withstand 300VAC surge input for 5 second
· Protections: Short circuit/Overload/Over voltage/Over temperature
· Built-in cooling Fan ON-OFF control
· 1U low profile
· Withsatnd 5G vibration test
· LED indicator for power on
· No load power consumption<0.75W
· 100% full load burn-in test
· High operating temperature up to 70℃
· Operating altitude up to 5000 meters (Note. 8)
· High efficiency, long life and high reliability
· 3 years warranty
Applications:
· Industrial automation machinery
· Industrial control system
· Mechanical and electrical equipment
· Electronic instruments, equipments or apparatus
· Industrial control system
· Mechanical and electrical equipment
· Electronic instruments, equipments or apparatus
Product Overviews
Model No.: Meanwell LRS-350-48 350W AC DC Power Supply 48VDC china dc power supply

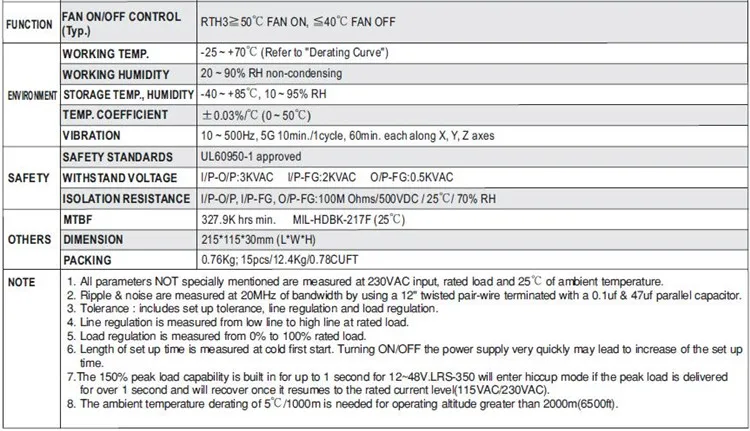

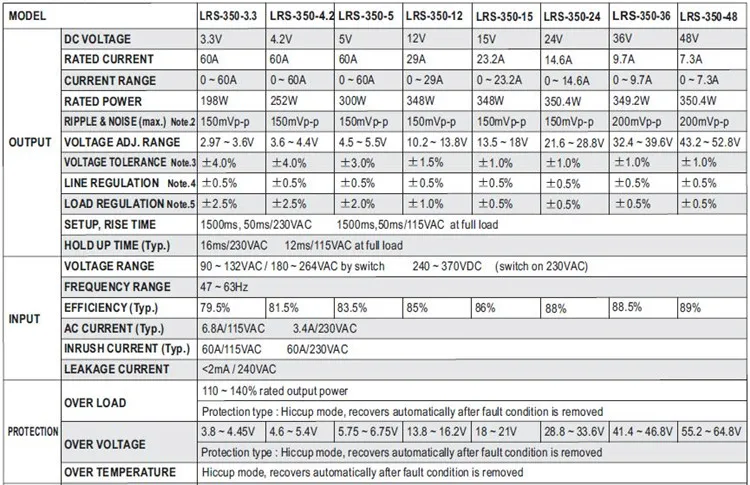

Specifications:
Packing & Shipping
Model No.: Meanwell LRS-350-48 350W AC DC Power Supply 48VDC china dc power supply
Cornor of Warehouse:
Three Ways of Shipping for Your Choice: By Courier / By Air / By Sea/By Train/By Truck
Certifications
Model No.: LRS-350-48
Our Services
1. All inquiries will be replied in 12 hours
2. All MEANWELL products are 100% original
3. Delivery time: 1-5 working days
4. Warranty: 2-7 years for different models
5. Offer aftersales service until you are satisfied
More Products
| AC DC Power Supply | DC DC Converter | DC AC Inverter | LED Light | |
| Enclosed Type | LED Driver | Module Type | Modified Sine Wave | Street Light |
| DIN Rail | Open Frame | On Board | True Sine Wave | Highbay Light |
| Charger | Adaptor | PCB | Gas Station Light | |
| CCTV Power | Enclosed Type | Tunnel Light | ||
FAQ
Q1. Can I have a sample order firstly?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-2 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit ?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2-7 years warranty to our products.
Q7: Do you instant chatting tools?
A: Yes, you may contact us by following ways:
Mobile/what's app: +86-18069419609
Skype: Carrie_Easyplus
Wechat: Carrie_Easyplus
Email: sales(at)4easylifeplus.com
