Product Overview

Description



Products Description

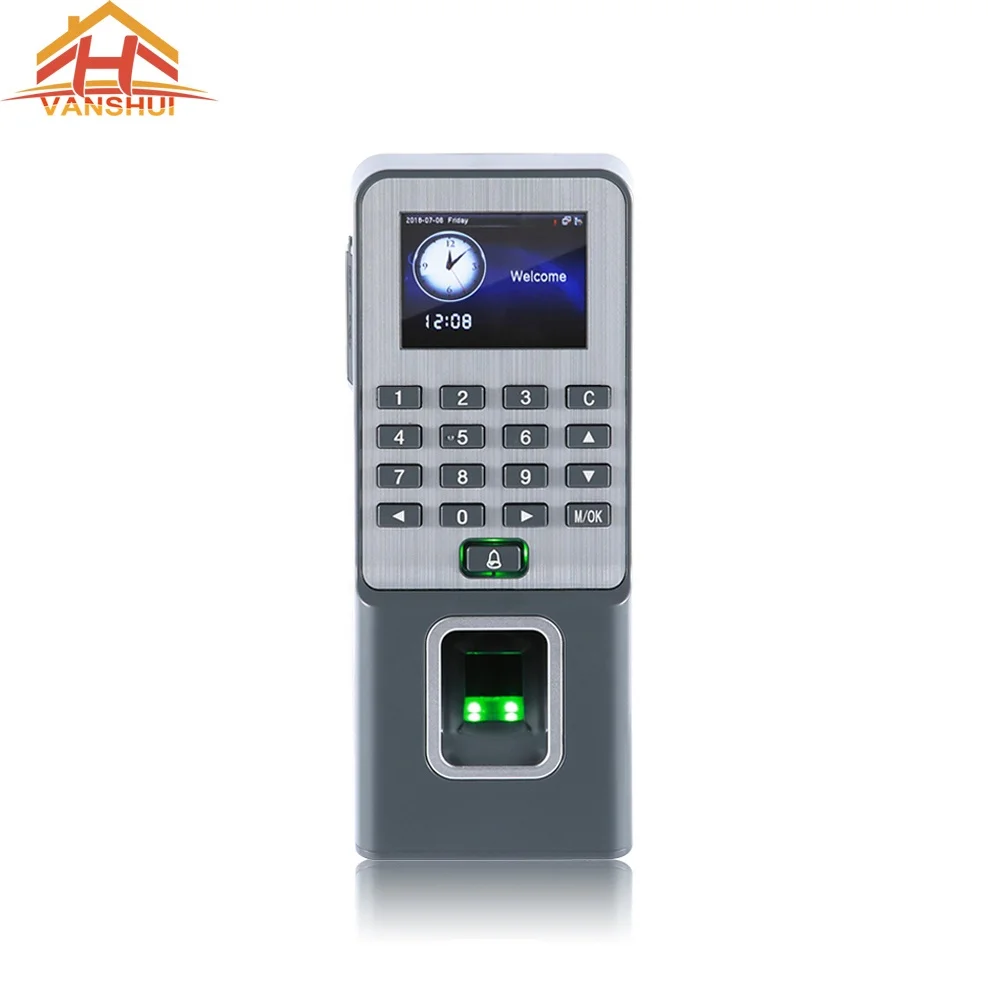

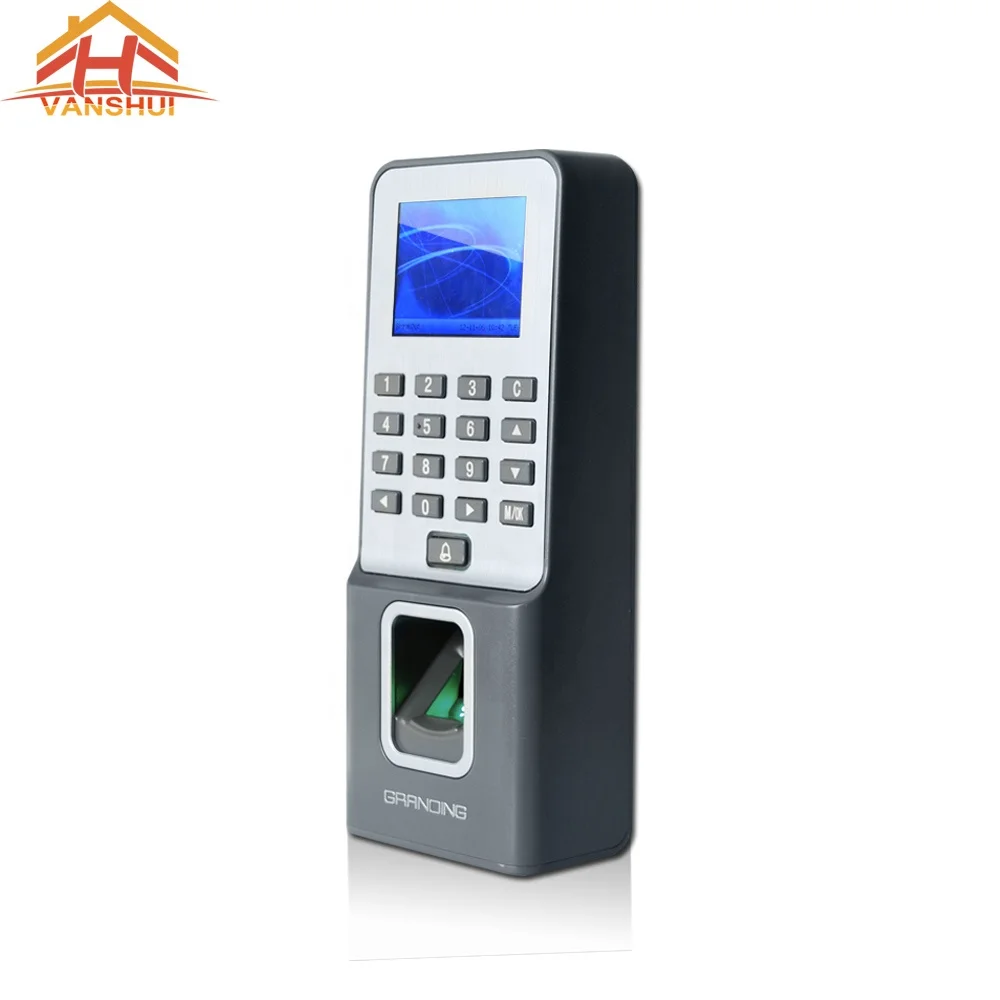

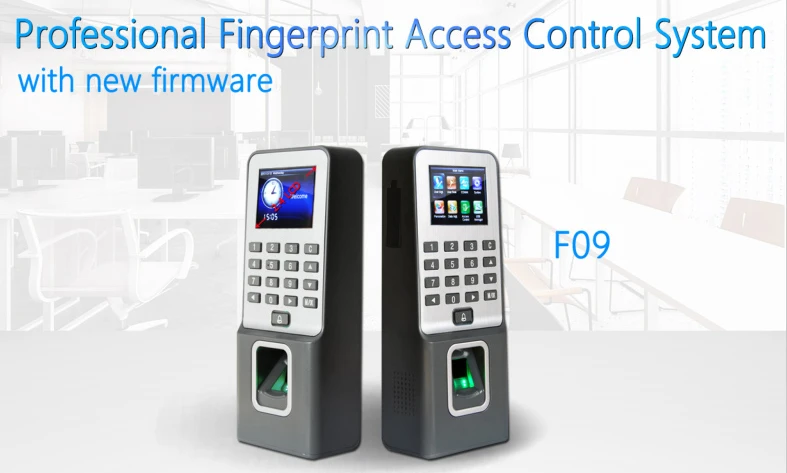

Model: F09
Fingerprint+Passwrod Access Control and Time Attendance system with TCP/IP, USB port and RS485/232.


Features


Features
Latest fingerprint algorithm with friendly user interface.
Support TCP/IP, RS232/485, USB and wiegand in/out.
Special user-role and fingerprint expired management.
ID card/ MF card can be customized.
Up to 66 user-defined schedule bell.
Connect with slave reader easily.
Easy to connect with Barcode reader.


Specification


Model
F09
LCD Display
2.4’’ TFT LCD color screen
Speaker
Voice prompt (language can be selected)
Language
Multi language, English, French, Spanish, Arabic, Turkish, Portuguese, Czech, Hebrew, Slavic, Vietnamese etc., for more than 40
languages can be selected
Capacity
Fingperint:4,000 Logs:100,000
Verification
Verification Speed(1:1) ≤0.5s
Identification Speed(1:1) ≤1s
Identification
FRR: ≤0.01%
FAR: ≤0.0001%
Attendance Status
Check in, Check out, Break in, Break out, Overtime in, Overtime out
Communications
TCP/IP, RS232/485,USB Host, Wiegand in/out
Power Supply
110/220VAC-12VDC (PS-3A is optional item)
Environment
Operation temperature: 0 ~ 45 degree
Operation humidity: 20% ~ 80%
Function Support
Professional access control; built-in relay; 50 time zones; 5 groups and 10 combinations; Dismantlement alarm; break-in alarm;
Dress alarm; DST; Scheduled bell; SMS; Auto-status; Webserver; Anti-pass back; T9 input
Distinctive Function
User role management, Fingerprint expired date setting
Shortcut key setting, Fingerprint image display, 9 PIN user ID,

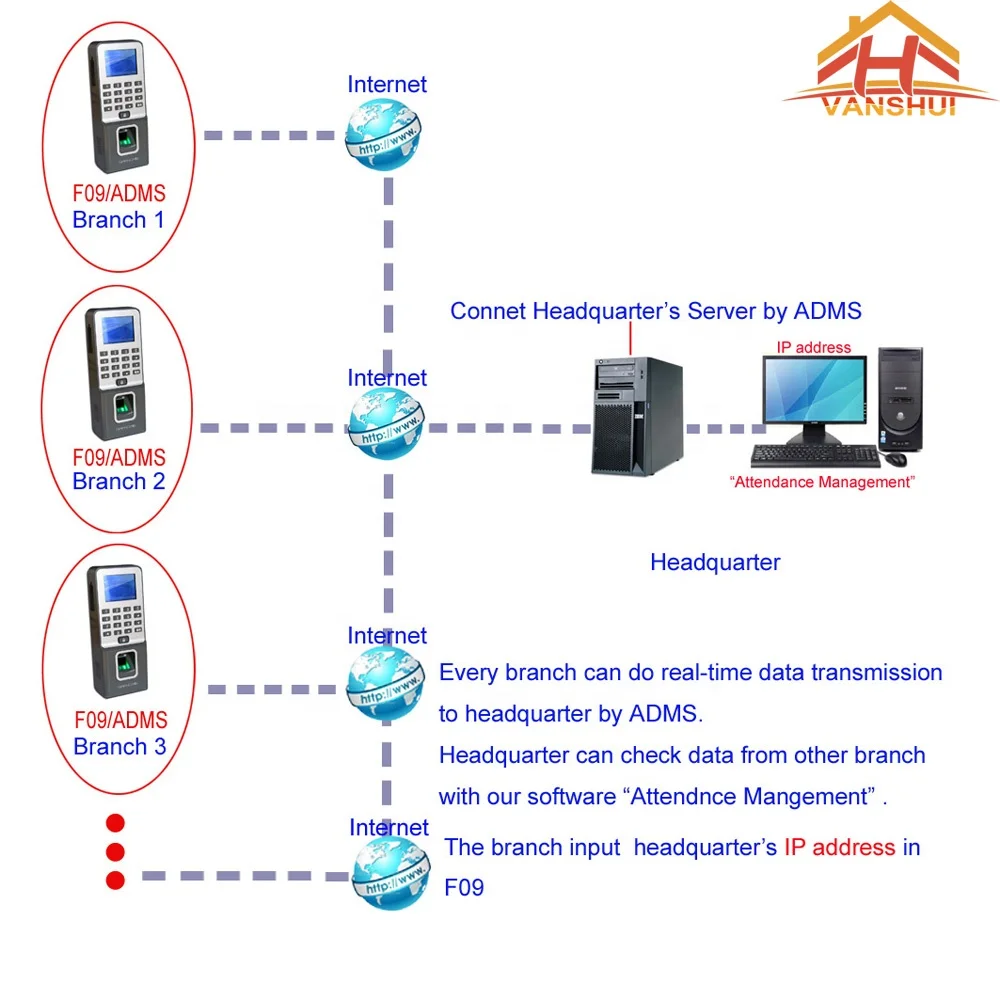

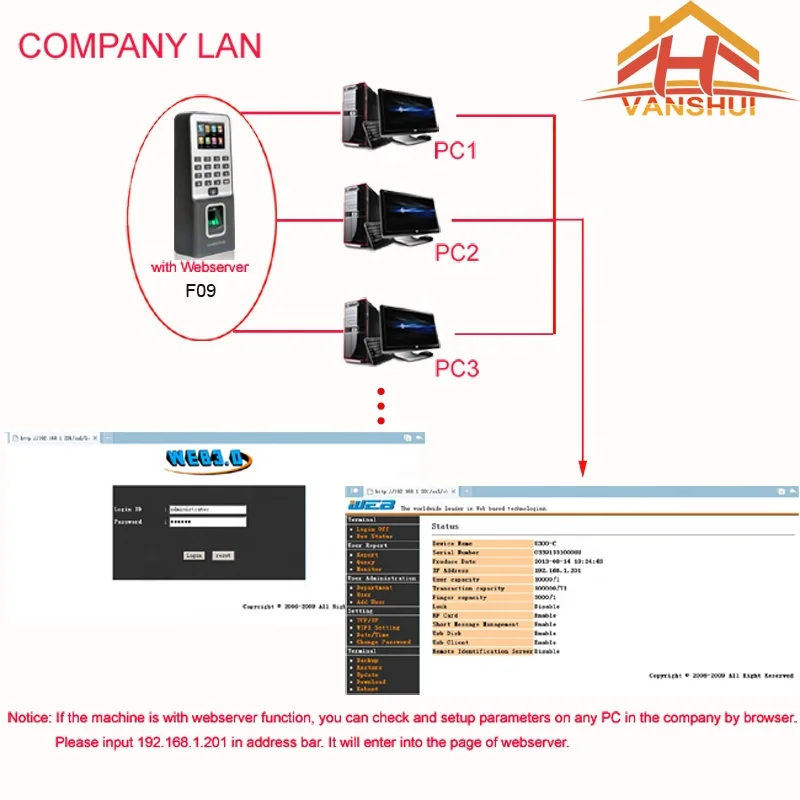

Main-screen picture change, External bell, ADMS, Webserver,
Customized function
ID card reader, MF card reader, Print function, Barcode reader
Package Info.
Machine size:18.5(L)*7.5(W)*4(H)cm
Unit packing:25*15*9cm
Carton packing:53*33*45cm
Real weight:0.95kg
Volume weight:1kg

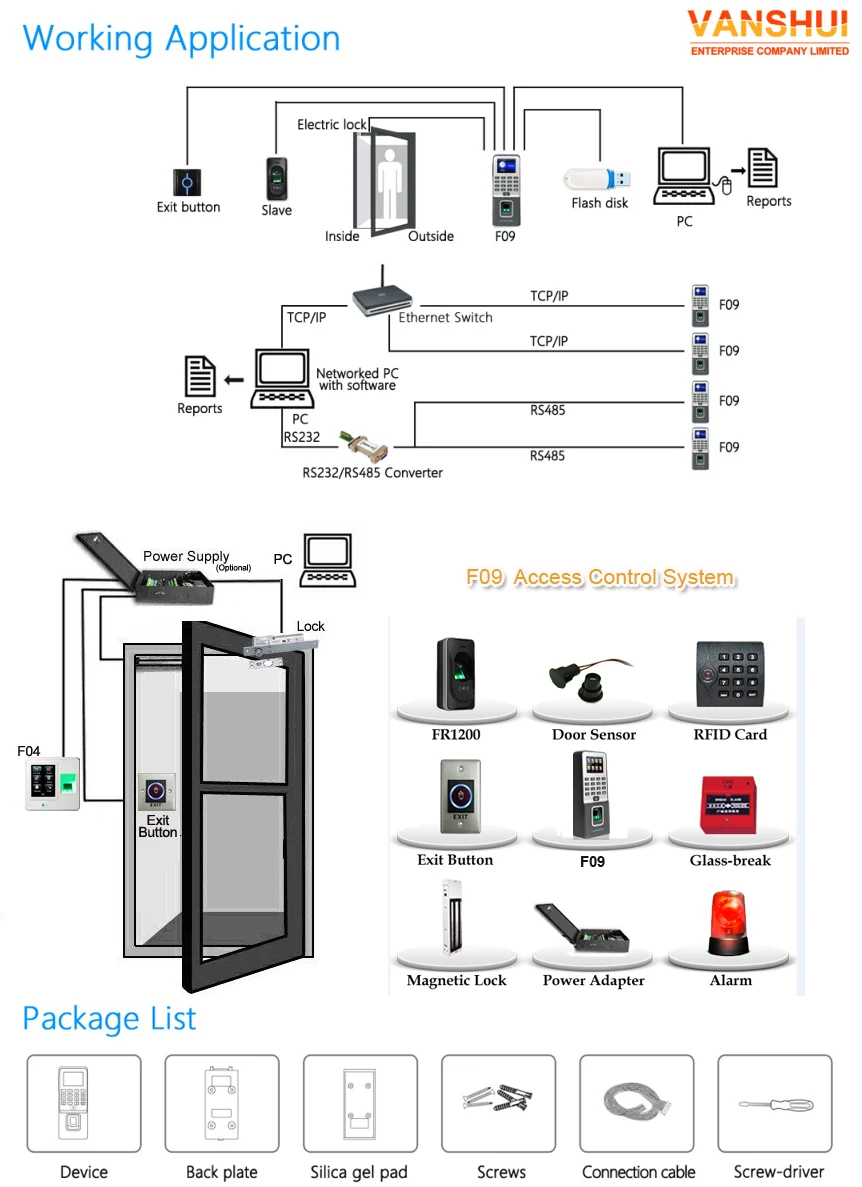

Diagram

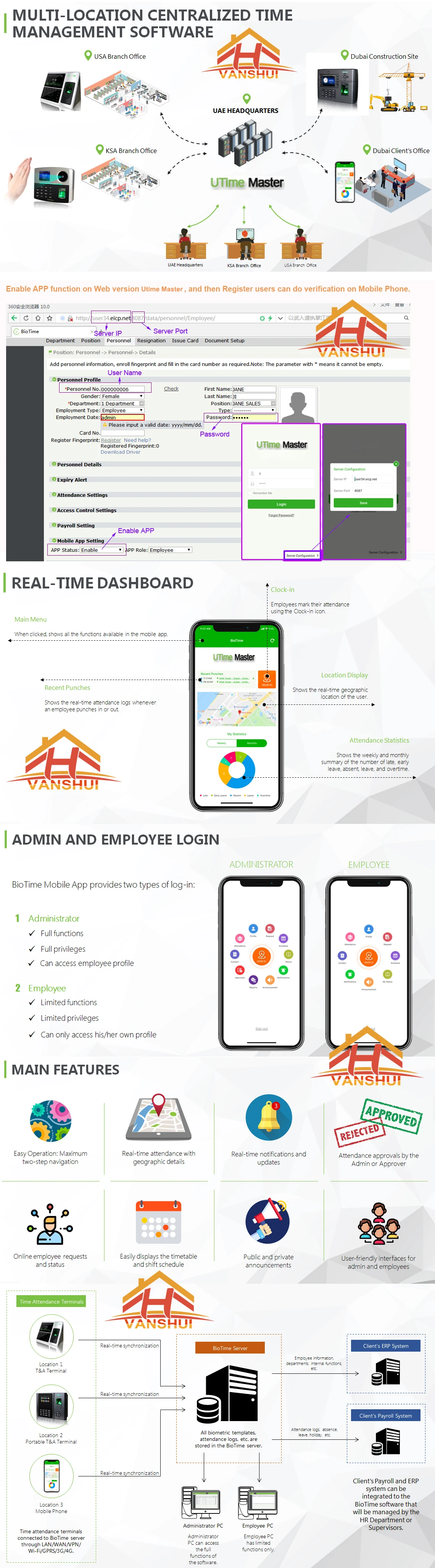

Software
