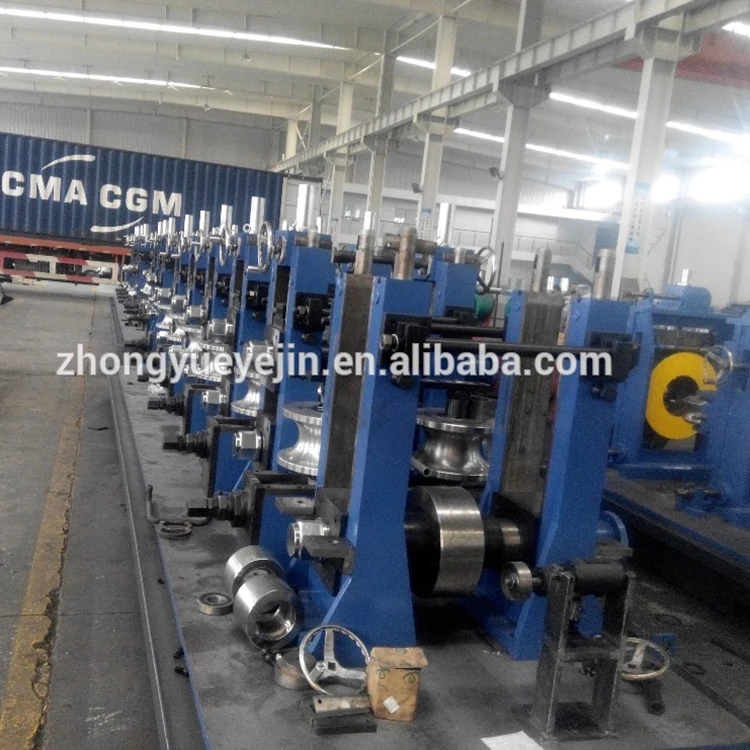

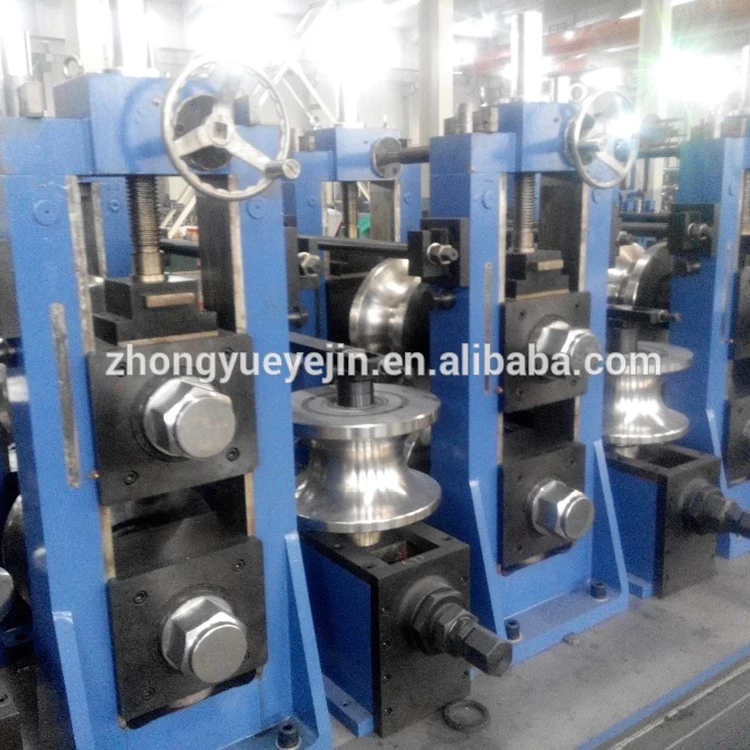

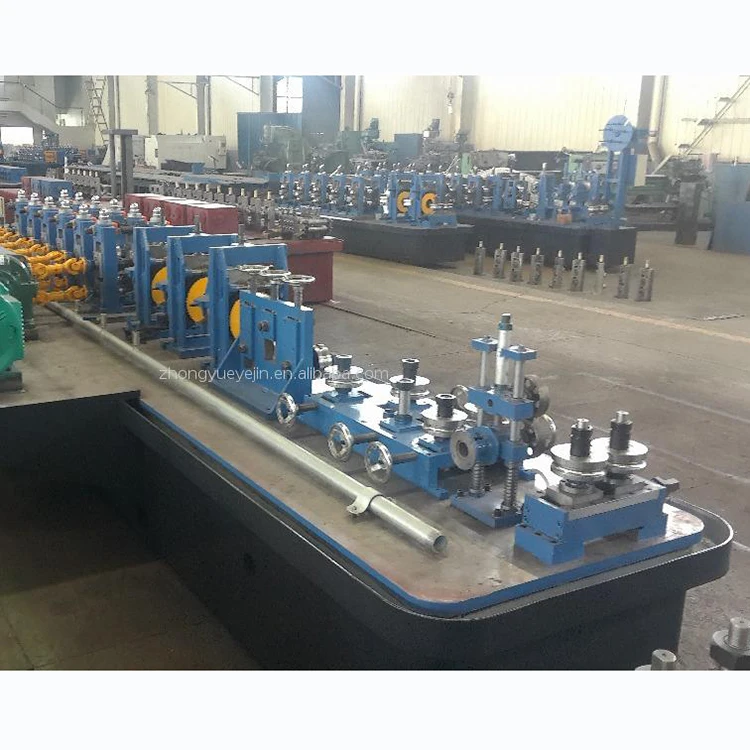

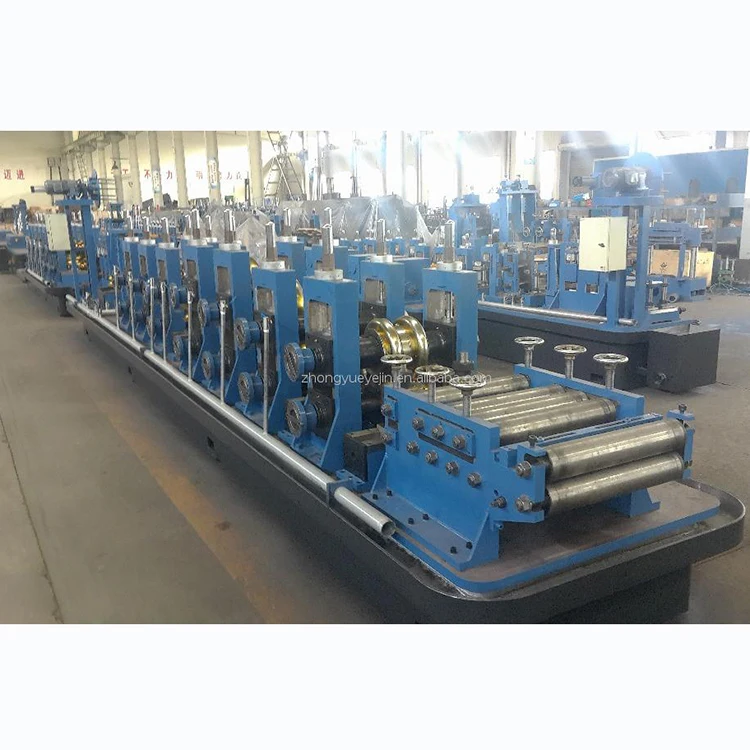

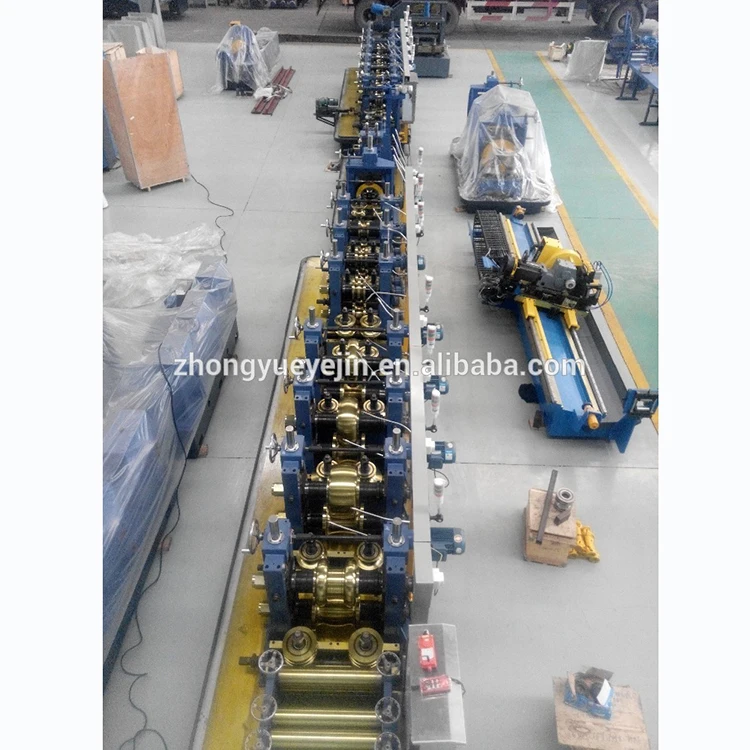

Customizable high frequency welded pipe mill/steel pipe making machines
- Category: >>>
- Supplier: Zhangjiagang Zhongyue Metallurgy Equipment Technology Co. Ltd. [Jiangsu China]Zhangjiagang
Share on (60696697385):
Product Overview
Description
Product Description

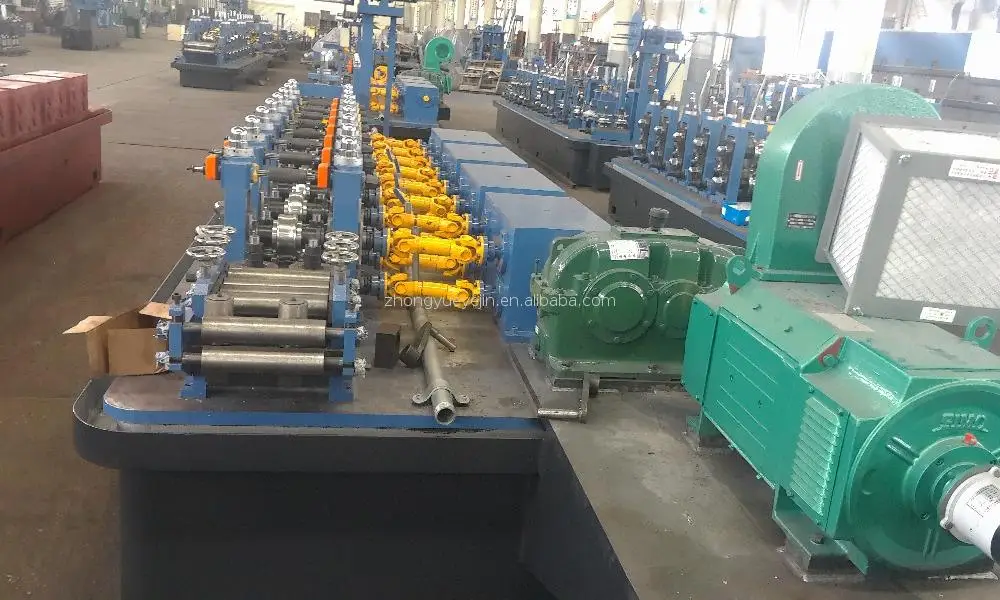

Customizable high frequency welded pipe mill/steel pipe making machines
Product details
| Type Of Welding | High Frequency Welding |
| Application | Construction, Water And Gas Transportation |
| Type Of Forming | Forming By Rollers |
| Feature | High Speed. High Precision |
| Special Requirement | Can Be Design As Per Customer Requirement |
| Line speed | 50m/min |
| Tube length | 4m-12m |
| Wall thickness range | 2.0mm-8.0mm |
| Product Keywords | unique steel pipe making machine |
Features:
Steel Pipe Making Machine specification
Accordingly to the market demands. We are given the standard models as blew, and this is for your reference only, the production range and main technical can be adjustable suppose your company have special requirement.
| Steel Pipe Making Machine Specification | |||
| Mill Model | OD range (mm) | Thickness range(mm) | Line Speed(m/min) |
| ZY-16 | 7.6-16 | 0.3-1.0 | 120 |
| ZY-20 | 10-25.4 | 0.3-1.5 | 120 |
| ZY-32 | 12.7-38.1 | 0.6-1.8 | 120 |
| ZY-45 | 16-50.8 | 0.7-2.0 | 110 |
| ZY-50 | 20-63.5 | 0.8-3.0 | 90 |
| ZY-60 | 25.4-76.2 | 1.0-3.2 | 80 |
| ZY-76 | 31.8-88.9 | 1.2-3.75 | 80 |
| ZY-89 | 33.4-101.6 | 1.2-4.5 | 75 |
| ZY-125 | 50.8-130 | 2.0-5.0 | 60 |
| ZY-165 | 76.2-168 | 2.0-6.0 | 50 |
| ZY-219 | 88.9-219 | 2.0-8.0 | 50 |
| ZY-273 | 89-273 | 3.0-12.0 | 40 |
| ZY-325 | 89-325 | 3.0-12.7 | 40 |
| ZY-406 | 114-406 | 4.0-16.0 | 40 |
| ZY-508 | 219-508 | 4.0-19.1 | 40 |
| ZY-610 | 273-610 | 4.0-19.1 | 40 |
| ZY-660 | 273-660 | 4.0-22 | 40 |
Related Products
COLD SAW FOR TUBE MILL
TUBE LINE
STEEL TUBE FORMING MACHINE
STEEL PIPE PRODUCTION LINE
Company Information
Zhangjiagang Zhongyue Metallurgy Equipment Technology Co., Ltd is located in Xiangshan Road,Jingang Town, Zhangjiagang City, Jiangsu Province, China. With the registered capital of RMB20,000,000 yuan, the company specialize in manufacturing high-frequency precision welded pipe lines, H-Beam steel pipe line, slitting machine, cold roll forming machine, cold rolling machine, angle steel machine, cold cutting saw machine etc.. At present, the annual production capacity is more than 150 sets.
The company products are widely applied in the industries of welded pipe manufacturing, sportsproducts, fitness equipment,medical apparatus and instruments, children’s goods, furniture, household electrical appliances, vehicles, ship building, petroleum transportation and power station etc..
Our Advantages
certifications
Packaging & Shipping
PACKAGE:
Export sea worthy Package
DELIVERY TIME:
3 Month after received the advance
