wholesale 20 ton 2 or 3 jaws hydraulic bearing wheel pulling hydraulic gear puller

Product Overview

Description

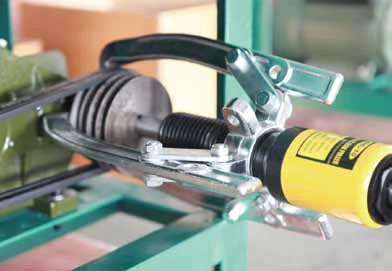

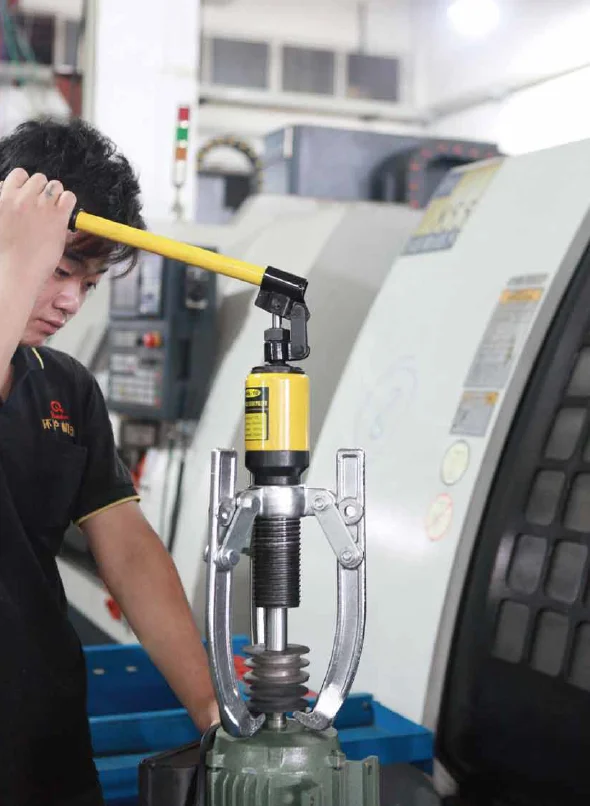

Apllication



TLP Hydraulic pullers are ideal replacemnent of conventional pulling tools. These hydrauli cpullers eliminate time-consuming and unsafe hammering, heating or prying. Damage to parts is minimized through the use of controlled hydraulic power











Specification

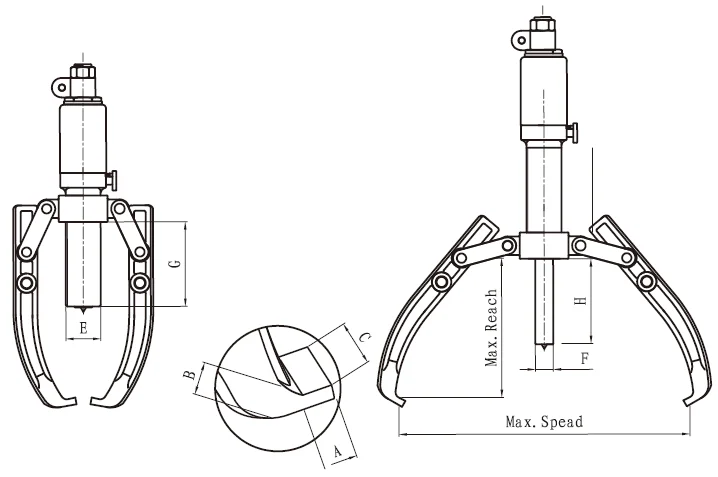

Model	Output (Ton)	Spread (mm)	Max Reach (mm)	Ram stroke (mm)	Dimensions(mm)						Weight (Kg)	Packing size (cm)
					E	F	G	A	B	C
HHL-5	5	50-200	140	50	45	23	106	12.5	22.5	26	7.6	42×29×9
HHL-10	10	50-250	170	60	56	26	97	14	30	30	10.1	43×33×11
HHL-20	20	100-350	205	70	78	33	105	21	33.5	33	18.6	44×35×13
HHL-30	30	150-400	220	70	90	38	103	26	36	35	24.2	48×20×18
HHL-50	50	200-500	250	60	114	48	117	25	46	40	42.9	52×25×22











Characteristics

These tools are designed for removing a wide variety of gears, bearings, bushings, pulleys and other press-fitted parts.

Use with 2 or 3 jaws.

High quality,forged steel jaws and crosshead provide superior

reliability and service.

Precise hydraulic control allows fast,efficient and safe pulling.

High force hydraulic system for effortless pulling of large components.

More efficent pulling,as one man can do the job where manual

pullers ofter require two operators.

Spring loaded live centering cone.

Handy release knob.

Bladder type oil reservior.

Rapid adjustment.

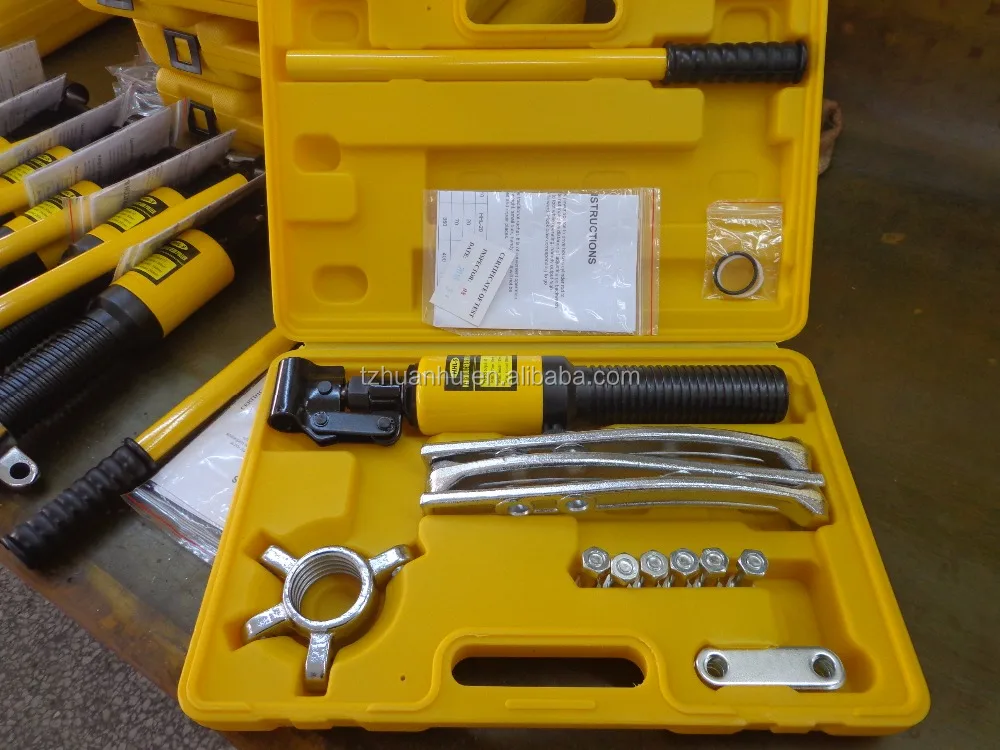

5, 10 and 20 ton sets all contained in a plastic carry case. 30 and 50 ton sets all contained in a robust wooden box.
