Yinuo link outdoor AR9344 5.8G high power distance wireless ap/cpe openwrt LTE 5G cpe
- Category: >>>
- Supplier: Shenzhen Yinuo-Link Co. Ltd.
Share on (60696853473):
Product Overview
Description
High Power 5G WiFi Router Module

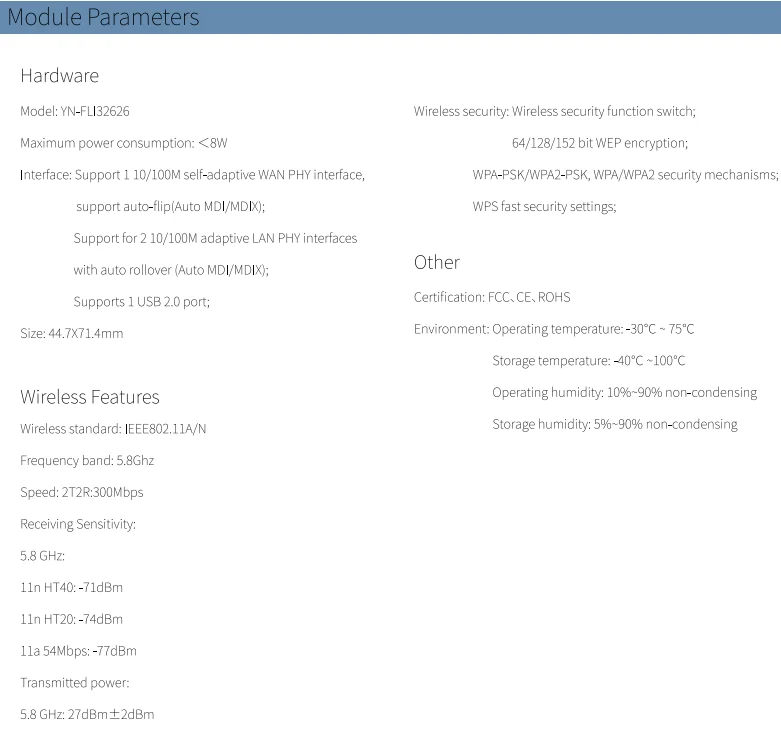

Specifications
Protocol | IEEE802.11A/N |
Chipset | AR9344/600MHz |
Memory | DDR2: 64MB |
FLASH | 8MB, can be extend to 16MB |
Wireless Rate | 2T2R: 300Mbps |
Frequency | 5.8Ghz |

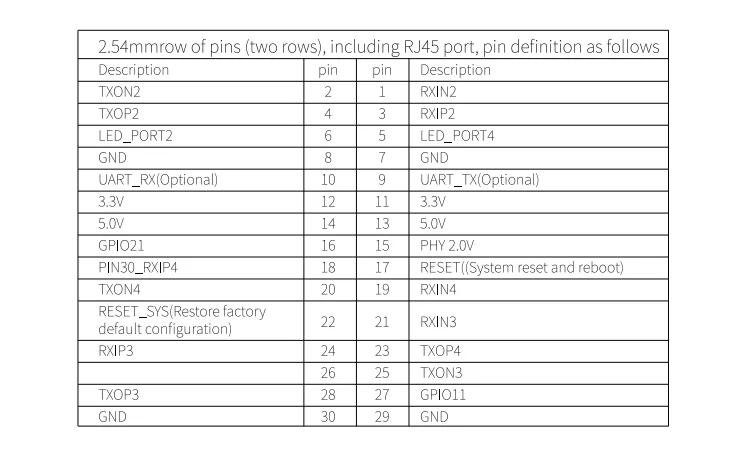

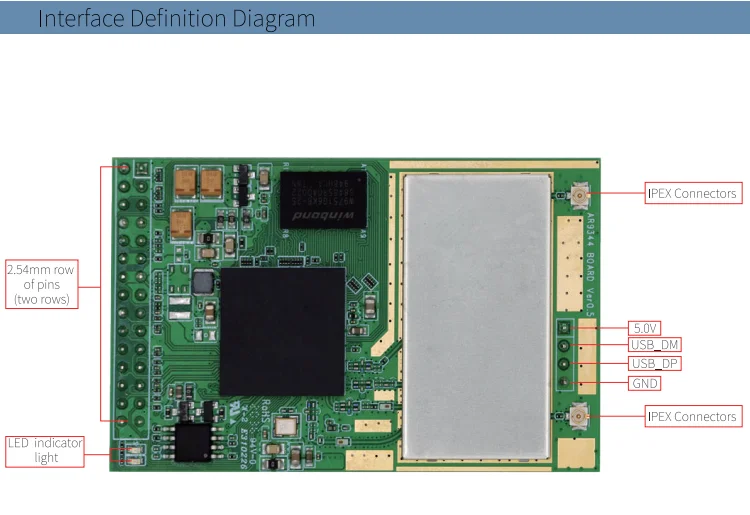

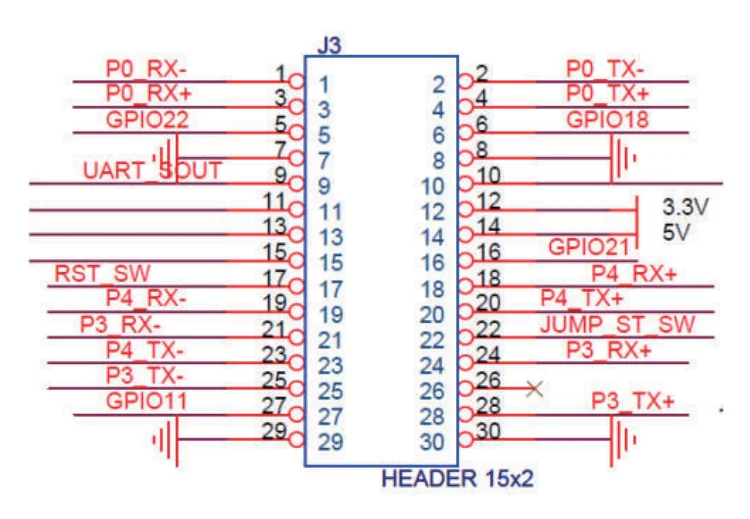

Interfaces | 1*10/100M self-adapting WAN PHY interface and supports auto flip (Auto MDI/MDIX) 2*10/100M self-adapting LAN PHY interfaces and supports auto flip (Auto MDI/MDIX) 1 USB 2.0 interface |
Max.Power Consumption | < 3W |

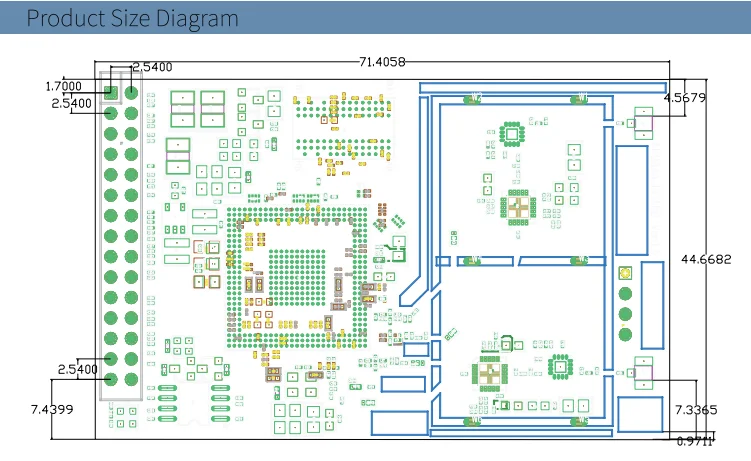

Dimension | 44.7X71.4MM |
Working Environment | Operating Temperature:-30℃ ~75℃; Storage Temperature:-40℃ ~100℃; Operating Humidity:10% ~90%RH (Non-condensing) Storage Humidity:5% ~90%RH ( Non-condensing)
|

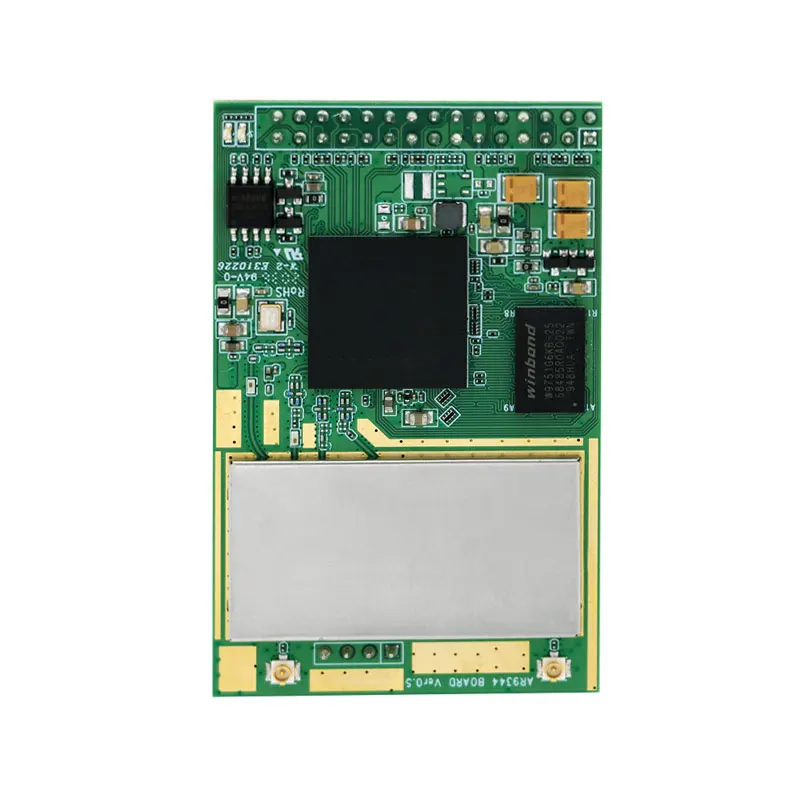

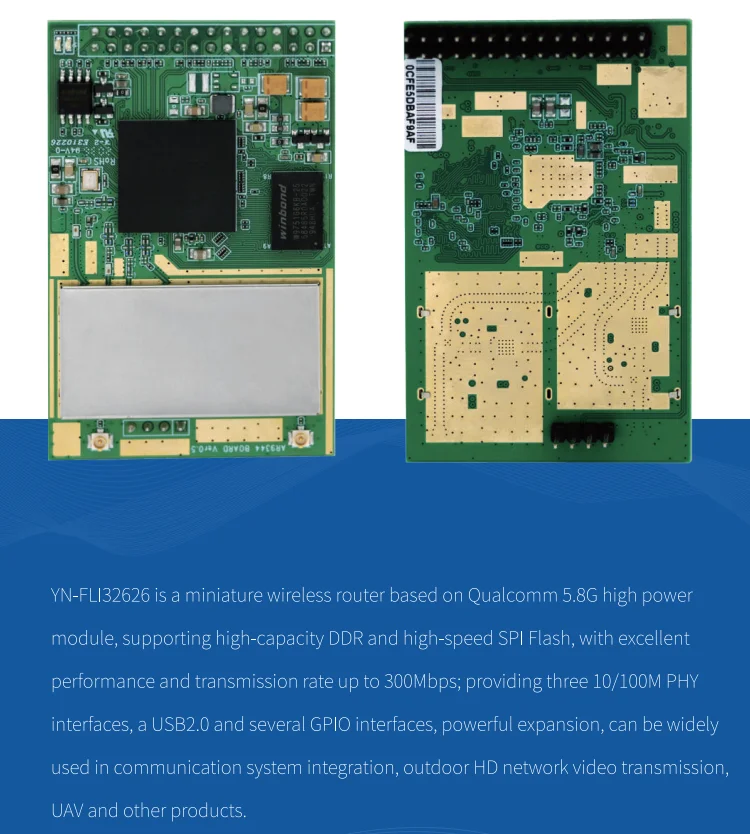

YN-FLI32626 is a type of high-power mini wireless router core module using Qualcomm AR9344 5.8G chipset. It supports high-capacity DDR and high-speed SPI Flash with excellent performance and transmission rate up to 300Mbps. Provides 3 of 10/100M PHY interfaces, 1 USB 2.0, and several GPIO interfaces. Extended functionality is powerful, and can be widely used in communication system integration, outdoor HD network video transmission, drones, and other products.
