Best selling coconut shell activated carbon charcoal production line 0086 15617575581

Product Overview

Description

Best selling coconut shell activated carbon charcoal production line Skype evazhao06

Whats app 0086 15617575581

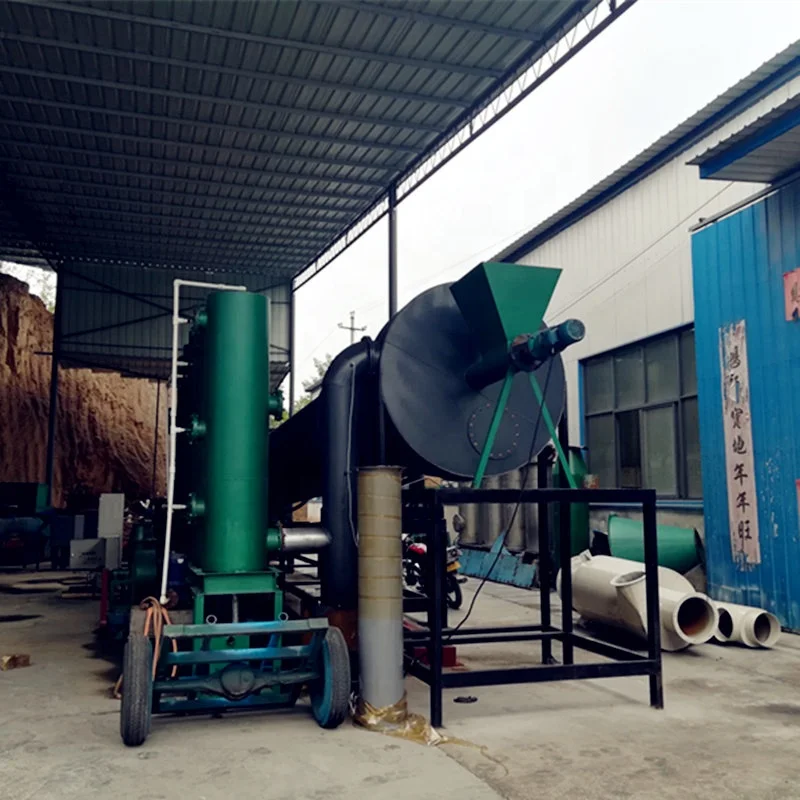

Brief introduction of coconut shell activated carbon charcoal production line

Coconut shell activated carbon charcoal production line used for deal with small size raw material, such as sawdust, rice husk, wood chips, jute stick, coconut shell which after crushing, this is new technology and environment friendly charcoal processing machine, with control cabinet.



Technology parameter for coconut shell activated carbon charcoal production line

Coconut shell activated carbon charcoal production line	Capacity: It could deal with sawdust 1.2-1.5tons/h Deal with coconut shell 1.5-2tons/h   Weight: 28tons   Carbonization body  Diameter: 1.4m                Length: 14m Complete machine size Length: 20m  Width: 2.2m  Height: 3.2m Input raw materials size ≤6cm Function: carbonizing the raw material to charcoal, could carbonize rice husk, sawdust, coconut shell



Raw materials and final products for coconut shell activated carbon charcoal production line

This machine is very suitable for caronized small size biomass material, such as sawdust, rice husk, wood chips and etc. It with high efficiency, could carbonized those material totally, the final charcoal could use for making activated carbon.



Main technology for coconut shell activated carbon charcoal production line

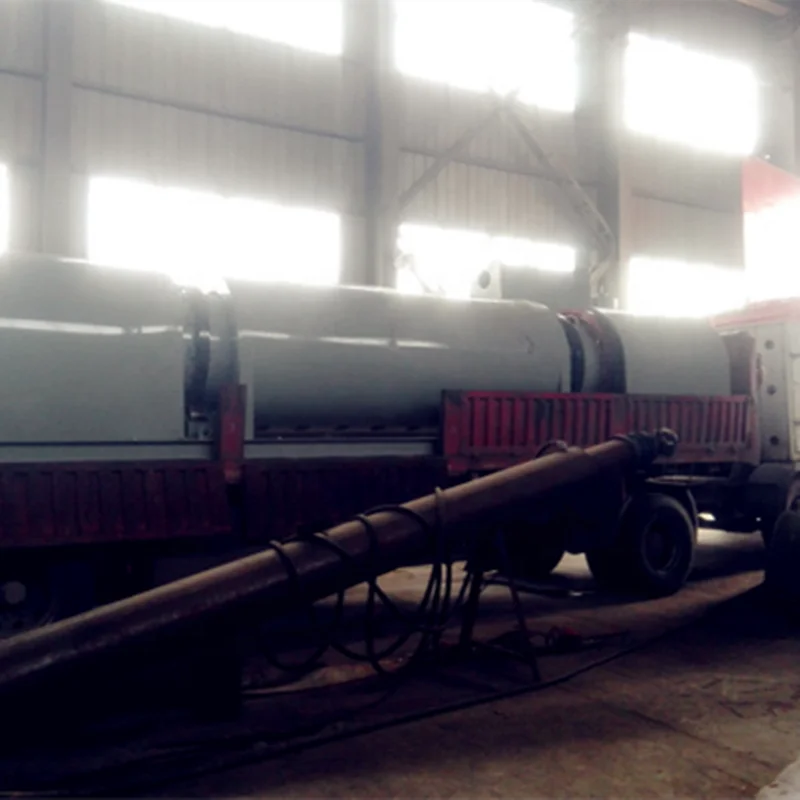

1.New design, the cabonization furnace body: diameter 1.4m, length 14m with three-layer body, the inside is high quality insulating refractory brick, the middle layer is insulated nanometer materials to to prevent temperature loss. The outside layer is 12mm steel plate, with long life-time.

2.The carbonizaing temperature could reach 600-1000℃, and machine working speed is

adjustable, for different materials, we suggest different temperature and working speed to sure

the material can totally carbonized, get high quality charcoal.

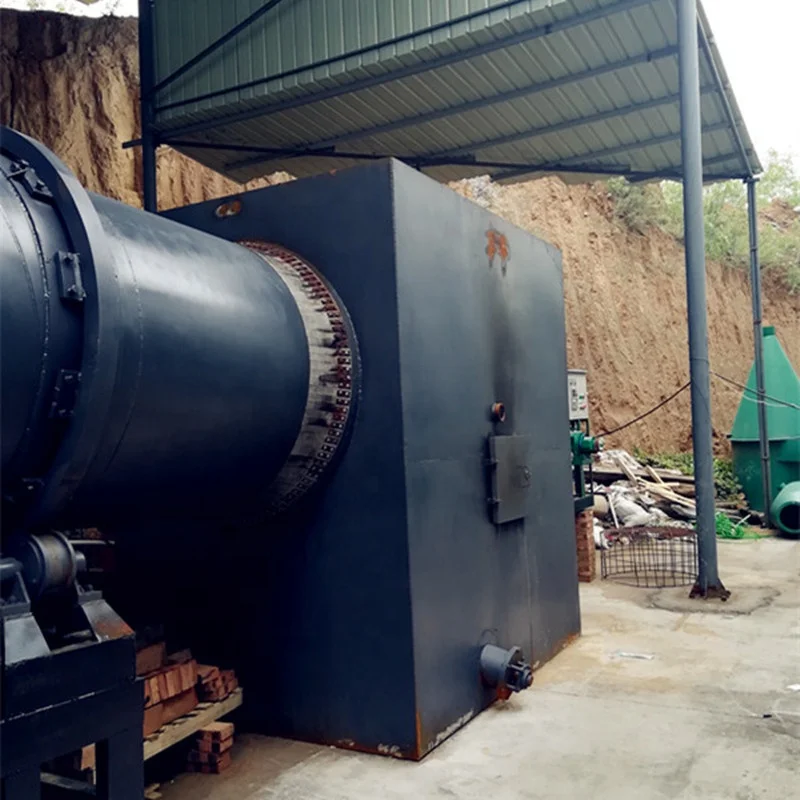

Catalytic Furnace

1.Match catalytic furnace, put the sawdust to catalytic furnace. Then it will deal with sawdust

and producing combustible gas, the combustible gas burning to increase temperature, there is no any smoke and dust producing, when the temperature reach 600-100℃. The carbonization furnace start working.

2.When the catalytic furnace producing gas, it's burning and heating inside of buffer device,

there is no light fire producing. It’s secure and energy-saving low temperature heat supply equipment.



Smoke treatment system for coconut shell activated carbon charcoal production line

The whole system has 4 functions, removing dust, filtering the tar oil, purify smoke

condensation chemical substances and cooling charcoal. When carbonization machine deal with sawdust, or rice husk those material to making charcoal. It will produce some smoke, dust, tar oil and chemical product, this system is our latest technology to deal with smoke and tar oil, has good environment projection.



If you are interested in this coconut shell activated carbon charcoal production line, welcome to contact with me freely as the followings:
